BARCO PROJECTION SYSTEMS

Rev 00

RETRO BLOCK DATA

INSTALLATION MANUAL

Date : 200598

2100LC

R9001168

Art. No : R5975349A

BARCO nv/Projection Systems

Noordlaan 5

B-8520 Kuurne

Belgium

Tel : +32/56/368211

Fax : +32/56/351651

E-mail : [email protected]

Visit Barco at the web : http://www.barco.com

Printed in Belgium

FEDERAL COMMUNICATION COMMISSION (FCC STATEMENT)

This equipment has been tested and found to comply with the limits of a class A digital device, pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction

manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at his own expense.

Note :

The use of shielded cables is required to comply within the limits of Part 15 of FCC rules and EN55022.

* All the safety and operating instructions should be read before using this unit.

* The safety and operating instructions manual should be retained for future reference.

* All warnings on the equipment and in the documentation manuals should be adhered to.

* All instructions for operating and use of this equipment must be followed precisely.

Due to constant research, the information in this manual is subject to change without notice.

Produced by BARCO NV, May 1998.

Trademarks are the rights of their respective owners.

i-1

Table of Contents

5975349A RETRO BLOCK DATA 2100LC 200598

iTABLE OF CONTENTS

TABLE OF CONTENTS ......................................................................................................................................................... I-1

POWER CONNECTION ...................................................................................................................................................... 1-1

Power (mains) cord connection ......................................................................................................................................................... 1-1

Fuses .................................................................................................................................................................................................. 1-1

Switching on ....................................................................................................................................................................................... 1-1

Lamp lifetime ....................................................................................................................................................................................... 1-2

Switching to stand-by. ........................................................................................................................................................................ 1-2

Switching off ...................................................................................................................................................................................... 1-2

PASSWORD SET UP ........................................................................................................................................................... 2-1

How to Enable or Disable the Password ........................................................................................................................................... 2-1

How to Change the Password Menu ................................................................................................................................................. 2-2

OFF-AXIS PROJECTION ..................................................................................................................................................... 3-1

Off-axis projection .............................................................................................................................................................................. 3-1

Adjustment Procedure ........................................................................................................................................................................ 3-1

1-1

Power Connection

5975349A RETRO BLOCK DATA 2100LC 2005984

Stand by button

























(17(5

3$86(



3+$6(

)5( (=

7( ;7

(;,7$'-

$''5

67%<

6+$531(66

7,17

&2/25

%5,*+71 (66

&2175$67

087(



%$/$1&(



75(%/(



92/80(



%$66

+(/3

&2/25

3+$6(

6+$531 7,17 %5,*+71

67$1'%<

(17(5

7(;7

(;,7

3$86(

















&2175$67

POWER CONNECTION

Fuses

Warning

For continued protection against fire hazard :

- replace with the same type of fuse.

- refer replacement to qualified service personnel

Fuse type : T16 AH/250V Order no. : B370076

Switching on

Use the power switch to switch on.

When '0' is visible, the projector is switched off.

When '1' is visible, the projector is switched on.

When switching on with the power switch, the projector starts in the

stand by mode.

To start image projection, press the 'Stand by' button on the local key-

pad or on the remote control.

Power (mains) cord connection

Use the delivered power cord to connect your projector to the wall

outlet. Plug the female power connector into the male connector at

the front of the projector.

The power voltage for the projector is indicated on the identification

plate on the rear of the projector.

The projector input voltage is fixed on 120 Vac.

This projector may be connected to an IT-power system.

$8',2,1&

$8',2,1%

$8',2,1$

9,'(2

9,'( 2

69, '(2

5*%+&9

/5 /5 /5 /5

5 5

+& +&

3257

3257

3257

32573257

5628756,1

&2003257

&75/

KDUGZLUHUHPRWH

2KP:

/5

 

72/2&$/&21752/21/<

$8',2287

$8',2



$8',2



$8',2



/5 /5 /5 /5

 

$8',2



287

1-2

Power Connection

5975349A RETRO BLOCK DATA 2100LC 200598

Switching to stand-by.

When the projector is running and you want to go to stand-by, press

the stand-by key.

Caution : Before powering down the projector, switch the projector

to stand-by and let the projector lamp cool down until the fans stop

blowing (or for at least 15 minutes).

Switching off

To switch off:

- Press first STANDBY key and let cool down until the fans stop

blowing (or at least 15 minutes).

- Switch off the projector with the power switch.

Lamp lifetime

30 hours before end of lamp lifetime, the following message will

scrolling over the screen for 1 minute. This message will be repeated

every 30 minutes. Press EXIT to remove the message before the

minute is over.

When the end of lamp lifetime is reached, the following message, with

the exact run time is displayed on the screen.

Lamp run time is 1000 hours. Operating the lamp longer than 1000

hours may damage the projector. Please replace the lamp.

When OK (ENTER) is pressed to go on, the warning will be repeated

every 30 minutes.

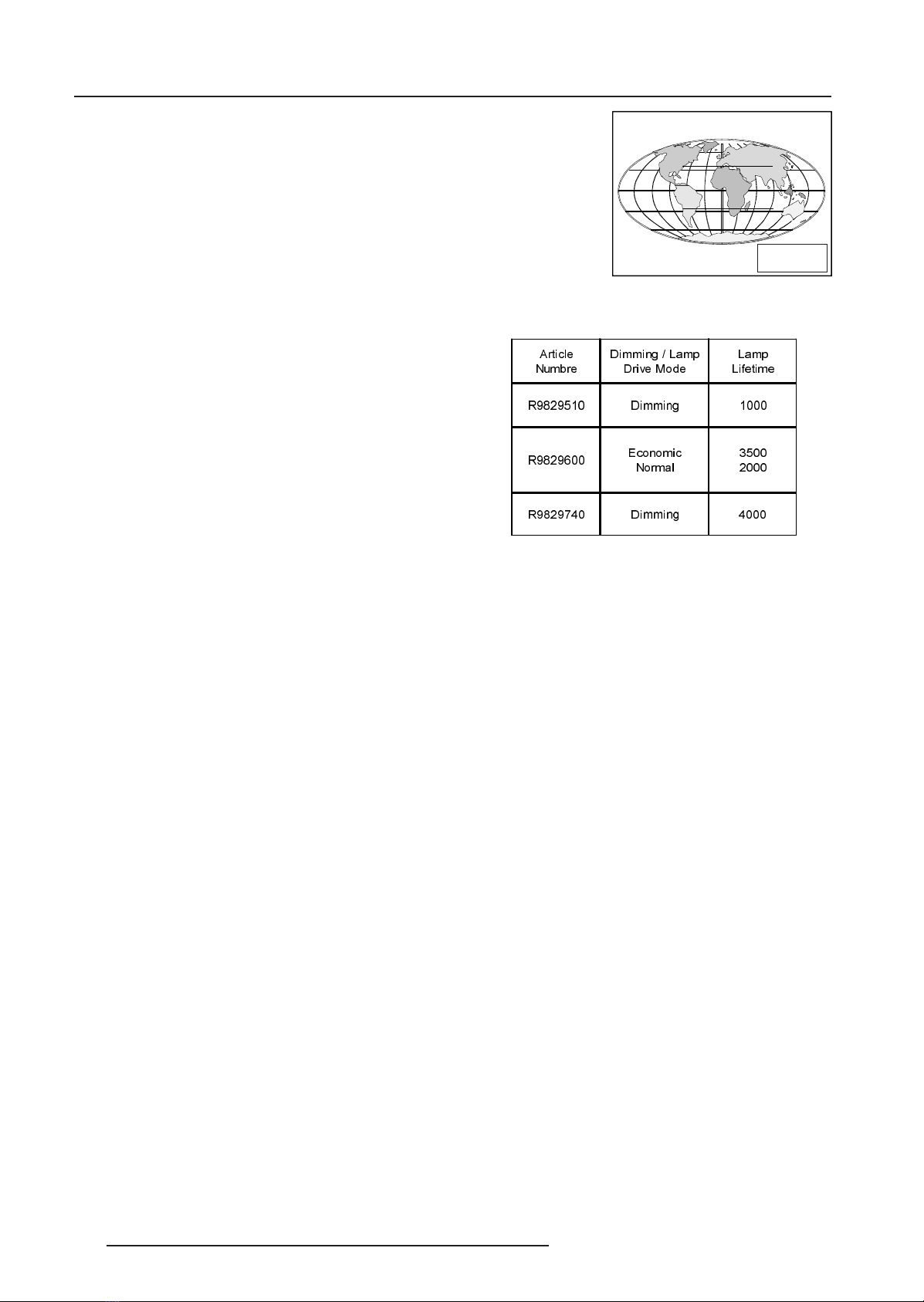

The total lifetime of the lamp for a safe operation is depending on the

type of lamp and on the operating mode. The different values are

shown in Table 1.

Do not use it longer. Always replace with a same type of lamp. Call

a BARCO authorized service technician for lamp replacement.

Warning : Using a lamp longer than Lamp Lifetime

is dangerous, the lamp could explode.

Note: Switching the projector off and on again, adds

a penalty time of 45 minutes to the lamp run time.

Remaining lamp

run time: 20

hours

Table 1

$UWLFOH

1XPEUH 'LPPLQJ/DPS

'ULYH0RGH /DPS

/LIHWLPH

5 'LPPLQJ 

5 (FRQRPLF

1RUPDO 



5 'LPPLQJ 

2-1

Password Set Up

5975349A RETRO BLOCK DATA 2100LC 200598

2PASSWORD SET UP

How to Enable or Disable the Password

The password function is enabled/disabled when the password

strap plug on the controller circuit board module is installed in the

specified way. To get access to the controller circuit board module,

proceed as follows:

Remove top cover of projector as described in point of the

'voltage adaptation procedure' in Chapter 1 'Power Connection'.

The password strap on the controller circuit board module will

now be visible.

The strap plug can be seen approximately half way down on the

left side of the circuit board. To change its position just unplug by

pulling it out of its pins. The choice of password function is a user

definable decision!

a. When the password strap is inserted into the right pin and the

middle pin the password function is enabled.

b. When the password strap plug is inserted into the left pin and

the middle pin the password function is disabled.

PASSWORD

STRAP

PLUG

CONTROLLER

CIRCUIT

BOARD

MODULE

Once the password strap plug position has been chosen it is

necessary to secure the projector. Follow the instructions in reverse

order to reassemble the projector.

PASSWORD

STRAP PLUG

- ENABLE

PASSWORD

STRAP PLUG

- DISABLE

a. b.

2-2

Password Set Up

5975349A RETRO BLOCK DATA 2100LC 200598

SERVICE

IDENTIFICATION

CHANGE PASSWORD

CHANGE LANGUAGE

CHANGE PROJ. ADDRESS

CHANGE BAUDRATE PC

RESET LAMP RUN TIME

LAMP RUN TIME HISTORY

LAMP DRIVE MODE

CHANGE PASSWORD

ENTER NEW PASSWORD

0000

SELECT WITH çOR é

THEN <ENTER>

<EXIT> TO RETURN

How to Change the Password Menu

First enter into the Service mode (refer to the Owners manual Chapter

10 for exact procedural steps.)

Then highlight Change password by pressing the control disc up or

down.

ENTER displays the Change Password menu.

EXIT returns to the adjustment selection menu.

The old password is displayed and can be changed by entering the

digits with the numeric keys of the RCU or local key-pad.

Press ENTER to save the new entered password.

Press EXIT if no changes have to be made.

3-1

Off-axis Projection

5975349A RETRO BLOCK DATA 2100LC 200598

3OFF-AXIS PROJECTION

Off-axis projection

The projector can be adapted to off-axis installation in order to meet

environmental conditions. The range within which the projection

angle can be changed is 0° (= on-axis) to 10° downwards for the

QSD(0.8:1) and QSD(1.2:1) lens.

For every possible installation a number of things have to be geared

for one another:

- chosen lens : QSD(0.8:1) or QSD(1.2:1)

- position of the lens mounting, called 'discrete off-axis'

- internal conversion-kit: for each projection-angle/lens combi-

nation a different fresnel-lens is needed (see Table 1)

- mechanical shift

Table 1

5HDU7DEOH

3URMHFWLRQDQJOH

* Note: These combinations are not recommended! The optical

performance towards the corners of the image is reduced.

Adjustment Procedure

Note: for servicing the projector a special tool kit is available with the

Order No R9829530.

a) Changing the discrete off-axis

The discrete off-axis is determined by the position of the fixing

screws in the adaptation holes of the lens mounting. On the lens

mounting, each of the holes of the upper-right set have the

corresponding projection-angle/lens combinations indicated.

3URMHFWLRQDQJOH /HQV46' /HQV46'

 5. 5.

 5. 5.

 5. 5.

 5. 5.

 5. 5.

3-2

Off-axis projection

5975349A RETRO BLOCK DATA 2100LC 200598

A B

In order to change the discrete off-axis, the procedure described

below has to be executed.

Remove the lens from the lens holder by turning it counter

clockwise and put it in safe place (where it can't fall or be

scratched by something).

Turn out the indicated fixing screws while carefully holding the

lens mounting (otherwise it will fall). When all of them are

removed, take the lens mounting a few centimetres away from

the projector and unplug the connector of the IR receiver

(yellow cabling with white connector) on the right side of the

lens mounting.

Check if the sealing plate for diffused lightning is in the correct

position.

The position of the plate is depending on the chosen projection-

angel/lens combination:

If this is not the case, then undo the screws indicated with an

arrow, remove the plate, place it back in the correct position and

fix it.

3URMHFWLRQDQJHO/HQV 3RVLWLRQVHDOLQJSODWH

IRUGLIIXVHGOLJKWQLQJ

 $

 $

 $

 $

 $

 %

 %

 %

 %

 %

 %

 %

3-3

Off-axis Projection

5975349A RETRO BLOCK DATA 2100LC 200598

èè

Remount the lens mounting in such a way that the holes

corresponding to the chosen projection-angle/lens combina-

tion are just in front of the screw holes foreseen in the projector

housing for the fixing screws.

Put the screws in the screw holes and fasten them.

b) Changing the lens

Choose the lens to use:

Fresnel Lens

Place the chosen lens in the lens holder and turn it clockwise to

fasten.

c) Installing the internal conversion-kit.

Access the fresnel-lens by dismantling the projector as de-

scribed in point and of 'How to enable and disable the

password' in Chapter 2.

Turn out the 4 indicated screws numbered from 1 to 4.

Remove the installed fresnel lens.

Mount the fresnel lens corresponding to the chosen projection-

angle/lens combination and secure it with the 4 screws.

Reassemble the projector.

/HQV1DPH 2UGHU1R

46' 5

46' 5

Tabla de contenidos

Otros manuales de Proyector de Barco

Barco

Barco R9000972 Manual de usuario

Barco

Barco BARCOGRAPHICS 9200 Manual de usuario

Barco

Barco Galaxy NH-12 Manual de usuario

Barco

Barco DP2K-15C Manual de usuario

Barco

Barco CineVersum 120 Manual de usuario

Barco

Barco R9002384 Manual de usuario

Barco

Barco F70-series Manual de usuario

Barco

Barco DP2K-12C Manual de usuario

Barco

Barco R9000901 Instrucciones de funcionamiento y seguridad

Barco

Barco Orion 1080 Manual de usuario

Barco

Barco FL35 Manual de instalación

Barco

Barco Galaxy NH-12 Manual de usuario

Barco

Barco R9002370 Manual de usuario

Barco

Barco MSWU-81E Manual de usuario

Barco

Barco R9002130 Manual de usuario

Barco

Barco HDQ series Instrucciones de funcionamiento y mantenimiento

Barco

Barco R7628162K Manual de usuario

Barco

Barco FLM R22+ Manual de usuario

Barco

Barco ULTRA REALITY 7000 R9002810 Manual de usuario

Barco

Barco RETROGRAPHICS 808s Manual de usuario

Barco

Barco Galaxy 6 Classic+ Instrucciones de instalación

Barco

Barco RLM R6+ Performer R9010270 Manual de usuario

Barco

Barco CRPN-52B Manual de usuario

Barco

Barco F22 Series Manual de usuario

Manuales populares de Proyector de otras marcas

iEmmet

iEmmet MP-312 Manual de usuario

Epson

Epson VS400 Manual de usuario

Sony

Sony VPL-HS10 Marketing Specifications & Features Manual de usuario

Sony

Sony VPL-HW65ES Manual de servicio

Toshiba

Toshiba TLP-791U Manual de usuario

Philips

Philips LC1341 Guía de referencia

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manual de usuario

NEC

NEC NP600S EDU Manual de usuario

BenQ

BenQ SH753P Manual de usuario

Eiki

Eiki EK-623U series Manual de usuario

Epson

Epson PowerLite Pro Cinema 6020UB Manual de usuario

Epson

Epson PowerLite Home Cinema 705HD Manual de usuario

Christie

Christie LHD700 Manual de usuario

Navitar

Navitar FX Manual de usuario

InFocus

InFocus LitePro 560 Manual de usuario

Sony

Sony SRX-R815P Manual de usuario

Vivitar

Vivitar DP1500 X Manual de usuario

Acer

Acer C20 Series Manual de usuario
