BARCO PROJECTION SYSTEMS
Date :
060199
INSTALLATION MANUAL
KIT LAMP FOR 6300 PROJECTORS
R9829900
Art. No. :
R5975949
Rev :
01
Lamp 6300
Kit
Due to constant research, the information in this manual is subject to change without notice.
Produced by BARCO NV, January 1999.
All rights reserved.
Trademarks are the rights of their respective owners.
BARCO n.v./Projection Systems
Noordlaan 5
B-8520 Kuurne
Belgium
Tel : +32/56/368211
Fax : +32/56/351651
Visite Barco at the web : http://www.barco.com
Printed in Belgium
BARCO 3 Projection Systems
Safety
Who This procedure is intended for use only by qualified service technicians who have been
trained and authorized by BARCO !
Hot Surface and
Risk of
Explosion.
Switch the projector to stand by and let it cool down for at least 15 minutes before
starting with the lamp replacement.
These lamps consist of a quartz arc tube operating at very high temperature and high
pressure (20 bar) which may explode suddenly. There is a risk of personal injury and
property damage from hot quartz arc tube particles if handled incorrectly.
Risk of Electrical
Shock.
Power down the projector and unplug the power cord from the wall outlet.
Once the projector is cooled down and the power is off, continue with the replacement
procedure.
Lamp Life Time
Warning
The total lifetime of the lamp for safe operation is 750 hours maximum in normal power
mode.
Do not use it longer ! Always replace the lamp with the BARCO lamp kit for 6300
projectors.
BARCO 4 Projection Systems
Contents of the Kit
Lamp Type The kit contains a Metal Halide projection Lamp mounted in a housing together with the
reflector.
Precautions Do not touch the lamp with your fingers otherwise the lifetime of the lamp will be
reduced.
If the lamp is touched, finger prints can be removed by cleaning the lamp with alcohol.
Part Listing The following parts are in the kit :
R808017
R5975949
1FRMC G6300 LMP HSG +LMP
MAN INS G6300 LMP
Part Number Description Indication
Lamp Serial
Number
Each new lamp is marked with a serial number (6 digits). Write down this number in
the forseen area. The serial number has to be programmed when resetting the lamp
run time.
Serial number lamp : 0
Illustration of the
Kit
BARCO 5 Projection Systems
To be continued on next page.
Access to the Lamp Unit.
What has to be
done
- The lamp house door has to be opened.
- The lamp protection cover has to be removed.
Necessary Tools - a flat screwdriver 5 mm
Opening the
Lamp House
Door.
To open the lamp house door, follow the next procedure:
1
2
3
1
2
Turn with a screwdriver a quarter turn counter clockwise.
Open the door a little.
Unhook the door from its fixing points.
Step Action Image
Illustrations on
Opening the
Lamp House
Door.
Image 1
Image 2
BARCO 6 Projection Systems
Access to the Lamp Unit (Continued)
Removing the
Protection Cover
To remove the protection cover, follow the next procedure:
1
2
3
1Loosen with a screwdriver the four indicated bolts.
Pivote the plate a little downwards.
Take out the protection cover.
Step Action Image
Caution Hot surface.
Do not touch rotating fan blades.
High pressure lamp may explode if improperly handled. Refer servicing to qualified
service personnel.
Illustrations on
Removing the
Protection Cover
BARCO 7 Projection Systems
To be continued on next page.
Removing the Lamp Unit.
What has to be
done
- The lamp power connection has to be disconneced.
- The lamp assembly has to be removed.
Necessary Tools - No tools are necessary.
Disconnecting
the Lamp Power
Cable
To disconnect the lamp power cable, follow the next procedure:
1
2
3
4
1
2
Pull out the connector.
Take the connector between thumb and finger.
Push at the same time on both looking parts.
Unplug the connectors.
Step Action Image
Illustrations on
Disconnecting
the Lamp Power
Cable
The following images give an overview how to discoonect the power cable.
image 1
image 2
BARCO 8 Projection Systems
Removing the Lamp Unit (Continued)
Removing the
Lamp Assembly
To remove the lamp assembly, follow the next procedure:
1
2
1Slide the lamp assemble backwards
Take out the lamp assembly.
Step Action Image
Illustrations on
Removing the
Lamp Assembly
The following image gives an illustration on how to slide out the lamp.
image 1
image 2
BARCO 9 Projection Systems
To be continued on next page.
Installing the Lamp Unit.
What has to be
done
- The lamp assembly has to be installed.
- Reinstall the lamp power cable.
Precautions Do not touch the lamp with your fingers otherwise the lifetime of the lamp will be
reduced.
If the lamp is touched, finger prints can be removed by cleaning the lamp with alcohol.
Installing the
Lamp Assembly
To install the lamp assembly, follow the next procedure:
1
2
3
1
2
Take the lamp assembly out of its package.
Put the lamp assembly in the lamp house.
Slide the lamp assemble forwards until fits on its place.
Step Action Image
Illustrations on
Installing the
Lamp Assembly
Image 1
Image 2
BARCO 10 Projection Systems

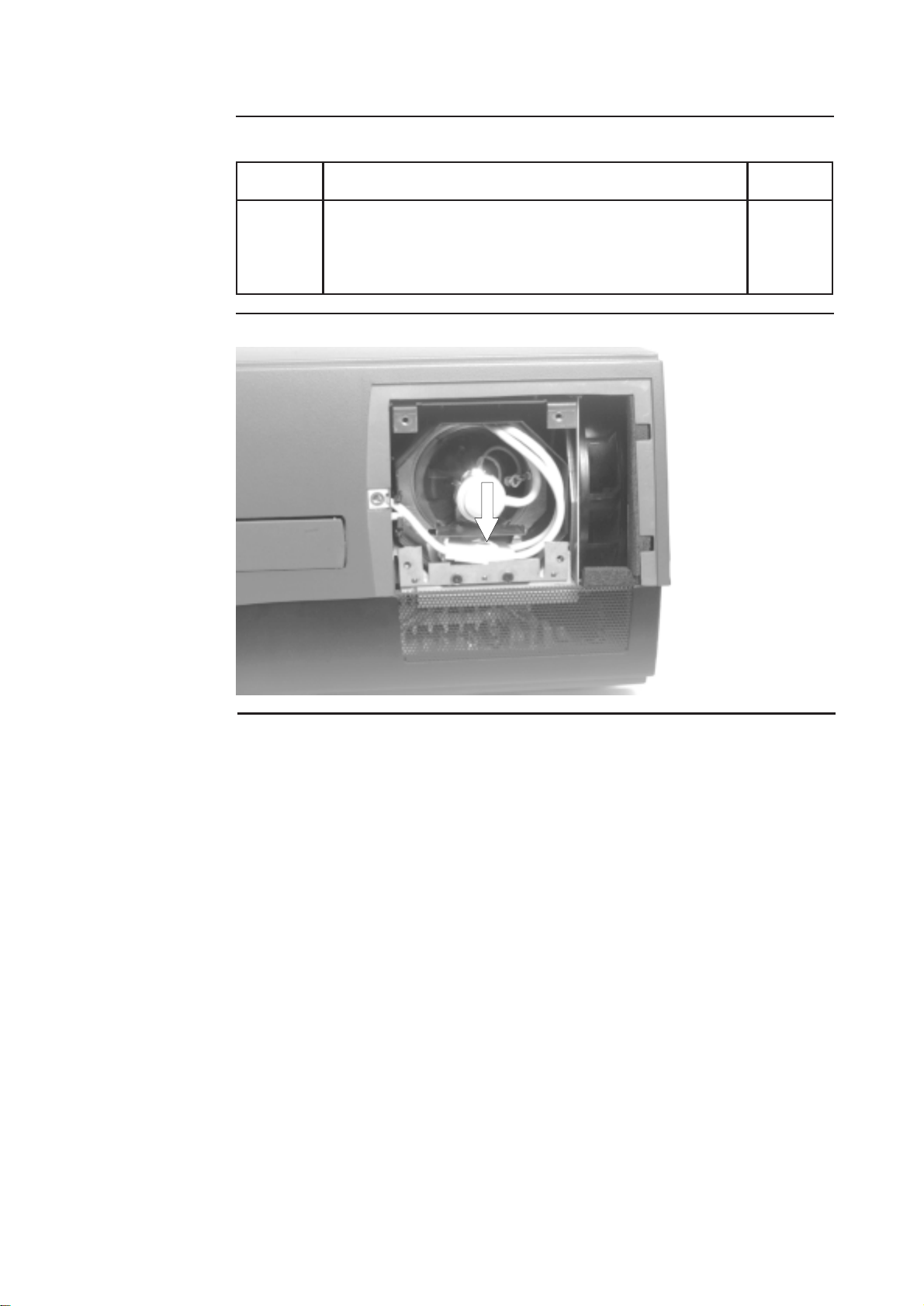

Installing the Lamp Unit (Continued)
Image 1
Illustrations on
Connecting Lamp
Power Cable.
Reinstall the
Lamp Power
Cable.
To reinstall the lamp power cable, follow the next procedure:
1
2
Connect the connector at the lamp side into the connector
at the power side.
Put the connector under the metal slip.
Step Action
1
1
