Barco MXRT-5600 Manual de usuario

VisionTek®

THUNDERBOLT™ 3 MINI eGFX ENCLOSURE

For further information on this product, including

compatible mobile workstations, installation, and

troubleshooting, please visit:

www.barco.com/egfx

The eGFX Enclosure with Barco MXRT-5600 allows

you to drive powerful graphics from a laptop

computer using aThunderbolt™ 3 connection.

Before using the enclosure, closely follow the setup

instructions and ensure you are using a Barco-

approved mobile workstation running Windows 10.

Quick Start Guide

Note: Your computer’s Thunderbolt™3 ports

might not function properly until you update one

or more of the following on your computer:

•

BIOS

•

Thunderbolt™firmware

•

Thunderbolt™3 controller drivers

•

Thunderbolt™3 software

1. Ensure the latest BIOS, Thunderbolt™and

Windows updates have been installed. Visit

your PC manufacturer’s website to

download the latest software.

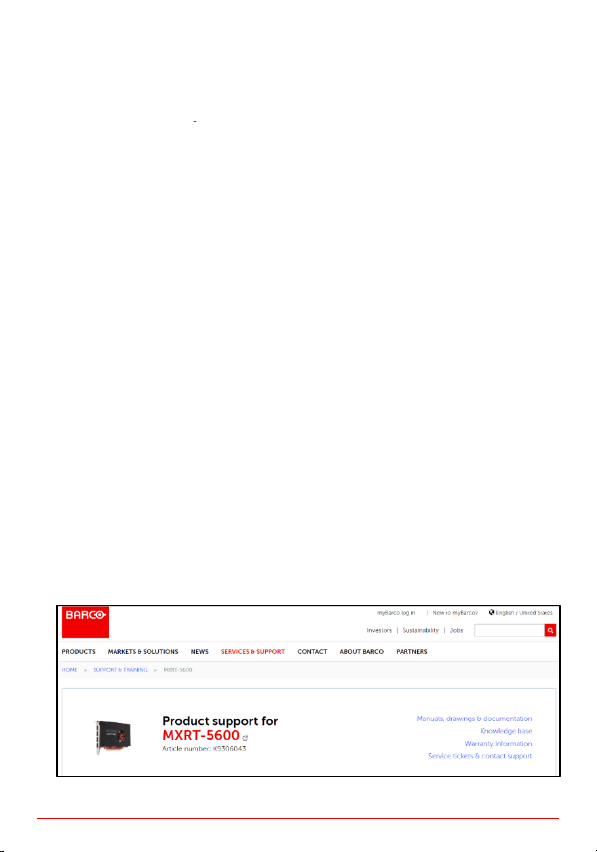

2. Download the latest version of the Barco

MXRT Driver Installation Package for your

region from the following URL:

https://www.barco.com/en/support/mxrt-5600

Software Setup:

1 | Quick Start Guide

3. Select the self-extracting installation package

file and begin the installation process with local

administrator rights to install software on your

computer.

4. Make sure to select all software packages and

proceed with installation.

Note: The computer may restart multiple times during the

installation process.

2 | Quick Start Guide

1. Once the driver has successfully installed,

connect the AC power adapter to the

enclosure and to a power outlet . Turn on the

AC adapter.

2. Connect the Thunderbolt™ 3 cable to the

computer.

Hardware Setup:

Note: Use only active Thunderbolt™ 3 cables for runs longer

than 0.5m.

3 | Quick Start Guide

1. After connecting the eGFX enclosure, the

Thunderbolt™device will be detected by the

computer. Click to approve the device.

2. When the system shows the dialogue box

below, select “Always Connect” for each

controller.

Click “OK” to complete setup.

3. The system should recognize your displays at

this point.

Thunderbolt™ Configuration:

4 | Quick Start Guide

1. To extend the desktop

and configure the

displays, access the

Display Settings panel

by right clicking on the

desktop and selecting

“Display settings”.

Display Configuration:

2. Depending on your configuration, the displays

should be visible similar to the image below.

If the desktop is not automatically extended to

connected displays, proceed to Step 3.

5 | Quick Start Guide

3. Select the target display in

the “Rearrange your

displays” window in Step 2.

In the “Multiple Displays”

dialogue box select “Extend

desktop to this display”.

4. In the “Scale and layout”

window select the

appropriate resolution

for your display.

Always be sure to select “Keep changes” when

prompted.

At this point your system setup is complete. See

the following page for additional support

resources.

6 | Quick Start Guide

For product support contact:

Healthcare USA/Canada

Toll-free call:

1 (866) 992-2726

Hours: 8 am to 8 pm EST

Website:

www.barco.com/egfx

R5912441 Rev. 00 2020-01-21

Barco NV | Beneluxpark 21, 8500 Kortrijk, Belgium

Registered office: Barco NV | President Kennedypark 35,

8500 Kortrijk, Belgium

www.barco.com
