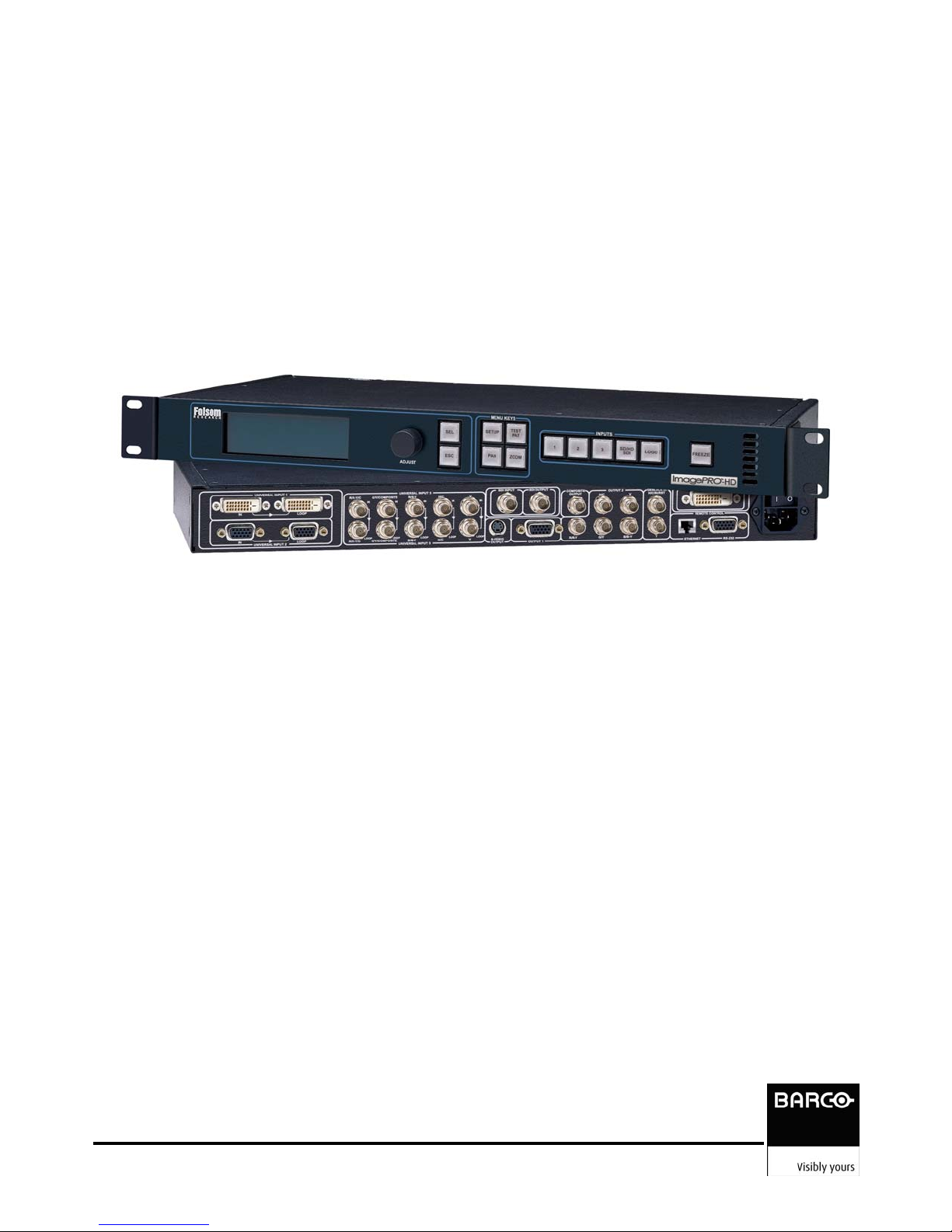

Barco ImagePRO-HD Manual de usuario

Manual# 26-0302000-00 / Rev E

www.barco.com

www.folsom.com

Folsom

Barco Events USA

11101 Trade Center Drive

Rancho Cordova , CA 95670

ImagePRO, ImagePRO-SDI, ImagePRO-HD

Installation Manual

Model IP-2003

RECORD OF CHANGES

REV #

DATE

ECO #

DESCRIPTION

Approved By

A 11/14/03 1171

Released A. Yerocostas

B 12/15/03 1188 Updated Save system State description to

include saving input channel (s/w rev 1.01).

Miscellaneous spelling corrections.

Added Ethernet functionality.

Added Save messages when exiting input,

output and system menus.

Released SDI/HD functionality (s/w rev 1.02).

A. Yerocostas

C 4/1/04 1255 Added Serial Commands.

Added Logo operation

Ching Ho

9/04 1318 Moved In Auto Acquire to the top menu

Added Hsync & Vsync adjustments to the

output timing adjustments menu.

Added Remote commands for Hsync & Vsync

adjustments.

Added Remote command for loading logo.

Added Remote command for edge

adjustments in oversample mode.

Updated limits on various remote commands.

A. Yerocostas

3/05 1406 Added EDID submenu to System menus

Updated Input timing adjustment serial

commands

A. Yerocostas

Manual # 26-0302000-00/Rev E

Operators Safety Summary

The general safety information in this summary is for operating personnel.

Do Not Remove Covers or Panels

There are no user-serviceable parts within the unit. Removal of the top

cover will expose dangerous voltages. To avoid personal injury, do not

remove the top cover. Do not operate the unit without the cover installed.

Power Source

This product is intended to operate from a power source that will not

apply more than 230 volts rms between the supply conductors or

between both supply conductor and ground. A protective ground

connection by way of grounding conductor in the power cord is essential

for safe operation.

Grounding the Product

This product is grounded through the grounding conductor of the power

cord. To avoid electrical shock, plug the power cord into a properly wired

receptacle before connecting to the product input or output terminals.

A protective-ground connection by way of the grounding conductor in the

power cord is essential for safe operation.

Use the Proper Power Cord

Use only the power cord and connector specified for your product. Use

only a power cord that is in good condition. Refer cord and connector

changes to qualified service personnel.

Use the Proper Fuse

To avoid fire hazard, use only the fuse having identical type, voltage

rating, and current rating characteristics. Refer fuse replacement to

qualified service personnel.

Do Not Operate in Explosive Atmospheres

To avoid explosion, do not operate this product in an explosive

atmosphere.

Terms In This Manual and Equipment Marking

Highlights an operating procedure, practice,

condition, statement, etc., which, if not strictly

observed, could result in injury to or death of

personnel.

NOTE Highlights an essential operating procedure,

condition or statement.

CAUTION

The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in the

literature accompanying the appliance.

AVERTISSEMENT!

Le point d´exclamation dans un triangle equilatéral signale

à alerter l´utilisateur qu´il y a des instructions d´operation

et d´entretien tres importantes dans la litérature qui

accompagne l´appareil

WARNING

VORSICHT ein Ausrufungszeichen innerhalb eines gleichwinkeligen

Dreiecks dient dazu,

den Benutzer auf wichtige Bedienungs-und

Wartungsanweisungen in der Dem

Great beiliegenden Literatur aufmerksam zu machen.

ImagePRO™Quick Start Guide

Step 1: Connect Input Sources to ImagePRO™

1. Connect analog video source to the ImagePRO™using the three universal video inputs.

2. Connect any SDI video source to the SDI video input (ImagePRO-SDI™and ImagePRO-HD™only).

3. Connect DVI video source to the DVI video input (ImagePRO-HD™only).

Step 2: Connect ImagePRO™to Output Devices

1. Connect Hi-res video output devices to the ImagePRO™using the 5 BNC or HD-15 output connectors.

2. Connect NTSC or PAL monitor using the Composite or S-Video Output connectors

3. Connect SDI video devices to the SDI video output (ImagePRO-SDI™and ImagePRO-HD™only).

4. Connect DVI Digital Flat panel display to the DVI video output (ImagePRO-HD™only).

Step 3: Power Up

Connect ImagePRO™to AC power using the power cord supplied with the unit. Locate the power switch on the power entry module

at the rear of the unit and turn the power on. When initialization is complete, the front panel display will indicate that the unit has

powered up successfully. The Status screen is displayed when the initialization process is complete.

Step 4: Select and Save the desired Output Format

Press the SETUP button and then using the ADJUST knob, scroll down to “Output” and press the SEL key to enter the Output Setup

menu. Press SEL key to select the Output Format field and then use the ADJUST knob to locate the desired output format. Press

the SEL key again to select this output format. Now scroll down to Save Config and press the SEL key to save this format as the

default.

Press the ESC key to leave the Output Setup menu.

Step 5: Configure Input Sources

ImagePRO™will automatically lock to video applied to the inputs and will make a attempt to match the Video format in the following

search order: Last configuration saved for the selected input channel, One of 64 stored configurations, any custom formats stored by the

user, library formats and finally using a “best guess” algorithm matching to the closest library format. While this approach generally leads

to an acceptable output image, it is strongly recommended that the user sets up a configuration file to precisely define the video

parameters associated with each input. The use of configuration files provides consistent, repeatable operation and allows the user to

adjust video parameters for each source to optimize image quality. Each time a source is selected with the Source Selection keys, the

configuration file associated with that source is automatically reloaded.

Setting up input configuration files is simple. Proceed as follows for each input.

1. Select the source you wish to work by pressing the INPUT select key.

2. Enter the INPUT SETUP menu by pressing the SETUP button and then pressing SEL to select the “Input” menu.

Examine the image on the display device and adjust the input parameters as desired. The Input Setup menu is

described in detail in chapter 3 of the ImagePRO™manual. Many of the parameters may require no adjustment,

however, be sure that the “Input Format” and “Input Type” menu items are selected to match the incoming source video.

3. When the input setup parameters have been set as desired, scroll down to “Save Config” using the ADJUST knob and

press the SEL button to save the current setup. The setup information is automatically assigned to the source used for

the input setup process. The input configuration file will automatically be recalled for use each time the source is

selected.

NOTE: Whenever a modification is made to a configuration, you must resave the changes following the procedure above.

This is a quick reference guide. For detailed information on the ImagePRO™, please refer to the

Installation and Operating Manual supplied with your unit.

FolsomResearch,Inc. •11101-A Trade Center Drive, Rancho Cordova CA 95670 •(916) 859-2500 •www.folsom.com
