Barbecook HERCULES Manual de usuario

www.barbecook.com |1

www.barbecook.com

HERCULES

# 223.7100.000

HERCULES S+

# 223.7100.100

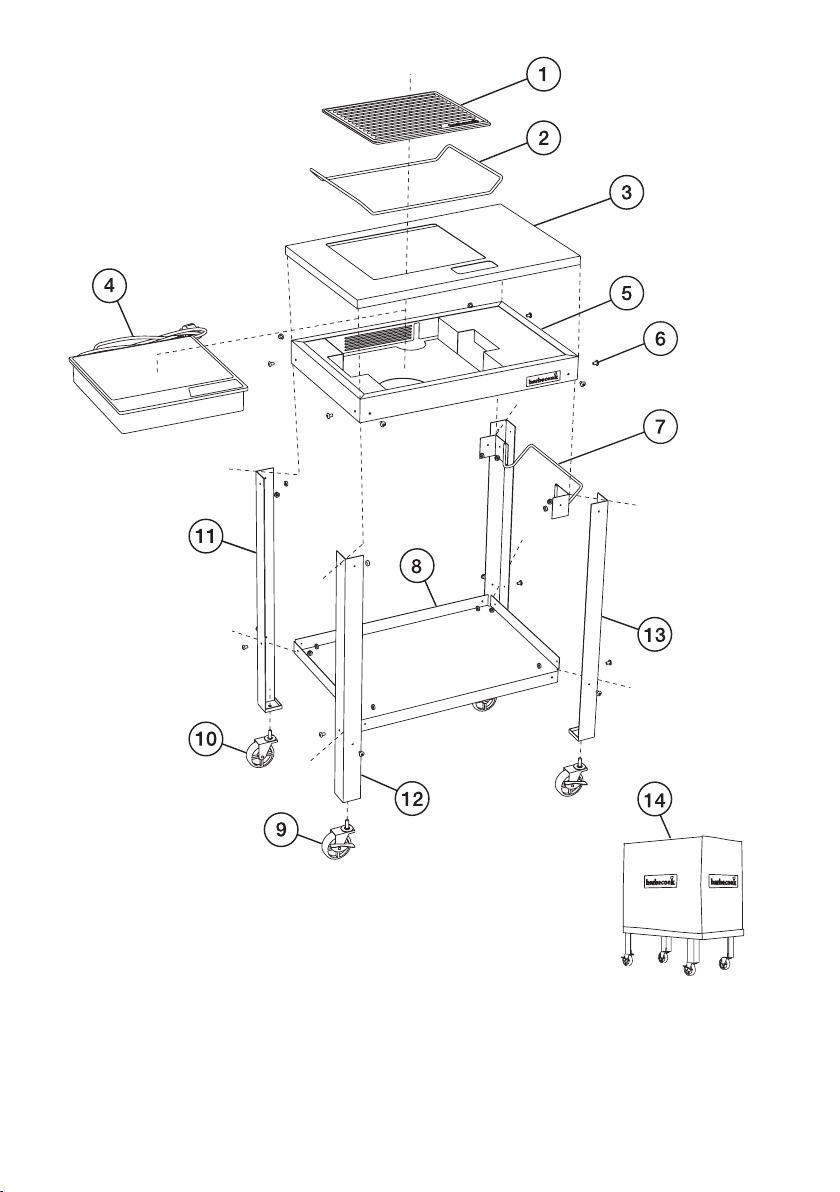

2 |www.barbecook.com

223.7100.000

223.7100.100 (S+)

227.7100.010

227.7100.020

227.7100.030

227.7100.040

227.7100.045 (S+)

227.7100.050

227.7100.060

HERCULES

227.7100.070

227.7100.080

227.7100.090

227.7100.100

227.7100.110

227.7100.120

227.7100.130

227.7100.140

www.barbecook.com |3

4 |www.barbecook.com

www.barbecook.com |5

6 |www.barbecook.com

SAFE USE, CARE AND ASSEMBLY MANUAL

GUIDE D’ASSEMBLAGE, D’UTILISATION ET D’ENTRETIEN

MONTAGE-, BEDIENUNGS- UND WARTUNGSANLEITUNG

HANDLEIDING EN GEBRUIKSAANWIJZING

INSTRUCCIONES DE MONTAJE, UTILIZACIÓN Y MANTENIMIENTO

MANUALE PER IL MONTAGGIO, L’USO E LA MANUTENZIONE

GUIA DE MONTAGEM, UTILIZAÇÃO E MANUTENÇÃO

ANVISNINGAR FÖR MONTERING, ANVÄNDNING OCH SKÖTSEL

VEJLEDNING FOR SAMLING, BRUG & VEDLIGEHOLDELS

OPAS KOKOAMISEEN, KÄYTTÖÖN JA KUNNOSSAPITOON

FIN

www.barbecook.com |7

Congratulations on the purchase of a Barbecook

Please read this manual before using the barbecue !

Failure to follow all of the manufacturer’s instructions could result in property

damage. The user is responsible for the proper assembly, installation and use of

his barbecue.

SAFETY INFORMATION

When using an electrical appliance, always comply with the following basic safety

instructions. Always keep your instruction manual safe for further consultations.

• Do not submerge the device in water or other liquids.

• Do not connect the device to the same outlet with other devices. Connect

the device to a suitable outlet.

• Check the connection cable for damage from time to time. Never operate

the device when the cable is damaged. If the mains

connection cable shows

defects, let a qualiﬁed electrician exchange it.

• Do not move the induction hotplate during cooking or with hot cookware on

top of it. Never move the device by pulling on the power cable.

• Never use the device when it does not function properly, shows damage or in

case it was dropped.

• Do not leave the device unattended while in operation. Keep children and

other incompetent persons away from the device: The stainless steel surface

can become hot.

• Only qualiﬁed experts may perform repair and maintenance on the device,

using original replacement and accessory parts.

• Do not touch the hot surface of the ceramic ﬁeld. Note: the induction

hotplate does not heat up itself during cooking, but the temperature of the

cookware is transfered to the hotplate!

• Do not place any (empty) metal kitchen utensils, cookware or pan lids, knives

or other metal objects on the hotplate. These may heat up when the device is

turned on.

• Do not heat up any unopened tins on the induction hotplate. A heated tin

could explode; therefore remove the lid under all circumstances beforehand.

INSTALLATION

• This barbecue should only be used outdoors use under dry weather condi-

tions. Store the electrical appliance indoors when not in use.

• Minimum clearance to adjacent combustible materials : 76 cm (30”) from

furthest protruding edge on side and rear of barbecue.

• The induction hotplate must be installed according all local regulations.

• Always place the device on a stable and level surface.

GBSAFE USE, CARE AND ASSEMBLY MANUAL

8 |www.barbecook.com

• Never place the device on a ﬂammable surface (e.g. table cloth, carpet, etc.).

• Always place the barbecue in a well-ventilated area. Do not block the ventila-

tion slots of the device. Keep a minimum distance of 10 cm (5”) to walls or

other items.

• Do not place next to devices or objects, which react sensitively to magnetic

ﬁelds (e.g. radios, TVs, etc.).

• Do not place next to open ﬁres, heaters or other sources of heat.

• Make sure that the connection cable is not damaged or squashed beneath

the device. Make sure that the connection cable does not come into contact

with sharp edges and/or hot surfaces.

INDUCTION HOTPLATE BASIC 1800

• Model: C18G (CE/EMC)

• Temperature range: 60 - 240 °C

• Power: 1800 W

• Connection: 230 V ~ 50 Hz

With induction hotplates, an electric voltage is applied on a conductor spool be-

neath the glass ceramic surface. This creates magnetic ﬁelds, which directly heat

up the bottom of the cookware through a physical effect. This means saving time

and energy, because contrary to common hotplates, the cookware is heated up,

not the heating element and the glass ceramic surface.

GENERAL USE

• Plug the power plug into a suitable outlet.

• The control lamp of the On/Off switch lights up and an acoustic signal

sounds. Now the device is in standby mode.

• Place suitable cookware (stainless steel, cast iron and enamelled ﬂat-bottom

pans with a diameter of 12 - 26 cm) in the centre of the hotplate.

• Now press the On/Off switch to turn on the induction hotplate. The “Power”

indicator light blinks and an acoustic signal sounds.

• Now press the “Function” button:

1 x the preset power level “5” is selected and the device is turned

on (Power levels: 1, 2, 3, 4, 5, 6, 7, 8, 9 and 10).

With the selection buttons (+,-) you can change the power setting

from 1 - 10.

2 x the preset temperature stage “120°C” are selected and the de

vice is turned on (Temperature levels: 60, 80, 100, 120, 140,

160, 180, 200, 220 and 240°C).

With the selection buttons (+,-) you can change the temperature

setting from 60 - 240°C.

• Timer Function:

After the selection of the operating mode (power level or temperature level)

www.barbecook.com |9

press the “Function” button until the corresponding indicator light blinks

(power and timer or temperature and timer). The display shows the num-

ber “0”. With the selection buttons (+,-), you can now select the operating

time in 1-minute intervals (up to max. 180 minutes). Then the display counts

down the duration in minutes. Once the time has passed, an acoustic signal

sounds and the device automatically goes into standby mode.

• Press the On/Off switch to shut down the device.

• Disconnect the mains plug from the outlet!

OPERATING PANEL

1. On/Off switch

2. Function key

3. Indicator light for power level, temperature and timer

4. LED display

5. Selection button (-), reduction of the power level, temperature or duration

6. Selection button (+), increase of the power level, temperature or duration

TIPS ON USING YOUR BARBECUE

Always barbecue using the “Temperature” function at level 180°C.

FIRST USE

We strongly recommend to

clean the griddle

and have it

heat for 30 minutes on low

temperature (120°C) without cooking any food.

PREPARATION

Heat the griddle of your barbecue for up to 10 minutes on low temperature (120°C)

before adding any food. While the griddle is designed to have different tempera-

ture zones, it is possible to heat the griddle evenly by moving it sideways.

2. 3. 4.

1. 5. 6.

10 |www.barbecook.com

COOKING

Always barbecue using the “Temperature” function at level 180°C. Make use of a

cooking and a warming zone by sliding the griddle sideways, instead of moving

the food around.

Note: Food may stick if turned too soon after being placed on the griddle. Let food

cook for a few minutes before turning it, so that it will have time to sear properly.

AFTER USE

Press the On/Off switch to turn off the induction hotplate. When the food is ready,

you may also want to put the griddle with food on the table. By taking the griddle

off the hotplate, the device automatically switches to standby mode. One minute

later it will shut down.

CLEANING AND MAINTENANCE

Before cleaning the appliance, disconnect the plug from the socket and allow the

griddle and electrical appliance to cool down:

• Clean the griddle after each use. Do not use metal scourers or abrasive

cleaners of any kind. Use sponge or plastic scourer only. Alternatively, you

can wash the griddle with a special barbecook®cleaner, mild detergent or

baking soda, but do not use a commercial oven cleaner.

• Always clean the induction hotplate to avoid discoloration or burned stains.

Use a non-abrasive cleaning agent and a damp cloth. You can use a vacuum

cleaner to suck up dirt from the ventilation openings.

• Clean the lid with the barbecook®stainless steel cleaner.

STORAGE

To get many years of service out of your barbecue: Always store the electrical

appliance indoors when not in use. Cover the barbecue with the barbecook®

cover if it is to be stored outdoors.

WARRANTY

The barbecook®comes with a two-year limited warranty on manufacturing

defects, from the date of purchase and to the extent to which use of the appli-

ance corresponds with these instructions for use. The receipt stating the date of

purchase is valid as a guarantee card. This warranty shall be limited to the repair

or replacement of parts that prove defective under normal conditions of use and

service.

The foregoing warranty does not apply to defects resulting from faulty installation,

incorrect operation, disassembly, alterations or remodelling; misuse, misapplica-

tion, neglect, abuse, an accident, tornado, hurricane, or earthquake, or lack of

proper maintenance, cleaning and care.
