Banner LM Series Manual de usuario

Demo Kit (DK-LM150 Series) Components

Models Description

1 LM150KIQP Precision laser sensor

2 SMBLML1 Mounting bracket

3 RSD1QP Remote Sensor Display

4 Sensor Base Multi-segment target and sensor mount

5 RSD Base DIN rail mount for RSD

LM Series Demo Kit

Beneﬁts

This demo will show the Analog and Discrete Window Teach

functions of the LM Series, as well as RSD recipe control.

• Superior precision for real-world applications

– Resolution 0.004mm

• Best in class Thermal & Mechanical stability

– Temperature Effect +/- 0.008 mm/deg C

• Small housing design for the tightest spaces

– 35.8 mm x 48.5 mm x 23.5 mm

• High response Speed for fast moving targets

– As fast as 0.5 ms

• Simpliﬁed set up, control and replacement with optional

Remote Sensor Display(RSD1)

Down and Up Buttons

Press Down and Up to:

• Access the Quick Menu from Run mode

• Navigate the menu systems

• Change programming settings

• Change individual digit values in distance-based settings

Enter Button

Press Enter to:

• Access the Sensor Menu from Run mode

• Access the submenus

• Move right one digit in distance based settings

• Save changes

Escape Button

Press and hold Escape for 4 seconds to:

• Access the RSD1 Menu while in Run mode

Press Escape to:

• Leave the current menu and return to the parent menu

RSD1 Buttons

Use the RSD1 buttons Down, Up, Enter, and Escape to view or

change RSD1 settings and information and to program a connected

sensor.

bannerengineering.com • 1.888.373.6767

Set Up and Demo

1. Connect RSD to LM Sensor

2. Connect RSD to Power

3. Follow Demo Instructions

1. Click and hold for >4 sec

4. Click to locate Yes

1. Click

4. Click to locate Yes

LM Factory Default Restore

RSD Factory Default Restore

1. Click to access the Menu

2. Click to access the Analog Menu

Two-Point Teach (Analog)

2. Click twice to locate the Reset menu

5. Click to select Yes

3. Click to enter the Reset menu

6. Click to return to Run mode

2. Click to locate the Reset menu

5. Click to select Yes

3. Click to enter the Reset menu

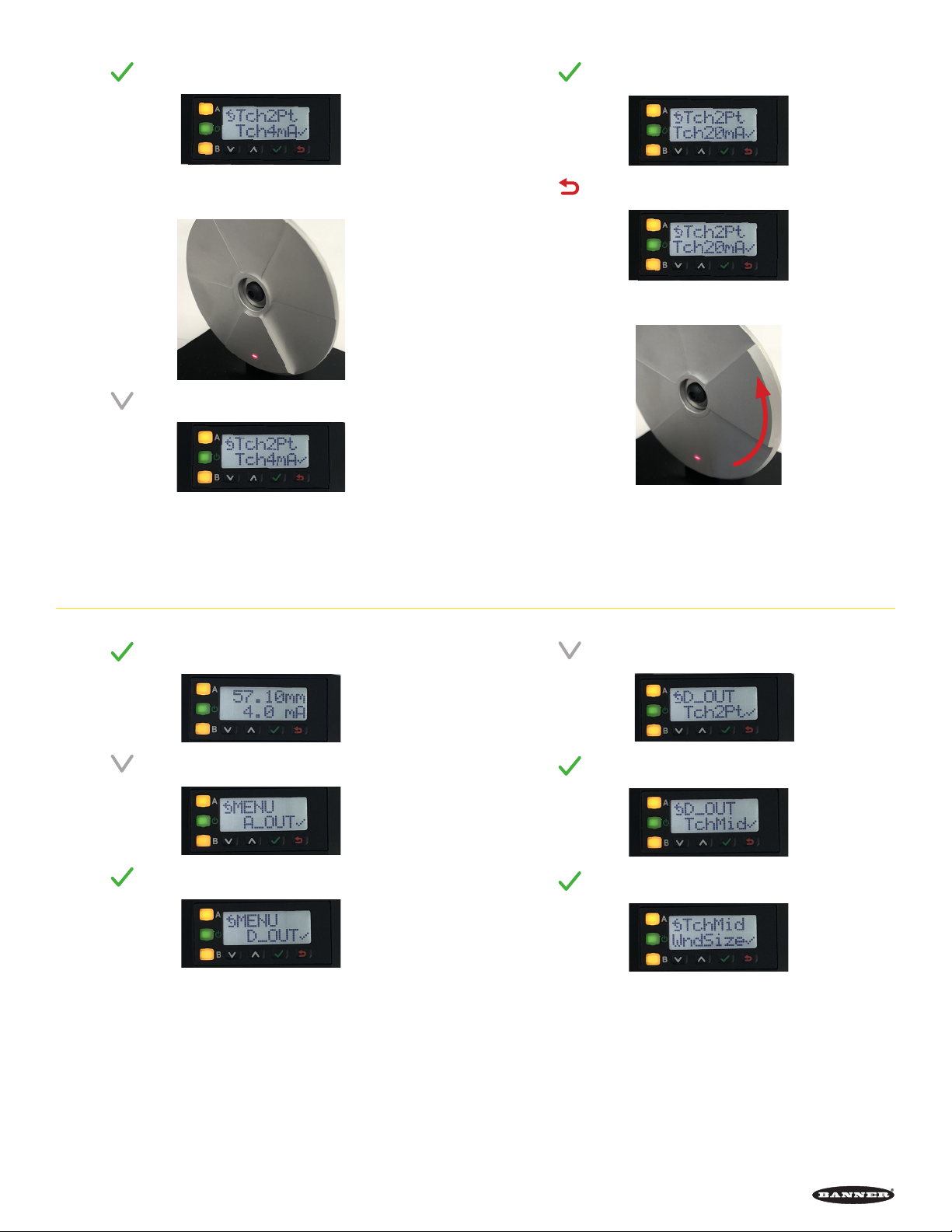

3. Click to start a two-point teach

4. Position the Target Wheel so the LM150 laser is hitting the

thinnest section

1.888.373.6767 • bannerengineering.com

5. Click to teach the 4 mA distance

6. Position the Target Wheel so the LM150 laser is hitting the

thickest section

7. Click to locate the 20 mA teach option

8. Click to teach the 20 mA distance

9. Click x 3 to return to Run Mode

10. Show the mA output change as you rotate the wheel

Window Teach (Discrete)

1. Click to access the Menu

2. Click to locate the Discrete Menu

3. Click to access the Discrete Menu

4. Click to locate TchMid

5. Click to enter the Teach Midpoint Menu

6. Click to enter Window Size Menu

bannerengineering.com • 1.888.373.6767

7. Click to set the window to 0.1 mm

moves cursor to the right

increase and decrease the number you have selected

8. Click to locate TchMdPt

9. Position the Target Wheel to the middle segment

Window Teach (Discrete), continued

1. Click and hold for >4 sec

2. Click to enter Conﬁguration #1 Menu

3. Click to Import your conﬁguration from the LM

4. Click twice to return to Run mode

Recipe Control

5. Reset LM to Factory Default

6. Rotate wheel and show discrete output no longer turns on only

for middle segment

7. Repeat steps 1 and 2

8. Click to Export your conﬁguration from the RSD to the LM

9. Click to locate yes (No is the default)

10. Click to Export Conﬁg

11. Click twice to return to run mode

12. Show how discrete output turns on only for middle segment

PN 206489

10. Click to perform a mid-point teach

11. Click x 3 to return to Run mode

12. Show the discrete output only turns on for the middle

segment as you rotate the wheel
