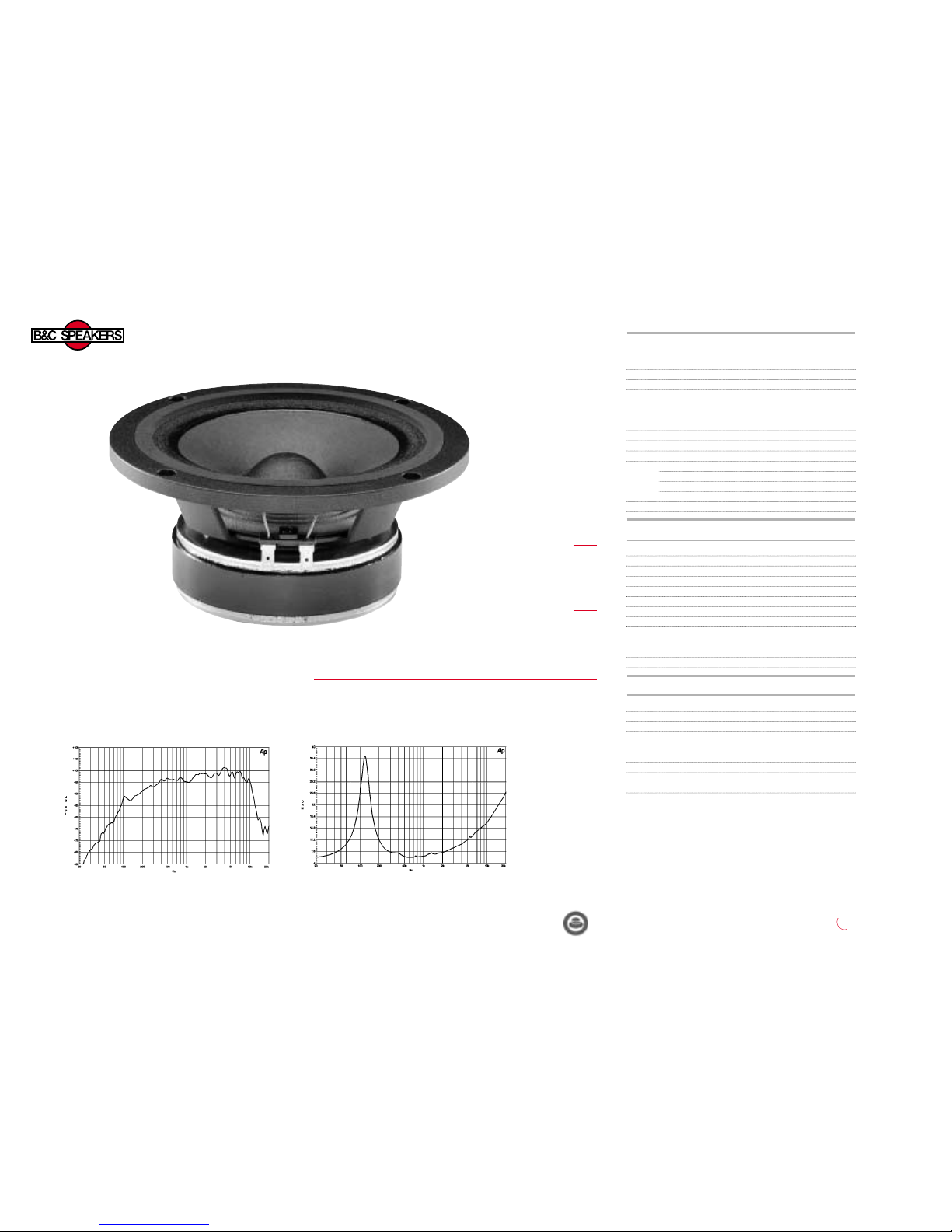

B&C Speakers Midrange 6 PE 13 Manual de usuario

Speakers Coaxials HF Compression drivers Horns

1

B&C

High efficiency midrange, recommended

in such application as multi-way systems

from 600 Hz. to 5 kHz.

Specifications

Nominal Diameter 170 mm. (6.5 in.)

Nominal Impedance 8 Ω

Minumum Impedance 5.8 Ω

Power Handling

( 00- 000 Hz)

Nominal1120 W

Continuous Program2 240 W

Sensitivity (1W/1m) 98 dB

Frequency Range 150-8000 Hz

Voice Coil Diameter 8 mm. (1.5 in.)

Winding Material Aluminium

Former Material Fiber Glass

Winding Depth 7 mm. (9/ 2 in.)

Magnetic Gap Depth 6 mm. (1/4 in.)

Flux Density 1.4 T

Thiele Small Parameters4

Fs 117 Hz.

Re 5.2 Ω

Qes 0.48

Qms

Qts 0.42

Vas 5 dm. (0.17 cu. ft.)

Sd 1 2 cm.2(20.5 sq. in.)

η01.6 %

X max ± 0.6 mm.

Mms 9 gr.

Bl 8.5 Tm

Le 0.6 mH

Mounting and Shipping Informations

Overall Diameter 187 mm. (7.4 in.)

Bolt Circle Diameter 172 mm. (6.7 in.)

Baffle Cutout Diameter 145 mm. (5.7 in.)

Depth 78 mm. ( .1 in.)

Flange and Gasket Thickness 11 mm. (7/16 in.)

Net Weight (1 unit) 2. Kg. (5.1 lb.)

Shipping Weight (4 units) 10.5 Kg (2 .1 lb.)

Shipping Box (4 units) 405x225x210 mm

(15.9x8.8x8. in.)

1 2 hours test made with continuous pink noise signal (6 dB crest factor). Power

calculated on rated minimum impedance. Loudspeaker in free air.

2 Power on Continuous Program is defined as dB greater than the Nominal rating.

Applied RMS Voltage is set to 2.8 V for 8 ohms and 4V for 16 ohms Nominal

Impedance. Average SPL from 200 to 8000 Hz.

4 Thiele-Small parameters are measured after a high level 20 Hz sine wave precon-

ditioning test.

6 PE 13 |Midrange
