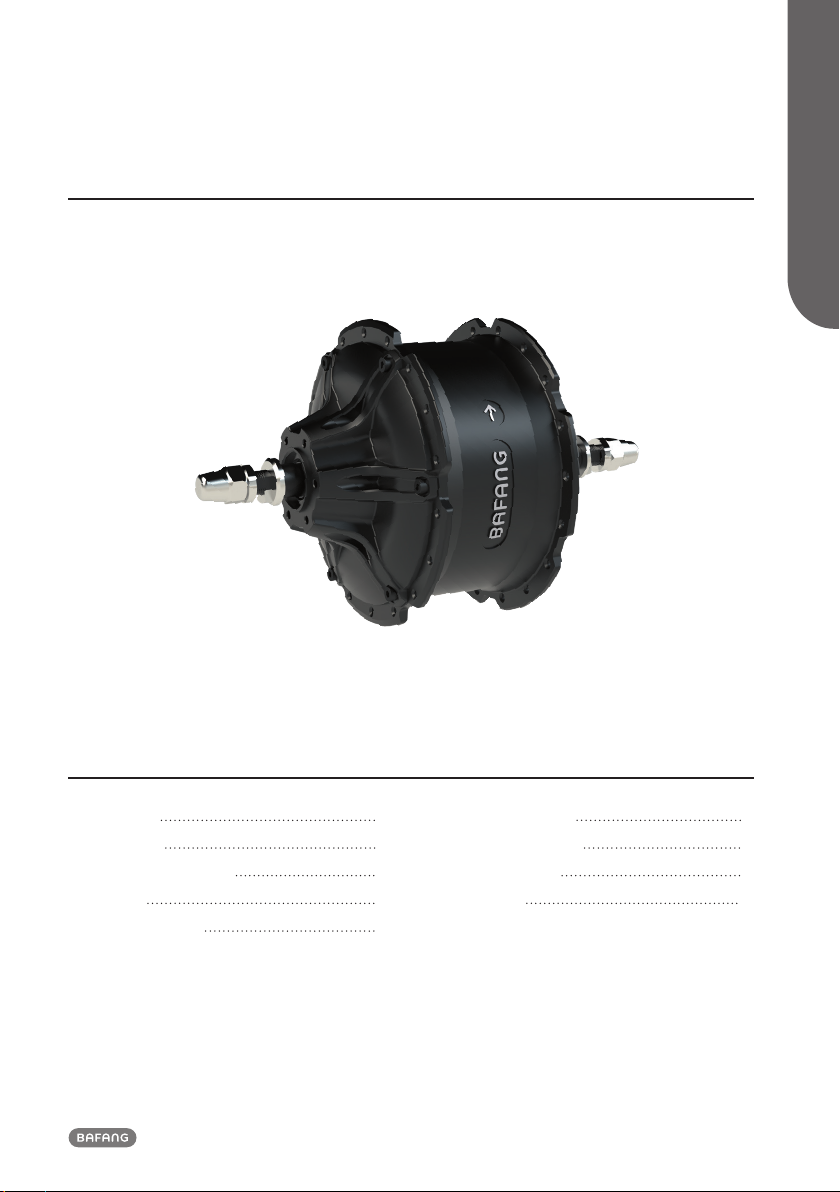

BAFANG RM G062.750.D Manual de usuario

DEALER MANUAL FOR MOTOR

BF-DM-C-RM G062-D-EN November 2019

6.1 Introduction 

6.2 Specifications 2

6.2.1 Outline and geometric size 3

6.2.2 Surface 3

6.2.3 Storage Information 3

6.3 Drive Unit Installation 4

6.3.1 List of Tools to be used 4

6.3.2 Motor Installation 4

6.4 Maintenance 5

CONTENT

6 DEALER MANUAL FOR H500

(RM G062.750/1000.D)

2BF-DM-C-RM G062-D-EN November 2019

6.1 INTRODUCTION

•Product Model

RM G062.750.D

RM G062.1000.D

•Scope

Applies only to electrically powered pedelecs

developed or licensed by Bafang. It is suitable

for fat bikes or all terrain bikes, which have been

developed for off road on gravel or sand use.

The engine is not suitable for sport competi-

tions.

•Identiﬁcation

The following graphic, is the identification

numbers of the product, which are shown on

the housing:

Note: Content in the label is important informa-

tion about this product. Please do not remove

the information from the motor.

6.2 SPECIFICATIONS

Motor model: RM G062.750.D / RM G062.1000.D

Rated power (W) 750 / 1000

Rated voltage (V) 48

Waterproof IP65

Certiﬁcation CE - EMC

Outdoor Temperatures -20℃~45℃

DEALER MANUAL FOR MOTOR

BF-DM-C-RM G062-D-EN November 2019

6.2.1 Outline and geometric size

Model A(mm) B(mm) C(mm) D(mm) E(mm)

RM G062.750.D 22 29 175 233 42.2

33 32.5 190 255 42.2

RM G062.1000.D 22 29 175 233 42.2

33 32.5 190 255 42.2

Motor cable length: L=250mm

6.2.2 Surface

Shockproof black coating

6.2.3 Storage Information

The pedelec should be stored in a ventilated dry room. Avoid storing the pedelec near strong magnetic

objects.

4BF-DM-C-RM G062-D-EN November 2019

6.3 DRIVE UNIT INSTALLATION

6.3.1 List of Tools to be used

Use of the Tools Tools

To tighten/loosen the M5*8 screws onto the disc brake. Internal hex wrench

To tighten/loosen the M12 flange nuts. Open spanner

6.3.2 Motor Installation

1. Mount the cassette on the motor.

2. First place the disc brake on to the motor

and tighten with six M5*8 screws.

3. Mount the stop pin into on the shaft.

4. Insert the motor into the frame.

DEALER MANUAL FOR MOTOR

BF-DM-C-RM G062-D-EN November 2019

5. Mount the 2mm washer on both sides of

the frame.

6. Tighten the ﬂange nuts with open spanner

at both sides of the motor. (torque require-

ment: 47-60 N.m.)

6.4 MAINTENANCE

• Maintenance must be carried out by autho-

rized personnel with the correct equipment.

• Do not disassemble the motor.

• Do not use thinners or other solvents to

clean the components. Such substances can

damage the surfaces.

• Avoid water submerging, to keep the com-

ponents protected.

• Avoid using high-pressure cleaning jets.

• For prolonged storage, turn off the battery

and avoid storing near heat sources.

6BF-DM-C-RM G062-D-EN November 2019
