Installation &

Operation Manual

Bulletin No. IOM-079-01

PartNo.53400-079

February2001

Model EPM

Electronic Preset Meter - Advanced Series

IMPORTANT !!!! This manual contains important warnings

and information. READ AND KEEP FOR REFERENCE.

TABLE OF CONTENTS

Definitions ......................................................................2

Installation ......................................................................3

Operating the Meter .......................................................3

Programming the Meter .................................................4

Operational Functions ...................................................5

Service ...........................................................................6

Dimensional Drawing ....................................................8

Specifications .................................................................8

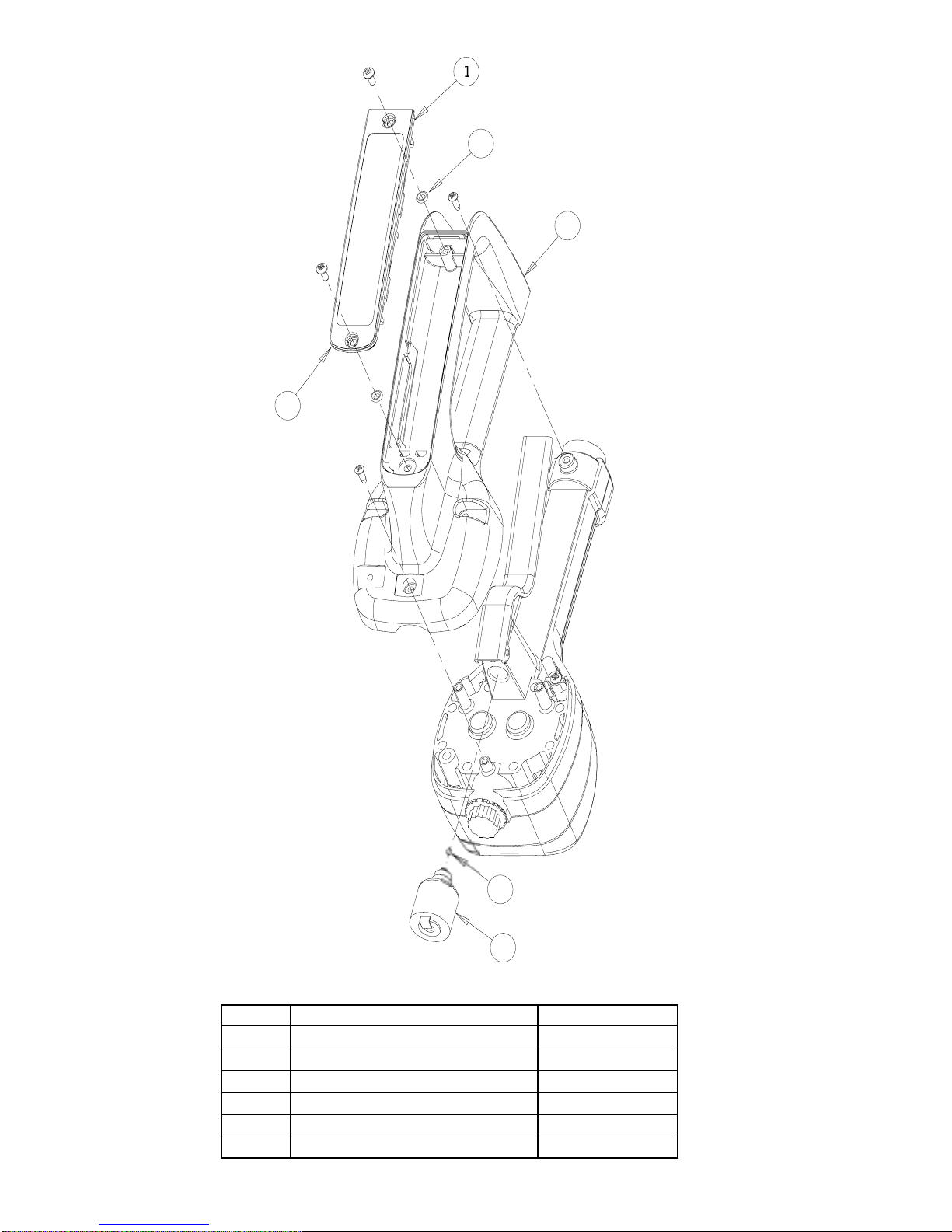

Parts Drawing........................................................... 9-11

Factory Settings

Eachmeterispreprogrammedandcalibratedatthefactory.

Unless otherwise specified at the time of the order, each

meter is programmed in quarts for use with motor oil. The

meterisshippedintheManualMode.Ifyouneedtochange

the factory settings, see page 6.

1000 psi (67 bar) Maximum Working Pressure

8 gpm (30 Lpm) Maximum Flow Rate

This Meter is designed specifically to dispense motor oils

(S.A.E. 5-50), gear oils (S.A.E. 80-240), automatic

transmission fluid, antifreeze (Ethylene Glycol) solution,

and hydraulic fluid. This meter is NOT designed to

dispense brake fluid, or windshield wiper fluid.

SYMBOLS

This symbol is an alert to the possibility of serious injury

or death if the instructions are not followed.

This symbol is an alert to the possibility of damage to or

destruction of equipment if the instructions are not followed.

Equipment Misuse Hazard

1. This equipment is for professional use only.

2. Read all instructions, tags, and labels before

operating the equipment.

3. Use the equipment only for its intended purpose.

4. Do NOT modify or alter the equipment.

5. Do NOT leave equipment unattended while

dispensing.

6. Check equipment daily. Repair or replace worn or

damaged parts immediately.

7. Do NOT exceed the maximum working pressure level

of the lowest rated system component.

8. Use only extensions and nozzles that are designed

for use with this equipment.

9. Use only fluids and solvents that are compatible with

the equipment. Read all fluid and solvent

manufacturer’s warnings.

10.Tighten all fluid connections before operating this

equipment.

11.Do NOT stop or deflect leaks with hands, body,

gloves, or rags.

12.Do NOT dispense valves towards any person or any

part of the body.

13.Do NOT place hands or fingers over the end of or into

the dispense valve.

14.Comply with all local, state, and federal fire, electrical,

and safety regulations

15.Use of this product in a manner other than specified

in this manual may result in impaired operation or

damage to equipment.

Overhead view of Display and Keypad

Keypad Buttons

In Auto and Programming Mode, used to enter the

quantity to be dispensed.

History

Used to scroll through the five previous batches during

the normal operating mode.

Flow Rate

Used to indicate the rate of flow while the fluid is being

dispensed.

Total

Used to display the accumulated total of fluid, as well as

the resettable total during normal operating mode.

Used to scroll through the menu options in the auto mode.

Auto

Used to enter and exit the auto mode to program batch

types and sizes.

Reset

Used in normal operating mode to clear the previously

programmed batch and to reset the meter. Used to reset

the resettable total after pressing the TOTAL button.

Used to advance through the programming screens in

the programming mode.

Shut-Off

Used to stop the flow through a mechanical override.

Installation

Pre-Installation Procedure

1.Relieve the system pressure:

a. Turn off the power supply to the pump or close the

shutoff valve.

b. Dispense any fluid in the system into a waste

container by opening the dispense valve.

c. Open all bleed-type master air valves and fluid

drain valves in the system.

d. Leave the drain valve open until ready to

pressurize the system.

2.Close the shutoff valve.

3.Ground hoses and reels:

Grounding reduces the risk of static sparking;

ground all system components according to local,

state, and federal code. Consult the user's manual

of the pump and other system components to

ground the following:

i. Pump: follow manufacturer's recommendations

ii. Air and Fluid Hoses: use only grounded hoses

iii. Air Compressor: follow manufacturers

recommendations

iv. Fluid Supply Container: Follow the local code

Do not use Teflon®tape on pipe joints; it may cause a

loss of grounding across the joint.

Installation Procedure

1. If this is an existing installation, go directly to step 6.

Steps 2 through 5 are for flushing the system prior to

installing the meter.

2. Close fluid dispense valves at every dispense position.

3. Once the main fluid outlet valve at the pump is

closed, the air pressure to the pump motor is

properly adjusted, and the air valve is open, slowly

open the main fluid valve.

4. Place the hose end in a waste container. Make sure

hose is secure so no fluid will leak during flushing.

5. Slowly open the dispense valve and allow enough oil

to pass through to ensure that the system is clean.

Close the valve and repeat for all dispense positions.

Note: If the system has multiple dispense positions,

begin at the position farthest from the pump, and

move towards the pump.

6. Relieve the Pressure (see Relieve the System

Pressure, above).

7. Insert the metal end of the hose into the swivel

located at the end of the handle, and tighten

completely with an open ended, adjustable wrench.

Attaching the hose

Note: The threaded end of the meter will always have

female threads, so the metal end of the hose must

have male threads. Apply thread sealant to the male

end. The inlet and outlet connections are both 1/2"

NPT or 1/2" BSPP depending on meter model.

8. Thread the new nozzle onto the opposite end of the

meter and screw in tightly with an open ended,

adjustable wrench.

Installing the nozzle

9. Open all dispense position shut-off valves, and start

the pump to pressurize the system.

10. To ensure accuracy, purge all air from the fluid lines

and dispense valve before use.

Operating the Meter

Manual Mode

1. Program the meter to manual mode by selecting

option ‘0’in the batch-programming mode. (See

Programming the Preset Batch Function)

.QT

Manual Mode

2. Pull the trigger to begin the flow.

3. When the desired amount has been pumped,

release the trigger to stop the flow. Press to

reset counter display to zero.

a. Press the button to toggle between the two

options, count up or count down. Press the

button to select either count up or count down

mode for all batches and to return to the

options.

Note: In the count-up option, the meter counts up to the

preprogrammed batch amount. In the count down option,

the meter counts from the programmed batch amount

down to zero. (Batch #6 will always be in the countdown

mode.)

5.Once finished programming the batch sizes, press the

button to exit this option. The screen will flash,

and then, if the meter is in the count down mode, the

desired batch size will appear on the display. If the

meter is in count up mode, the display will show zeros.

AUTO

<--<--

Count Down Mode

AUTO

-->

Count Up Mode

Programming the Preset Batch Function

1.To enter the batch-programming mode, press and hold

the button until the digit and colon appear next to

AUTO (approx. 2 seconds.). The following screen will

appear:

AUTO

-->

AUTO

-->

-->-->

Auto Mode, Option 1

2.The meter is now ready to be programmed. The ‘1’

before the colon will be flashing. This is the option

icon. Option ‘0’is for manual mode (see Manual

Mode). Options ‘1’-‘5’are for auto batching amounts up

to 99.9 units. Different batch amounts can be stored in

each option. Option ‘6’is for batches between 1 and

999 units. Press the key to cycle through the

options.

<--<--

AUTO :

Auto Mode, Option 3

3.When the desired option appears on the screen,

change the batch size by pressing the ,

and buttons.

a. Pressing the 10 button will increase the

batching amount in increments of 10 units.

b. Pressing the 1 button will increase the batching

amount in increments of 1 unit.

c. Pressing the 0.1 button will increase the

batching amount in increments of 0.1 units.

Note: When programming in option 6, the 10 button will

increase the batching amount in increments of 100,

whereas the 1 button will increase the batching amount

in increments of 10 units. The 0.1 button will increase

the batching amount in increments of 1 unit.

<--<--

AUTO :

Auto Mode, Option 6

4.Press the key and the count up/ count down

arrows will flash in the display.

Batch (Auto) Mode

1.Program the meter to auto mode using option 1-6 in

the batch-programming mode. (See Programming the

Batch Function)

2.Pull the trigger to begin the flow. The valve will

automatically lock in place, even though the trigger will

fall back to the closed position. The flow will

automatically shut off when the desired batch size has

been dispensed.

The valve will always lock in the maximum open position.

Note: At any time during the operation of the meter, the

flow may be stopped by pressing the red button.

This will mechanically close the valve, stopping the flow.

Batching may be resumed by pulling the trigger.

3.The user has the option to top off at the end of the batch.

To top off the tank, simply pull the trigger to begin the flow

and release when the desired amount has been

pumped. If in count down mode the additional amount

will be shown on the display. If in count up mode, the

additional amount will be added to the total amount

dispensed.

4.Press the button when finished to reset the

meter. It is now ready for the next batch.

Do NOT press before topping off. The meter will

begin a new batch.

Normal Operating Mode Functions

History

This option allows the user to review the previous five

batches dispensed with meter.

1.Press and hold the / HISTORY button to view the

five previous batches. The batches will be displayed on

the screen one at a time, starting with the most recent,

and cycling through to the oldest. The batches will

continue cycling as long as the HISTORY button is held

down.

The display will automatically return to the normal

operating screen 2 seconds after releasing the

HISTORY button.

HISTORYHISTORY

History Function

Note: The history cannot be erased, unless the user

changes from English units to metric units or from metric to

English units. (See Changing Factory Settings.)

Flow Rate

This option allows the user to see the instantaneous rate

at which oil is flowing through the meter.

While oil is flowing through the meter, press and hold the

/ FLOW RATE button, and the rate of flow will

appear in the bottom right corner of the display. As long

as the button is held down, the flow rate will remain on

the display. Releasing the button will return the display to

the normal operating screen.

,, GPMGPMGPM

Flow Rate Function

Note: The flow rate can only be displayed if fluid is flowing

through the meter.

Total

This option allows users to see the accumulated total as

well as the resettable total.

Press and hold the button while in normal

operating mode to see the accumulated total. Continue

holding and after three seconds the screen will change to

the resettable total, which displays the total fluid

dispensed since the resettable total was last set back to

zero.

Press the button while viewing the resettable total

to set the resettable total back to zero. Release the

button to return to the normal operating screen.

Note: The accumulated total cannot be reset, unless the

user changes from English units to metric units or from

metric to English units. (See Changing Factory Settings.)

RESET TOTAL

Total Function

Mechanical Override

In case of an emergency or to interrupt a batch, the meter

is equipped with a mechanical override. This option

automatically closes the valve in the meter, stopping the

flow immediately. Batching can be continued after an

override, even if the meter is in the middle of a

programmed batch.

Press the red button to activate the mechanical

override. This can only be used when the valve is open.

(The red stop button may require considerable force to

activate.)

Service

Changing the Battery

When the batteries need to be changed, a progression of

warnings will appear on the screen.

1.First warning: the Low Battery Icon will appear in the

lower left corner of the display. This means that the

batteries are low and need to be changed within one

week after the icon first appeared.

.QT

2.Second warning: The AUTO function will shut off and

the auto icon will disappear. This means the battery

power is too low to run the auto function. The meter

can still run in manual mode.

3.Third Warning: The screen goes blank. This means

there is no power left. The display cannot be run.

However the meter will still allow fluid to pass through

when the valve is opened, but it will not measure flow.

•The battery compartment is located on the underside of

the trigger guard. Unscrew the two screws located under

the guard and remove the battery cover to expose the

batteries.

•Replace the old batteries. This meter takes 4 AAA

alkaline batteries. Replace the cover and the screws

when finished. Note battery polarity markings inside

battery compartment cover.

•Dispose of used batteries properly according to local

regulations.

Make sure to securely replace the rubber o-rings

surrounding the battery cap and screws to prevent liquid

from leaking into the battery compartment. The o-rings are

reusable indefinately, however new o-rings can be

purchased. See spare parts drawing on page 10.

Changing the batteries will not affect any of the

programmed values, history, or totals.

Changing Factory Settings

Factory Settings

Each meter is preprogrammed and calibrated at the

factory. Unless otherwise specified at the time of the

order, each meter is programmed in quarts for use with

motor oil.

1. Press to wake up the meter if screen is blank.

To enter the programming mode, press and hold the

<PROGRAMMING> key located in the access hole

under the meter for 2 seconds. (See picture below)

Location of access hole for PROGRAMMING Key.

After the screen flashes, it will display the scale factor and

units of measurement.

.QT

Initial Programming Screen

Programming the Units

This meter comes with the option to choose 4 different

units of measure. Unless otherwise specified at the time

of the order, each meter is programmed in quarts for use

with motor oil. The ‘Qt' will be flashing on initial start-up.

1. Toggle the four options (‘L’, ‘QT’, ‘GAL’, ‘PNT’) by

pressing the button.

2. When the desired option is on the screen, press the

button to advance. The units of measurement

icon will stop flashing and the first digit of the scale

factor will begin flashing.

Note: If the ‘L’units have been selected, the decimal

point will begin to flash. The user now has the option to

change the decimal point to either a period or a comma.

To do this, press the button. Press the button

to advance to the scale factor screen.

Changing the units of measurement from metric to English,

or from English to metric will clear the accumulated total,

resettable total, and all five histories.

Use a 5/32"

Allen wrench

or similar

blunt tool

, L

Scale Factor Screen

3.Press to advance to the next number in the scale

factor.

4.Repeat steps 2 and 3 for all five digits in the scale factor.

Note: All digits can be scrolled between 0 and 9 except

the first, which can only be scrolled from 0 to 1.

5.When finished setting the scale factor, press the

button and the scale factor and units measurement

screen will be replaced with the pulse delay screen:

Setting the Pulse Delay Factor

The Pulse Delay Factor is used to correct for fast flow

rates by closing the valve in the meter between one and

five pulses sooner than the selected value. The meter is

factory programmed with a pulse delay factor of 0.

Pulse Delay Screen

Advance through all five scale factor digits by pressing the

button. The above screen will now be displayed.

1.The 'PS-' will be followed by a flashing zero. The zero is

the initial setting of the pulse delay factor

2.Scroll between settings (0 to 5) by pressing the

button.

3.When finished selecting the pulse delay factor, press

and the display will return to the scale factor screen.

4.When finished programming these options, press the

<PROGRAMMING> key and hold it until the screen

flashes three times then goes blank. Press the

button to return to the normal operating screen.

Recalibrating the Meter

The Scale factor is used to adjust the accuracy of the

meter. Thescalefactorwillbesetatthefactoryforoil.The

primary use for the recalibration function is if the user

wants to batch fluids with a viscosity other than 10W oil.

If the fluid has a lower viscosity, more fluid can slip past

the gears without being detected. Changing the scale

factor can adjust the meter to compensate for that loss

The meter multiplies each pulse by this number to correct

theaccuracywhenitconvertstothespecifiedunits,sothe

reading on the dial is always correct.

For an approximate scale factor for fluids of different

viscosities, consult the following chart:

Type of Fluid Viscosity (cp) Scale Factor

Water/Anti-Freeze 5 0.9580

Anti-Freeze 18 0.9930

Automatic Transmission Fluid 80 0.9980

Motor Oil 140 0.9960

Benz 80W-90 400 1.0020

Mobil 80W-90 450 1.0004

SAW 50W 900 1.0040

140WT 1800 1.0070

(Unless otherwise specified at the time of the order, each

meter is programmed in quarts for use with motor oil.)

Note: The original meter scale factor is written inside of

themeterwhencalibratedatthefactory. Itmayhavebeen

revised after field installation. Use scale factor shown on

display, not the lavel.

Toviewthecurrentprogramscalefactor,dothefollowing:

1. Press and hold the button.

2. Then, press and hold the button.

For an absolute scale factor, perform the following test:

Run a pre-measured batch of fluid through the meter. If the

meter is programmed to batch 4.200 quarts, and it batches

theentireamountbutonlyreads4.000quarts,thenthescale

factorneeds t beadjusted. Divide thequantitydelivers (4.2)

by the quantity dispensed (4.0) to get the error factor (1.05)

To calculate the new scale factor:

If existing scale factor is 1.0123, then calculation would be:

1.0123 (existing scale factor) x 1.05 (error factor) = 1.0629

(new scale factor)

Change the scale factor:

Press <PROGRAMMING> key to enter the programming

mode, and the button to advance through the units

mode.

1. The first digit of the scale factor will be flashing.

2. Press the button to scale through the numbers.

11.00"

3.50"

6.00"

SPECIFICATIONS English Metric

Maximum Flow * 8gpm 30lpm

Minimum Flow * 0.25gpm 1 lpm

OperatingPressure(Maximum) 1000psi 67bar

OperatingPressure(Minimum) 5 psi .35bar

OperatingTemperature(Maximum) 120°F50°C

OperatingTemperature(Minimum) 20°F-5°C

Accuracy(Non-ApprovedVersion) +/- 0.5% +/- 0.5%

Accuracy(ApprovedVersion) +/- 0.4% +/- 0.3% (1 to 10 lpm)

5-Digit LCD Display, 10 mm High x 5 mm Wide Quarts, Pints, Gallons Liters

Inlet and Outlet Connections ½”NPT ½” BSPP

* Tested with DTE-25 motor oil at ambient temperature. Min.-Max. flow range will vary with fluid viscosity.

ITEM# PART DESCRIPTION PART NUMBER

1 Top Case with Screws 64103-002

2 Keypad 63802-001

3 PCBAssembly, Non-Approvedwith Screws 64103-001

4a Bare Meter, NPT 63897-001

4b Bare Meter, BSPP 63897-002

ITEM# PART DESCRIPTION PART NUMBER

1 BatteryDoor withScrews 64103-004

2 Bottom Case with Screws 64103-003

3 Detent Ball 63841-001

4 Solenoid 63879-001

5 O-Ring,BatteryDoor 55300-043

6 O-Ring,BatteryCompartmentScrew 55300-006

Tabla de contenidos

Otros manuales de Instrumento de medición de Badger Meter

Badger Meter

Badger Meter Blancett QuickSert B131C-038 Manual de usuario

Badger Meter

Badger Meter QuikSert Standard Manual de usuario

Badger Meter

Badger Meter Recordall Series Manual de usuario

Badger Meter

Badger Meter IOG Series Manual de usuario

Badger Meter

Badger Meter Impeller Data Industrial 228PV Series Manual de usuario

Badger Meter

Badger Meter Oval Gear LM OG Series Manual de usuario

Badger Meter

Badger Meter BadgerTouch HREBT Manual de usuario

Badger Meter

Badger Meter ORION Manual de usuario

Badger Meter

Badger Meter Blancett B2800 Standard Manual de usuario

Badger Meter

Badger Meter Orion AL Series Manual de usuario

Badger Meter

Badger Meter LM-OG-P2 Advanced Manual de usuario

Badger Meter

Badger Meter ILR710 Manual del propietario

Badger Meter

Badger Meter 380CS Manual de usuario

Badger Meter

Badger Meter Blancett 1100 Series Manual de usuario

Badger Meter

Badger Meter Orion 64989-002 Manual de usuario

Badger Meter

Badger Meter Blancett B2800XP Manual de usuario

Badger Meter

Badger Meter ORION SE Guía de instalación y uso

Badger Meter

Badger Meter Recordall Turbo Series Manual de usuario

Badger Meter

Badger Meter Blancett 1100 Series Manual de usuario

Badger Meter

Badger Meter Impeller Data Industrial 3050 Series Manual de usuario

Badger Meter

Badger Meter Blancett QuickSert B134C-400 Manual de usuario

Badger Meter

Badger Meter F001 Manual de usuario

Badger Meter

Badger Meter Blancett B3100 Series Manual de referencia

Badger Meter

Badger Meter epm-3 Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
