1.800.736.4666BACHARACH

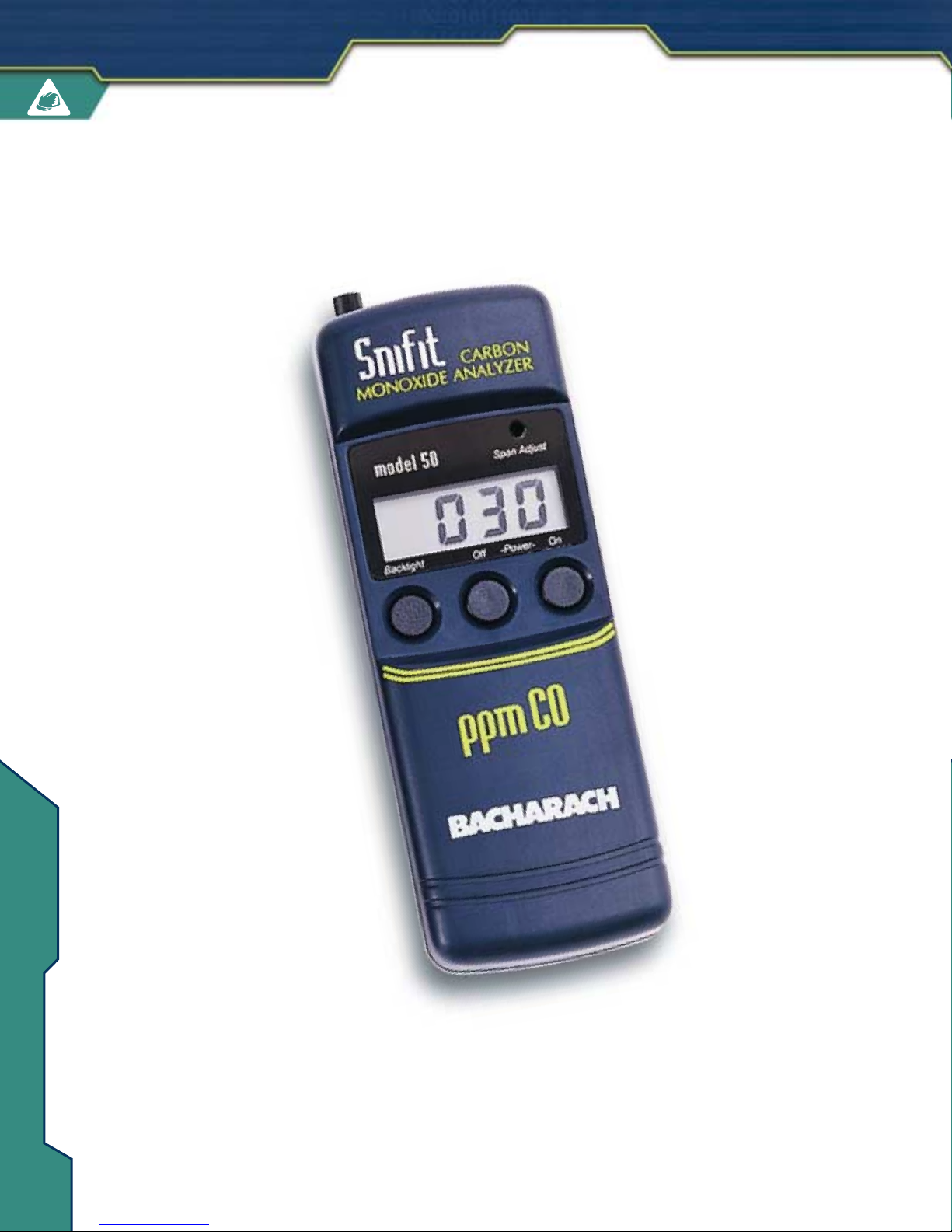

Snifit®40&50

Carbon Monoxide Analyzers

Bacharach’s affordable Snifit Carbon Monoxide (CO) analyzers can help you accurately measure CO concentration levels

in room air. his continuous operating instrument quickly and accurately measures levels of CO between 0 and 1,999

ppm. Weighing just 8 ounces, the Snifit analyzers are light as a feather and small enough to fit in your shirt pocket or

hold in the palm of your hand.

With one button operation, the Snifit analyzers are simple to use. Special design features such as a zero adjustment

control and a fast response sensor specific to CO gas make the Snifit analyzers perfect for measuring low levels of CO.

1.800.736.4666 BACHARACH

Applications

The Snifit is ideal for ambient air safety checks on residential appliances such as fireplaces and ovens; home inspection

and HVAC service on furnaces and hot water heaters.

Features

• easures and displays Carbon onoxide 0-1,999 ppm, 1ppm resolution

• Small enough to fit in your shirt pocket

• Back light for low light conditions ( odel 50)

• One button operation

• Low battery indicator ( odel 50)

Snifit Model 40

ATTACHMENT CO ANALYZER

In conjunction with your Digital ultimeter (D ), the

Snifit 40 will allow you to measure CO concentrations

between 0 and 1,999 ppm. Simply plug in the universal

Snifit connector into your D and conduct quick and

easy CO measurements in room air. Use 31

/2digit or

greater D having a 2 V DC range or auto ranging

capability and 100 Ωor greater input impedance.

Snifit Model 0

CO ANALYZER

The stand alone Snifit 50 allows you to continuously

measure and display CO levels between 0 and 1,999

ppm. With 1 ppm resolution, the Snifit 50 can accurately

measure high and low concentrations quickly and easily.

The highly visible display indicates ppm CO and a

backlight is available to use in low light conditions.

ORDERING INFORMATION

PART NO. DESCRIPTION

19-7059 Snifit 40 CO Analyzer (used with multimeter)

19-7060 Snifit 50 CO Analyzer (used with digital display)

19-7061 CO Sensor

19-7065 Snifit Pump and Hose Assembly

19-3225 Coiled Cord for ultimeter

19-3242 Calibration Cup with screwdriver

54-1994 Calibration Gas (100 ppm)

24-7059 Calibration Kit (without gas)

SPECIFICATIONS

Range 0-1,999 ppm

Resolution 1 ppm

Display 31/2” display with yellow-green backlight

(Snifit 50 only)

Sensor Type Electrochemical (specific to CO)

Sensor Calibration Factory calibrated on 100 ppm

Sensor Accuracy +/- 5% of reading

Weight 8 ounces (.23 Kg)

Dimensions 5.5”L x 2.0”W x 1.57”H

(140mm x 50 mm x 40mm)

Power Source 9-volt battery

Battery Life 6 months operation with normal duty cycles

anual Zero Reduces chances of zeroing in hazardous

environment

Auto Power Off Every 30 minutes

Operating Temp. 32°F to 104°F (0-40°C)

Warranty 1 year
