Aztech HL117E Instrucciones de uso

MODEL

HL117E

The following items are included in your HL117E package.

Package Contents

HomePlug AV devices are preconfigured with a common Private Network Name. Adding new HomePlug AV devices to an existing

network with the default Private Network Name is as easy as plugging the device into the power outlet. If you wish to have a unique

private Network Name, simply follow the instructions below. This Easy Start Guide, the User Manual, and the HomePlug AV Utility

software is included in the Resource CD and is also downloadable on our Aztech Support Website (www.aztech.com/support).

Device Overview

Setting up your HomePlug AV Network

Step 1

In Room A, plug in your Homeplug AV device into the power outlet

and connect it to the router using an Ethernet cable.

NOTE: Ensure that your router’s internet connection is UP to allow

access to the internet.

Step 2

In Room B plug in your other Homeplug AV device into the power

outlet and connect it to your computer’s ethernet port using an

Ethernet cable.

Resource CD Easy Start

Guide

Ethernet

Cable

HL117E

Powerline

Activity

LED

Ethernet

Activity

LED

Power LED

Simple

Connect

Button

Ethernet

Port

Step 3

Confirm that a connection has established on both HomePlug AV

devices. All 3 LEDs (Power , Powerline , and Ethernet )

must be ON. Your Homeplug AV Network is now ready to use and

can access Internet.

DEVICES ARE PLUG

AND PLAY READY.

Warranty

Policy

MODEL

HL117E

Setup for an Existing Network Connection

If in case you have changed the Private Network Name of your

existing network, you may use the Simple Connect Button of your

HL117E and the other devices as indicated below:

Within two minutes, press the simple connect button of

HomePlug AV X for TWO SECONDS.

Step 3

To confirm if the connection has established, check the LEDs. The Power LEDs and

the Powerline Activity LEDs on all HomePlugs would be ON.

Step 4

NOTES:

When joining an existing network, you only have

to pair it to one HomePlug AV that belongs to the

existing network.

The Ethernet Activity LED will only be lit if it is

connected to an Ethernet device (e.g. computer,

laptop, etc) through an Ethernet cable.

To perform RESET to factory defaults, press the

Simple Connect button for 5 to 6 SECONDS.

•

Press the Simple Connect button of your HomePlug

AV X for 10 SECONDS. After you release the button,

the Power and Powerline Activity LED will turn

OFF and turn ON.

Step 1

Press the Simple Connect Button of HomePlug AV Y for

TWO SECONDS. The Power LED will continuously blink. If

the Power LED did not blink, press the Simple Connect button

again for two seconds.

Step 2

Press for 5 to 6

SECONDS to perform

factory defaul reset.

HomePlug X

(Your new HomePlug)

HomePlug Y

(A HomePlug that

belongs to the existing

network)

HomePlug X

(Your new HomePlug)

HomePlug Y

(A HomePlug that

belongs to the existing

network)

HomePlug X

(Your new HomePlug)

HomePlug Y

(A HomePlug that

belongs to the existing

network)

HomePlug X

(Your new HomePlug)

HomePlug Y

(A HomePlug that

belongs to the existing

network)

Otros manuales de Adaptador de Aztech

Aztech

Aztech Shiro HL100E Hoja de información del producto

Aztech

Aztech Easy Guía

Aztech

Aztech HL110E Instrucciones de uso

Aztech

Aztech WL590E Manual de usuario

Aztech

Aztech WL552USB Manual de usuario

Aztech

Aztech Easy Guía

Aztech

Aztech WL593USB Manual de usuario

Aztech

Aztech WL592USB Manual de usuario

Aztech

Aztech HL113 E Manual de usuario

Aztech

Aztech WL592USB Instrucciones de uso

Aztech

Aztech Wireless N USB Adapter Manual de usuario

Aztech

Aztech HL113EP Instrucciones de uso

Aztech

Aztech HL129EP Instrucciones de uso

Aztech

Aztech Wireless N USB Adapter Instrucciones de uso

Aztech

Aztech HomePlug Mediaxtream Ethernet Adapter Manual de usuario

Aztech

Aztech WL230USB Wireless B+G Instrucciones de uso

Aztech

Aztech HomePlug AV Manual de usuario

Aztech

Aztech WL578USB Instrucciones de uso

Aztech

Aztech HomePlug AV Manual de usuario

Aztech

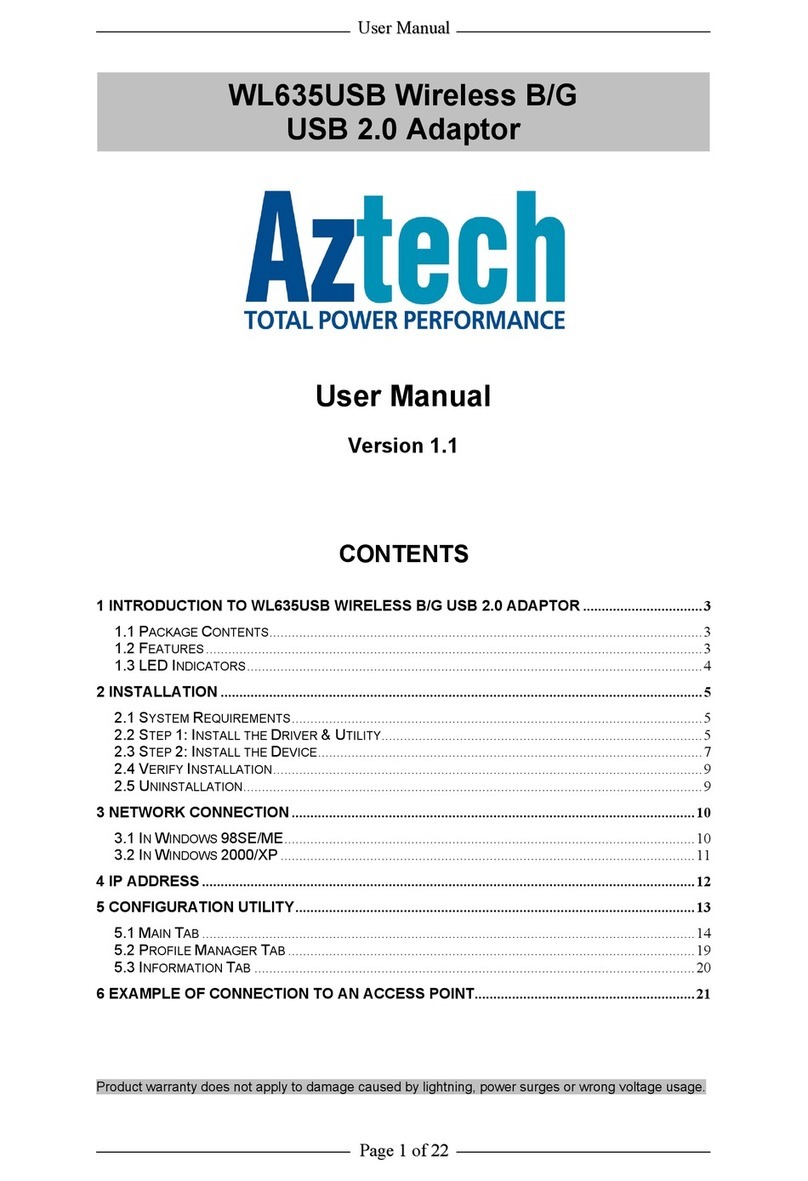

Aztech WL635USB Manual de usuario
