* This product was designed and manufactured conforming to the JIS (Japanese Industrial Standards, JIS20K/SCPH2).

Specifications/Instructions

ACTIVAL™

Motorized Two-Way Valve with Flanged-End Connection

(ANSI Class150 equivalent / WCB)*

General

ACTIVALModel VY51XEJ is a series of motorized two-way

valves with flanged-end connection. Rotary valve and

actuator are integrated in a single unit.

Valve size ranges from 11/2” to 3”.

Actuator has a reversible synchronous motor, which

operates at a low voltage of 24 V AC.

This product is controlled as follows:

4 to 20 mA DC input:

Provides proportional control in combination with a

single loop controller (e.g., Model SDC35/ SDC36).

Features

Compact and lightweight:

Rotary motor actualizes small body and light weight.

Valve and actuator integrated in a single unit:

Pre-assembled body requires no adjustment.

Valve applicable to high differential pressure, with large

Cv value, wide rangeability, and low leakage.

Durable actuator with low power consumption.

Equal percentage flow characteristic.

2 to 10 V DC output (for position feedback) available with

4 to 20 mA DC input for Model VY513E..

CE Marking certified:

ACTIVAL Model VY513EJ conforms to all the applicable

standards of CE Marking.

AB-7355-U

Safety Instructions

Please read instructions carefully and use the product as specified in this manual. Be sure to keep this manual nearby for quick

reference.

Restrictions

This product is targeted for general air conditioning. Do not use this product in a situation where human life might be affected.

Also, do not install this product in an atmosphere containing explosive gas or flammable gas.

If this product is used in a clean room or a place where particularly high reliability or control accuracy is required, please contact

our sales representative. Azbil Corporation will not bear any responsibility for the results produced by the operators.

Warnings and Cautions

WARNING Alerts users that improper handling might cause death or serious injury.

CAUTION Alerts users that improper handling might cause minor injury or material loss.

Signs

Alerts users possible hazardous conditions caused by erroneous operation or erroneous use. The symbol inside 

indicates the specific type of danger. (For example, the sign on the left warns of the risk of electric shock.)

Notifies users that specific actions are prohibited to prevent possible danger. The symbol inside graphically

indicates the prohibited action. (For example, the sign on the left notifies that disassembly is prohibited.)

Instructs users to carry out a specific obligatory action to prevent possible danger. The symbol inside graphically

indicates the actual action to be carried out. (For example, the sign on the left indicates general instructions.)

WARNING

Some of the product models weigh more than 40 lb (18.1 kg). Carefully move the product with a vehicle or enough

manpower in an appropriate manner. Careless lift or accidental drop of the product might cause injury or product

damage.

Detach the cover only when wiring, setting the product or maintenance and reattach the cover after wiring, setting the

product or maintenance. Failure to do so might cause electric shock.

Before wiring or maintenance, be sure to turn off the power to the product (including the optional devices). Failure to do

so might cause electric shock or device failure.

CAUTION (1/2)

Install and use this product under the operating conditions (for temperature, humidity, power, vibration, shock,

mounting direction, atmosphere, etc.) listed in the specifications. Failure to do so might cause fire or device failure.

Do not allow the fluid to freeze. Doing so might damage the valve body and cause fluid leakage.

Use the product within its lifespan and avoid instrumentations that keep the product to operate excessively. Continued

use beyond the lifespan might cause fire or device failure.

Do not install the product nearby a steam coil, pressurized hot-water coil, or any high heat source. High temperature

radiation might cause malfunction of its actuator.

For installation, do not mount the valve in an improper position or overtighten the bolts on the flange. Doing so might

damage the product.

After installation, make sure no fluid leaks from the valve-pipe connections. Incorrect installation might cause fluid

leakage



Install the product so that no foreign objects remains inside the pipes. Be sure to provide a strainer on the inflow side

of the piping. Flush the piping to remove the foreign objects after installation. Foreign objects inside the piping might

damage the product.

AB-7355-U

CAUTION (2/2)

Keep the products in package for storage. Failure to do so might damage or stain the products.

Installation and wiring must be performed by qualified personnel in accordance with all applicable safety standards.

Do not allow any shock on the product. Doing so might damage the product.

Do not put load or weight on the actuator of the product. Doing so might damage the product.

All wiring must comply with applicable codes and ordinances.

Provide a circuit protector (e.g., a fuse, circuit breaker) for the control panel to ensure your safety.

Provide circuit breaker/fuse protection when powering this product.

Use crimp terminals with insulation for connections to the product terminals. Failure to do so might cause short circuit

leading to fire or device failure.

Firmly tighten the terminal screws. Insufficient tightening of the terminal screws might cause fire or overheating.

Do not use the product in an atmosphere corrosive to the actuator, valve, and their components. Doing so might

damage the product.

Do not carelessly touch the product when being used to control hot water. The product temperature is hot, and you

might get burned

Do not touch the moving parts of the product. Doing so might cause injury.

Do not disassemble the product. Doing so might cause device failure.

Dispose of this product as industrial waste in accordance with your local regulations. Do not reuse all or part of the

product.

IMPORTANT:

In case an Azbil Corporation product fails, you are required to provide your Equipment with safety design such

as fool-proof design*1, and fail-safe design*2(anti-flame propagation design, etc.), whereby preventing any

occurrence of physical injuries, fires, significant damage, and so forth. Furthermore, fault avoidance*3, fault

tolerance*4, or the like should be incorporated so that the said Equipment can satisfy the level of reliability and

safety required for your use.

*1. A design that is safe even if the user makes an error.

*2. A design that is safe even if the device fails.

*3. Avoidance of device failure by using highly reliable components, etc.

*4. The use of redundancy.

IMPORTANT:

When installing the product with a flange gasket, do not allow the gasket going inside the pipe.

AB-7355-U

Model Numbers

Model VY51XEJ00XX is the model for the valve and actuator integrated into a single unit.

The model number label is attached to the yoke. The control signal is indicated on the actuator label and on the wiring diagram

label, as shown below.

4 to 20 mA DC input: 4-20 mA

Base

model

number

Actuator/valve Actuator Valve

Fixed Description

Ctrl

signal

Rating/

material Type Fixed Nominal

size/Cv

VY51 Motorized two-way valve with flanged-end connection

4 mA DC to 20 mA DC input with 2 V DC to 10 V DC position feedback

output

ANSI Class150 equivalent

WCB*

NEMA 4X and IEC IP54 protected and standard torque type actuator

with terminal block

(Mountable valve sizes: 11/2” to 3”)

－

11/2” / 25 in Cv value

11/2” / 40 in Cv value

2” / 65 in Cv value

21/2” / 95 in Cv value

3” / 125 in Cv value

S-146 －

* This product was designed and manufactured conforming to the JIS (Japanese Industrial Standards, JIS20K/SCPH2).

Specifications

For weight, refer to the table shown in the section Dimensions.

Valve and actuator (as a single unit) specifications

Item Specification

Environmental

conditions

Rated operating

conditions

Ambient temperature -4 to 122 F (-20 to 50 C)

(Applicable fluid temperature: 32 to 302 F (0 to 150 C)

Do not allow the process fluid to freeze.)

Ambient humidity 5 to 95 % RH

Vibration 16.1 fps2(4.9 m/s2))

Transport/storage

conditions

(in package)

Ambient temperature -4 to 158 F (-20 to 70 C)

Ambient humidity 5 to 95 % RH

Vibration 64.3 fps2(19.6 m/s2))

Installation locations Indoor: Salt air, corrosive gas, and organic solvent must be avoided.

Outdoor: Optional outdoor cover must be used. Salt air, corrosive gas, and organic solvent must

be avoided.

Installation orientation Installable in any position ranging from upright to sideways (90tilted.)

* Always install in upright position outdoors.

Manual operation Available. Refer to the subsection Manually opening/closing the ACTIVAL.

Position for shipment 100 % (fully open) preset at factory.

Weight Model Weight

VY513EJ0041S-146 21.4 lb (9.7 kg)

VY513EJ0042S-146 21.4 lb (9.7 kg)

VY513EJ0051S-146 26.9 lb (12.2 kg)

VY513EJ0061S-146 37.9 lb (17.2 kg)

VY513EJ0081S-146 47.0 lb (21.3 kg)

AB-7355-U

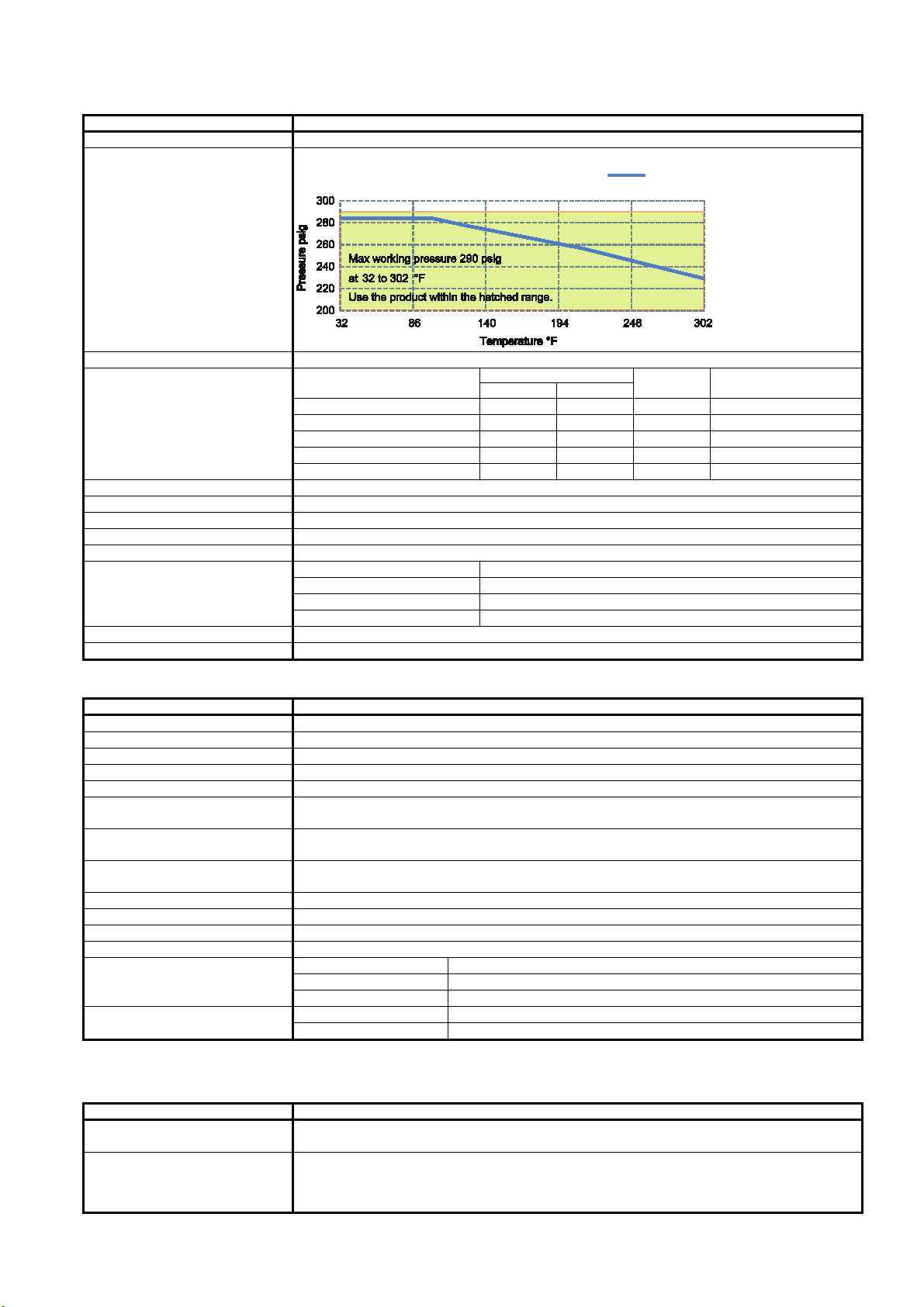

Valve specifications

Item Specification

Model Two-way valve with flanged-end connection

Body pressure rating

ANSI Class150 equivalent (Max. working pressure: 290 psig)

End connection ANSI Class150 Bolt pattern flanges, raised face flange (RF)

Size, Cv, Close-off rating Model number Nominal size Cv Close-off ratings

inch DN

VY513EJ0041S-146 11/2” 40 25 145 psig

VY513EJ0042S-146 11/2” 40 40 145 psig

VY513EJ0051S-146 2" 50 65 145 psig

VY513EJ0061S-146 21/2” 65 95 145 psig

VY513EJ0081S-146 3" 80 125 102 psig

Applicable fluid Chilled/hot water, high temperature water, ethylene glycol solutions, 50 % max.

Allowable fluid temperature 32 to 302 F (0 to 150 C)

Flow characteristic Equal percentage

Rangeability 100 : 1

Seat leakage 0.01 % of rated Cv value

Materials Body Cast carbon steel (WCB)

Plug, stem Stainless steel

Seat ring, gland packing Heat-resistant PTFE

Gasket Expandable graphite sheet

Paint Gray (equivalent to M5B 4/1)

Actuator to be combined Integrated with the valve

Actuator specifications

Item Specification

Power supply 24 V AC 15 %, 50 Hz/60 Hz

Applicable valve type 11/2” to 3”, standard torque

Power consumption 8 VA

Timing 63 5 sec (50 Hz) / 53



5 sec (60 Hz)

Control signal input 4 to 20 mA DC input (input impedance: 100 )

Feedback signal output Range: 2 V DC (0 % position) to 10 V DC (100 % position)

Allowable load resistance: 10 kor higher (max. output current: 1 mA)

Valve position indication Pointer located at the bottom of the actuator shows the position by pointing at the value of the scale (0:

close to 100: open) on front, rear, and bottom sides.

Terminals connection Remove a knockout hole, 0.9" Dia. (22 mm Dia.), on the actuator to feed in the cable. Connect the cable

to the terminal posts by M3.5 screws.

Enclosure rating NEMA 4X, IEC IP54

Insulation resistance Between terminal and case: 5 Mor higher at 500 V DC

Dielectric strength Between terminal and case: 500 V AC/min with 5 mA or less leakage current

Factory setting Valve position: 100 % (fully open)

Materials Case Cast aluminum alloy

Top cover, terminal cover Polycarbonate resin (Color: gray, equivalent to DIC-651)

Yoke Steel plate

Surface finishing Case None

Yoke Electro-galvanized (Bright chromate finish)

Options

Separately order the following optional parts if needed.

Item Specification

Seal connector

(Part No. 83104346-003)

Applicable wire size: 0.28" Dia. to 0.35" Dia. (7 mm Dia. to 9 mm Dia.)

(Seal connector is necessary for NEMA 4X and IEC IP54 protection.)

Auxiliary switches

(Part No. 83165274-001)

Number of switches: 2 (SW A and SW B)

Maximum applied voltage/current: 30 V DC / 3 A DC

Actuating position SW A: Adjustable between 0 % (fully closed) and 100 % (fully open)

SW B: Adjustable between 0 % (fully closed) and 100 % (fully open)

Class150

(ASME 16.34-2009)

AB-7355-U

CE Marking Conformity

This product complies with the following Electromagnetic Compatibility (EMC).

EMC: EN61000-6-2, EN55011 Class A

Dimensions

Model number Valve size Unit H H1 L L1 C D g h t N Weight

VY513EJ004XS-146 1½" in 9.49 4.06 7.48 3.25 3.91 4.92 2.87 0.63 0.71 4 21.4 lb

DN40 mm 241 103 190 82.5 99.2 125 73 16 18 9.7 kg

VY513EJ0051S-146 2" in 9.65 4.21 8.50 4.53 4.72 5.91 3.63 0.75 0.71 4 26.9 lb

DN50 mm 245 107 216 115 120 150 92.1 19 18 12.2 kg

VY513EJ0061S-146 2½" in 10.31 4.88 9.49 4.74 5.51 6.89 4.13 0.75 0.79 4 37.9 lb

DN65 mm 262 124 241 120.5 140 175 104.8 19 20 17.2 kg

VY513EJ0081S-146 3" in 10.35 4.92 11.14 4.84 6.00 7.48 5.00 0.75 0.87

4 47.0 kg

DN80 mm 263 125 283 123 152.4 190 127 19 22 21.3 kg

Figure 1. Dimensions

Flow direction

2.76” (70 mm) 2.76” (70 mm)

L t

5.43” (138 mm)

C Dia.

D Dia.

3.23” (82 mm) 3.35” (85 mm)

N × h Dia.

g Dia.

Min.

12” (300 mm) Min.

4” (100 mm)

AB-7355-U

Parts Identifications

Figure 2. Parts identification

Yoke

Gland packing

Knockout

Terminal cove

Top cover

Pointer

Joint

Stem

Seat ring

ctuato

Valve body

: Heat insulation

Plug

S-146

VY513EJXXXX

Model number

Top cover

Terminal cover

AB-7355-U

Installation

WARNING



Some of the product models weigh more than 40 lb (18.1 kg). Carefully move the product with a vehicle or enough

manpower in an appropriate manner. Careless lift or accidental drop of the product might cause injury or product

damage.

CAUTION



For installation, do not mount the valve in an improper position or overtighten the bolts on the flange. Doing so might

damage the product.



After installation, make sure no fluid leaks from the valve-pipe connections. Incorrect installation might cause fluid

leakage



Install the product so that no foreign objects remains inside the pipes. Be sure to provide a strainer on the inflow side

of the piping. Flush the piping to remove the foreign objects after installation. Foreign objects inside the piping might

damage the product.



Keep the products in package for storage. Failure to do so might damage or stain the products.



Installation and wiring must be performed by qualified personnel in accordance with all applicable safety standards.

IMPORTANT:

When installing the product with a flange gasket, do not allow the gasket going inside the pipe.

Precautions for installation

ACTIVAL Model VY51XEJ is the valve and actuator integrated into a single unit. Do not combine the valve with any other

actuator, or do not combine the actuator with any other valve.

To remove foreign substances inside the pipes, install a strainer with 40 or more meshes on the inflow side of each valve. If

the strainers cannot be installed on the inflow side of each valve, install it on the pipe diverting sections (sections diverting

from main piping system to sub piping system).

Install the valve so that the flow direction of process fluid agrees with the arrow indicated on the valve body.

Installation location

CAUTION



Do not install the product nearby a steam coil, pressurized hot-water coil, or any high heat source. High temperature

radiation might cause malfunction of its actuator.



Do not use the product in an atmosphere corrosive to the actuator, valve, and their components. Doing so might

damage the product.

IMPORTANT:

The top and the terminal covers might be corroded by chemicals and organic solvent or their vapor. Do not

expose the ACTIVAL to such substances/vapor.

Although the ACTIVAL can be used in high humidity environments (max. 95 %RH), do not immerse the

actuator in water.

Although the ACTIVAL can be used outdoors, be sure not to expose the actuator to direct sunlight.

Install the ACTIVAL in a position allowing easy access for maintenance and inspection. Fig. 1 shows the minimum

clearance for maintenance and inspection. When installing the ACTIVAL in a ceiling space, provide an access hole within

the 20" (508 mm) radius of the ACTIVAL. And, place a drain pan under the valve.

Do not mount the ACTIVAL on a pipe where water hammer occurs, or where solid objects including slug may accumulate.

Mounting position

The ACTIVAL can be mounted in any position ranging from upright to

sideways (90tilted). The ACTIVAL should be installed with its actuator

vertically positioned above the valve body. (See Fig. 3.) However, the

ACTIVAL must be installed always in upright position outdoors.

Correct mounting Incorrect mounting

Figure 3. Mounting position

AB-7355-U

Piping

Check that the model number of the product is what you ordered. The model number is shown on the label attached to the

yoke.

Install a bypass pipe and gate valves on the inflow, outflow, and bypass sides. Also, install a strainer with 40 or more

meshes on the inflow side.

When installing the ACTIVAL to the pipes, do not allow any object, such as chips, to get inside a pipe or valve. Valve cannot

fully closes, or the valve seat might get damaged causing fluid leakage, due to an object jammed inside the valve.

When piping, do not apply too much sealing material, such as solidifying liquid and tape, to the pipe connection sections so

that these materials flow into the valve. Valve cannot fully closes, or the valve seat might get damaged causing fluid leakage,

due to the sealing material jammed inside the valve.

Before activating the ACTIVAL, fully open (in 100 % position) the valve and flush the pipes (with the ACTIVAL installed) at

the maximum flow rate to remove all the foreign objects. (Factory preset position: 100 %)

Heat insulation

Do not apply heat insulation to the actuator or to the yoke, as shows in Fig. 2. If the yoke and the actuator are covered with

insulation material, the pointer cannot be checked and may be distorted.

Factory preset position

The actuator shaft is positioned at 100 % (in fully open position) for shipment. The shaft is thus completely turned clockwise, and

the pointer points at ‘100’. (See Fig. 4.)

Figure 4. Pointer position for shipment

Manually opening/closing the ACTIVAL

IMPORTANT:

Before manually open/close the ACTIVAL, turn off the power (24 V AC). Failure to do so might damage the

actuator.

To manually open/close the ACTIVAL, do not turn the joint beyond the fully open (100)/closed (0) mark.

Disconnect the power from the ACTIVAL before manually operating the ACTIVAL. As shown in Fig. 5, from the front of the

ACTIVAL, hold the joint using a tool such as a wrench, and turn the joint slowly toward the set position.

Figure 5. Manual operation

Pointer

Joint

Hold the joint using a wrench

and turn slowly.

AB-7355-U

Auxiliary switch (optional)

The auxiliary switch is installed on site. Refer to the instructions supplied with the auxiliary switch/potentiometer for installation.

IMPORTANT:

Do not open the top cover except when adjusting the auxiliary switch/potentiometer. Close the top cover

instantly after adjusting the auxiliary switch/potentiometer.

Do not put any load on the top cover.

Procedure to change the actuator mounting position

IMPORTANT:

Do not change the combination of the valve, yoke, and actuator.

When changing the mounting position, set the ACTIVAL (actuator and valve) in 100 % position. If the valve and

actuator are assembled in a wrong positon, position of valve and actuator do not match, the actuator's gears

will be damaged because the actuator tries to actuate the valve although it in in fully open or fully closed state.

1) Remove the screws connecting the actuator and the yoke. Lift the actuator and detach it from the yoke. Make sure that the

groove on the top of the valve stem is parallel to the pipes (indicating the valve in 100 % position). <Step 1 in Fig. 6>

2) Remove the screws connecting the yoke and the valve. <Step 2 in Fig. 6>

3) Change the facing direction of the yoke. The yoke and actuator can be horizontally rotated every 90(0/90/180/270from

the factory preset position) to mount onto the valve.

4) A thermal insulation sheet is inserted between the yoke and the valve. When changing the mounting positions, reinsert the

sheet and then fit the yoke into the new mounting position.

5) Before fixing the yoke to the valve with the screws, check that the actuator engages correctly with the valve stem (at the new

mounting position). Check that the pointer of the actuator indicates 100 % position as well. Then, fix the yoke to the valve.

6) Mount the actuator. Place the actuator, with its facing direction changed, on the yoke, and fix them with the screws.

7) Check that the ACTIVAL with the mounting position changed operates smoothly (from 0 % to 100 %).

Figure 6. Changing the actuator mounting position

Step 1 Step 4

Lift off the actuator.

Change the actuator mounting

position, and remount the

actuator on the yoke.

Step 2 Step 3

Detach the yoke from the

valve.

Change the yoke mounting

position, and remount the yoke

on the valve.

Thermal insulation sheet

Groove

Valve stem

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Unidad de control de Azbil

Azbil

Azbil ACTIVAL VY5333B0021 Manual de usuario

Azbil

Azbil GV-A Series Manual de usuario

Azbil

Azbil NX-CB1 Manual de usuario

Azbil

Azbil CV3000 Series Manual de usuario

Azbil

Azbil HLS Series Manual de usuario

Azbil

Azbil CV3000 Series Manual de usuario

Azbil

Azbil FloWing VFR Manual de usuario

Azbil

Azbil ACTIVAL VY516XJ Series Manual de usuario

Azbil

Azbil ACTIVAL+ FVY51 FJ Series Manual de usuario

Azbil

Azbil ACTIVAL VY5460F Series Manual de usuario

Azbil

Azbil ACTIVAL VY5303B Series Manual de usuario

Azbil

Azbil ACTIVAL VY51 K Series Manual de usuario

Azbil

Azbil Actival FVY5147J Manual de usuario

Azbil

Azbil ACTIVAL VY5302A Series Manual de usuario

Azbil

Azbil ACTIVAL+ FVY513E Series Manual de usuario

Azbil

Azbil Actival VY51 J Series Manual de usuario

Azbil

Azbil AGVB Manual de usuario

Azbil

Azbil ACTIVAL Intelligent Component Series Manual de usuario

Azbil

Azbil Infilex BC WY5610W0010 Manual de usuario

Azbil

Azbil ACTIVAL FVY513EJ Manual de usuario

Azbil

Azbil ACTIVAL VY519 J Series Manual de usuario

Azbil

Azbil VDN Manual de usuario

Azbil

Azbil NX-D15 Manual de usuario

Azbil

Azbil Actival JIS 20K Manual de usuario

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario
