Axminster WorkShop AW1950B Manual de usuario

Bandsaws

10" Inch

AW1950B Code 107711

Original Instructions

AT: 23/06/2021

BOOK VERSION: 01

INDEX OF CONTENTS

Cert No: MJ3420, MJ3425,

MJ343C, MJ343B

Axminster Tool Centre Ltd

Axminster Devon

EX13 5PH UK

axminstertools.com

Type Bandsaw

Model AW1950B and conforms to the machinery example for which the

EC Type-Examination Certiﬁcate No BM 50421300

has been issued by Laizhou Fulin Machinery Co., Ltd.

at:Wenchang Road Street Nanwuli Industry Yard Laizhou, Shandong261400

China

and complies with the relevant essential health and safety requirements.

2006/42/EC

EN 1807-1:2013

EN 60204-1:2006+A1+AC

06/42/EC - Annex I/05.2006

declares that the machinery described:-

This machine complies with the following directives:

EU Declaration of Conformity

Signed

Andrew Parkhouse

Operations Director Date: 05/11/2018

The symbols below advise the correct safety procedures when using this machine.

Fully read manual

and safety instructions

before use

Eye protection

should be worn

Ear protection

should be worn

HAZARD

Dust mask

should be worn

EU Declaration of Conformity 02

What’s Included 03-04-05

Optional Accessories 03-05

General Instructions for 230V Machines 05

Speciﬁcation 06

Assembly 06-07-08-09-10-11-12-13-14

Illustration and Parts Description 15-16-17-18-19-20

Setting Up the Saw 21-22-23

Operating Instructions 24

Changing the Saw Blade 25-26-27

Changing the Blade Speed 26

Maintenance 28

Bandsaw Blade Information 29-30

Bandsaw Trouble Shooting 31

UJK Bandsaw Buddy 32

Wiring Diagram 33

Exploded Diagrams/Lists 34-35-36-37

WHAT’S INCLUDED

Quantity Item Part

1 107711 Bandsaw A

Blade 1,950mm long,

mounted on saw but not

tensioned

Quantity Item Part

1 Craft Bandsaw Unit 1

1 Cast Iron Saw Table with Table Insert 2

1 Fence Guide Rail 3

1 Guide Fence Assembly 4

1 Extraction Port 5

1 Blade Tensioning Knob 6

1 Flexible Extraction Hose with Retaining Clips 7

1 Angled Pin and Nut 8

1 Push Stick 9

4 Long Bolts Washers & Nut 10

3 Hex Keys 11

2 Fence Rail Scale Strips (see pages 22-23 for mounting instructions)

Floor Stand Comprising

4 Leg Brackets 12

2 Long Upper Support Struts 13

2 Short Upper Support Struts 14

2 Long Lower Support Struts 15

2 Short Lower Support Struts 16

4 Threaded Rubber Feet 17

1 Floor Stand Bag of ﬁxings 18

Model Number AW1950B

Continues over...

OPTIONAL ACCESSORIES

Axminster Craft Mitre Fence (Code 104928) 19

WHAT’S INCLUDED

13 14

18 17

WHAT’S INCLUDED OPTIONAL ACCESSORIES

GENERAL INSTRUCTIONS FOR 230V MACHINES

The following will enable you to observe good working

practices, keep yourself and fellow workers safe and maintain

your tools and equipment in good working order.

WARNING!! KEEP TOOLS AND EQUIPMENT

OUT OF REACH OF YOUNG CHILDREN

Mains Powered Tools

• Tools are supplied with an attached UK 13 Amp plug.

• Inspect the cable and plug to ensure that neither are

damaged. Repair if necessary by a suitably qualiﬁed person.

• Do not use when or where it is liable to get wet.

Workplace

• Do not use 230V a.c. powered tools anywhere

within a site area that is ﬂooded.

• Keep machine clean.

• Leave machine unplugged until work is about to commence.

• Always disconnect by pulling on the plug body and not the

cable.

•Carry out a ﬁnal check e.g. check the cutting tool

is securely tightened in the machine and the correct

speed and function set.

•Ensure you are comfortable before you start work,

balanced, not reaching etc.

•Wear appropriate safety clothing, goggles, gloves,

masks etc.Wear ear defenders at all times.

•If you have long hair wear a hair net or helmet to prevent it

being caught up in the rotating parts of the machine.

•Consideration should be given to the removal of rings and

wristwatches.

•Consideration should also be given to non-slip footwear etc.

•If another person is to use the machine, ensure they are

suitably qualiﬁed to use it.

•Do not use the machine if you are tired or distracted

•Do not use this machine within the designated safety areas

of ﬂammable liquid stores or in areas where there may be

volatile gases.

•Check blades are correct type and size, are undamaged

and are kept clean and sharp, this will maintain their

operating performance and lessen the loading on the

machine.

•OBSERVE…. make sure you know what is happening

around you and USE YOUR COMMON SENSE.

KEEP WORK AREA AS UNCLUTTERED AS IS

PRACTICAL. UNDER NO CIRCUMSTANCES SHOULD

CHILDREN BE ALLOWED IN THE WORK AREA.

HAVING UNPACKED YOUR SAW (SEE BELOW) AND ITS ACCESSORIES PLEASE DISPOSE OF ANY

UNWANTED PACKAGING PROPERLY. THE CARDBOARD PACKAGING IS BIODEGRADABLE.

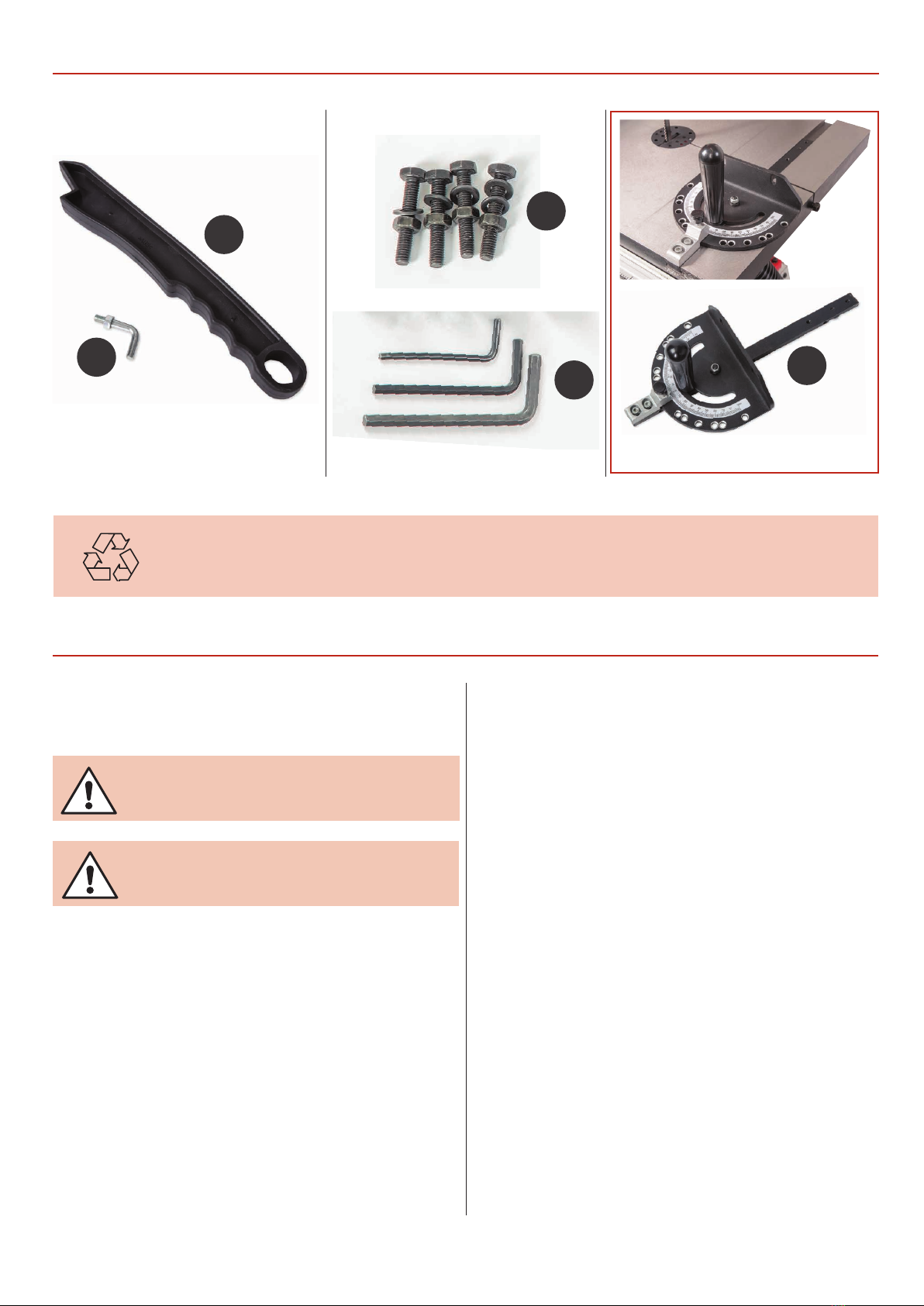

910

11 19

Optional Mitre Fence

SPECIFICATION

Code 107711

Model AW1950B

Rating Workshop

Power (Output) 550 W

Blade Speed 660 & 840 m/min

Blade Length 1,950mm

Blade Width Min/Max 6 mm to 13 mm

Max Width of Cut 260 mm

Max Width of Cut with Fence 185 mm

Table Size 350 x 330 mm

Table Height on Stand 1,035 mm

Table Tilt 0° - 45°

Dust Extraction Outlet 63 mm

Overall L x W x H 790 x 620 x 1,570 mm

Weight 39 kg

ASSEMBLY

Stand Assembly

Step 1 Step 2

ASSEMBLY

Mounting the Bandsaw to the Stand

Step 3

Step 4

Step 5

Step 6

Lift the saw on to the stand, secure using four long bolts, nuts

and washers (10). Insert the bolts through the pre-drilled holes

in each corner of the base and through the ﬂoor stand. Fit the

washers and nuts on the underside and tighten to secure the

assembly.

WHEN MOUNTING THE UNIT,WE

STRONGLY ADVISE YOU GET THE

ASSISTANCE OF ANOTHER PERSON

AS THE BANDSAW IS HEAVY.

10 1

ASSEMBLY

Tensioning and tracking the blade

Make sure both top and bottom blade guides and thrust

bearing are well clear of the blade, see ﬁg 01

Fig 01

1) Open the front covers fully, giving good access to the top

compartment of the saw and good visibility into the bottom

compartment, see page 14. For tracking the blade ﬁrst adjust

all bearing guides so that they are well clear of the blade.

Check that the blade is sitting approximately in the middle of

the wheels, see ﬁg 02.

Fig 02

2) Apply some tension to the blade by turning the tensioning

wheel clockwise, spin the top wheel by hand and check that

the blade remains centrally on the tyre, see ﬁg 03. If it does not,

adjust the tracking by turning the tracking control at the rear

of the head box, see ﬁg 04.Viewed directly onto the tracking

control wheel, turning clockwise should cause the blade to

track to the rear of the tyre; anti-clockwise to the front, Note:

DO NOT make large adjustments otherwise you will over

correct yourself.

Fig 03-04

3) Spin the top wheel again, check again. Continue until the

blade tracks in the centre of the tyres with no appreciable to

and fro movement.Tension the blade fully. A sideways push

on the blade should allow a maximum of 1 centimetre of

movement with moderate pressure on the blade, see ﬁg 05.

Check the tracking again, adjust if necessary.

Fig 05-06

Sideways push on the

blade, max 1 centimetre

of movement

ASSEMBLY

DISCONNECT THE SAW FROM

THE MAINS SUPPLY!

Setting the Blade Guides

1) Loosen the blade guide clamp and lower the upper blade

guide to approximately 1 1/2”(38mm) above the table, secure

in place.

2) Loosen the grub screw (A) holding the guide assembly in

place, adjust the fore and aft position so that the leading edge

of the ceramic guides are approximately 2mm behind the

gullets of the saw blade. Re-tighten the grub screw, see ﬁg 09-

10-11.

Fig 09-10-11

4) Check that the drive belt is tensioned correctly.Tension the

drive belt on model, loosen the motors clamping Hex bolt

and press the assembly down.While holding motor in place

retighten the Hex bolt, see ﬁg 08.

Fig 7-08

5) Stand clear and start the saw. Check that the saw is running

smoothly, (no thumps, bumps, knocking or excessive vibration)

and the blade appears to be tracking correctly (in one place).

You can check this by holding a marker, e.g. a pencil, close to

the back of the blade (approach from the back of the blade

only) and check that the gap remains constant.

If it doesn’t, adjust the tracking until it does, see ﬁg 04.

Make very small adjustments and wait for the saw to react

before you adjust again, sometimes the reaction is not

instantaneous. Once you are satisﬁed that the tracking is

correct, switch the machine off and allow it to run to a stop.

CONNECT THE SAW TO THE

MAINS SUPPLY!

Tension

Motor clamping bolt

Continues over...

3) Loosen the grub screw (B) that clamps the rear thrust

bearing, position the bearing so it’s 1mm behind the blade,

retighten the grub screw, see ﬁg 12-13.

Fig 12-13

1mm behind the blade

ASSEMBLY

Rear thrust bearing

3) Loosen the grub screw (B) that clamps the rear thrust

bearing, position the bearing so it’s 1mm behind the blade,

retighten the grub screw, see ﬁg 12-13.

4) Loosen the two grub screws holding the ceramic blade

guides. Adjust the guides to approximately 0.5mm clearance

on either side of the blade. Re-tighten the grub screws, see ﬁg

14-15.

Fig 14-15

0.5mm clearance

Ceramic guides

5) Remove the lower blade guide guard and place safely

aside, see ﬁg 16-17.

6) Set the fore and aft position on the guide assembly, as

described in step 2 on page 09.

Fig 16-17

Loosen the guide assembly bolt to the under side of the

bottom wheel housing, see ﬁg 18-19. Note you may need to

remove the lower wheel brush to gain access to the bolt, see

ﬁg 20. Once complete secure the assembly.

7) Repeat steps 3 and 4 on page 10 for setting the thrust

bearing and ceramic blade guides, see ﬁgs 21-22-23-24.

Este manual sirve para los siguientes modelos

Otros manuales de Sierra de Axminster

Axminster

Axminster Excalibur EX-16 Manual de usuario

Axminster

Axminster MJ12-2600 II Manual de usuario

Axminster

Axminster UE-125DV Manual de usuario

Axminster

Axminster TS-250M Manual de usuario

Axminster

Axminster SIEG Manual de usuario

Axminster

Axminster AW10BSB2 Manual de usuario

Axminster

Axminster Professional AP254TS Manual de usuario

Axminster

Axminster AWSS-18 Flex Manual de usuario

Axminster

Axminster PROFESSIONAL AP2920B Manual de usuario

Axminster

Axminster AW405FS Manual de usuario

Axminster

Axminster MCB1155HD Manual de usuario

Axminster

Axminster MCB100A Manual de usuario

Axminster

Axminster Professional AP1854B Manual de usuario

Axminster

Axminster AWSMS102 Manual de usuario

Axminster

Axminster PROFESSIONAL AP406SS Manual de usuario

Axminster

Axminster AWFS18 Manual de usuario

Axminster

Axminster SBW3501B Manual de usuario

Axminster

Axminster UV-180DS Manual de usuario

Axminster

Axminster 200024 Manual de usuario

Axminster

Axminster WorkShop AW2305B Manual de usuario

Axminster

Axminster Professional AP3327B Manual de usuario

Axminster

Axminster 250mm Slide Mitre Saw Manual de usuario

Axminster

Axminster 200387 Manual de usuario

Axminster

Axminster Trade AT3327B Manual de usuario

Manuales populares de Sierra de otras marcas

RIDGID

RIDGID BS1400 Manual de usuario

ATIKA

ATIKA BWS 400-2 Manual de usuario

RGC

RGC FS20 Manual de usuario

Makita

Makita M2300 Manual de usuario

IMET Spa

IMET Spa BASIC 300 PLUS SHI Manual de usuario

IMET Spa

IMET Spa SIRIO 370 AF-E Manual de usuario

Optimum

Optimum OPTisaw CS 275 Manual de usuario

Makita

Makita BPB180 Manual de usuario

Stihl

Stihl MS 462 C-M Manual de usuario

AEG

AEG TS 250 K Manual de usuario

Meec tools

Meec tools 004665 Manual de usuario

Makita

Makita LS1018L Manual de usuario

Ryobi

Ryobi RCS1400 Manual de usuario

DeWalt

DeWalt DCS391 Manual de usuario

Sealey

Sealey SA72 Manual de usuario

skilsaw

skilsaw SPT88 Instrucciones de montaje

Urrea

Urrea SI810 Dimensiones y guía de instalación

EINHELL

EINHELL BKG 210/1 Manual de usuario
