Axkid Rekid Manual de usuario

Rekid

Instruction manual

Rear-facing 9-18 kg

installed with ISOx

Tested and approved according to

ECE R44 / 04

ISOx size C/R3

Rear-facing 9-25 kg

installed with vehicle seat belt

ank you for choosing an Axkid child seat. Our team combined have over 30

years experience within child safety, and we have done our utmost to make the

Rekid child seat as safe as possible. e Rekid child restraint is

approved according to ECE R44/04, the latest European standards for child safety.

To maximise your child’s safety it is important that you keep the following in mind;

Read this instruction manual before installing the

Rekid child restraint in your vehicle.

Read this instruction manual carefully before installing the

Rekid child restraint. If in doubt, contact your retailer who can

demonstrate acorrect installation. An incorrect installation could

endanger your child.

Do not use a child restraint in a seating position where an active

airbag is tted. If you still wish to install the Rekid in this location

the airbag must be disconnected at an authorised service centre.

Some vehicles may be equipped with a switch which allows you

to manually switch the airbag o. It is important to always check

if the vehicle’s indicator light shows that the airbag is turned o.

Extensive research has shown that the risk of serious injury or

worse is ve times greater for a young child when in a forward

facing restraint compared to a rearwardfacing restraint. In Rekid

your child can travel rearwardfacing up to 25kg.

Always use the support leg when installting the Rekid seat. e

support leg is a very important safety feature designed to maxi-

mise your child’s safety in an accident.

Should you have an accident, no matter how small, your child

restraint should be replaced. It may have damage that is unde-

tectable and could seriously jeopardize your child’s safety. For this

reason Axkid do not recommend purchasing second hand child

restraints.

Important information

Contents

e Rekid child restraint is suitable for use from approximately six months of age,

or from when your child can sit up unsupported, up until the age of six. is

child restraint can be installed in two dierent ways depending on your child’s age

and size. A description of the Rekid’s dierent parts can be found on next page.

On the following pages you will nd instructions on how to install your Rekid.

Our Rekid child restraint is certied and approved for use;

Rearfacing 9-18 kg installed using ISOx

If your vehicle is equipped with ISOx brackets and your child weighs between

9-18 kg (20-39 lb) Axkid recommends using this installation.

Rearfacing 9-25 kg installed with vehicle belt

If your vehicle is not equipped with ISOx brackets you can still install Rekid using

vehicle’s lap-only or lap-diagonal seat belt and supplied tether straps.

Do not use the Rekid child restraint in seating

locations that are not equipped with approved

three-point seat belts (according to ECE Reg 16.)

1. Parking brake neckrest

2. Adjustable Headrest

3. Internal harness

4. Harness adjustment button

5. Recline adjustment lever

6. Base

7. ISOFIX arms

8. Upper tether/anchorage straps

9. Support leg

10. Adjustors for support leg

11. Heels

12. Pocket for storage of instruction

manual

13. Adjustor for ISOx

14. Belt lock-o

15. Release button Isox

15. Indicator Isox

17.Guides for installation

Important to remember

Do not use a child restraint in a seating

position where an active airbag is tted. If

you still wish to install your Rekid in this

location the airbag must be disconnect-

ed at an authorized service centre. Some

vehicles maybeequippedwith a switchwhich

allows you to manually switch the airbag

o. It is important to always check if the

vehicle’s indicator light shows that the airbag

is turned o.

Placing the child restraint

e easiest way to lift the Rekid into the ve-

hicle is with its back rst. To begin push and

hold the adjustor for ISOx(1). Now you

should be able to unfold the ISOx arms

(2). Place the child restraint in the vehicle

with the back of the restraint facing the front

of the vehicle. When installing Rekid in the

front seat it is possible, but not crucial, for

the back of the restraint to have contact with

the dashboard.

Attaching the ISOx ttings

e ISOx brackets are located in the bight

of the back seat between the backrest and

seat. e supplied ISOx-guides (3) may

assist you in locating these brackets, and

they will also help protecting the vehicle’s

upholstery. Push the ISOx ttings through

the guides and clip them onto the brackets.

Installing Rekid rear-facing

9-18kg using ISOx

Never install a child restraint in a passenger seat

where an active airbag is tted

Continued on next page

Once there is an audible click and both

indicators (4) are green they are properly

secured. To remove the Rekid child re-

straint, hold both of the release buttons

(5).

To adjust the angle of the child restraint,

press the Recline Adjustment Lever (6)

to select one of the three reclining posi-

tions. Always choose the most upright

position as possible, however your child

must be able to hold their head up on

its own, and there should be enough re-

cline to ensure your child’s head does not

fall forward when sleeping. e rule of

thumb is that the older the child grows,

the more upright the seat can be installed.

Please note that once the installation of

the Rekid is complete, it will be somewhat

more reclined as it sinks into the vehicle’s

seat when tightening seat belts and tether

straps.

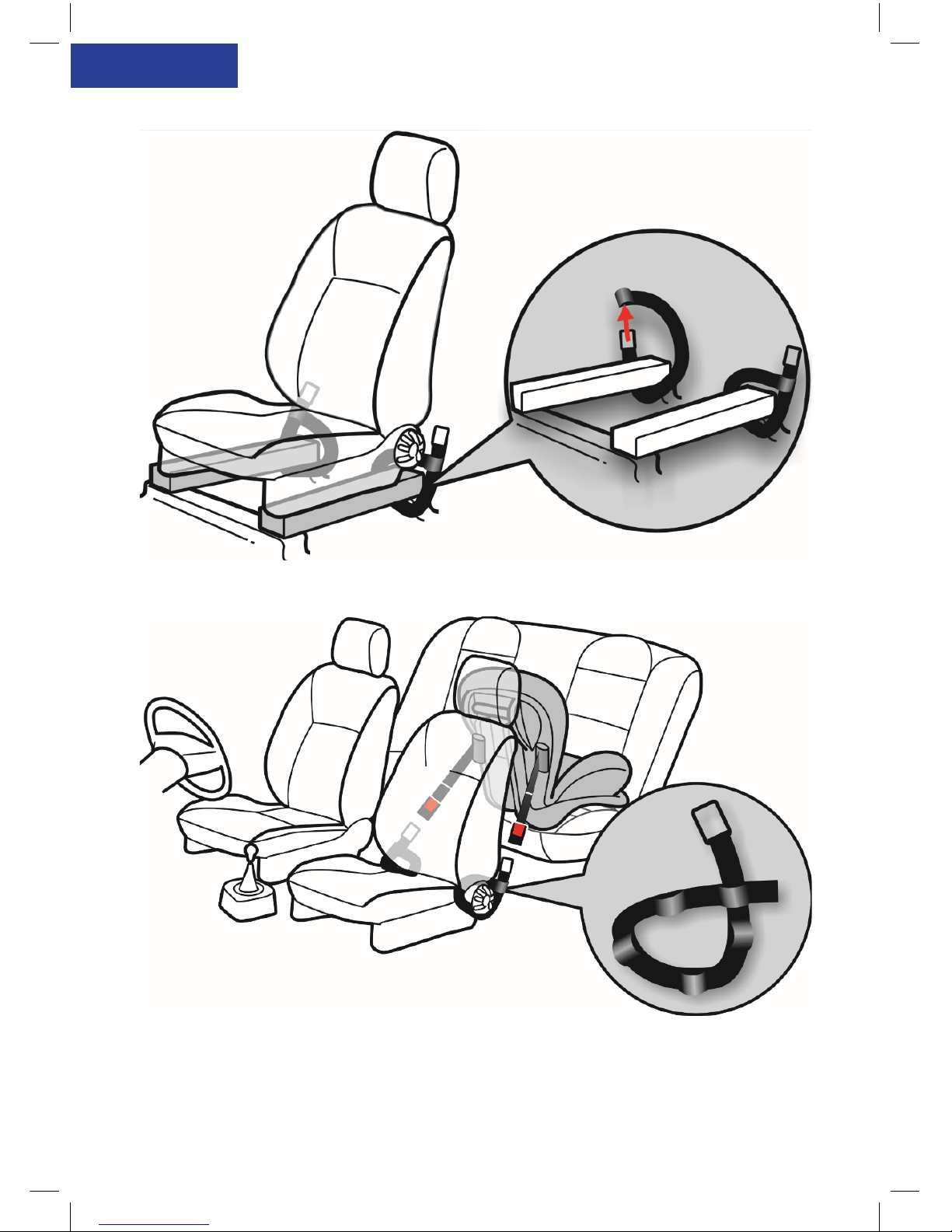

Attaching the lower tether straps

Some vehicles may already be tted with

anchorage points at the base of the front

seat rails.

If your vehicle does not have these anchor

points, the supplied lower tether straps

must be used to create anchor points. For

tips on how to install these tether straps

please see the example on the next page.

e anchoring point needs to be as close

to the oor as possible. In doing so you

should always insert the buckle through

the closest appropriate slot in the strap

to create a slip knot and pull tight. is

Continued on next page

Lower tether straps

Continued on next page

needs to be repeated on both sides to cre-

ate two anchor points. When installing

Rekid in the front passenger seat the tether

straps must be attached to the front gliding

tracks so the tether points will be located

along the front edge of the passenger seat.

Pull out the upper anchorage strap from

the belt housing (7) to an appropriate

length. Check that the white marking on

the strap (8) is visible. If not, you can try

crossing the straps over to give them some

extra length to enable the white marking

to be visible. Clip the anchor attachment

directly onto the anchorage point. Repeat

on the other side. Press down hard on the

on the top right side of the child restraint

then repeat for the left side(9). When you

do this its important that you really use

your full body weight to press down and

get the tether straps to really tighten hard.

is will give the anchorage straps their

rst tightening.

Unfold the support leg (10) out to its

maximum angle. Pull out the top latch

to release the upper part of the support leg

(11) until it reaches the oor. If the sup-

port leg does not reach the oor, repeat

with the lower latch (11). Its important

that you check that the support leg is an

angle over 80 degrees from the back of the

seat. You could check this by ensuring that

the support leg is further away from the

seat then the vertical line(12). Press down

on the child restraint from side to side

again, the anchorage straps will be then be

automatically tightened.

Continued on next page

11 12

If you have installed Rekid in the back seat

you can now move the front seat to a com-

fortable position. e back of the child re-

straint can, but is not necessary, be in con-

tact with the back of the front seat.

Adjusting the internal harness

Place your child in the car seat. Put your

child’s arms in between the shoulder straps

so that the straps are hanging over the chest

and stomach. Pull the shoulder straps to-

gether and insert the harness tongues into

the crotch buckle. Push the harness up over

the childs hip. Pull the harness adjustment

strap (13). It´s important that you always

pull the harness straight and central. Other-

wise you might have a that the adjustment

strap gets stuck in the metall-lever(13).

is action will tighten the harness and

the headrest will automatically slide down

to the appropriate height. To release the

harness, press the harness adjustment but-

ton and pull both harness straps. Press the

red button on crotch buckle to disengage

buckle.

Parking brake on headrest

e headrest on your Rekid is

equipped with a parking brake. is

could be used if you want the headrest in a

x position. To activate the parkingbrake,

pull the harness until the headrest is at

the desired height, you will hear a “click”

sound from the headrest as it locks into

position. Make sure that the headrest can

not be pulled down. Activate the brake

by moving the lever (14) on the headrest

across to the right. Do not pull up the

headrest with the parking brake activated.
