Axis Q8741-E Manual de usuario

AXISQ87Series

AXISQ8741-EBispectralPTZNetworkCamera

AXISQ8741-LEBispectralPTZNetworkCamera

AXISQ874-EBispectralPTZNetworkCamera

AXISQ874-LEBispectralPTZNetworkCamera

RepaintingInstructions

AXISQ87Series

Impactonwarranty

ThisproductisapprovedforrepaintbyAxis,providedthatyoufollowtheinstructionsinthisdocumentandat

www.axis.com/warranty-implication-when-repainting

Riskswithrepainting

ThereareseveralriskswhendisassemblingorassemblinganAxisproduct.Thereisalwaysacertainyieldlossduringassembly.Training

ofoperatorsandtheuseofcorrecttoolsmediatessomeoftheproblemsbuttheycanneverbefullyavoided.Someoftherisksinclude:

ESDDamage-AlwayshandletheproductinanESDsafeenvironment.EvenifprecautionsaretakenthereisalwaysariskofESD

damage.Thedamagecanremainundetectedandcauseproblemsduringthelifetimeoftheeuipment.

Dustcontamination-Openingacameramayexposethelensandsensortodustorpaint.Dustwillaffecttheopticalperformance.

Lensesneedtobedisassembledinadust-freeenvironment,preferablyacleanroom.

Paintoverspray-Maskingthedifferentcomponentsoftheeuipmentiscritical.Failuretomasksensitiveareascancauseproblems

withassemblingtheeuipment.Anyareasthatarenotpaintedatfactoryorhaveadifferentsurfacetreatmentthantherestofthe

parts(threads,groundandelectricalcontactsurfaces)mustalsobemaskedtoensurefunction.

AXISQ87Series

Howtorepainttheproduct

Preparations

•Ifapplicable,disassembletheeuipmentaccordingtotheinstructionsinthisdocument.

•Removegaskets,screws,electricalcomponents,connectorsandplugs,windows,anddomesfromthepartstoberepainted.

•Cleanallpartstoberepaintedthoroughlytoremovegrease,dust,oroil.

•Toensurereassemblyandfunctionalityoftheproduct,maskopeningsforscrews,LEDindicators,ormicrophonesbefore

painting.

Pretreatmentofparts

Dependingonthepartmaterialandtypeofpaintappliedatfactory,differentpretreatmentshouldbedoneforthenewpaintto

adhereaswellaspossible.Cleanthepartsproperlytoremoveoil,greaseanddust.

Formoreinformationonthematerialsusedintheproduct,seeitsdatasheetatwww.axis.com

Powdercoatedparts-Usingnesandpaper,removetheoriginalpowdercoatingdowntothebasematerialandcleantheparts

beforepainting,oruseaprimer.

Anodisedandchromatedparts-Useaprimer.

Uncoatedstainlesssteel-Nospecialpretreatmentisneeded,butmakesurethatthesurfaceiscleanbeforepainting.

Plastic-Useaprimer.

Disassembly

Important

Removinganyotherpartsthanspeciedheremeansthattheingressprotection(IP)ratingofyourproductcannotbe

guaranteed.Removinganyadditionalpartswillresultinlapseofwarranty.

AXISQ87Series

Howtorepainttheproduct

1Sunshieldscrew(2x)

2Sunshield

1.Removethesunshieldscrews.

2.Removethesunshield.

AXISQ87Series

Howtorepainttheproduct

Masking

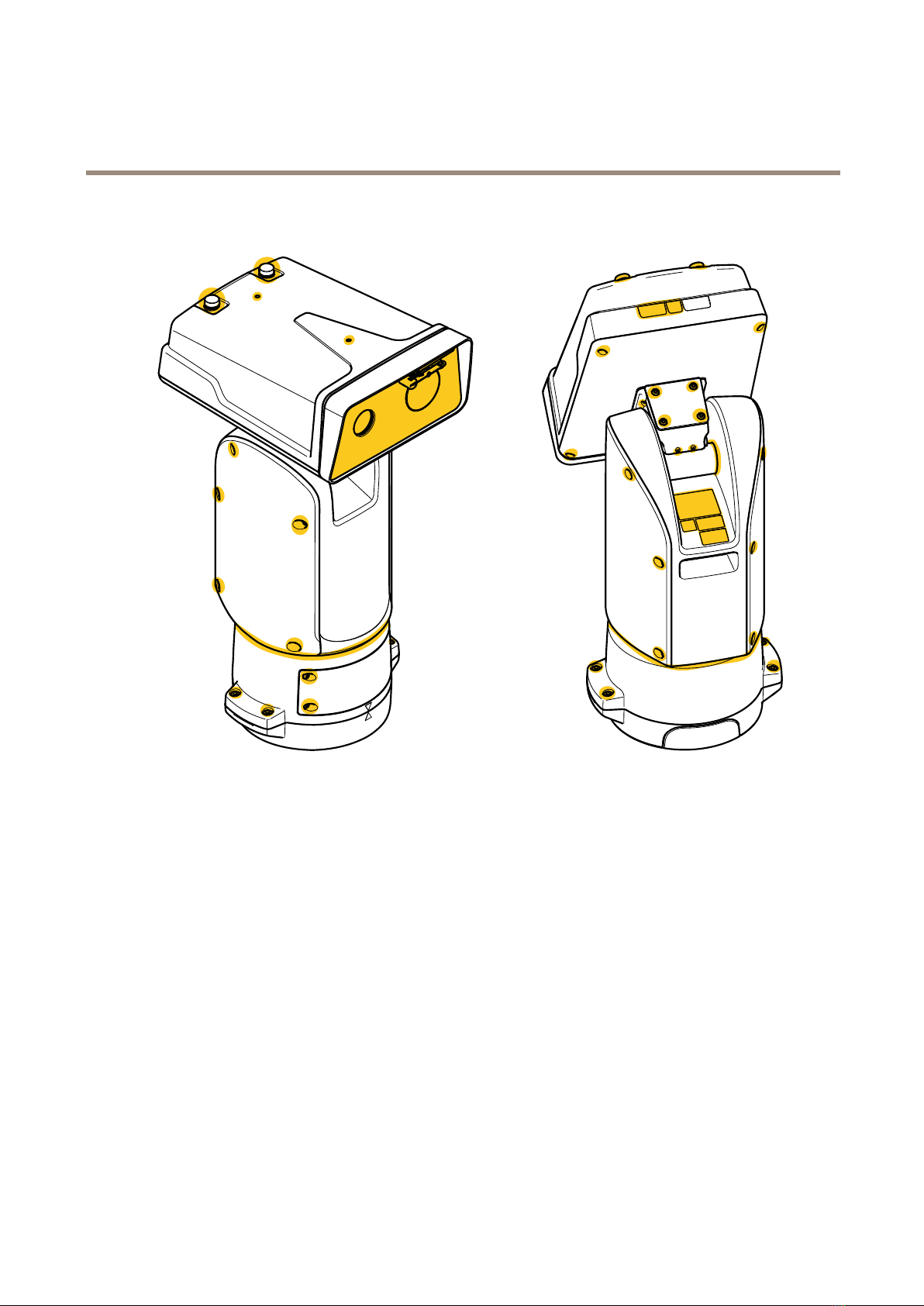

Maskthefollowingparts:

•Allvisiblescrews,screwholesandventilationholes

•Shaftopeningsinthepanunit

•Openingbetweenthebaseunitandthepanunit

•Labelsandfrontwindow(includingthewiper)

AXISQ87Series

Howtorepainttheproduct

Repainting

1.Applyathinandevenlayerofspraypaintaccordingtotheinstructionsofthepaintmanufacturer,andletthepaintdry.

2.Ifyouwishtogetabettercoverageandclearercolor,applyasecondlayerofspraypaint.

3.Whenthepaintisdry,removethemasking.

AXISQ87Series

Howtorepainttheproduct

Reassembly

1Sunshieldscrew(2x)

2Sunshield

1.Installthesunshield.

2.Attachandtightenthesunshieldscrews(torue0.8Nm).

NO NO

NOTIE TIE

TIE

Forinstructionsonhowtorepaintilluminatorbrackets,seetheproduct’srepaintinginstructionsavailableataxis.com.

RepaintingInstructionsVer.M1.3

AXISQ87SeriesDate:May2018

©AxisCommunicationsAB,2018PartNo.T10128007
