AXIS 206W

Wireless Network Camera

Contents

AXIS 206W Quick Installation Guide Page 3

AXIS 206W Wireless Network Camera

Quick Installation Guide

Package Contents

Item Notes

Network Camera AXIS 206W.

Power adapter The adapter is country-specific. Please check that the adapter is correct for your location.

Camera stand Supplied with 3 mounting screws. The extension section is ready fitted.

USB cable For setup of wireless connection.

CD Documentation and software.

Printed Materials • AXIS 206W Quick Installation Guide

•AxisWarrantyDocument

Status

indicator

Focus

ring

Wireless module

power indicator

Network traffic

(outer ring)

indicator Front

Wireless

module

Power connector

Control button

Power

Serial number

Power cable

USB connector

indicator

label

Mounting

lock ring

Wireless

clip

Rear panel

module

Follow these steps to install the AXIS 206W on your wireless network:

1. Familiarize yourself with the camera (this page).

2. Set up the wireless connection using the supplied USB cable. See page 4.

3. Access the camera’s image and setup tools via a browser.

For more information, please see the User’s Manual, which is available on the CD

included in this package. Updated versions can be obtained from www.axis.com

Page 4 AXIS 206W Quick Installation Guide

Mounting

1. If required, use the 3 supplied screws to fix the base plate to a

flat surface.

2. To use the shorter stand, e.g. for wall mounting, unscrew the

lock ring to release the camera, and remove the extension

section.

3. Re-attach the camera, adjust the angle and gently tighten the

lock ring.

Important!

Set up the wireless connection - Windows

Before the AXIS 206W can connect to an encrypted wireless network, the wireless settings in

the camera must be configured and an IP address must be set. This is done by connecting the

camera to a computer with the help of the supplied USB cable. Follow the instructions below.

1. Connect the power adapter to the camera. Press the power cable into the cable clip on the

rear panel. This will prevent accidental cable disconnection.

2. Connect the USB cable to your computer and then to the camera.

3. Open My Computer or

Windows Explorer,

and the AXIS 206W

should be displayed

as a new drive.

4. Click on the drive for

the AXIS 206W to see

the files contained in

the camera.

The AXIS 206W is designed for indoor use only, and must always be positioned where it is not exposed to

direct sunlight or strong halogen light, which can cause permanent damage to the camera’s image sensor.

Damage as a result of exposure to strong light is not covered by the Axis warranty.

Lock ring

Wall mounting

The AXIS 206W displays

as a drive

AXIS 206W Quick Installation Guide Page 5

5. Click on the file setup.exe. This starts the

AXIS Setup Tool, which lets you configure

the wireless settings. See the online help in

the setup tool for more information. Note

that you should first configure your

wireless access point and then duplicate

those settings in the AXIS 206W.

6. Specify the type of IP address to use. See

the online help for more information.

7. Click OK, close the AXIS Setup Tool and

disconnect the USB cable.

8. Wait at least 10 seconds for the settings to

take effect and then restart the camera.

Accessing the AXIS 206W

If you set the IP address manually, you can now access the camera’s web interface simply by

starting a browser and entering the IP address.

If you selected Obtain IP address via DHCP, you have several options:

• Reconnect the USB cable, browse to the camera as before, and restart the AXIS Setup Tool. The

DHCP-assigned address will be displayed in the tool.

• If you are using e.g. a home broadband router, you may find it convenient to view the router’s

administration pages to discover which IP address has been assigned to your AXIS 206W.

Please consult the router’s documentation for further information.

• If your network has an Internet connection (with no HTTP proxy), use the AXIS Dynamic DNS

Service to assign your camera a DNS name, which is then used to access the camera. See page

7 for more information.

• If your network uses automatic IP addressing (DHCP) and your computer uses the UPnPTM

service, the AXIS 206W will automatically be detected and displayed on your screen. (UPnPTM is

a certification mark of the UPnPTM Implementers Corporation.)

•UseAXIS IP Utility 2.0 to discover the IP address. See the CD included in this package.

Page 6 AXIS 206W Quick Installation Guide

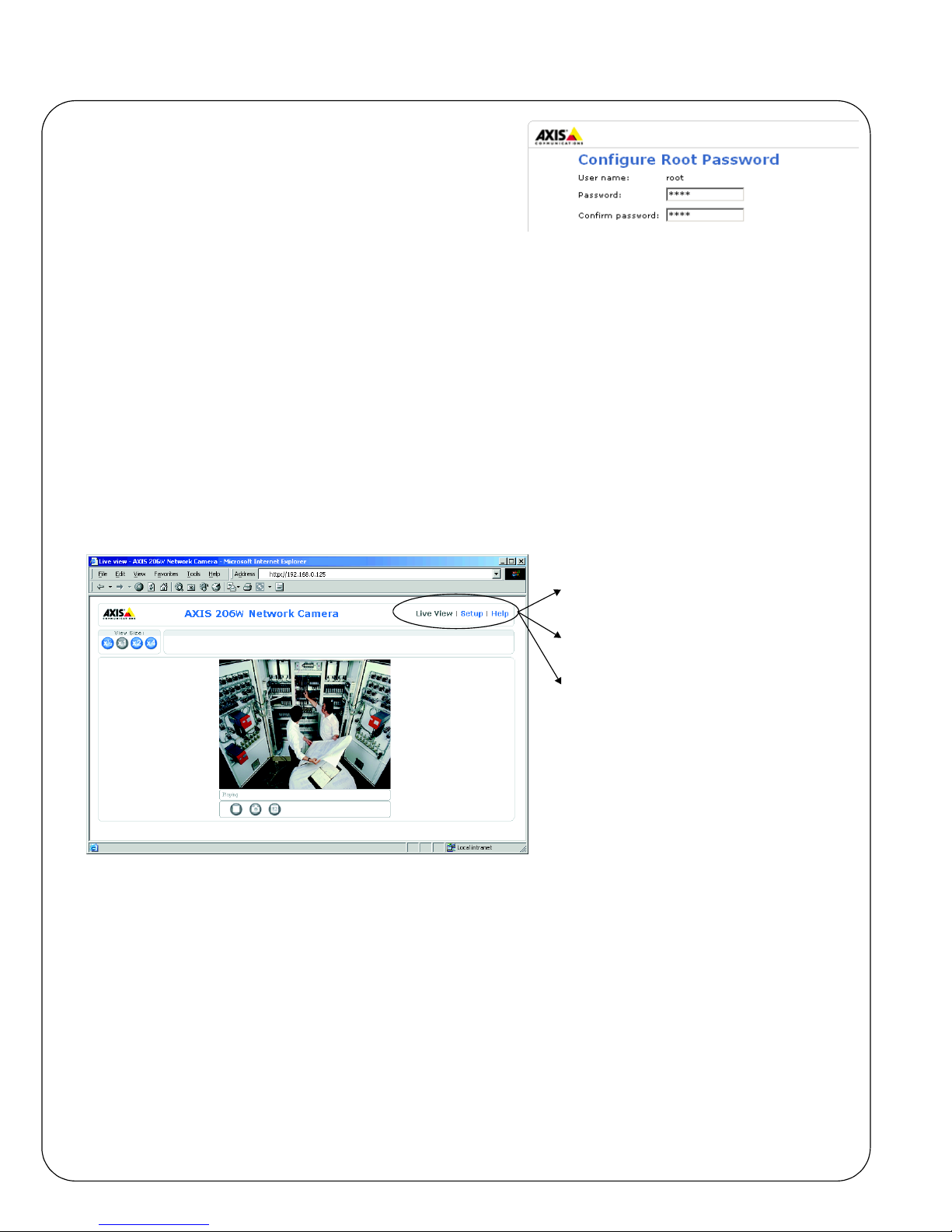

Set the language and password

When accessing the AXIS 206W for the first time, the

language can be changed and the “root” password

must be configured.

1. Select the language from the available options, by clicking the appropriate flag.

2. Now enter a password and then re-enter it to confirm the spelling. Click OK.

3. The ‘Enter Network Password’ dialog will appear. Enter the User name: root

Note: The default administrator user name root is permanent and cannot be deleted.

4. Enter the password as set in step 2 above, and click OK. If the password is lost, the AXIS

206W must be reset to the factory default settings. See below.

5. If required, click Yes to install the AXIS Media Control (AMC). You will need administrator

rights on the computer to do this.

6. The Live View page of the AXIS 206W is displayed, with links to the Setup tools that

enable you to customize the camera to your specific needs.

Live View - Shows live video from the

camera.

Setup - Provides all the tools needed to

set up the camera to your requirements.

Help - Displays online help on all as-

pects of using the camera.

AXIS 206W Quick Installation Guide Page 7

The AXIS Internet Dynamic DNS Service

The AXIS Internet Dynamic DNS Service is a free service that allows you to quickly and simply

assign your camera a static name (DNS name). More information about the AXIS Internet

Dynamic DNS Service is available at www.axiscam.net

Please note that this procedure will send the AXIS 206W’s IP address, firmware version,

product type and serial number to the AXIS Internet Dynamic DNS Service. No personal

information is transferred.

Follow these instructions:

1. Check that the Status indicator on the front of the camera shows a steady green.

2. Press the Control button on the rear of the camera once. The Status indicator will blink

green while it connects to the AXIS Internet Dynamic DNS Service.

3. Wait for the Status indicator to go back to showing a steady green.

4. To complete the installation, now visit www.axiscam.net from an Internet connected PC.

This must be done within 60 minutes of pressing the Control button.

5. Follow the on-screen instructions provided by the AXIS Internet Dynamic DNS Service.

You will need your product’s serial number (S/N) to complete the installation. This is found

on the label on the rear panel. See page 3.

Accessing the AXIS 206W from the Internet

Once installed, your AXIS 206W is accessible on your wireless network. To access the camera

from the Internet you must configure your broadband router to allow incoming data traffic.

For security reasons this is usually done on a specific port. Please refer to the documentation

for your broadband router for further instructions.

For more information, please visit the AXIS Internet Dynamic DNS Service at

www.axiscam.net or, for Technical notes on this and other topics, visit the Axis Support Web

at www.axis.com/techsup

Page 8 AXIS 206W Quick Installation Guide

Setup on other operating systems

To set up the AXIS 206W on other operating systems (Linux/Unix/Mac), follow these steps:

1. Connect the camera to the computer via the USB cable. This allows you to access the

camera as a USB Mass Storage device.

2. Browse to and open the file config.txt and enter the encryption keys, the SSID network

name, the IP address, etc. The wireless settings entered here should be identical to those

previously configured in your wireless access point.

3. Save the file, wait at least 10 seconds for the settings to take effect and then restart the

camera to enable the wireless connection.

Other setup methods

For other methods of setting the IP address, please see the User’s Manual, available from

www.axis.com or from the CD included with this product. Note that these other methods will

only work on unencrypted wireless networks.

Resetting to the Factory Default Settings

This will reset all parameters, including the IP address, to the Factory Default settings:

1. Disconnect the power cable.

2. Press and hold the Control button (rear panel) and reconnect the power cable.

3. Keep the button pressed until the Status Indicator displays yellow (this may take up to 15

seconds), then release the button.

4. When the Status indicator displays green (which can take up to 1 minute) the camera is

reset to the factory default settings.

Guide d’installation rapide AXIS 206W Page 9

Guide d’installation rapide

de la caméra réseau sans fil AXIS 206W

Contenu de l’emballage

Article Remarques

Caméra réseau AXIS 206W.

Transformateur Le transformateur varie d’un pays à l’autre. Vérifiez que le transformateur est adapté à votre pays.

Pied de la caméra Fourni avec 3 vis de montage. La section télescopique est déjà montée.

Câble USB Servant à configurer la connexion sans fil.

CD Documentation et logiciel.

Documentation imprimée • Guide d’installation rapide AXIS 206W

• Document de garantie d’Axis

Voyant

d’état

Bague de

mise au point

Voyant de

(bague

extérieure)

trafic réseau Face avant Module

sans fil

Voyant

d’alimentation du

module sans fil

Connecteur d’alimentation

Bouton de

commande

Voyant

Etiquette du

Clip pour

Connecteur USB

d’alimentation

numéro de série

Bague de blocage

pour montage

Module

câble d’alimentation Face arrière

sans fil

Procédez comme suit pour installer la caméra AXIS 206W sur votre réseau sans fil:

1. Familiarisez-vous avec la caméra (cette page).

2. Configurez la connexion sans fil à l’aide du câble USB fourni. Reportez-vous à la page

10.

3. Accédez aux outils de configuration et aux images de la caméra via un navigateur.

Pour davantage d’informations, consultez le Manuel de l’utilisateur disponible sur le CD

fourni. Des versions mises à jour sont disponibles sur www.axis.com

Page 10 Guide d’installation rapide AXIS 206W

Montage

1. Si nécessaire, utilisez les 3 vis fournies pour attacher la plaque

de base sur une surface plane.

2. Pour raccourcir le pied et monter, par ex., la caméra au mur,

dévissez la bague de blocage afin de libérer la caméra, puis

retirez la partie télescopique.

3. Remontez la camera, ajustez l’angle et serrez la bague de

blocage sans trop forcer.

Important !

Configuration de la connexion sans fil - Windows

Pour que la caméra AXIS 206W puisse se connecter à un réseau crypté sans fil, il est

nécessaire de configurer les paramètres de connexion et de définir une adresse IP. Pour ce

faire, raccordez la caméra à un ordinateur au moyen du câble USB fourni. Suivez les

instructions ci-dessous.

1. Connectez le transformateur à la caméra. Insérez le câble d’alimentation dans le clip de la

face arrière. Ceci évitera toute déconnexion intempestive.

2. Raccordez le câble USB à votre ordinateur puis à la caméra.

3. Ouvrez le Poste de travail

ou l’explorateur

Windows. AXIS 206W

doit apparaître parmi les

lecteurs.

4. Cliquez sur le lecteur

correspondant à la

caméra AXIS 206W pour

afficher les fichiers

qu'elle contient.

La caméra AXIS 206W est conçue pour une utilisation intérieure seulement et ne doit jamais être exposée

directement aux rayons du soleil ou à une forte lumière halogène pouvant endommager de façon

permanente le capteur d’image de la caméra. La garantie d’Axis ne couvre pas les dommages suite à une

exposition à une forte lumière.

Bague de blocage

Montage mural

La caméra AXIS 206W

s’affiche sous la forme

Tabla de contenidos

Idiomas:

Otros manuales de Cámara de seguridad de Axis

Axis

Axis 01809-031 Manual de usuario

Axis

Axis P5532-E Manual de usuario

Axis

Axis 01146-001 Manual de usuario

Axis

Axis AXIS P3354 Manual de usuario

Axis

Axis Q6032-E PTZ Manual de usuario

Axis

Axis Q1604 Manual de usuario

Axis

Axis 01063-001 Manual de usuario

Axis

Axis M3113-R Manual de usuario

Axis

Axis Q6044-E Manual de usuario

Axis

Axis V5925 Manual de usuario

Axis

Axis AXIS P1405-LE Mk II Manual de usuario

Axis

Axis Fixed Dome Network Camera AXIS P3301 Manual de usuario

Axis

Axis P5414-E Manual de usuario

Axis

Axis Companion Bullet mini LE Manual de usuario

Axis

Axis P1405-E Manual de usuario

Axis

Axis M31-VE Series Manual de usuario

Axis

Axis P3265-V Manual de usuario

Axis

Axis AXIS 215 PTZ-E Hoja de instrucciones

Axis

Axis M1034-W Manual de usuario

Axis

Axis Q6032-E Manual de usuario

Axis

Axis P3267-LVE Manual de usuario

Axis

Axis P3344-VE Manual de usuario

Axis

Axis P5654-E Mk II Manual de usuario

Axis

Axis M5526-E Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario

Lumens

Lumens VC-A50PNW Manual de usuario
