AXIS 216FD

AXIS 216FD-V

AXIS 216MFD

AXIS 216MFD-V

Fixed Dome Network Camera

Installation Guide

AXIS 216FD/216FD-V/216MFD/216MFD-V Installation Guide Page 3

ENGLISH

AXIS 216FD/216FD-V

AXIS 216MFD/216MFD-V

Installation Guide

This installation guide provides instructions for installing the AXIS 216FD, AXIS 216FD-V,

AXIS 216MFD and AXIS 216MFD-V Fixed Network Dome Camera on your network. For all

other aspects of using the product, please see the User’s Manual, available on the CD

included in this package, or from www.axis.com/techsup

Installation steps

1. Check the package contents against the list below.

2. Hardware overview. See page 4.

3. Install the hardware. See page 5.

4. Assign an IP address. See page 7.

5. Set the password. See page 10.

6. Adjust the focus. See page 11.

7. Complete the installation. See page 11.

Package contents

Item Models/variants/notes

Fixed Dome Network camera AXIS 216FD: tamper-resistant casing

AXIS 216FD-V: vandal-resistant casing

AXIS 216MFD: tamper-resistant casing

AXIS 216MFD-V: vandal-resistant casing

PS-H indoor power supply

(country specific)

Europe

Australia

USA/Japan

Argentina

Korea

Power supply extension cable 1.8 meters

Terminal block connector 4-pin connector block for connecting external devices to the I/O terminal

connector

Mounting kit Screwdriver for tamper-proof screws

Tamper-proof screws

Drill template

CD AXIS Network Video Product CD, including product documentation,

installation tools and other software

Printed Materials AXIS 216FD/216FD-V/216MFD/216MFD-V Installation Guide (this document)

Axis Warranty Document

Important!

This product must be used in

compliance with local laws

and regulations.

Page 4 AXIS 216FD/216FD-V/216MFD/216MFD-V Installation Guide

Hardware overview

Product ID & Serial number (S/N).

The serial number may be

required during the installation.

Dimensions

HxWxD = 94 x 144 x 132mm (3.7" x 5.7" x 5.2")

Weight AXIS 216FD/AXIS 216MFD = 425g (0.94 lb) (power supply not included)

Weight AXIS 216FD-V/216MFD-V = 580g (1.28 lb) (power supply not included)

Cover plates

Network

indicator LED

Status indicator LED

Control button

Power connector

(see page 14)

Network connector

(see page 14)

I/O terminal connector

(see page 14)

Power

indicator LED

Audio out

Audio in

Microphone

16mm cable conduit

(not supplied) fitted to

AXIS 216FD-V/216MFD-V

AXIS 216FD/216FD-V/216MFD/216MFD-V Installation Guide Page 5

ENGLISH

Install the hardware

Mount the camera

The AXIS 216FD/216FD-V/216MFD/216MFD-V can be mounted with the cables routed

through the wall/ceiling, or from above or below. There are cover plates for the openings on

both sides of the dome cover. The AXIS 216FD-V/216MFD-V can also be fitted with a metal

conduit for protecting the cabling when connected via the side openings. See the

illustrations on page 4.

1. Using the drill template, drill two holes in the ceiling/wall.

2. Route and connect all the required cables. See Connect the cables, below.

3. Fasten the camera unit to a ceiling or wall, using screws and plugs appropriate for the

ceiling/wall material.

4. Ensure the camera is positioned so that the tamper-proof screws can be tightened using

the supplied screwdriver.

Mounting on a hard ceiling

To mount the AXIS 216FD/216FD-V/216MFD/216MFD-V on a hard ceiling, check that the

ceiling material is sturdy enough to hold the weight of the camera.

The camera can also be secured using a plate or board that better carries the weight of the

camera, and which is more suitable for securing the screws.

The AXIS 216FD/AXIS 216MFD can also be mounted using the AXIS 216FD/AXIS 216MFD

Drop Ceiling Mount, which allows the camera to be mounted more discreetly. Please see

www.axis.com for all available mounting accessories.

!IMPORTANT! - The casing of the AXIS 216FD/216FD-V/216MFD/216MFD-V

is not approved for outdoor use - the product may only be installed in indoor

environments.

Plate or

Hard ceiling

AXIS 216FD/216FD-V

Screws

board

216MFD/216MFD-V

Page 6 AXIS 216FD/216FD-V/216MFD/216MFD-V Installation Guide

Connect the cables

1. Connect the camera to the network using a shielded network cable.

2. Optionally connect external input/output devices, e.g. alarm devices. See page 14 for

information on the terminal connector pins.

3. Optionally connect an active speaker and/or external microphone.

4. Connect power, using one of the methods listed below:

• PoE (Power over Ethernet). If available, this is automatically detected when the

network cable is connected (see above).

• Connect the supplied indoor power supply to the power connector on the camera.

5. Check that the indicator LED:s indicate the correct conditions. See the table on page 15

for further details. Note that some LEDs can be disabled and may be unlit.

AXIS 216FD/216FD-V/216MFD/216MFD-V Installation Guide Page 7

ENGLISH

Assign an IP address

Most networks today have a DHCP server that automatically assigns IP addresses to

connected devices. If your network does not have a DHCP server the AXIS 216FD/216FD-V/

216MFD/216MFD-V will use 192.168.0.90 as the default IP address.

If you would like to assign a static IP address the recommended method in Windows is either

AXIS IP Utility or AXIS Camera Management. Depending on the number of cameras you

wish to install, use the method that best suits your purpose.

Both of these free applications are available on the Axis Network Video Product CD supplied

with this product, or they can be downloaded from www.axis.com/techsup

Notes:

• If assigning the IP address fails, check that there is no firewall blocking the operation.

• For other methods of assigning or discovering the IP address of the AXIS 216FD/216FD-V/216MFD/

216MFD-V, e.g. in other operating systems, see page 13.

Method Recommended for Operating system

AXIS IP Utility

See page 8

Single camera

Small installations

Windows

AXIS Camera Management

See page 9

Multiple cameras

Large installations

Installation on a different subnet

Windows 2000

Windows XP Pro

Windows 2003 Server

Page 8 AXIS 216FD/216FD-V/216MFD/216MFD-V Installation Guide

AXIS IP Utility - single camera/small installation

AXIS IP Utility automatically discovers and displays Axis devices on your network. The

application can also be used to manually assign a static IP address.

Note that the computer running AXIS IP Utility must be on the same network segment

(physical subnet) as the AXIS 216FD/216FD-V/216MFD/216MFD-V.

Automatic discovery

1. Check that the AXIS 216FD/216FD-V/216MFD/216MFD-V is connected to the network

and that power has been applied.

2. Start AXIS IP Utility.

3. When the camera appears in the window, double-click it to open its home page.

4. See page 10 for instructions on how to assign the password.

Assign the IP address manually (optional)

1. Acquire an unused IP address on the same network segment as your computer.

2. Select the AXIS 216FD/AXIS 216MFD in the list.

3. Click the button Assign new IP address to the selected device and enter the IP

address.

4. Click the Assign button and follow the instructions.

5. Click the Home Page button to access the camera’s web pages.

6. See page 10 for instructions on how to set the password.

Note:

AXIS 216FD and AXIS 216FD-V will display in AXIS Camera Management as

AXIS 216FD. AXIS 216MFD and AXIS 216MFD-V will display in AXIS Camera

Management as AXIS 216MFD.

AXIS 216FD/216FD-V/216MFD/216MFD-V Installation Guide Page 9

ENGLISH

AXIS Camera Management - multiple cameras/large installations

AXIS Camera Management can automatically discover multiple Axis devices, show

connection status, manage firmware upgrades and set IP addresses.

Automatic discovery

1. Check that the camera is connected to the network and that power has been applied.

2. Start AXIS Camera Management. When the AXIS 216FD/AXIS 216MFD appears in the

window, double-click it to open the camera’s home page.

3. See page 10 for instructions on how to set the password.

Assign an IP address in a single device

1. Select AXIS 216FD/AXIS 216MFD in AXIS Camera Man-

agement and click the Assign IP button.

2. Select Assign the following IP address and enter the IP

address, the subnet mask and default router the device

will use.

3. Click the OK button.

Assign IP addresses in multiple devices

AXIS Camera Management speeds up the process of

assigning IP addresses to multiple devices, by suggesting IP

addresses from a specified range.

1. Select the devices you wish to configure (different mod-

els can be selected) and click the Assign IP button.

2. Select Assign the following IP address range and enter

the range of IP addresses, the subnet mask and default

router the devices will use.

3. Click the OK button.

Note:

AXIS 216FD and AXIS 216FD-V will display in AXIS Camera Management as

AXIS 216FD. AXIS 216MFD and AXIS 216MFD-V will display in AXIS Camera

Management as AXIS 216MFD.

Page 10 AXIS 216FD/216FD-V/216MFD/216MFD-V Installation Guide

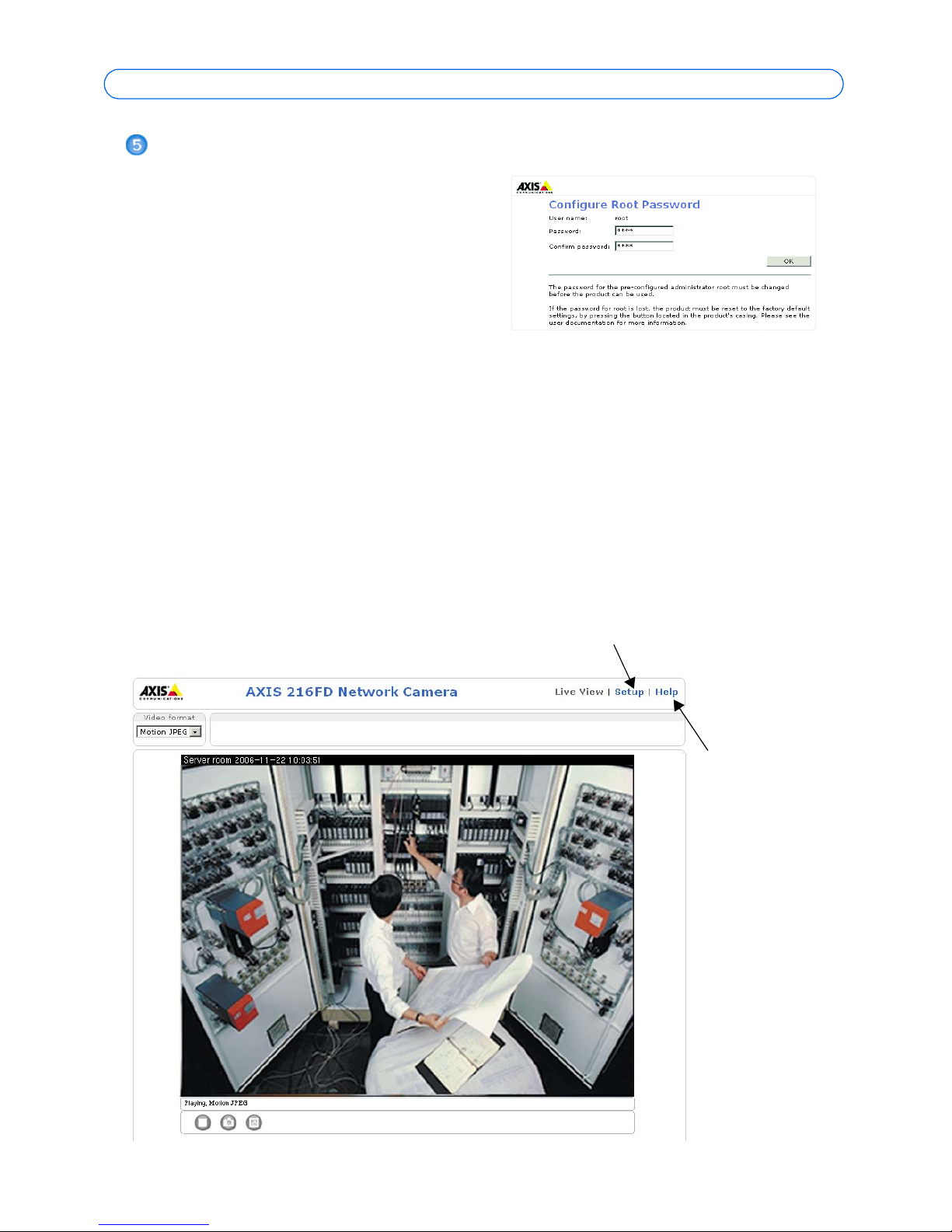

Set the password

When accessing the AXIS 216FD/216FD-V/

216MFD/216MFD-V for the first time, the

‘Configure Root Password’ dialog will be

displayed.

1. Enter a password and then re-enter it, to con-

firm the spelling. Click OK.

2. Enter the user name root in the ‘Enter

Network Password’ dialog.

Note: The default administrator user name root cannot be deleted.

3. Enter the password as set above, and click OK. If the password is lost, the AXIS 216FD/

216FD-V/216MFD/216MFD-V must be reset to the factory default settings. See page 16.

4. If required, click Yes to install AMC (AXIS Media Control), which allows viewing of the

video stream in Internet Explorer. You will need administrator rights on the computer to

do this.

The Live View page of the AXIS 216FD/216FD-V/216MFD/216MFD-V is displayed, with

links to the Setup tools, which allow you to customize the camera. Note that both AXIS

216FD/216FD-V will display in the browser as AXIS 216FD and AXIS 216MFD/216MFD-V

will display in the browser as the AXIS 216MFD.

Setup - Provides all the tools for configuring

the camera to requirements.

Help - Displays

online help on all

aspects of using

the camera.
