Axis T26B Manual de usuario
Questions: Call 1 (855) ASK - AXIS
T26B
Installation
Instructions
Installation Instructions:

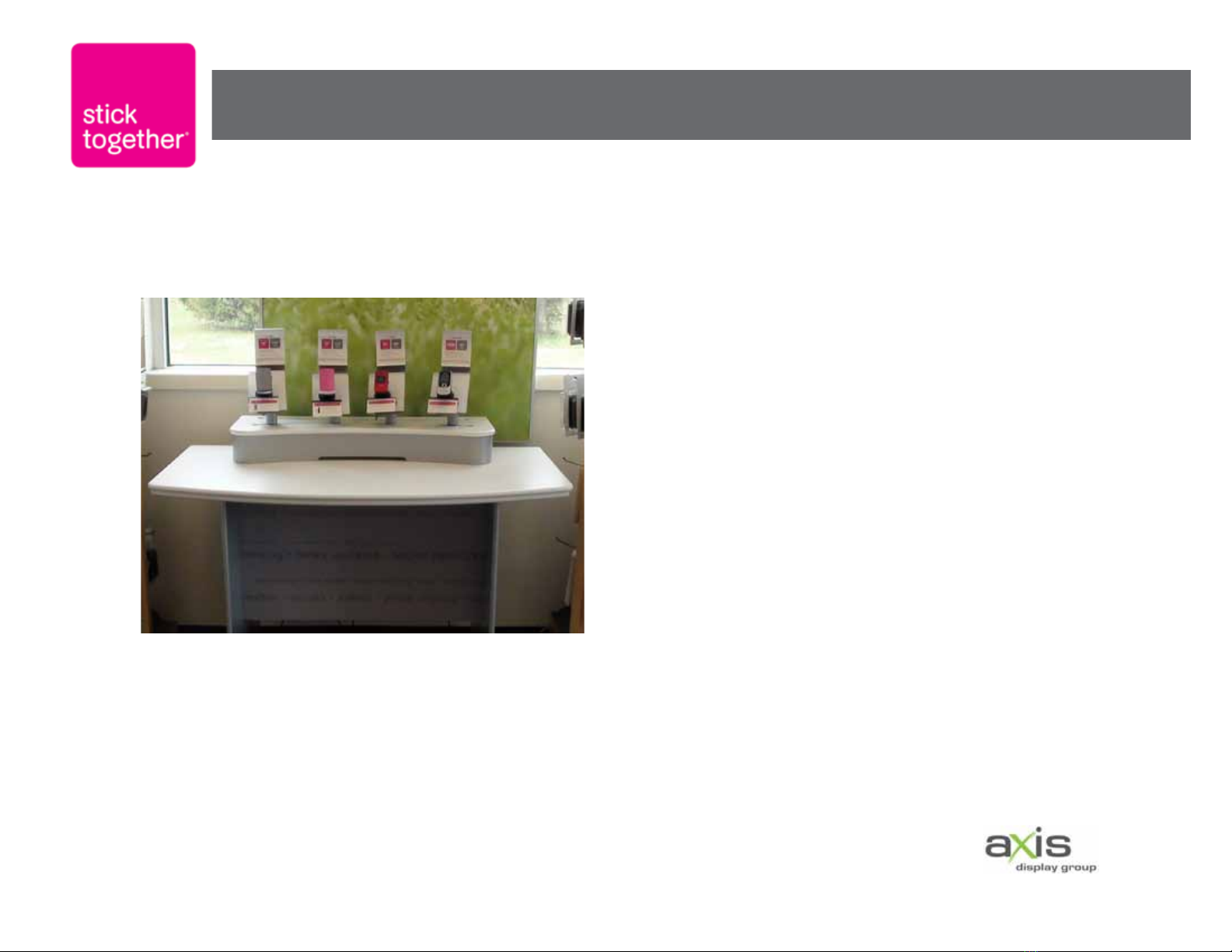

Step 1- Completely de-merchandize the
unit. Unit should look like the image to
the left. You will be replacing this entire
unit.
You will need Allen Wrench to take phone
cradles off of rail mounts. Save cradles,
and place entire table (with rail) in back
room.
Installation Instructions: T26B Display 2
Questions: Call 1 (855) ASK - AXIS
Male RTA Fitting
(1) White Countertop
Cordless Screwdriver with Phillips Bit
or Phillips Screwdriver
Place countertop upside down on oor and
screw in (6) Male RTA Fittings into pre-drilled
holes.
Questions: Call 1 (855) ASK - AXIS
Installation Instructions: T26B Display 3
Tools/Time
Special Instructions
Parts List
Step 2- Screw (6) Male RTA Fittings into pre-
drilled holes into the underside of countertop.
(3) Pre-drilled holes on each end
for a total of 6.
Underside of countertop
Screw in until tight (to top of thread).
Installation Instructions: T26B Display 4
Questions: Call 1 (855) ASK - AXIS
Female RTA Fitting
(2) Leg panels (L & R)
Left panel shown here.
Place leg panels on oor and insert Female
RTA ttings into pre-drilled holes (3 at the top
of each panel).
*Note: When inserting Female RTA ttings, turn
arrow towards material edge to receive the Male
RTA Fitting when assembling.
Questions: Call 1 (855) ASK - AXIS
Installation Instructions: T26B Display 5
Tools/Time
Special Instructions
Parts List
Step 3- Insert Female RTS ttings into the larger
pre-drilled holes at the top of the leg panels (3
each panel).
*Note: When inserting Female RTA ttings, turn
arrow towards material edge to receive the Male
RTA Fitting when assembling.
Turn tting so that arrow points toward edge
of material.
Installation Instructions: T26B Display 6
Questions: Call 1 (855) ASK - AXIS
(1) White Center Panel
Female RTA Fitting
Place center panel on oor and insert Female
RTA Fittings into pre-drilled holes (2 on each
end).
*Note: When inserting Female RTA ttings, turn
arrow towards material edge to receive the Male
RTA Fitting when assembling.
Questions: Call 1 (855) ASK - AXIS
Installation Instructions: T26B Display 7
Tools/Time
Special Instructions
Parts List
Step 4- Insert Female RTS Fittings into the
larger pre-drilled holes at each end of the
center panel (4 total).
display after covers are applied
Turn tting so that arrow points toward edge of material.
Installation Instructions: T26B Display 8
Questions: Call 1 (855) ASK - AXIS
Male RTA Fitting
Screw in Male RTA Fittings into pre-drilled
holes on leg panels (2 per leg panel)
Cordless Screwdriver with Phillips Bit
or Phillips Screwdriver.
Questions: Call 1 (855) ASK - AXIS
Installation Instructions: T26B Display 9
Tools/Time
Special Instructions
Parts List

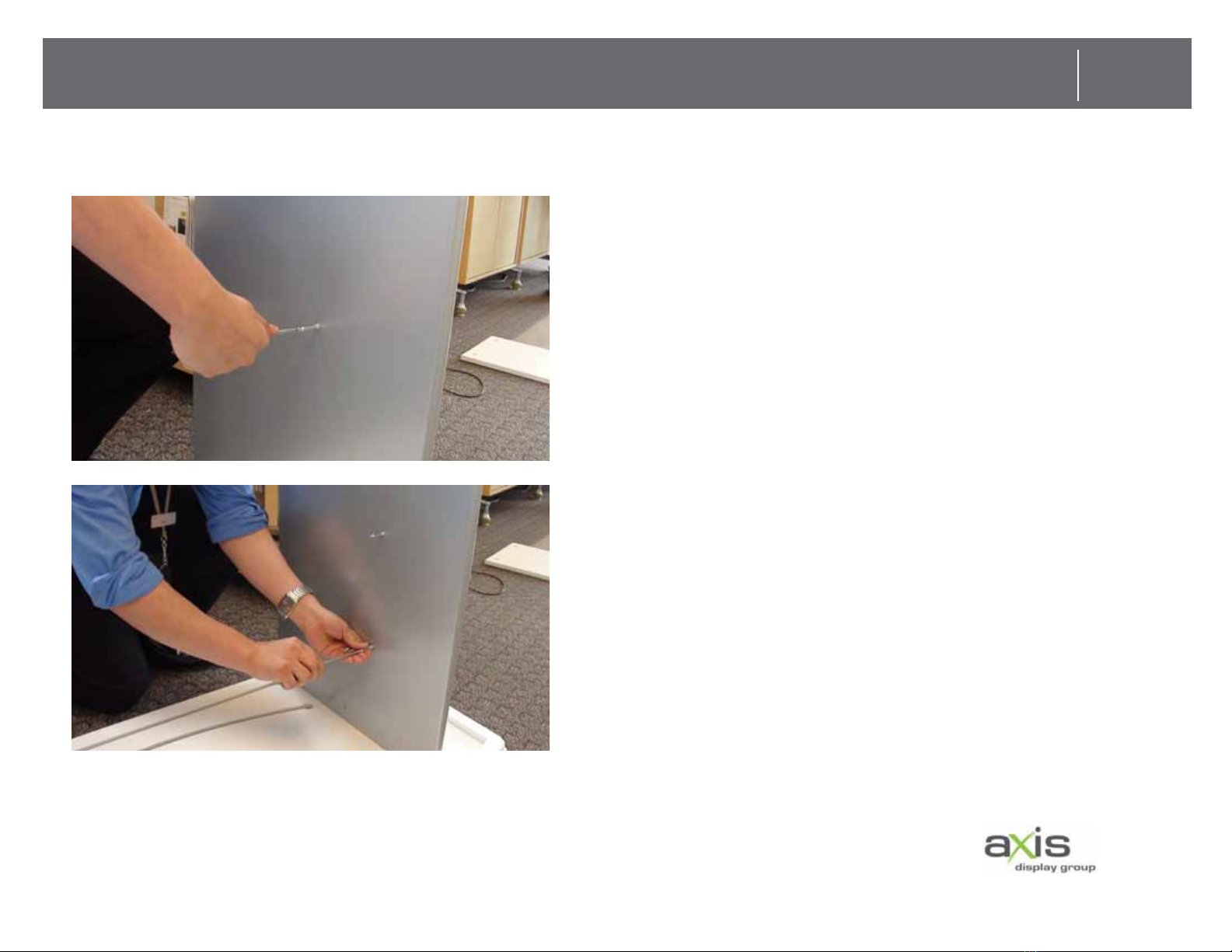

Step 5- Insert Male RTS Fittings into the
pre-drilled holes towards middle of each
leg panel (4 total). Leg panel shown
mounted to countertop underside here.
Installation Instructions: T26B Display 10
Questions: Call 1 (855) ASK - AXIS
