C22

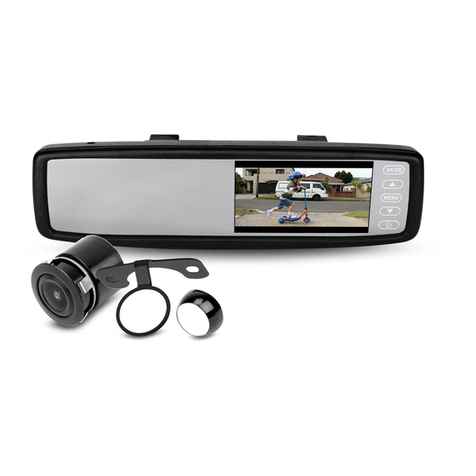

1/4” COMPACT REARVIEW CAMERA
INSTRUCTION MANUAL
SPECIFICATIONS
GENERAL
- Image Sensor: 1/4” CMOS
- Lens Angle: 120°
- Effective Pixels: 720 x 480
- Resolution: 480 TV Lines
- TV System: PAL
- Night Vision: 4 IR LEDs
- Min Illumination: 0 Lux (with IR)
- Image: Mirror
- Protection: IP66 Dust and Moisture
- Current Consumption: 200mA Max
- Input Power: 12V DC
- Operating Temperature: -20° to 60°C
- Connection: RCA
- Dimensions: 20H x 20W x 22Dmm
INCLUDED
- Installation Manual
- Installation Hardware
- 6m RCA Video Cable with DVD/Monitor Trigger Wire
- 1m Power Cable
CAR REARVIEW CAMERA
GENERAL:
After installation, the rear view system will automatically activate when reverse gear
is selected. This provides a clear image for the driver as a protection for children,
pedestrians and property from injury or damage. It also avoids costly repairs to
your vehicle.

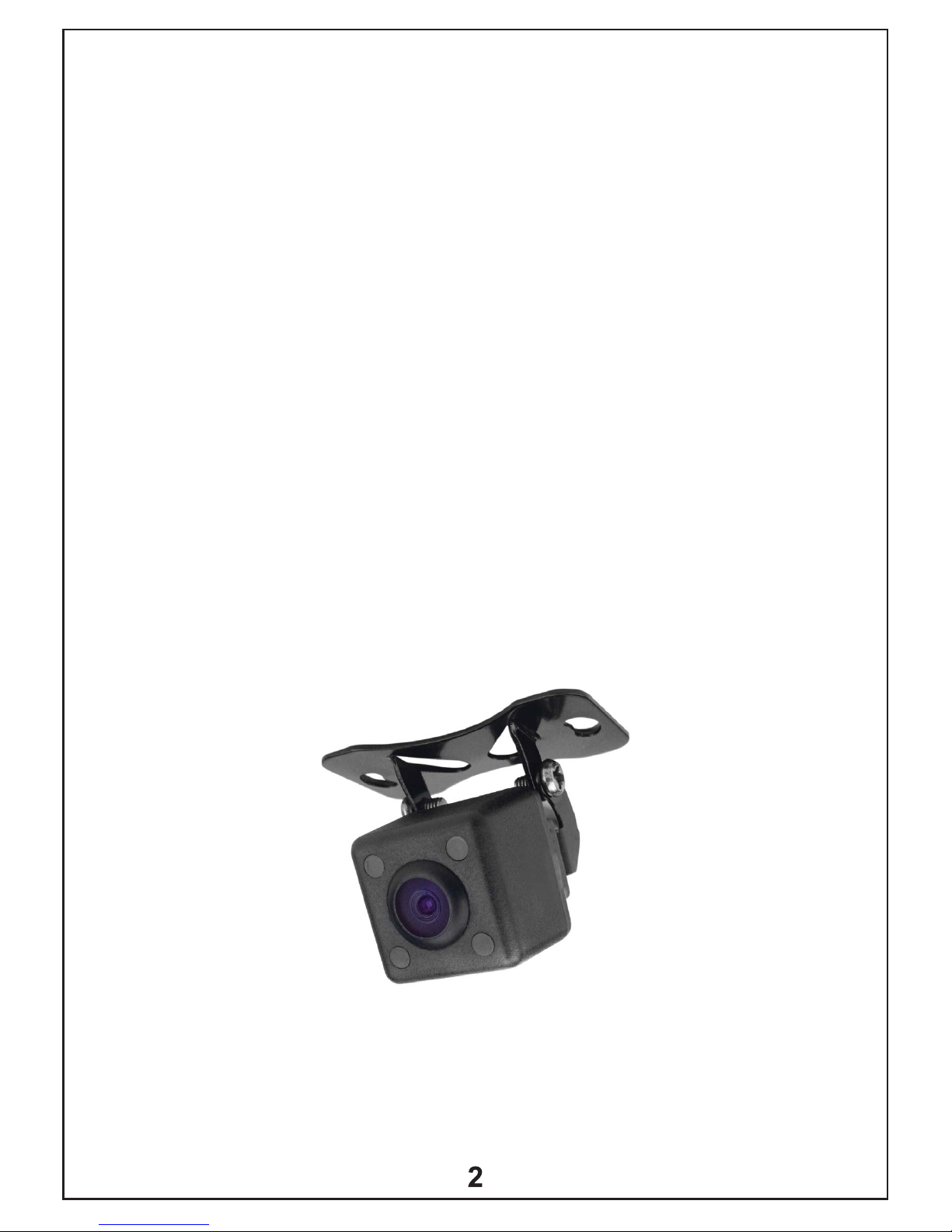

CAMERA:
The stealth camera can be mounted on the number plate or other panel. The RCA
video cable simply connects with most aftermarket LCD monitors.
INSTALLATION:
• Carefully choose the installation position (usually rear-centre of vehicle).
• Carefully drill hole for mounting screws (avoid fuel tank or cables) or use
adhesive tape.
• Connect RED cable to 12V+ power cable of reversing light.
• Connect BLACK cable to ground.
• Connect YELLOW RCAcable (video) to LCD monitor.
Determine the installation location
Connect negative wire to ground
Securely mount camera
Connect camera power cable
to the 12V power cable of
reversing circuit
,QVWDOODWLRQ¿QLVK
CAR REARVIEW CAMERA
CABLE CONNECTIONS:
See wiring diagram below:
Video (6m)
GDN (Black)
+12V (Red)
Camera
TFT LCD Monitor
DC 12V
DC 12V
Connect RCA video cable
between camera and monitor
Camera signal extension cable
Rear Lamp (most vehicles)
A
BC
*most vehicles*
6m Video RCA
(Yellow)
Monitor Trigger Wire
(Red)
CC22
