AXIOMTEK SYM76996VGGA Manual de usuario

SYM76996VGGA Manual

FCC Information and Copyright

This equipment has been tested and found to comply with the limits of a Class

B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. There is no guarantee

that interference will not occur in a particular installation.

The vendor makes no representations or warranties with respect to the

contents here and specially disclaims any implied warranties of merchantability

or fitness for any purpose. Further the vendor reserves the right to revise this

publication and to make changes to the contents here without obligation to

notify any party beforehand.

Duplication of this publication, in part or in whole, is not allowed without first

obtaining the vendor’s approval in writing.

The content of this user’s manual is subject to be changed without notice and

we will not be responsible for any mistakes found in this user’s manual. All the

brand and product names are trademarks of their respective companies.

Table of Contents

Chapter 1: Introduction ........................................ 2

1.1 Before You Start ................................................................................ 2

1.2 Package Checklist............................................................................. 2

1.3 Mainboard Specification................................................................... 3

1.4 Rear Panel Connectors ..................................................................... 4

1.5 Motherboard Layout......................................................................... 5

Chapter 2: Hardware Installation .......................... 6

2.1 Installing Central Processing Unit (CPU)....................................... 6

2.2 FAN Headers...................................................................................... 8

2.3 Installing System Memory................................................................ 9

2.4 Power Supply ................................................................................... 11

2.5 Onboard Slot/Connector/Header/Jumper.................................... 12

User’s Manual

CHAPTER 1: INTRODUCTION

1.1 BEFORE YOU START

Thank you for choosing our product. Before you start installing the

mainboard, please make sure you follow the instructions below:

Prepare a dry and stable working environment with

sufficient lighting.

Always disconnect the system from power outlet

before operation.

Before you take the mainboard out from anti-static

bag, ground yourself properly by touching any safely

grounded appliance, or use grounded wrist strap to

remove the static charge.

Avoid touching the components on mainboard or the

rear side of the board unless necessary. Hold the board

on the edge, do not try to bend or flex the board.

Do not leave any unfastened small parts inside the

case after installation. Loose parts will cause short

circuits which may damage the equipment.

Keep the system from dangerous area, such as heat

source, humid air, and water.

Please switch on/off the machine normally. That is, DO

NOT pull out power cord directly from the mainboard

or the system may damage.

1.2 PACKAGE CHECKLIST

ATX Mainboard x 1

Fully Setup Driver CD x 1

I/O Bracket x 1

SATA Cable x 1

1.3 MAINBOARD SPECIFICATION

Specif ica t ion

CPU

Support Intel Ivy Bridge CPU

(Co-lay support Sandy Bridge CPU/Embedded CPU SKU)

Intel® Core™ i7-2600 3.4GHz up to 95W

Intel® Core™ i5-2400 3.1GHz up to 95W

Intel® Core™ i3-2120 3.3HHz up to 65W

Chipset INTEL B75 chipset (Q77 by Option)

Graphic

Intel® Integrated Graphic

Display Memory: Max. shared system memory up to 1759MB

Resolution: VGA: Max. upto 2048 x 1536 at 75Hz

DVI-D: Max. upto 1920 x 1200 at 60Hz

Main Me mory

4x 240pin DDR3 SDRAM max up to 32GB

Each DIMM supports 512MB/ 1GB/2GB/4GB/8GB DDR3

Dual Channel Mode DDR3 memory module

Supports DDR3 1066/1333, DDR3 1600 (Depending on CPU)

Registered DIMM and ECC DIMM is not supported

SATA

Chips et built-in Serial ATA contro ller

Data transfer rates up to 3.0/6.0 Gb/s with RAID 0/1/5/10 support

SATA Version 2.0/3.0 specification compliant

LAN 1x INTEL 82574L for PCIe Gigabit LAN

1x INTEL 82579 PHY with Intel® AMT 7.0 support (by Q77 option)

Sound Codec Realtek ALC892

5.1 channels audio out, High-Definition Audio support

LPC I/O ITE IT8728 (Support PECI 3.0)

Expansion

Slots

PCI x4

PCIe x1 x1

PCIe x4 x1

PCIe x16 x1

On Board

Connectors

& Headers

SATA3 Connector x1

SATA2 Connector x5

System Fan Header x2

CPU Fan Header x1

Clear CMOS Header x1

USB 2.0 Connector x3

Front Panel Header x1

Front Audio Connector x1

Parallel Connector x1

Digital I/O Connector x1

Serial Connectors (RS-232) x4

Power Connector (24pin) x1

Power Connector (4pin) x1

TPM Header x1

(Each connector supports x2 USB2.0 ports)

(4 input, 4 output)

(Max: 500mA output for each port)

Back Panel

I/O

PS/2 KB/MS x1

VGA x1

DVI-D x1

(for PS/2 keyboard & mouse)

User’s Manual

Specif ica t ion

COM Port x2

USB2.0 Port x6

RJ-45 (Gigabit LAN) Port x2

Audio Jack x3

(Max : 500mA output for each port)

Board Size 220 mm (W) x 305 mm (L) ATX

Operation

Te mp er at u r e

0°C ~ 60°C

Storage

Te mp er at u r e

-20°C ~ 80°C

Relative

Humidity

10% ~ 90% (non-condensing)

OS Support

Win7, WinXP

Linux Intel® Embedded Graphics Drivers Version 10

(Supportby IntelEIAIEGDtools)

Grantech reservesright to addor removesupport for anyOSwith or without notice.

1.4 REAR PANEL CONNECTORS

Note1: DVI-D / VGA Output require an Intel Core family processor with Intel Graphics Technology.

Note2: Since the audio chip supports High Definition Audio Specification, the function of each

audio jack can be defined by software. The input / output function of each audio jack listed

above represents the default setting. However, when connecting external microphone to

the audio port, please use the Line In (Blue) and Mic In (Pink) audio jack.

Note3: Maximum resolution:

DVI: 1920 x 1200 @60Hz

VGA: 2048 x 1536 @75Hz

1.5 MOTHERBOARD LAYOUT

Note: ■represents the 1st pin.

User’s Manual

CHAPTER 2: HARDWARE INSTALLATION

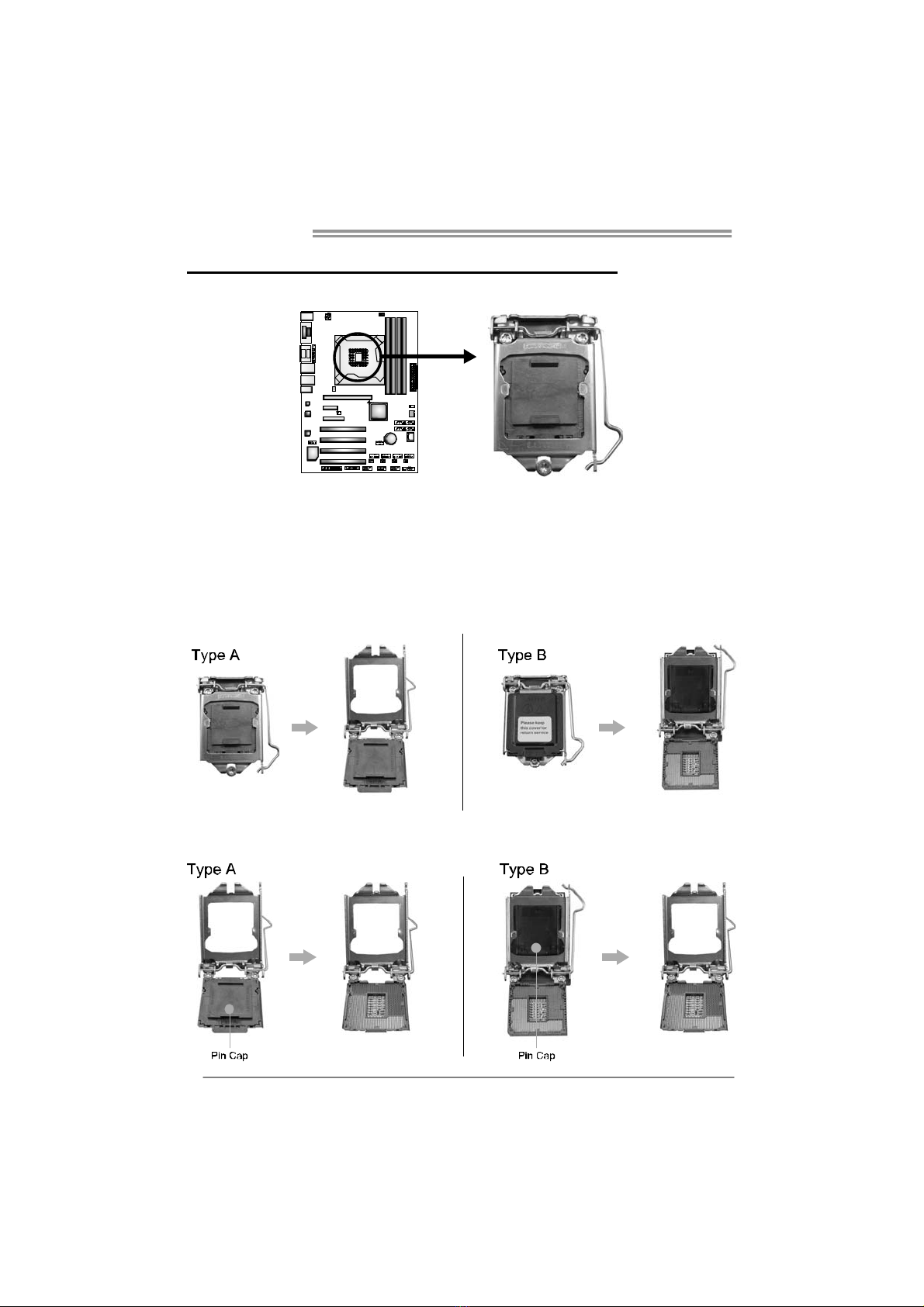

2.1 INSTALLING CENTRAL PROCESSING UNIT (CPU)

Notice:

1. Remove Pin Cap before installation, and make good preservation for future use.

When the CPU is removed, cover the Pin Cap on the empty socket to ensure pin

legs won’t be damaged.

2. The motherboard might equip with two different types of pin cap. Please refer

below instruction to remove the pin cap.

Step 1: Pull the socket locking lever out from the socket then raise the

lever and load plate to the fully open position.

Step 2: Remove the Pin Cap.

Step 3: Hold processor with your thumb and index fingers, oriented as

shown. Align the notches with the socket. Lower the processor

straight down without tilting or sliding the processor in the socket.

Step 4: Close the load plate. Pressing down on the load plate, close and

engage the socket lever.

Step 5: Put the CPU Fan and heatsink assembly on the CPU and buckle it

on the retention frame. Connect the CPU FAN power cable into

the CPU_FAN1 to complete the installation.

User’s Manual

2.2 FAN HEADERS

These fan headers support cooling-fans built in the computer. The fan

cable and connector may be different according to the fan manufacturer.

Connect the fan cable to the connector while matching the black wire to

pin#1.

CPU_FAN1: CPU Fan Header

Pin Assignment

1 Ground

2 +12V

3 FAN RPM rate sense

4 Smart Fan Control

SYS_FAN1/2: System Fan Header

Pin Assignment

1 Ground

2 +12V

3 FAN RPM rate sense

Note:

The SYS_FAN1/2 support 3-pin head connectors; the CPU_FAN1 supports 4-pin head

connector. When connecting with wires onto connectors, please note that the red wire is

the positive and should be connected to pin#2, and the black wire is Ground and should

be connected to GND.

2.3 INSTALLING SYSTEM MEMORY

A. Memory Modules

Step1:

Unlock a DIMM slot by pressing the retaining clips outward. Align a DIMM on the

slot such that the notch on the DIMM matches the break on the Slot.
