Configuration Guide
Version: 3.810 (09. January 2023)
MAGIC THipPro (Pure) Lite
▪Documents
▪Overview
▪Hardware
▪Basic Features
▪Optional Features
▪Accessories
▪PC Software
▪Resources
▪Initial Setup
▪Setting the IP Address
▪Connecting the PC Software
▪First Steps
▪Possible Applications
▪Configuration
▪System Settings
▪Date and Time and Login
▪Operation Settings
▪Local Settings
▪Factory Settings
▪Maintenance
▪Backup / Restore
▪Updates
▪Registration
▪System Monitor
▪Support
Content
4
▪Get further information in the following documents which are available in
the Download section of our website at www.avt-nbg.de.
▪Quick Guides:
▪Audio over IP (AES67-DANTE-RAVENNA-LIVEWIRE)
▪Signalling and Control with DHD SetLogic
▪Signalling and Control with Ember+
▪Ember+ Consumer Extension
▪MAGIC PhonerSet Provisioning Guide
▪SQL Server 2012 Installation
▪Documentations:
▪MAGIC PhonerSet
▪MAGIC THipPro Hardware
Additional Documents
5
www.avt-nbg.de
© AVTAudio Video Technologies GmbH
Overview
MAGIC THipPro Lite
▪Hardware
▪Basic Features
▪Optional Features
▪Accessories

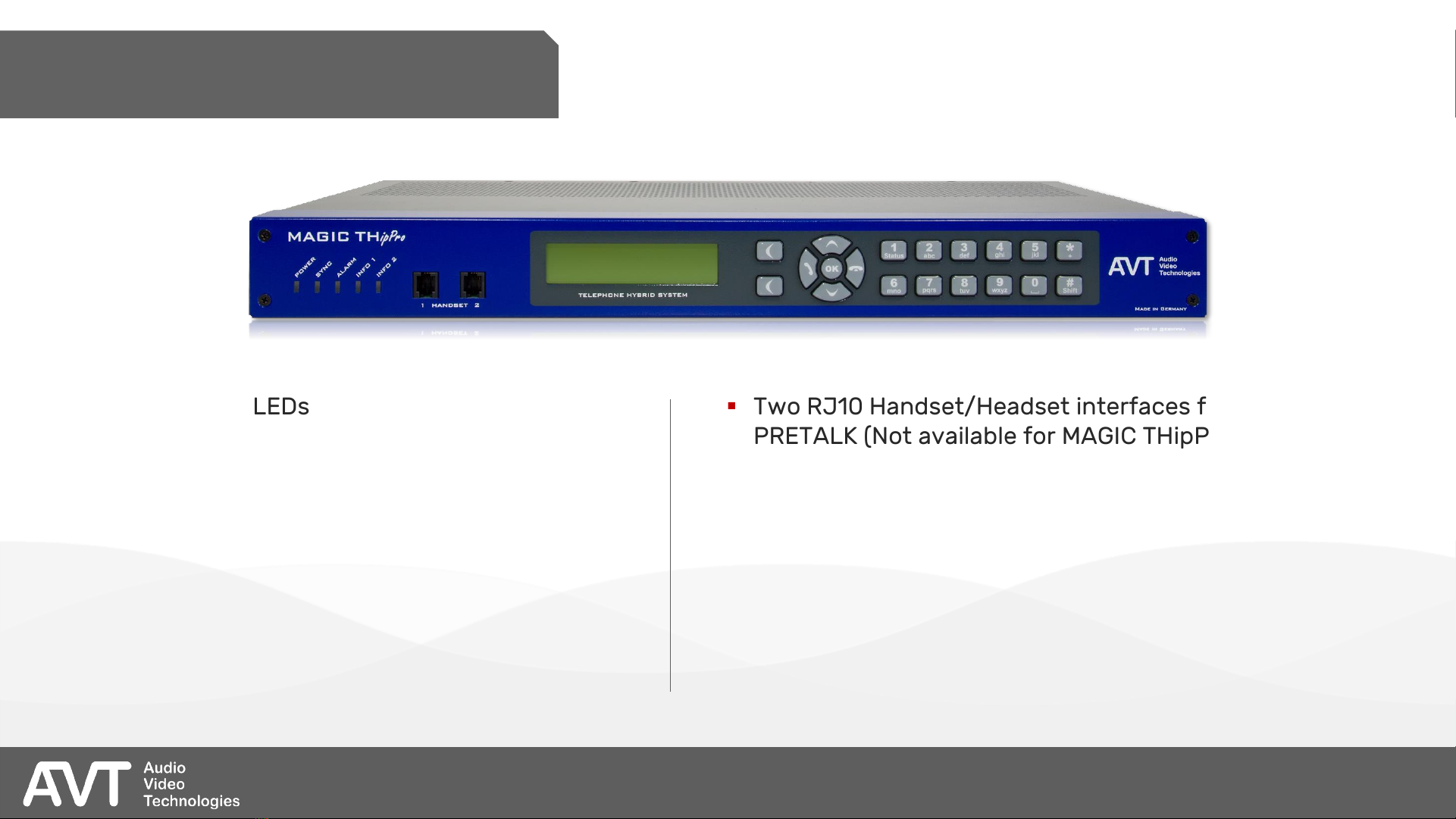

Hardware –Front
▪Five Status LEDs
▪POWER
▪SYNC (On while booting)
▪ALARM (Indicating hardware problems)
▪INFO 1, INFO 2 (Not in use)
▪Two RJ10 Handset/Headset interfaces for
PRETALK (Not available for MAGIC THipPro Pure
Lite).
▪Illuminated graphic display with 160 x 32 pixels &
front keypad.
▪For basic settings and status display only.
7
THipPro Lite Hardware –Rear
▪Two independent LAN interfaces
▪Up to three VLANs per LAN interface
▪Word clock input/output
▪2 x analogue mono audio in-/outputs
▪2 x XLR male/female each
▪2 x AES3/EBU stereo audio in-/outputs (Digital
AES 1 –2)
▪4 digital audio lines (Sub-D 15-pole with adaptors
to XLR male/female)
▪2 x AES3/EBU stereo audio in-/outputs (Digital
AES 3 -4, licence required)
▪4 digital audio lines (Sub-D 15-pole with adaptors
to XLR male/female)
▪Optional socket for redundant power supply.
▪Programmable GPIO interface
▪8 TTL in-/output
▪8 relays (NO)
▪2 x slots for extension modules
8
THipPro Pure Lite Hardware –Rear
▪Two independent LAN interfaces
▪Up to three VLANs per LAN interface
▪Word clock input/output
▪Programmable GPIO interface
▪8 TTL in-/output
▪8 relays (4 x NO, 4 x NC)
▪2 x slots for extension modules
▪Optional socket for redundant power supply.
▪No physical audio interfaces.
▪The configuration described in this manual refers
to the MAGIC THipPro Lite with physical audio
interfaces, but also applies to the MAGIC THipPro
Pure Lite. Any reference to the physical audio
interfaces should be ignored when configuring a
MAGIC THipPro Pure Lite.
9
Hardware –Module slots 1 and 2
▪POTS
▪2 x POTS modules for 8 caller lines
▪DANTE
▪32 channels in/out
▪2 Ethernet interfaces
▪Only for VoIP systems
▪The standard Audio interfaces can still be used
▪RAVENNA
▪32 channels in/out
▪2 Ethernet interfaces
▪Only for VoIP systems
▪The standard Audio interfaces can still be used
▪LAN 3/4 Module
▪Two additional 10/100 Mbit/s Ethernet interfaces
10
▪Housing 19” x 1 U
▪Leave 1U space above the unit for cooling.
▪No fan for noiseless operation
▪Low power consumption of typically 15W
▪12 Audio lines (THipPro Lite only)
▪2 x analogue in-/outputs
▪2 x digital in-/outputs included (2 x AES)
▪2 x digital in-/outputs optional (2 x AES)
▪2 x handsets/headsets
▪Digital signal processing for each channel
▪Echo Canceller with up to 120 ms echo tail time
▪AGC Automatic Gain Control
▪Expander for noise reduction
▪Voice Disguise (VD) function
▪Conferencing for PRETALK and ON AIR
Basic Features (1)
11
▪Up to 2 internal recorded HOLD signals with up to
16 seconds each
▪Use up to 2 audio channels as external HOLD
inputs
▪Programmable GPIOs for controlling a mixing
console and for external signalling
▪DHD SetLogic Support
▪96 GPIOs, each configurable as input or output
▪Predefined GPIOs for a dialling keypad
▪Ember+ Provider Support
▪Connect up to 6 Ember+ Consumers
▪96 GPIO inputs
▪96 GPIO outputs
▪Predefined GPIOs for 1 dialling keypad
▪Caller number, caller name, Functions
▪Ember+ Consumer Support
▪Connect to up to 2 Ember+ Providers
▪20 function slots per Ember+ Consumer
▪For screening information, Numbers to dial, …
▪DTMF generator for transmission of DTMF tones
▪Integrated SIP Monitor and Logging
▪Audio test panel with signal generator
▪MAGIC THipPro Lite Software
▪Touch optimized Windows PC software for
▪Call control
▪Maintenance
▪Configuration
▪Single user licence
▪Up to 8 clients per unit (1 licence included)
▪MS Access database for phone book and call history.
Basic Features (2)
