AVPro Edge AC-AEX-KIT Manual de usuario

AC-AEX-KIT

Quick Start Guide

1

The AC-AEX-KIT is a basic solution for extending audio signals up to multichannel 5.1.

Featuring Bidirectional POC and capable of sending both analog and digital up to 100 me-

ters over traditional cat 5e and up to 130 meters over shielded cat 5e. The AEX also has a

Dual Play function, allowing simultaneous playback on both the analog and digital output,

regardless of input.

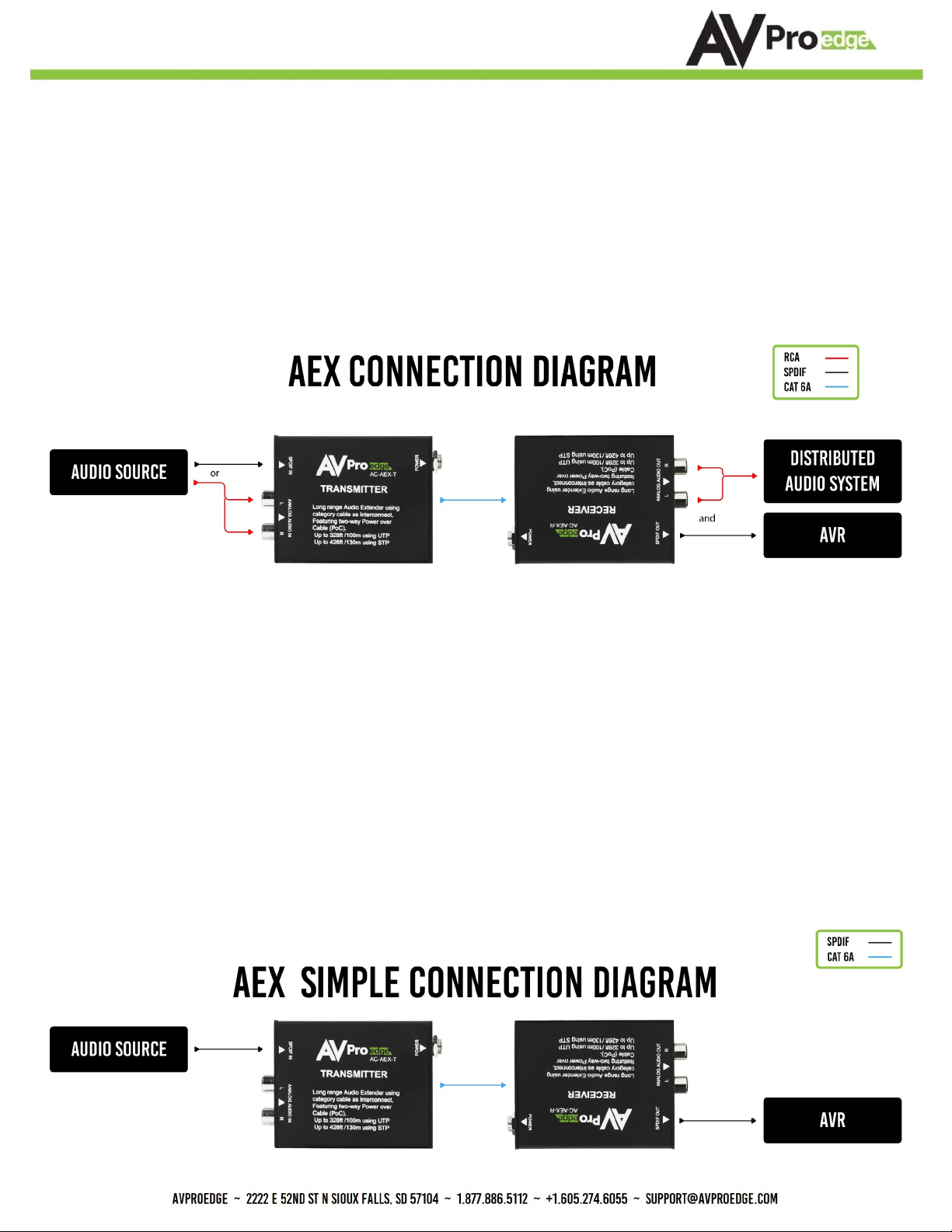

Setup

1. Connect the audio Input source to desired input on the AC-AEX-T.

2. Set the Input Source switch to the desired input on the AC-AEX-T.

3. Connect the AC-AEX-T to the AC-AEX-R using Cat 5e or better.

4. Connect the AC-AEX-R to PC or similar device using the desired audio output(s).

5. Connect power to preferred device to provide power to both devices.

Troubleshooting

- No Audio – Ensure Desired Input is selected.

- No Audio – Ensure multichannel audio does not exceed Dolby Digital 5.1.

- No POC – Try powering at other device. Ensure the Category run has not been damaged.

- No POC – Ensure distance does not exceed Cat Capabilities (100M UTP/130M STP).

2

Please contact us with any questions, we are

happily at your service!

SUPPORT: +1 605-274-6055

USA TOLL FREE: 877-886-5112

EMAIL: [email protected]

Thank you for choosing AVProEdge!

AVProEdge

2222 E 52nd St N ~ Sioux Falls, SD 57104
