Avision FB1210U Manual de usuario

iVina

FB1210U Color Image Scanner

User’s Manual

¦Installing the Machine

¦Installing the Software

PC Platform/Macintosh Platform

¦Completing Your First Scan

¦Using the Buttons

¦Editing Your Image

FB1210U User’s Manual

forms or by any means without prior written permission of iVina Inc.

Trademark

All brands and product names mentioned in this document are trademarks

of their respective holders.

Warranty

The information contained in this document is subject to change without

notice.

iVina makes no warranty of any kind with regard to this material,

including, but not limited to, the implied warranties of fitness for a

particular purpose.

FB1210U User’s Manual

System Requirements

Windows

•IBM compatible PC 586, Pentium or later

•Microsoft Windows 98, Windows Me, or Windows 2000

•A USB (universal serial bus) port

•At least 100M bytes of free hard disk space

•At least 32M bytes of system memory (Recommend 64 MB)

•A CD-ROM drive

•Modem and internet connection required for E-Mail functionality

Macintosh

•Power Macintosh series, PowerBook series, iMac, iBook or later with

built-in USB port

•System 8.6 or later

•At least 32M bytes of system memory (Recommend 64 MB)

•Mac compatible display card and monitor with at least 256 colors;

thousands colors or million colors display card recommended

•A CD-ROM drive

FB1210U User’s Manual

Table of Contents

CHAPTER 1 INSTALLING THE SCANNER ........................................6

1.1 PREINSTALLATIONINFORMATION.........................................6

1.2 CHECKING THE PACKAGE CONTENTS.....................................7

1.3 UNLOCKING THE SCANNING UNIT........................................8

1.4 CONNECTTING TO THE COMPUTER.......................................9

1.5 STORING THE SCANNER ............................................... 10

1.5.1 TURNING THE SCANNER TO THE STORING POSITION.......... 10

1.5.2RETURNING THE SCANNERTO NORMAL POSITION............. 10

CHAPTER 2 INSTALLING THE SOFTWARE....................................11

2.1 WINDOWS PLATFORM................................................. 11

2.1.1 LIST OF SOFTWARE TOBEINSTALLED........................ 11

2.1.2 INSTALLING THE SOFTWARE................................. 12

2.2 MACINTOSH PLATFORM................................................ 14

2.2.1 INSTALLING THE SOFTWARE................................. 14

CHAPTER 3 COMPLETING YOUR FIRST SCAN ................................15

3.1 PLACING YOUR ORIGINAL......................................... 15

3.2 SCANNING WITH IMAGE EDITING SOFTWARE............................. 16

3.2.1 PC PLATFORM............................................. 16

3.2.2 MACINTOSH PLATFORM..................................... 18

3.2.3 A GLANCE OF THE USER INTERFACE......................... 19

FB1210U User’s Manual

CHAPTER 4 EDITING YOUR IMAGE ............................................20

4.1 USING THE BASIC FEATURES ........................................... 20

4.1.1 CHOOSING YOUR SCANNING SOURCE......................... 20

4.1.2 SELECTING A PROPER IMAGE TYPE........................... 21

4.1.3 DETERMINING A PROPER RESOLUTION....................... 23

4.1.4 ADJUSTING THE BRIGHTNESS AND CONTRAST................ 24

4.1.5 ENLARGING PREVIEWEDIMAGE .............................. 25

4.1.6 INVERTING AND SELECTING YOUR IMAGE..................... 26

4.1.7 ENHANCING YOUR IMAGE ................................... 27

4.2 USING THE ADVANCED FEATURES ...................................... 29

4.2.1 SWITCH BUTTON........................................... 29

4.2.2 ADJUSTING HIGHLIGHT/SHADOW LEVELS................... 29

4.2.3 ADJUSTING THE BRIGHTNESS CURVE........................ 31

4.2.4 CHANGING COLOR HUE/SATURATION/LIGHTNESS........... 32

4.2.5 USING COLOR BALANCE.................................... 33

4.3 USING OTHER TOOLS.................................................. 35

CHAPTER 5 USING THE BUTTONS.............................................36

5.1 CUSTOMIZING YOUR BUTTON SETTINGS ................................ 36

5.2 USING THE BUTTONS ................................................. 38

CHAPTER 6 MAINTAINING YOUR SCANNER .................................39

6.1 CLEANING THE GLASS................................................. 39

6.2 TECHNICAL SUPPORT.................................................. 40

APPENDIX ...........................................................................41

QUICK TIPS.................................................................... 41

SPECIFICATION................................................................ 42

INDEX ......................................................................... 43

FB1210U User’s Manual

Chapter 1 Installing the Scanner

1.1 PREINSTALLATION INFORMATION

•Keep the scanner out of direct sunlight. Direct exposure to the

sun or excessive heat may cause damage to the unit.

•Do not install the scanner in a humid or dusty place.

•Be sure to use the proper AC power source.

•Only use the AC adapter (ADP-20LB Rev. B made by Delta Electronics,

Inc.) included in the machine. Using other AC adapters may damage

the machine and void the warranty.

•Place the scanner securely on an even, flat surface. Tilted or

uneven surfaces may cause mechanical problems.

FB1210U User’s Manual

1.2 CHECKING THE PACKAGE CONTENTS

Gently open your box and check the package contents. If there is

anything missing or damaged, please call your dealer.

1. Scanner main unit

2. USB cable

3. Power Cord

4. Power Adapter

5. Scanner Stand

6. Software CD

Accessories:

Quick Guide.

Note

Please keep all the packing material in case you may have to return the

scanner for repair.

FB1210U User’s Manual

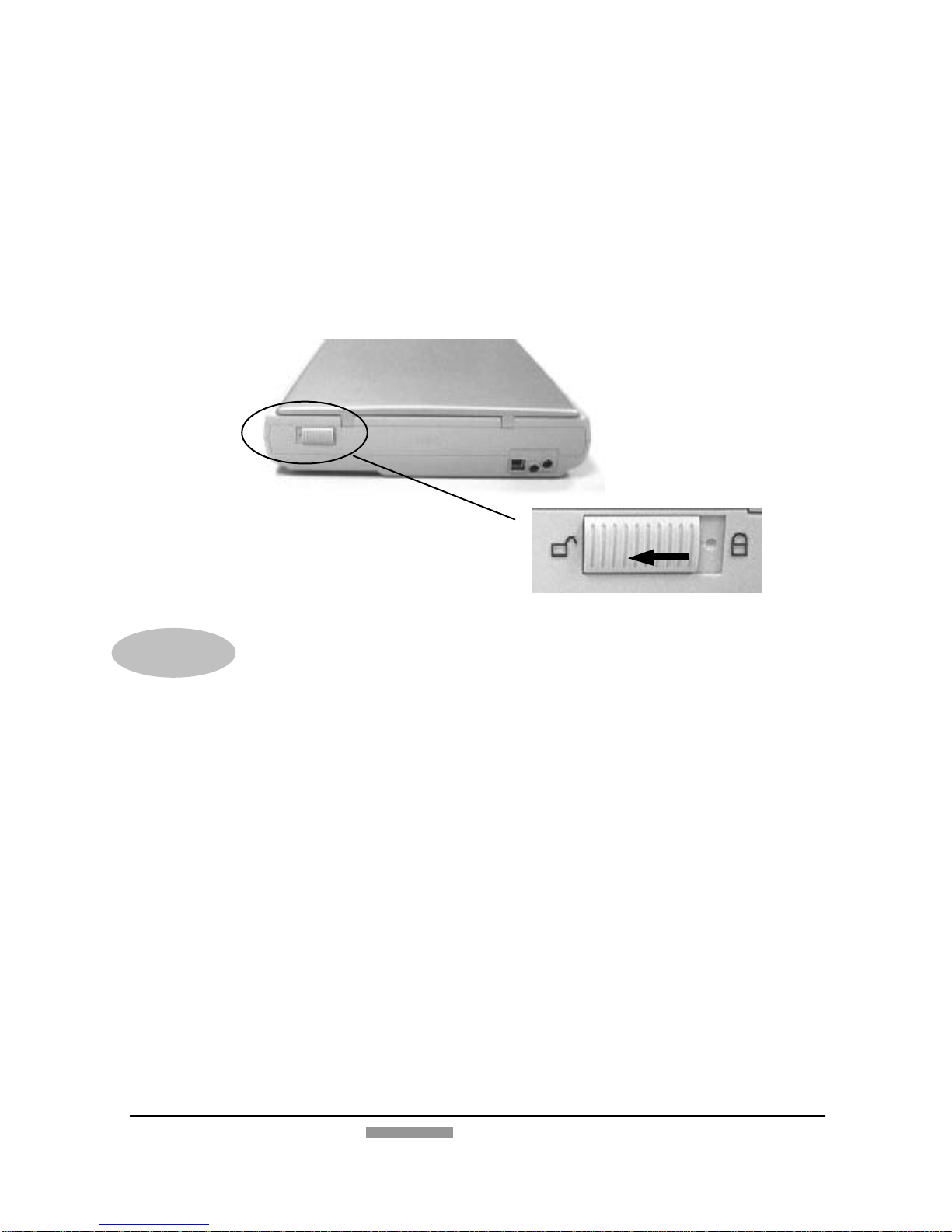

1.3 UNLOCKING THE SCANNING UNIT

The scanner is designed with a lock switch to protect the scanning unit

from damage during shipment. Before using the scanner, you must

unlock the scanning unit. To unlock the scanning unit, locate the lock

switch at the rear of the scanner. Move the lock switch to the “unlocked

position” as shown below.

Warning:

1. Using the scanner without unlocking the scanning unit will cause

damage to the machine and void the warranty.

2. To transport the machine, you must lock the scanning unit before

transporting to other locations.

FB1210U User’s Manual

1.4 CONNECTTING TO THE COMPUTER

1. Connect the square end of the USB cable to the USB port of your

scanner. Connect the rectangle end to the USB port of your

computer.

2. Plug the small end of the power adaptor into the power jack of your

scanner. Insert the other end to an appropriate power outlet.

Note:

The scanner is designed with power saving mode. After stop using the

scanner for 15 minutes, the scanner automatically turns off the scanning

lamp.

USB Cable

The Square End

Power Outlet

Power Cord

USB port

Power Jack

FB1210U User’s Manual

1.5 STORING THE SCANNER

When you do not need to use the scanner for a while, you can lock the

scanning unit and then turn the scanner upright with the scanner stand to

save your space.

1.5.1 TURNING THE SCANNER TO THE STORING POSITION

1. Turn the lock switch to the “lock” position.

2. Disconnect the USB cable and power cable.

3. Turn the scanner upright with the rear side close to you. (See

below). Hold the scanner with your left hand.

4. Push the center of the scanner stand down. Allow the hinges on

the on the scanner attach to the stand.

1.5.2 RETURNING THE SCANNER TO NORMAL POSITION

1. Push the center part of the stand to release the hinges.

2. Place the scanner on the even surface.

3. Turn the lock swith to the lock position.

4. Connect the USB cable and the power cable.

5. The scanner is now ready to use.

Push the center

part down.
