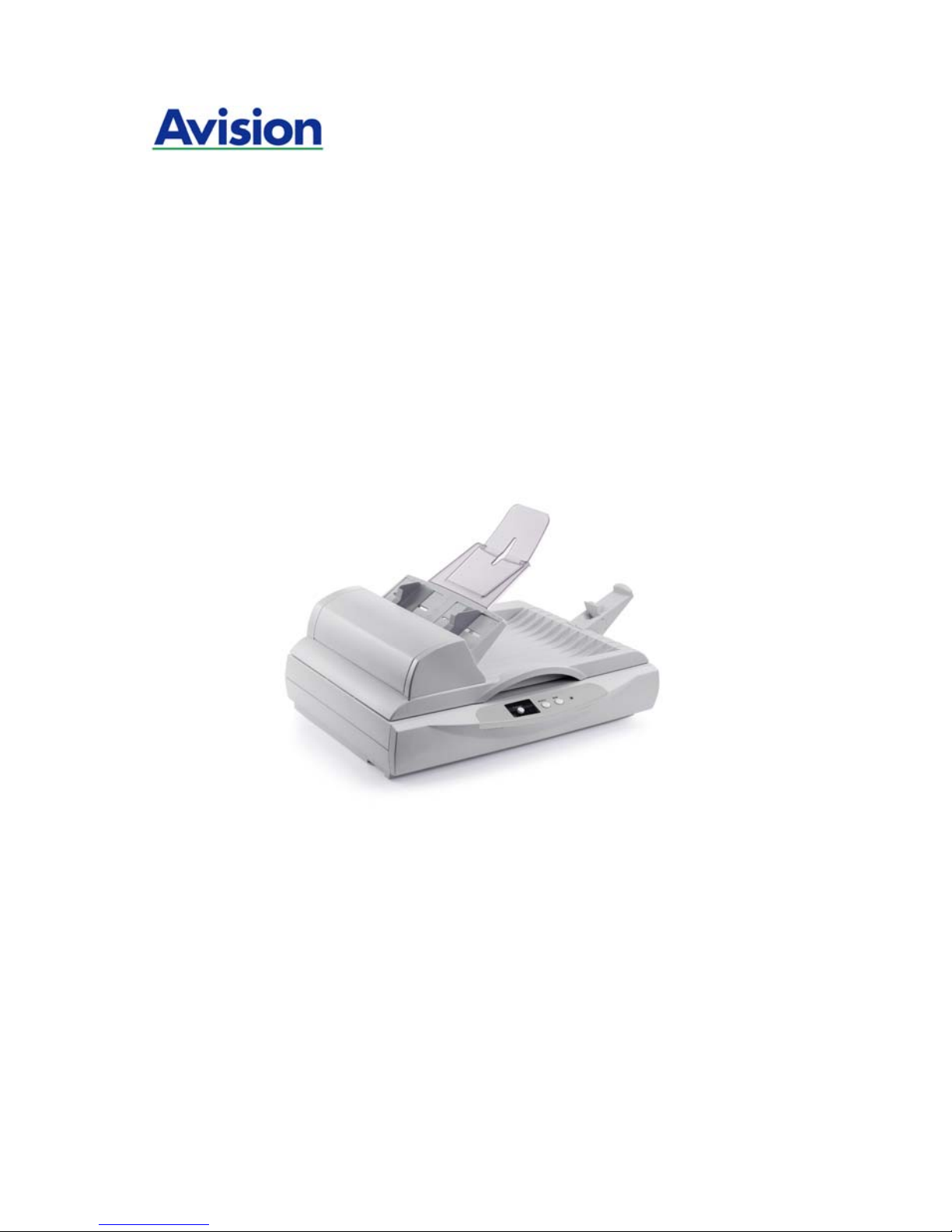

Avision DF-0510 Manual de usuario

Color Image Scanner

User’s Manual

Regulatory model: DF-0510

Avision Inc.

Trademarks

Microsoft is a U.S. registered trademark of Microsoft

Corporation.

Windows and MS-DOS are trademarks of Microsoft Corporation.

IBM, IBM PC are registered trademarks of International Business

Machines Corp.

ENERGY STAR®is a U.S. registered mark.

Other brands and product names herein are trademarks or

registered trademarks of their respective holders.

reproduced, transmitted, transcribed, stored in a retrieval

system, or translated into any language or computer language,

in any form or by any means, electronic, mechanical, magnetic,

optical, chemical, manual, or otherwise, without the prior

written permission of Avision Inc.

Material scanned by this product may be protected by

governmental laws and other regulations, such as copyright

laws, the customer is solely responsible for complying with all

such laws and regulations.

Warranty

The information contained in this document is subject to

change without notice.

Avision makes no warranty of any kind with regard to this

material, including, but not limited to, the implied warranties

of fitness for a particular purpose.

Avision shall not be liable for errors contained herein or for

incidental or consequential damages in connection with the

furnishing, performance, or use of this material.

iii

FCC Radio Frequency Interference Statement

This product has been tested and found to comply with the

limits for a class B digital device, pursuant to Part 15 of

the FCC rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful

interference, and (2) this device must accept any

interference received, including interference that may

cause undesired operation. The FCC Class B limits are

designed to provide reasonable protection against harmful

interference in a residential installation. This equipment

generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio

communications. However, there is no guarantee that

interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or

television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and

receiver.

Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

Consult your point of purchase or service representative

for additional suggestions.

CE Warning

This product satisfies the Class B limits of EN55022, EN55024

and safety requirements of EN 60950.

Disposal of Waste Equipment

This symbol on the product or on its packaging indicates that

the product can not be disposed of with your other household

waste. Instead it should be sent to appropriate facilities for

recovery and recycling in an effort to protect human health and

the environment. Fore more information about where you can

drop off your waste equipment for recycling, please contact

your local city office, your household waste disposal service or

the shop where you purchased the product.

As an ENERGY STAR®Partner, Avision Inc. has

determined that this product meets the ENERGY STAR

guidelines for energy efficiency.

System Requirements

¾IBM compatible PC 586, Pentium or higher

¾Microsoft Windows 98SE/Me/2000/XP/Vista

¾USB port 2.0 (compatible with USB 1.1)

¾At least 100 MB of free hard disk space

¾At least 128 MB of system memory

¾A CD-ROM drive

Table of Contents

1. Introduction ................................................................1-1

2. Scanner Installation ..................................................2-1

2.1 Removing the shipping lock ...........................2-2

2.2 Connecting the ADF Cable .............................2-2

2.3 Loading the Paper with ADF...........................2-3

2.4 Fixing Paper on the glass board......................2-4

2.5 Installing the Scanner Driver and Cables .........2-5

3. Completing Your First Scan......................................3-1

3.1 Verifying Your Scanner Installation .................3-1

4. Using the Scanner Properties Dialog Box..............4-1

4.1 Buttons on the Scanner Properties Dialog Box..4-2

4.2 The Image Tab ............................................4-4

4.3 The Compression Tab ................................. 4-19

4.4 The Color Dropout Tab................................ 4-21

4.5 The Paper Tab ........................................... 4-24

4.6 The Preview Tab ........................................ 4-37

4.7 The Options Tab......................................... 4-38

4.8 The Setting Tab ......................................... 4-43

4.9 The Information Tab................................... 4-46

5. ISIS Interface Operation..........................................5-1

vii

6. Using The Button .......................................................6-1

6.1 Installing Button Manager .............................6-2

6.2 Checking the Button Configurations Before .........

Scanning ....................................................6-2

6.3 Scanning From One Touch of the Buttons ........6-4

7. Care and Maintenance ..............................................7-1

7.1 Cleaning the ADF .........................................7-1

7.2 Cleaning the Glass........................................7-3

7.3 Replacing the ADF detachable pad module.......7-4

8. Troubleshooting..........................................................8-1

8.1 Frequently asked Questions...........................8-1

8.2 Technical Service .........................................8-3

9. Specifications..............................................................9-1

1-1

1. Introduction

Congratulations on your purchase of the color image

scanner. With this scanner, you can quickly scan documents

to increase productivity.

Before you install and operate the new scanner, please take

a few minutes to read through this manual. It provides

proper instructions for you to unpack, install, operate and

maintain the scanner.

The following figure indicates the package contents. Please

check all the items against your checklist. If you do not

receive all the items, please contact your authorized local

dealer immediately.

Scanner

1-2

Quick Guide

/CD Paper Guide Paper Guide

Extension

USB Cable Power Supply Power Cable

Paper Stop ADF Pad

1-3

Note:

1. Only use the AC adapter (HEG42-240200-7L made by HiTron)

included in the machine. Using other AC adapters may damage

the machine and void the warranty.

2. Please unpack the packing carefully, and check the contents

against the checklist. If any items are missing or damaged,

please contact your dealer immediately.
