Installation Guide

Avigilon High Definition H.264 PTZ IP Dome

Camera Models:

1.0W-H3PTZ-DP20 and 2.0W-H3PTZ-DP20

920-0064A-Rev3

English

Important Safety Information

This manual provides installation and operation information and

precautions for the use of this dome camera. Incorrect installation

could cause an unexpected fault. Before installing this equipment read

this manual carefully. Please provide this manual to the owner of the

equipment for future use.

• Installation must be performed by qualified personnel only,

and must conform to all local codes.

• This product is intended to be supplied by a UL Listed

Power Unit marked “Class 2” or “LPS” or “Limited Power

Source” with output rated 24 VAC +/- 10%, 55 VA min.;

24 VDC +/- 10%, 44 W min. or Power over Ethernet (PoE)

Plus IEEE802.3at Type 2 compliant Power Sourcing

Equipment (PSE) rated 42.5-57 VDC, 25.5W min.

• Any external power supply connected to this product may

only be connected to another Avigilon product of the same

model series. External power connections must be

properly insulated.

• Do not connect directly to mains power for any reason.

The Warning symbol indicates the presence of

dangerous voltage within and outside the product

enclosure that may constitute a risk of electric shock,

serious injury or death to persons if proper precautions

are not followed.

The Caution symbol alerts the user to the presence of

hazards that may cause minor or moderate injury to

persons, damage to property or damage to the product

itself if proper precautions are not followed.

Warning — Failure to observe the following instructions

may result in severe injury or death.

English

• Do not install near any heat sources such as radiators,

heat registers, stoves, or other sources of heat.

• Do not subject the cables to excessive stress, heavy loads

or pinching.

• Do not open or disassemble the device. There are no user

serviceable parts.

• Refer all servicing to qualified personnel.

Servicing may be required when the device has been

damaged (such as from a liquid spill or fallen objects), has

been exposed to rain or moisture, does not operate

normally, or has been dropped.

• Do not use strong or abrasive detergents when cleaning

the device body.

• Use only accessories recommended by Avigilon.

Caution — Failure to observe the following instructions

may result in injury or damage to the dome camera.

iii

English

Regulatory Notices

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not cause

harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

This Class B digital apparatus complies with Canadian ICES-003.

FCC Notice

This equipment has been tested and found to comply with the limits for

a Class B computing device pursuant to Subpart B of Part 15 of FCC

rules, which are designed to provide reasonable protection against

such interference when operated in a commercial environment.

Operation of this equipment in a residential area is likely to cause

interference, in which case the user at his/her own expense will be

required to take whatever measures may be required to correct the

interference.

Changes or modifications made to this equipment not expressly

approved by Avigilon Corporation or parties authorized by Avigilon

Corporation could void the user’s authority to operate this equipment.

Disposal and Recycling Information

When this product has reached the end of its useful life, please

dispose of it according to your local environmental laws and

guidelines.

European Union:

This symbol means that according to local laws and

regulations your product should be disposed of separately

from household waste. When this product reaches its end of

life, take it to a collection point designated by local

authorities. Some collection points accept products for free.

The separate collection and recycling of your product at the

time of disposal will help conserve natural resources and

ensure that it is recycled in a manner that protects human

health and the environment.

English

Other Notices

Compilation and Publication Notice

This manual has been compiled and published covering the latest

product descriptions and specifications. The contents of this manual

and the specifications of this product are subject to change without

notice. Avigilon reserves the right to make changes without notice in

the specifications and materials contained herein and shall not be

responsible for any damages (including consequential) caused by

reliance on the materials presented, including but not limited to

typographical and other errors relating to the publication.

Intellectual Property Notice

No license is granted by implication or otherwise under any industrial

design, industrial design rights, patent, patent rights, or copyrights of

Avigilon Corporation or its licensors. Trademarks and registered

trademarks are the property of their respective owners.

English

Table of Contents

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Top View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Pendant Mount Adapter . . . . . . . . . . . . . . . . . . . . . . 3

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Camera Package Contents . . . . . . . . . . . . . . . . . . . 4

Installation Steps . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Connecting Cables . . . . . . . . . . . . . . . . . . . . 7

Securing the PTZ Dome Camera . . . . . . . . . 8

Assigning an IP Address . . . . . . . . . . . . . . . 8

Accessing the Live Video Stream . . . . . . . . . 9

For More Information . . . . . . . . . . . . . . . . . . 9

Cable Connections . . . . . . . . . . . . . . . . . . . . . 10

Connecting External Power . . . . . . . . . . . . . . . . . . 10

Connecting to External Devices . . . . . . . . . . . . . . 11

LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . 13

Reset to Factory Default Settings . . . . . . . . . 14

Setting the IP Address Through

the ARP/Ping Method . . . . . . . . . . . . . . . . . . . 15

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 16

Limited Warranty & Technical Support . . . . 17

English

Overview

Front View

Feature Description

Serial Number Label Product serial number and part number

label.

Link LED Indicates if there is an active connection

in the Ethernet port.

Connection Status LED Provides information about device

operation. See LED indicators for more

information.

Connection Status LED

Serial Number Label Link LED

English

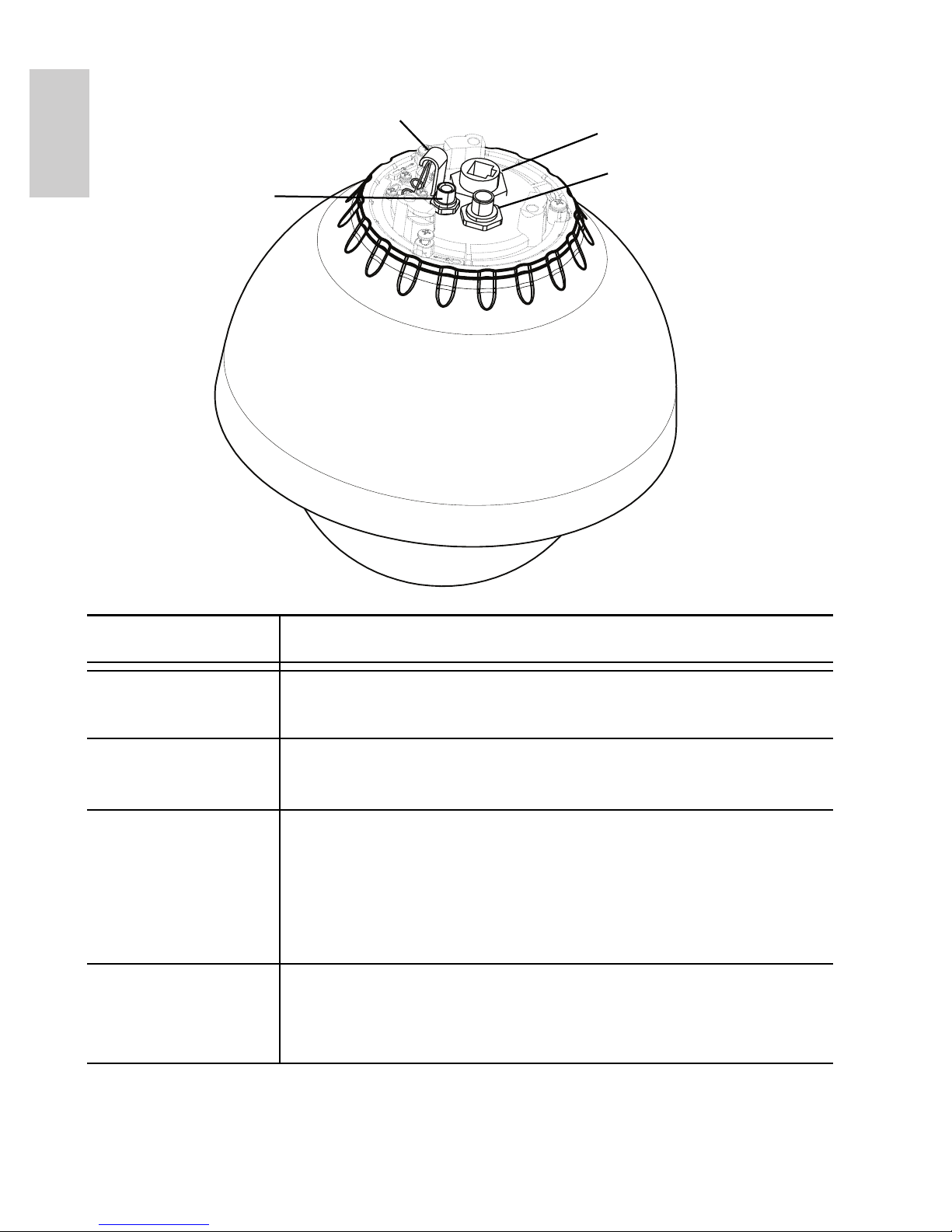

Top View

Feature Description

External Power Accepts an external power connection when Power

over Ethernet is not available.

Lanyard Anchor The safety lanyard attaches to the anchor to

prevent the camera from falling during installation.

Ethernet Port Accepts an Ethernet connection to a network.

Server communication and image data

transmission occurs over this connection. Also

receives power when it is connected to a network

that provides Power over Ethernet.

External I/O Provides connections to external input/output and

audio/video devices. See the section about

connecting external devices for more information.

External Power

Ethernet Port

External I/O

Lanyard Anchor
