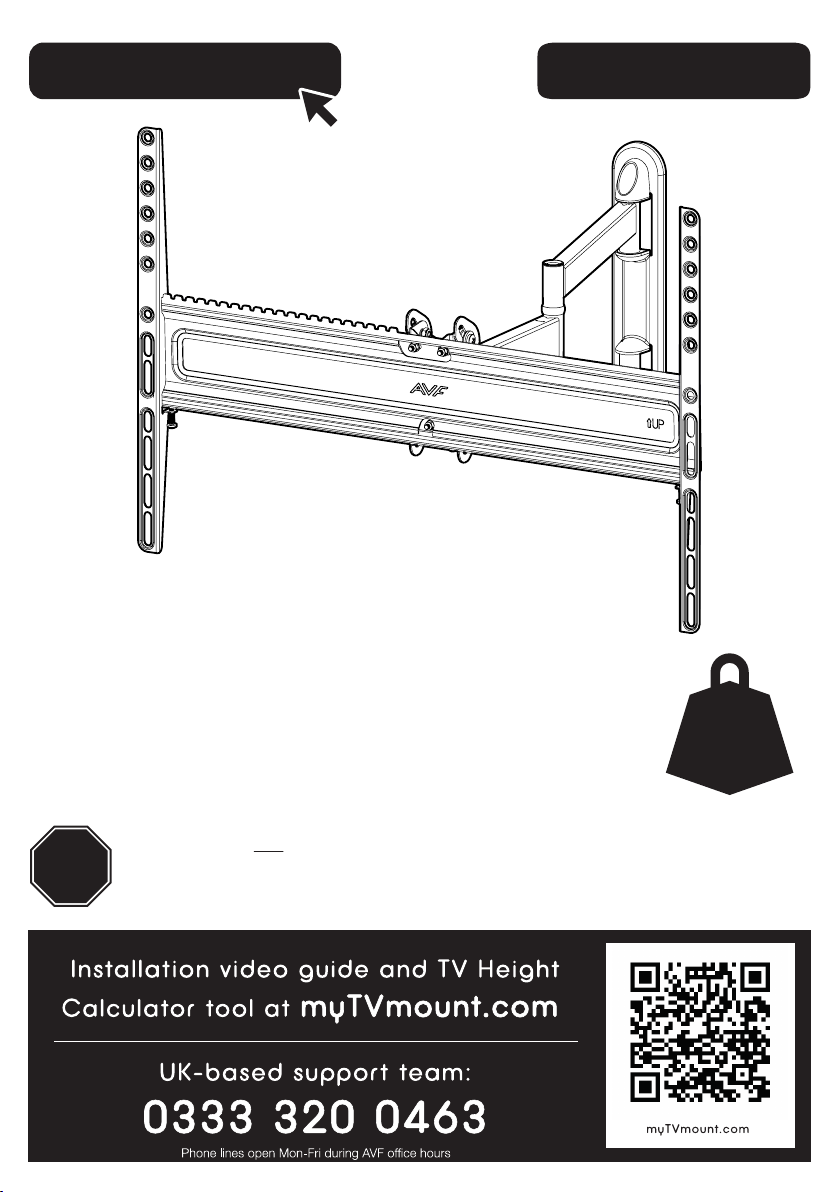

469097 rev00

www.avfgroup.com

STOP

Read through

ALL instructions before commencing installation.

If you have any questions about this product or issues with installation, contact

the customer services helpline before returning this product to the store.

50kg

110lbs

Tools Recommended

Assembly Overview

Ø10mm (25/64”)

Masonry

Connect the TV

Fit the TV Mounting Plate

Stud Finder

Ø3mm (1/8”)

Wood

Fit the Wall Bracket

Suitable Wall Types

Solid Wall Wood Stud

Index

Measure the TV fixing holes Width and Height

1

Retain all packaging in case the product needs to be returned.

Contents may vary from photography / illustrations.

You will not need all these parts, so expect there to be some left over depending upon the

specification of your TV.

This product is intended for indoor use only. Use of this product outdoors could lead to

failure and personal injury.

It is the responsibility of the installer to ensure that the mounting wall is of a suitable

standard and void of any services (eg gas, electricity, water etc).

AVF accept no responsibility for any damage or loss caused by installing this product in a

substandard wall.

Fitting the TV Brackets

3

Fitting the Wall Bracket Covers

5

Connecting the TV

6

Fitting the Wall Bracket

4

Preparing the Wall Bracket

2

Tilt Adjustment

7

Boxed Parts

M6

16mm

T1x4

M6

30mm

T2x4

M8

25mm

T3x4

T6x4

T5x4

U1x4

C1

M8

45mm

T4x4

C2

TV Screws, Reducers and Spacers

C1

B1

B2

W1x3 W2x3

M5

S2x3

M5

S1x3

A1

A2

Xx1

WT

Measure the TV fixing holes Width and Height

1

X75 - 600mm

Y75 - 400mm

TV Fixing Holes

If width X is greater than mm or height Y greater than mm

STOP installation now and contact the customer help line.

600 400

T1/T2

M6 =

M8 = T3/T4

You are provided with diameters of TV fixing screws

Determine the screw diameter that fits and remember for step .

3

3

, M6 and M8.

Fitting the TV Brackets

3

No Spacers Spacers

For TVs with irregular / obstructed back.

For TVs with flat / unobstructed back.

T5/T6

Preparing the Wall Bracket

2

A1

A2S1S2

X

Attach the bracket to the back of your TV using suitable screw, reducer and spacer

combinations.

TV TV TVTV

WARNING

After completing step you will have fittings left over, please keep for

future reference.

3

T

1

- T

4

U

T

3

-T

4

T

1

-T

2

1

T

6

T

5

Top

Do you need

U1?

If required

Fitting the Wall Bracket

4

Solid Wall

Wood Stud

Remove Dust from Hole.

10mm (25/64")

75mm (3")

Ensure drill marks are in the centre of the wood stud.

3mm (1/8")

75mm (3")

WT

WT

DO NOT overtighten screws.

Tighten screws by hand only.

12.5mm (½”)

MAX

W1

W2

W1x3 W2x3

Lubricate screw thread with soap.

DO NOT overtighten screws.

Tighten screws by hand only.

W1

W1x3

Lubricate screw thread with soap.

Fitting the Wall Bracket Covers

5

C2

C1

C1

Connecting the TV

6

Hanging the TV
