MONARCH®9416®XL®KNIFE

ADDENDUM

This Addendum contains supply loading procedures for the

Thermal Direct and Thermal Transfer printers with the knife

installed. For more detailed information, refer to the

Equipment Manual on our Web site (www.monarch.com).

Loading Supply for Non-Peel Mode

This section describes how to load supply to print in non-peel

(continuous) mode. If you have a thermal direct printer (does

not require a ribbon), make sure you load thermal direct

supply. If you have a thermal transfer printer (requires a

ribbon), make sure you load thermal transfer supply.

Make sure the black mark/die cut sensor is set correctly for

your supply type. See “Adjusting the Black Mark/Die Cut

Sensor,” in the Equipment Manual for more information.

Note: If you run out of supply, do not turn off the printer

when reloading the supply. You may lose your data.

The printer resumes printing when reloaded.

1. Remove and discard the tape from a new roll of supply.

Unwrap and discard supply with any glue residue.

2. Press the release levers towards the front of the printer to

release the cover.

3. Lift open the cover.

4. Remove the supply holder guide from one end of the

supply holder.

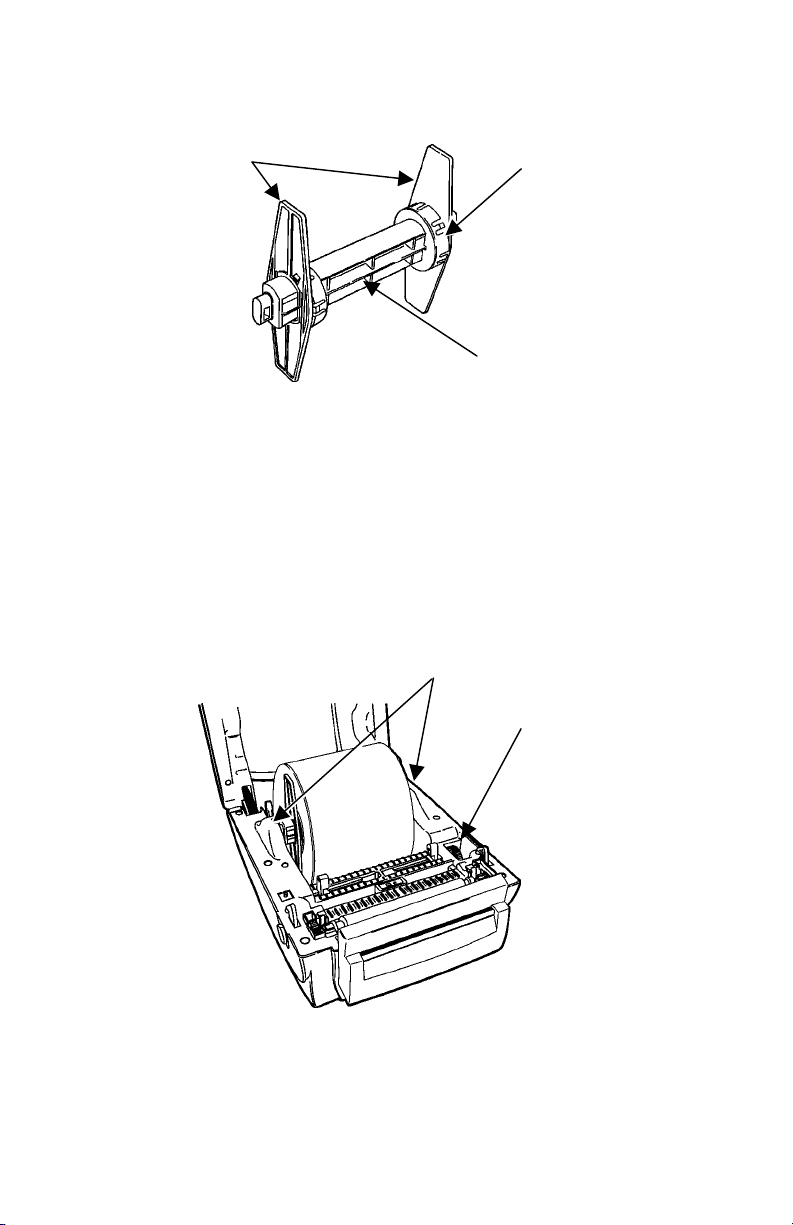

1.5-inch Supply

Core Adapter

Supply Holder

Supply Holder Guides

5. Slide a roll of supply onto the supply holder.

Note: If the core diameter on your roll of supply is 1 inch in

diameter, remove the 1.5-inch supply core adapters.

6. Place the supply holder guide back onto the end of the

supply holder. If you are using the supply core adapters

for 1.5-inch core supply, push the supply core adapters

into the ends

of the supply.

7. Insert the ends of the supply holder into the slots in the

supply roll mount.

Supply Roll Mount

Dial

8. Turn the dial to adjust the supply guides to their widest

position.

9. For thermal direct printers, feed the supply, printing side

up, under the supply guides and over the platen roller.

Supply

Knife

Supply Guides

10. Press the supply under the supply guides.

11. Move the supply guides so that they barely touch the

edges of the backing paper.

12. Feed the supply through the slot on the back of the knife.

13. Close the cover until it locks in place.

For thermal transfer printers, close the cover by lifting

the cover slightly and pulling the bottom of the cover

support forward towards the front of the printer.

Close the cover slowly and make sure it latches

securely.

Note: If you do not latch the cover completely, poor print

quality may result.

14. Press the FEED button. The indicator light should be

GREEN.

15. Calibrate the supply if necessary. See “Calibrating the

Supply,” in the Equipment Manual for more information.

Using the Knife

You can use NiceLabelsoftware to activate the knife or

MonarchPrinter Control Language II (MPCLII).

With NiceLabelStarter Edition Software

1. Select Label Setup from the File menu.

2. Select Next>.

3. Select the printer, for example Monarch 9416TT2XL 203

dpi printer. Then, click Properties…

4. Select the Advanced tab and set the Cutter option to

Never or enter the number of Every label(s) to cut. If you

enter 1, the printer cuts after each label.

5. Set the Cut position (in inches) if necessary.

6. Click OK.

7. Click Finish.

With MPCLII

Set the cut_type option in the Batch Control Field to 1.

Defining the Batch Control Field

The batch header must precede this field. The batch control

field defines the print job and applies only to the batch that

immediately follows.

Syntax E,feed_mode,batch_sep,print_mult,

multi_part, cut_type,cut_mult¦

E1. E Batch Control Field.

E2. feed_mode Feed Mode. Options:

0Continuous Feed (default)

1On-demand

E3. batch_sep Batch Separator. Use 0.

E4. print_mult Number of tags with the same image.

0 is the default. Range: 1to 999

E5. multi_part Number of identical parts on one tag.

0 is the default. Range: 1to 5

E6. cut_type Enables or disables the knife:

0No cut (default)

1Cuts before, during, and after

the last tag.

E7. cut_mult Number of tags to print before

cutting. A cut multiple of one cuts

after each tag. The range is 0 to

32,000. 0 is the default. The cut

multiple is a multiple of the print

quantity. If the cut multiple is three

and the print quantity is 16, then five

sets of three tags and one set of one

tag is produced.

Example E,0,0,0,0,1,0¦

Defines a batch control field. The feed mode is set for

continuous and a batch separator is not printed. The print

multiple and multi-part supply are set to 0 (not used). The

knife cuts before, during and after the last tag in a batch.

Example E,0,0,1,1,3,2¦

Defines a batch control field. The feed mode is set for

continuous and a batch separator is not printed. The print

multiple and multi-part supply are set to 1. The knife cuts

three sets of two tags when the print quantity is 6.

For more information about using MPCLII, refer to the Packet

Reference Manual on our Web site.

Knife Specifications

Cut Thickness: 0.28mm (Max.)

Cut Width: 120mm

Label Height: 15mm (Min.)

Cut Interval: Once per second (Max.)

Life: 500,000 cuts (Max. using supply

between 0.06mm-0.12mm thick)

100,000 cuts (Max. using supply

0.28mm thick)

Operating Limits:

Relative Humidity:

23°to 122°F

(-5°to 50°C)

10% to 80% (non-condensing)

Storage Limits:

Relative Humidity:

14°to 158°F

(-10°to 70°C)

5% to 95% (non-condensing)
