Avaya P333T-PWR
Quick Start Guide
Unpack
Rack mount (optional)
Connect the cables
Configure
Run Web-based
Manager (optional)
Power up
1
2
3
4
5
6
Unpack
Check the package contents for the following:
LIf any items are missing or damaged, contact your supplier.
Equipment
• One Avaya™ P333T-PWR Inline power Layer 2 Workgroup Switch
• One AC power cable
• One RJ-45 to DB-9 serial adapter cable
• Four rubber feet
• Four screws with washers for rack mounting
LEthernet connection cables are not supplied
Documentation
• Avaya P333T-PWR Quick Start Guide (this document)
• Avaya P330 Release Notes
• Avaya P330 Documentation and Utilities CD (see detail below)
• Avaya Warranty and License Agreement
Avaya P330 Documentation and Utilities CD
The CD contains the latest User's Guides for the Avaya P330 stackable switches and files for
use with the Embedded Web Manager.
User's Guides
You can view and print these Guides using Adobe® Acrobat® Reader.
Auxiliary Files for use with the Embedded Web Manager
Please refer to the documentation for information on how to use these files.
• Java plug-in
• Help files
Adobe Acrobat Reader
This application allows you to view and print the User's Guides on this CD.
1
Rack mount (optional)
1. Snap open the hinged ends of the unit’s front panel to reveal the screw holes.
2. Position the unit in the rack.
3. Secure the unit to the rack, taking care not to overtighten the screws.
4. Snap closed the hinged ends of the front panel.
LYou can now safely connect the cables to the unit.
2
WARNING: Disconnect all cables from the unit before proceeding with the rack
installation. In order to isolate the P333T-PWR completely, you must disconnect all
power inputs.
P333T
EXPANSION
SLOT
51
59
FDX
15
56
64
53
61
52
60
54
62
FIV
55
63
COLLNK
58
66
57
65
Tx Rx
1
13
23
14
8
20
5
LAG
17
HspdFC
4
16
6
18
7
19
10
22
SYS
9
21
OPR PWR
23
11 12
24
13 14 15 16 17
1
LAG
234 5
CONSOLE
2118 19 20 2322 24
9
6
LAG
78 1110
LAG
12
P333T
EXPANSION
SLOT
51
59
FDX
15
56
64
53
61
52
60
54
62
FIV
55
63
COLLNK
58
66
57
65
Tx Rx
1
13
23
14
8
20
5
LAG
17
HspdFC
4
16
6
18
7
19
10
22
SYS
9
21
OPR PWR
23
11 12
24
13 14 15 16 17
1
LAG
234 5
CONSOLE
2118 19 20 2322 24
9
6
LAG
78 1110
LAG
12

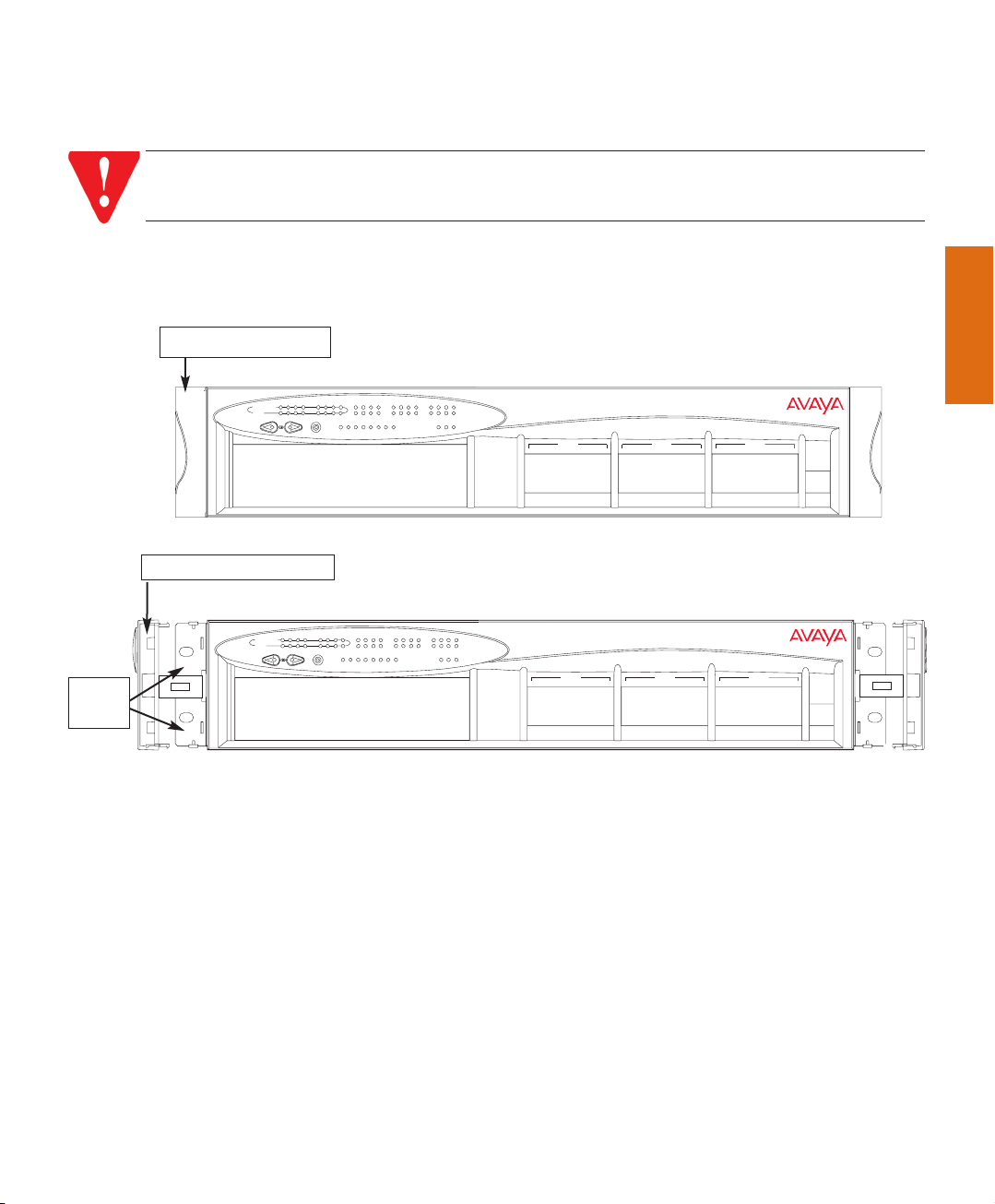

Closed hinged end
Open hinged end
Screw
holes
Power up

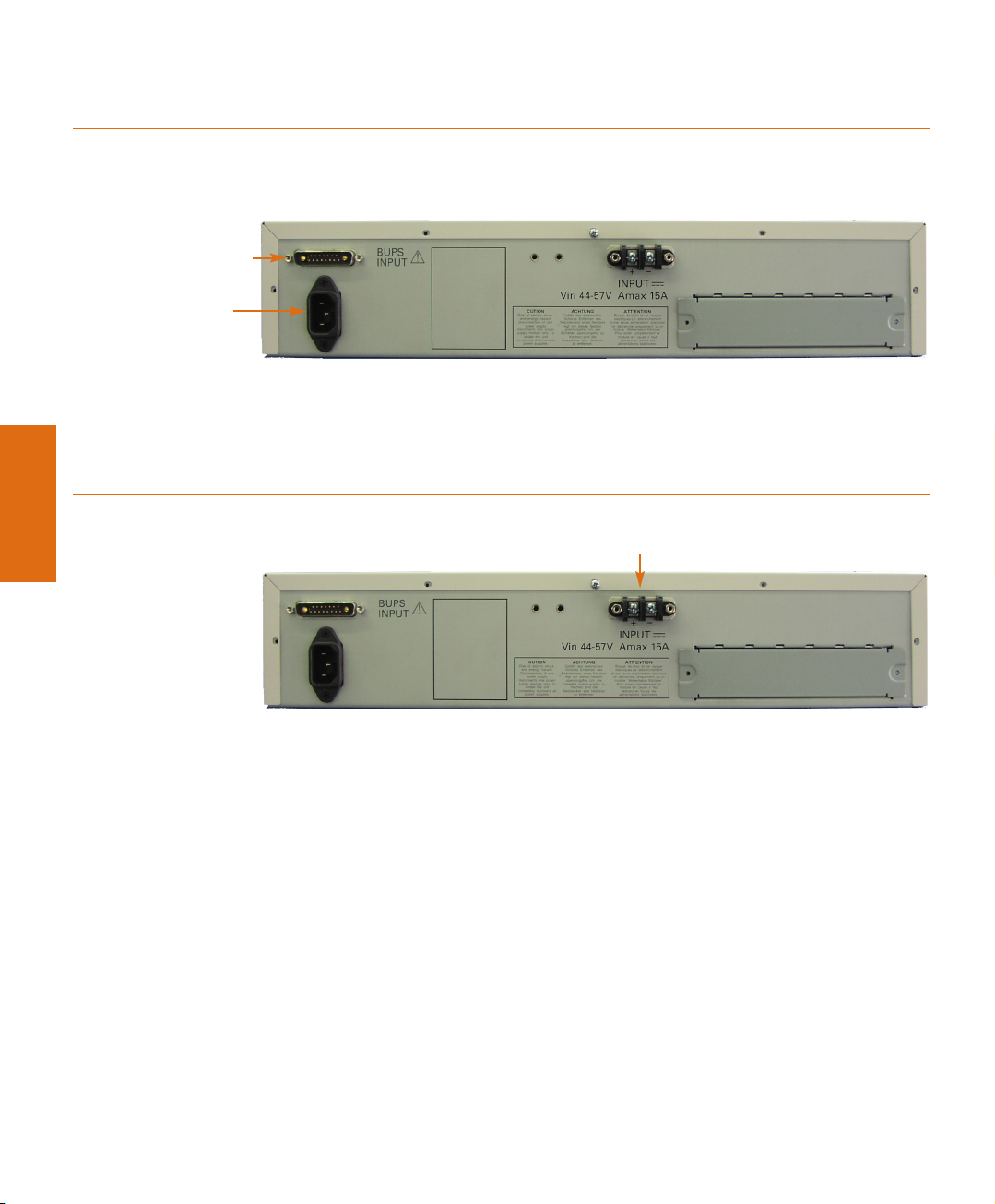

AC Input
1. Insert the power cord into the power connector (BUPS or Power Supply) on the rear of the
unit.
2. Insert the other end of the power cord into the electricity supply or the connector on the
BUPS.
XThe unit powers up and performs a self test procedure. The LEDs flash at regular
intervals after the self-test procedure is completed successfully.
DC Input (Optional)
The P333T-PWR an operate on the AC input only. However, you may wish to use the optional
DC input for the following:
• Backup for the Power over Ethernet ports
• To provide more than 200W for the Power over Ethernet ports
LPlease refer to the P333T-PWR User’s Guide for more information.
3
BUPS connector
AC connector
DC connector
4
FIV – Force Initial Version (see Avaya P330
User’s Guide)
LNK – When ON, link is OK
COL – When ON, indicates a collision on the
port in HDX mode
Tx, Rx – Shows traffic activity for
transmitted and received packets
FDX – Shows Full/Half Duplex mode
FC – When ON, Flow Control is enabled for
a port in FDX mode
Hspd – Shows speed of port (10 Mbps or
100/1000 Mbps)
LAG – When ON, the port is included in a
Link Aggregation Group (LAG).
InPWR – Shows Inline power status
SYS – Shows whether this module is the
Avaya P330 Stack Master agent
OPR – Shows CPU boot status
PWR – Shows power ON/OFF or BUPS in
use
Connect the cables
Connect PCs, servers, routers, workstations, and hubs
1. Connect the Ethernet connection cable (not supplied) to a 10/100 Mbps port on the front
panel of the Avaya P333T-PWR.
LYou should use standard RJ-45 connections. You must use CAT-5 cable for 100 Mbps
operation.
2. Connect the other end of the cable to the Ethernet port of the PC, server, router, worksta-
tion, switch or hub.
LUse a cross cable when connecting the Avaya P333T-PWR to a switch or hub.
3. Check that the appropriate link (LNK) LEDs light up.
Connect the console cable
1. Configure the serial port settings of the PC or terminal as follows: Baud Rate – 9600, Parity
– no, Data bits – 8, Stop bits – 1, Flow control – no.
2. Connect the supplied special RJ-45 connector to the port marked “Console” on the front
panel of the Avaya P333T-PWR.
3. Connect the other end of the cable to a terminal or PC with terminal emulation software
installed.

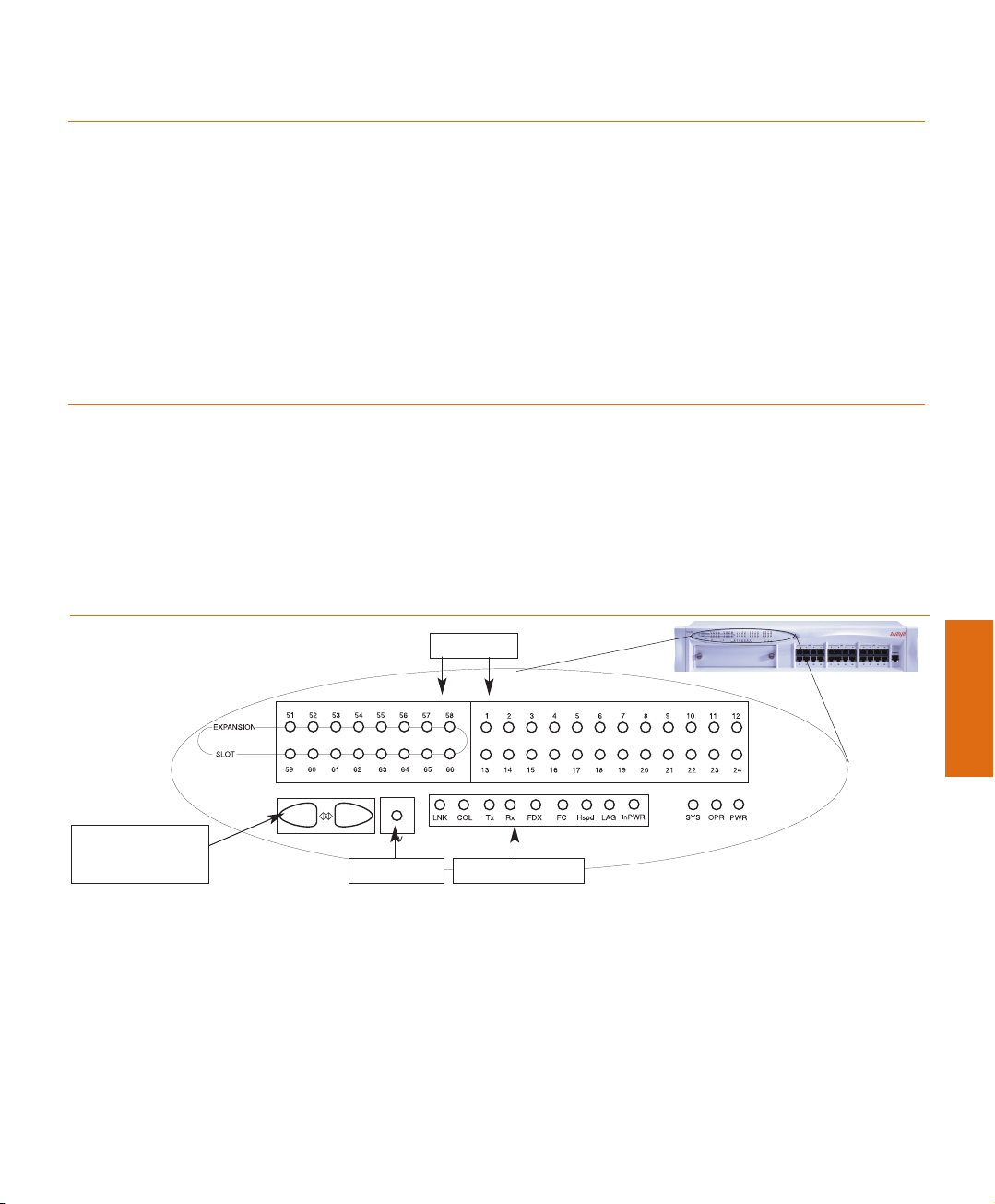

Avaya P333T-PWR LEDs Port LEDs
Left/Right &
Reset Switches Function LEDsFIV switch
5
Basic configuration
To connect a PC terminal or VT-100 terminal to the Avaya P330
1. If you are using a PC, initiate a VT-100 terminal emulation session using an application
such as Windows® HyperTerminal.
2. Press Enter.
XThe Welcome to Cajun P330 menu is displayed.
3. Type the User name root when prompted and press Enter.
4. Type the default password root when prompted and press Enter.
XThe Cajun_P330-N(super)# prompt appears
LNis the number of the switch in the stack.
Assigning the Stack IP Address
LCommands are shown as follows: set interface inband;
parameters which you need to enter are shown in
<>
as follows:
<vlan>
1. Type set interface inband
<vlan> <ip_address> <netmask>
replacing
<vlan>, <ip_address>
and
<netmask>
with the VLAN, IP address and net mask of
the stack and press Enter.
2. Type reset and press Enter to reset the stack.
3. After the Reset, perform login again as described above.
XThe Cajun_P330-N(super)# prompt appears.
4. Type set ip route
<destination> <gateway>
, replacing
<destination>
and
<gateway>
with the destination and gateway IP addresses.
5. Press Enter to save the destination and gateway IP addresses.
Setting the Parameters
If you wish to change the default parameters shown and configure the mandatory
parameters, we recommend that you use the Command Line Interface (CLI).
LFor further information, please refer to the Avaya P333T-PWR User’s Guide.
Default Switch Settings
5
Default Port Settings
Parameter Default Setting
10/100Base-TX Ports 100Base-F Ports 1000Base-X Ports
Duplex mode Full duplex Full duplex Full duplex only
Port speed (Mbps) 100 10 1000
Flow control Off Off Off
Backpressure On (only in Half duplex) Not Applicable
Auto-negotiation Enabled Not Applicable Enabled
Administration status Enabled
Port VLAN ID 1
Tagging Mode Clear
Port Priority Regular
Inline Power Enabled Not Applicable
Inline Power Priority Low Not Applicable
Parameter Default Setting
Avaya P330 IP Address 149.49.32.134
BootP Mode Never
Default Gateway 0.0.0.0
Management PC SLIP IP Address 192.168.10.2
VLAN Management ID 1
Spanning Tree Enabled
TFTP Mode Limited
TFTP Server 0.0.0.0
TFTP File Name viisa
Run the Web-Based Manager (optional)
LTo configure the Avaya P333T-PWR you can use the P330 Web-based Manager in addi-
tion to using the CLI.
System Requirements
Minimum hardware and Operating System requirements are:
• Pentium® II 400 Mhz-based computer with 128 Mb of RAM
• Screen resolution of 1024 x 768 pixels
• Microsoft® Internet Explorer® 5 or Netscape Navigator® 4.x
• Windows® 95, NT® 4.0 (server/workstation) or Windows 2000 (server/workstation)
• Sun Microsystems Java™ plug-in (supplied on the “Documentation and Utilities” CD)
LRefer to the Release Notes for the exact version of the Java plug-in
Running the Embedded Manager
LAssign an IP address to the P333T-PWR before starting this procedure.
1. Open your browser.
2. Enter the URL of the switch in the form http://aaa.bbb.ccc.ddd
Laaa.bbb.ccc.ddd is the IP address of the switch.
XYou are prompted to log into the switch.
LThe user name is “root”.
The default password for read-write access is “root”.
LThe Web management passwords are the same as those of the CLI. If you have created
additional CLI user names or changed the default passwords then you can use those
passwords for Web management as well.

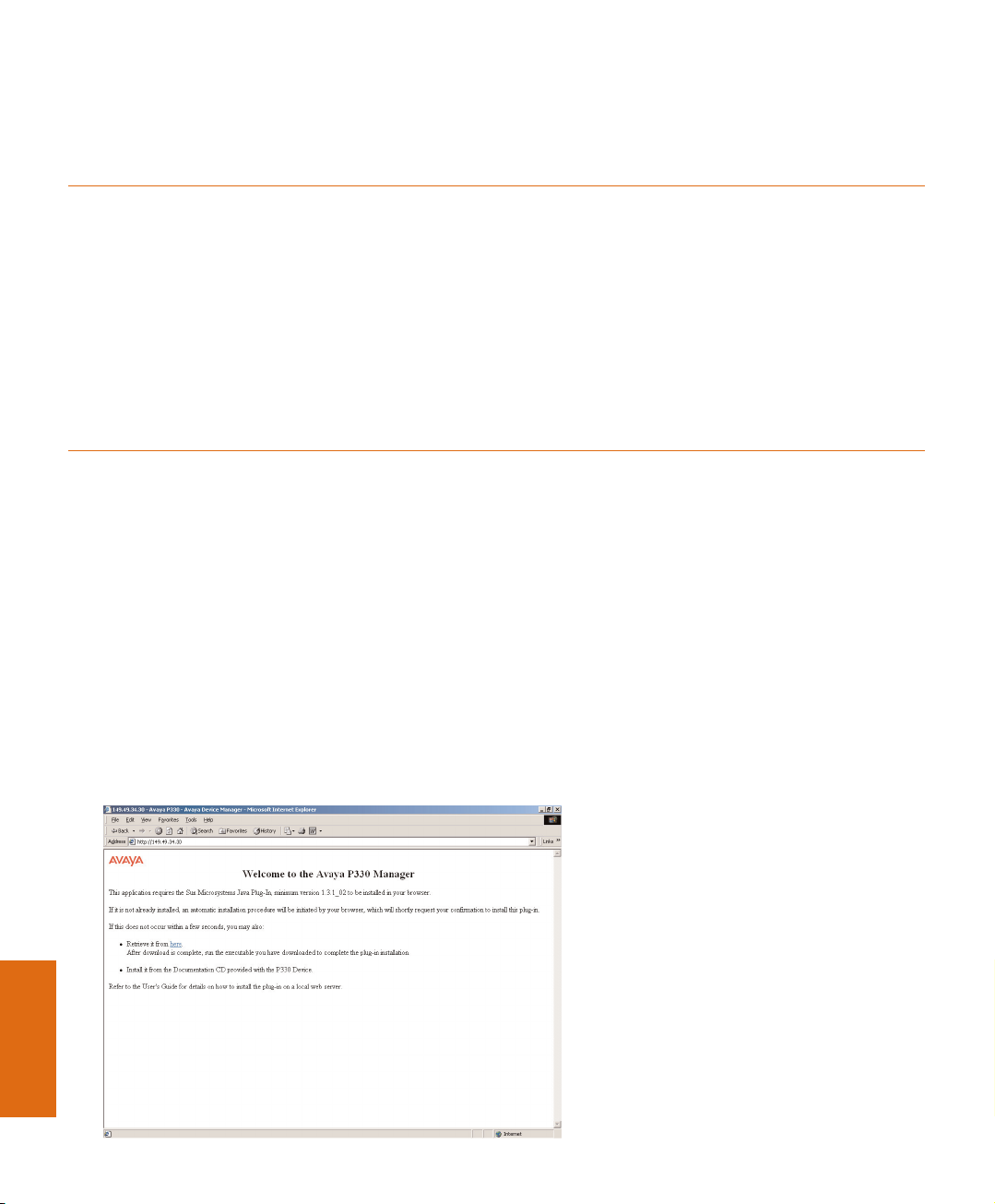

XThe welcome page is displayed:
6
LIf the network manager has configured the system the plug-in should be installed auto-
matically.
If the plug-in is not installed automatically, there are three ways to install the plug-in
manually:
• Either install the plug-in from the CD as follows:
1. Close all unnecessary applications on your PC.
2. Insert the “Avaya P330 Documentation and Utilities” CD in the CD drive.
3. Open Windows® Explorer.
4. Open the embweb-aux-files\ folder on the CD
5. Double click on the plugin_a_b_c.exe file (a, b and c are the version numbers of the
plug-in).
6. Follow the on-screen instructions.
• Or install the plug-in from the Avaya site by clicking on the link on the welcome page.
• Or, if the network manager has placed the files on the local site, install the plug-in from
there by clicking the link on the welcome page.
XIf you have the Java plug-in already installed or once you have successfully installed the

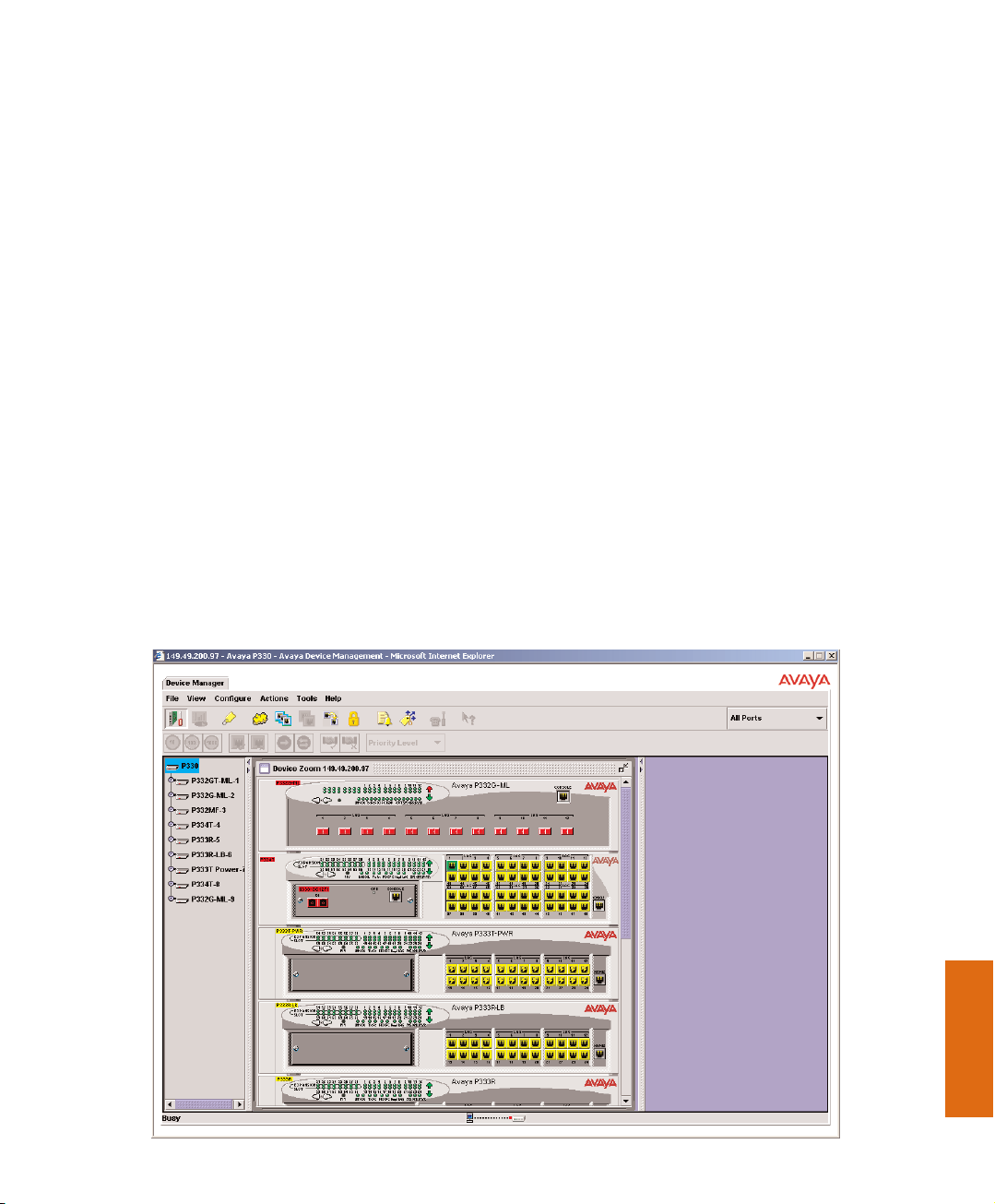

plug-in as described above, the Web-based manager opens in your browser.
6
Documentation and Online Help
Refer to the Avaya P330 Documentation and Utilities CD for full instructions.
