Avaya IP Office UC110 Module

Installation and Set Up

Telquest Tech Support

ote: The UC110 will only work on KSU's with Release 8.0 and higher.

Power the KSU down

Install the UC110 Module in any slot.

Power the KSU up.

Connect the KSU and your computer to the same LAN.

Do not use the RJ-45 Jack on the front of the UC 110 Module.

he UC110 can be accessed by using the IP Address of the KSU followed by Port Number 7070

Example:

If your KSU is 192.168.1.123 then the UC110 will be found at http://192.168.1.123:7070

he Logon is: webcontrol

he Password is: web

Button and LED Info for the UC110 Module, Front View:

DO OT Connect to this port... DO OT remove the protective cover...

Page 2

After you connect to the UC110, follow these instructions:

After you install the VM Pro Client, you can begin to program it or use the VM Pro Exercises

Manual and learn the product.

VM Pro Exercises

http://www.ipofficeinfo.com/docs/voicemail_pro_exercises.pdf

VM Pro Implementation

http://downloads.avaya.com/css/P8/documents/100163127

VM Pro Installation

http://downloads.avaya.com/css/P8/documents/100162853

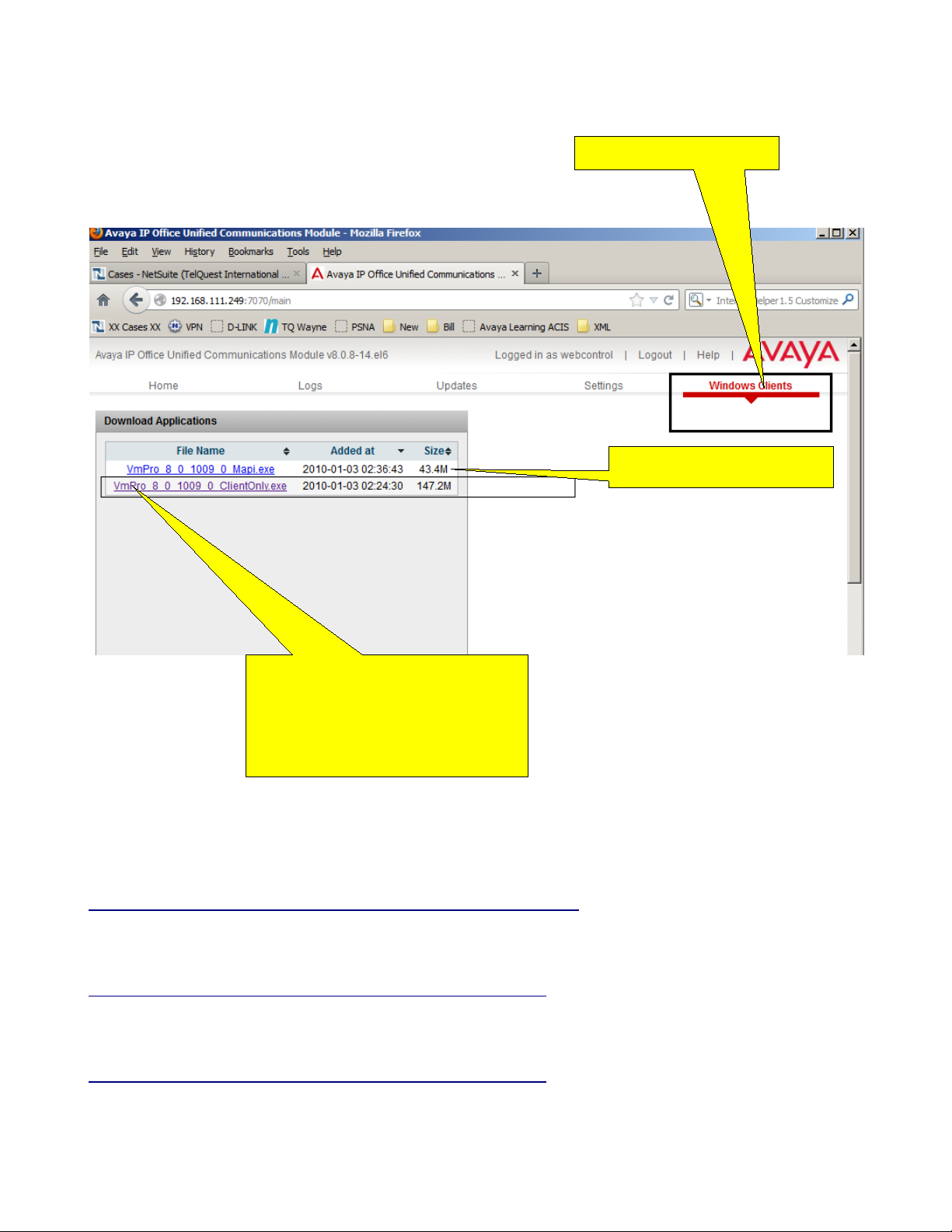

1. Click here...

2. Click here to download

and install the VM Pro Client.

It is used to program the VM Pro

ote: MAPI is here too...

Page 3

KSU Set Up for UC110

You really don't need to make any changes here.

Just look at it to be sure it is correct.

Most of the programming will be done using the VM Pro Client software.

A quick test to see if the UC110 is working is to dial *17 (STAR 17) on a phone and see if the

greeting answers you.

You can connect I ITIALLY to the UC100 by using the KSU's IP Address and Port 7070.

Example:

My KSU is set to 192.168.111.123

I would use any web browser and enter http://192.168.111.123:7070 into the Address Bar.

Connecting to the UC110 by this IP Address and Port umber, is usually done once during

setup.

1. Click here... 2. Click here... 3. Select this...

VM Pro Client Icon

169 . 254 . 0 . 2

This is the default

I TER AL

IP Address of the UC110

Do not change this.

This is not where you set the

LA IP Address of the VM

Page 4

Once you have made the I ITIAL connection to the UC100 via the KSU's IP Address and Port

7070 with a browser, you can continue with the set up.

The Logon is webcontrol

The Password is web

The UC100 needs a LA IP Address to send out Emails and any other feature that require a

network connection.

It is internally connected to the LA jack on the rear of the KSU.

1. Click here... 2. Click here...

3. Set these four areas

to work on your network

ote: This IP Address Should

be different than the KSU's.

Page 5

ow the UC100 will have its own LA IP Address.

You will use this IP Address in the future to Service the UC110.

To program the UC110 (VM Pro) you will use the VM Pro Client.

You will see a screen like the one below:

1. Click here to start the

VM Pro Client...

It may take awhile to load up...

This is the Manager Program

If this area is blank, click OK...

Page 6

You will see a pop up like this:

1. Select Online

2. Click OK

Administrator

1. Enter the IP Address

You entered on Page 4

Administrator

For both...
