Avalue Technology LPC-0807 Manual de usuario

Part No. E2017L870A0R

LPC-0807

8” Multi-functional Touch Panel Computer

Quick Reference Guide

1st Ed –16 January 2015

LPC-0807

2 LPC-0807 Quick Reference Guide

FCC Statement

THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS

SUBJECT TO THE FOLLOWING TWO CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.

(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING

INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS

FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.

THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST

HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A

COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN

RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTATLLED AND USED IN

ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL

INTERFERENCE TO RADIO COMMUNICATIONS.

OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE

HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO

CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

A Message to the Customer

Avalue Customer Services

Each and every Avalue’s product is built to the most exacting specifications to ensure

reliable performance in the harsh and demanding conditions typical of industrial

environments. Whether your new Avalue device is destined for the laboratory or the factory

floor, you can be assured that your product will provide the reliability and ease of operation

for which the name Avalue has come to be known.

Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To

ensure you get the full benefit of our services, please follow the instructions below carefully.

Technical Support

We want you to get the maximum performance from your products. So if you run into

technical difficulties, we are here to help. For the most frequently asked questions, you can

easily find answers in your product documentation. These answers are normally a lot more

detailed than the ones we can give over the phone. So please consult the user’s manual

first.

To receive the latest version of the user’s manual; please visit our Web site at:

http://www.avalue.com.tw/

Quick Reference Guide

LPC-0807 Quick Reference Guide

Content

1. Getting Started ........................................................................................................4

1.1 Safety Precautions....................................................................................................4

1.2 Packing List...............................................................................................................4

1.3 System Specifications...............................................................................................5

1.4 System Overview......................................................................................................7

1.4.1 Right View................................................................................................................................ 7

1.4.2 Bottom View............................................................................................................................. 7

1.5 System Dimensions ..................................................................................................8

2. Hardware Configuration .........................................................................................9

2.1 LPC-0807 connector mapping ................................................................................10

2.1.1VGA connector (VGA) ........................................................................................................... 10

2.1.2 Serial port 1 connector (COM1)............................................................................................. 10

2.1.3 Serial port 2 connector (COM2)............................................................................................. 11

2.2 Installing Memory.....................................................................................................12

2.3 Installing CF Card.....................................................................................................14

LPC-0807

4 LPC-0807 Quick Reference Guide

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your

chassis whenever you work with the hardware. Do not

make connections while the power is on. Sensitive

electronic components can be damaged by sudden power

surges. Only experienced electronics personnel should

open the PC chassis.

Caution!

Always ground yourself to remove any static charge before

touching the CPU card. Modern electronic devices are very

sensitive to static electric charges. As a safety precaution,

use a grounding wrist strap at all times. Place all electronic

components in a static-dissipative surface or static-shielded

bag when they are not in the chassis.

1.2 Packing List

1 x LPC-0807 Panel PC

1 x Driver/Utility DVD-ROM

1 x Power Adapter

4 x screws for VESA

Quick Reference Guide

LPC-0807 Quick Reference Guide

1.3 System Specifications

Panel

LCD size

Display type

SVGA TFT

Resolution

800 x 600

Pixel pitch

0.0675mm(H) x 0.2025mm(V)

Luminance

500 cd/m²

Contrast ratio

500

Viewing angle

50(U), 70(D), 70(L), 70(R)

Response time

25 ms

Backlight

LED

Touch type

5 Wires resistive

Touch Light

Transmission

80%

Touch interface

USB (EETI)

System

Board

ECM-CDV

CPU

Intel® Cedarview D2550 1.86GHz CPU

System Chipset

Intel® NM10

I/O Chipset

Winbond W83627DHG

Memory

One 204-pin DDR3 SODIMM Socket, Supports Up to 4GB DDR3 800/ 1066

SDRAM

SSD

One CompactFlash Type I/II Socket

Expansion

1 x Mini PCIe (mSATA Supported)

Rear I/O

Serial Port

1 x RS-232, 1 x RS-232 or Optional RS-422/485

Ethernet

Dual Intel® 82574L Gigabit LAN

WIFI

Optional USB WiFi 802.11 b/g

VGA

1 x DB-15

HDMI

1 x HDMI

Audio

Line out (Realtek ALC892)

USB

3 x USB 2.0

Mechanical & Environment

Color

Front panel Silver

Mounting

Rear panel Black

System Power

Requirement

+12 V ~ +26 V

LPC-0807

6 LPC-0807 Quick Reference Guide

Power Adapter

Input: 100~240 Vac/ 50~60 Hz

Output: +12 Vdc / 5 A (60W)

Operating Temp.

0°C to 40°C

Storage Temp.

-20°C to 60°C

Relative

Humidity

10% to 95% @ 40°C, non-condensing

Mounting

Wall/Stand/VESA 75 mm X 75 mm

Dimensions

202.5 x 159.5 x 46.5 mm

Weight

1.5 Kgs

Note: Specifications are subject to change without notice.

Quick Reference Guide

LPC-0807 Quick Reference Guide

1.4 System Overview

1.4.1 Right View

COM

DC IN

USB

LINE

OUT USB

Right View

1.4.2 Bottom View

POWER LAN LAN

VGA

HDD

PWR

COM

DC-IN

HDMI

USB

Bottom View

Connectors

Label

Function

Note

POWER

Power on button

CF Type I/II Socket with Ejector

COM1/2

Serial port 1/2 connector

DB-9 male connector

Note：COM2 supports RS422/485

by BIOS setting and needs to

change cable.

LINE OUT

Line-out audio jack

USB

USB 2.0 connector x 3

LAN

RJ-45 Ethernet connector x 2

HDMI

HDMI connector

HDD

HDD indicator

PWR

System power indicator

VGA

VGA connector

DC-IN

DC Power-in connector

LAN2

LAN1

LPC-0807

8 LPC-0807 Quick Reference Guide

1.5 System Dimensions

POWER LAN LAN

VGA

HDD

PWR

COM

DC-IN

HDMI

USB

COM

DC IN

USB

LINE

OUT USB

WiFi antenna

POWER LAN LAN

VGA

HDD

PWR

COM

DC-IN

HDMI

USB

COM

DC IN

USB

LINE

OUT USB

WiFi antenna

(Unit: mm)

Quick Reference Guide

LPC-0807 Quick Reference Guide

2.Hardware

Configuration

For advanced information, please refer to:

1- ECM-CDV User’s Manual

Note: If you need more information, please visit our website:

http://www.avalue.com.tw

LPC-0807

10 LPC-0807 Quick Reference Guide

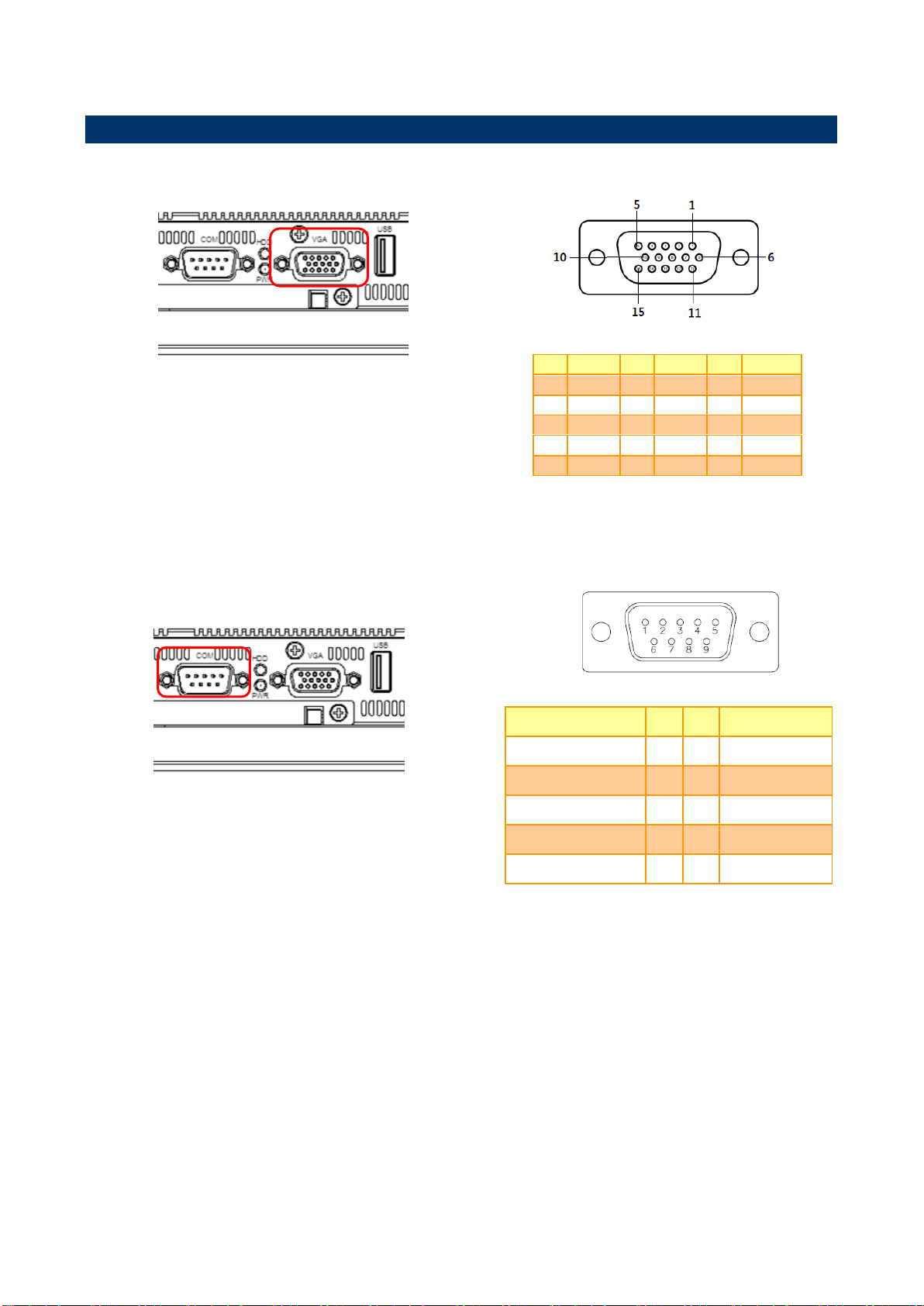

2.1 LPC-0807 connector mapping

2.1.1 VGA connector (VGA)

Signal

GND

DATA

GND

HSYNC

+5V

VSYNC

GND

CLK

2.1.2 Serial port 1 connector (COM1)

Signal

NDCD#

NDSR#

NRXD

NRTS#

NTXD

NCTS#

NDTR#

NRI#

GND
