AV-Box WUH5-H2 Manual de usuario
WUH5-H2
HDMI 2.0 5x1 Switcher with HDR & CEC
All Rights Reserved
Version: WUH5-H2_2018V1.0
User Manual
HDMI 2.0 5x1 Switcher with HDR & CEC
Preface
Read this user manual carefully before using the product. Pictures shown in this
manual are for reference only. Different models and specifications are subject to real
product.
This manual is only for operation instruction, please contact the local distributor for
maintenance assistance. The functions described in this version were updated till April,
2018. In the constant effort to improve the product, we reserve the right to make
functions or parameters changes without notice or obligation. Please refer to the
dealers for the latest details.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a commercial
installation.
Operation of this equipment in a residential area is likely to cause interference, in
which case the user at their own expense will be required to take whatever measures
may be necessary to correct the interference.
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.
HDMI 2.0 5x1 Switcher with HDR & CEC
SAFETY PRECAUTIONS
To ensure the best performance from the product, please read all instructions carefully
before using the device. Save this manual for further reference.
Unpack the equipment carefully and save the original box and packing material for
possible future shipment.
Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
Do not dismantle the housing or modify the module. It may result in electrical shock
or burn.
Using supplies or parts not meeting the products’ specifications may cause damage,
deterioration or malfunction.
Refer all servicing to qualified service personnel.
To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this
product near water.
Do not put any heavy items on the extension cable in case of extrusion.
Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
Install the device in a place with fine ventilation to avoid damage caused by
overheat.
Keep the module away from liquids.
Spillage into the housing may result in fire, electrical shock, or equipment damage. If
an object or liquid falls or spills on to the housing, unplug the module immediately.
Do not twist or pull by force ends of the optical cable. It can cause malfunction.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
Unplug the power cord when left unused for a long period of time.
Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.
HDMI 2.0 5x1 Switcher with HDR & CEC
Table of Contents
1. Product Introduction....................................................................................................1
1.1 Features ............................................................................................................1
1.2 Packing List.......................................................................................................1
2. Specification ...............................................................................................................2
3. Panel Description........................................................................................................3
3.1 Front Panel........................................................................................................3
3.2 Rear Panel.........................................................................................................3
4. System Connection.....................................................................................................4
4.1 Usage Precautions ............................................................................................4
4.2 System Diagram................................................................................................4
5. Panel Drawing ............................................................................................................5
6. Troubleshooting & Maintenance .................................................................................6
7. Customer Service .......................................................................................................7
HDMI 2.0 5x1 Switcher with HDR & CEC
1
1. Product Introduction
The WUH5-H2 is an ultra-thin HDMI 2.0 Switcher with five HDMI video inputs and one
HDMI output. The switcher supports HDMI video resolution up to 4K@60Hz 4:4:4. The
SOURCE switch on the front panel is designed to switch any one of the inputs to
output. Moreover, the switcher supports CEC and HDR. No need of any external
power supply, simplifying the installation and operation.
1.1 Features
Supports HDMI 2.0 4k@60Hz 4:4:4.
HDCP2.2 compliant
Supports HDR.
Supports CEC pass-through.
No need of external power supply.
1.2 Packing List
1x HDMI 2.0 5x1 Switcher
2x Velcro Tape
1x User Manual
Note: Please contact your distributor immediately if any damage or defect in the
components is found.
HDMI 2.0 5x1 Switcher with HDR & CEC
2
2. Specification
Video Input
Input
(5) HDMI
Input Connector
(5) Female type-A HDMI
HDMI Input Resolution
Up to 4Kx2K@60Hz 4:4:4
HDMI Standard
2.0
HDCP Version
2.2
Video Output
Output
(1) HDMI
Output Connector
(1) Female type-A HDMI
HDMI Output Resolution
Up to 4Kx2K@60Hz 4:4:4
HDMI Standard
2.0
HDCP Version
2.2
General
Bandwidth
18Gbps
HDMI Cable Length
From source to display device:
1080P@60Hz 4:4:4 ≤10m, 4K@60Hz 4:4:4 ≤ 4.5m
Operation Temperature
-10 ~ +55℃
Storage Temperature
-25 ~ +70℃
Relative Humility
10%-90%
Max Power Consumption
90mW
Dimension (W*H*D)
126mm x 16mm x 55mm
Net Weight
190g
HDMI 2.0 5x1 Switcher with HDR & CEC
3

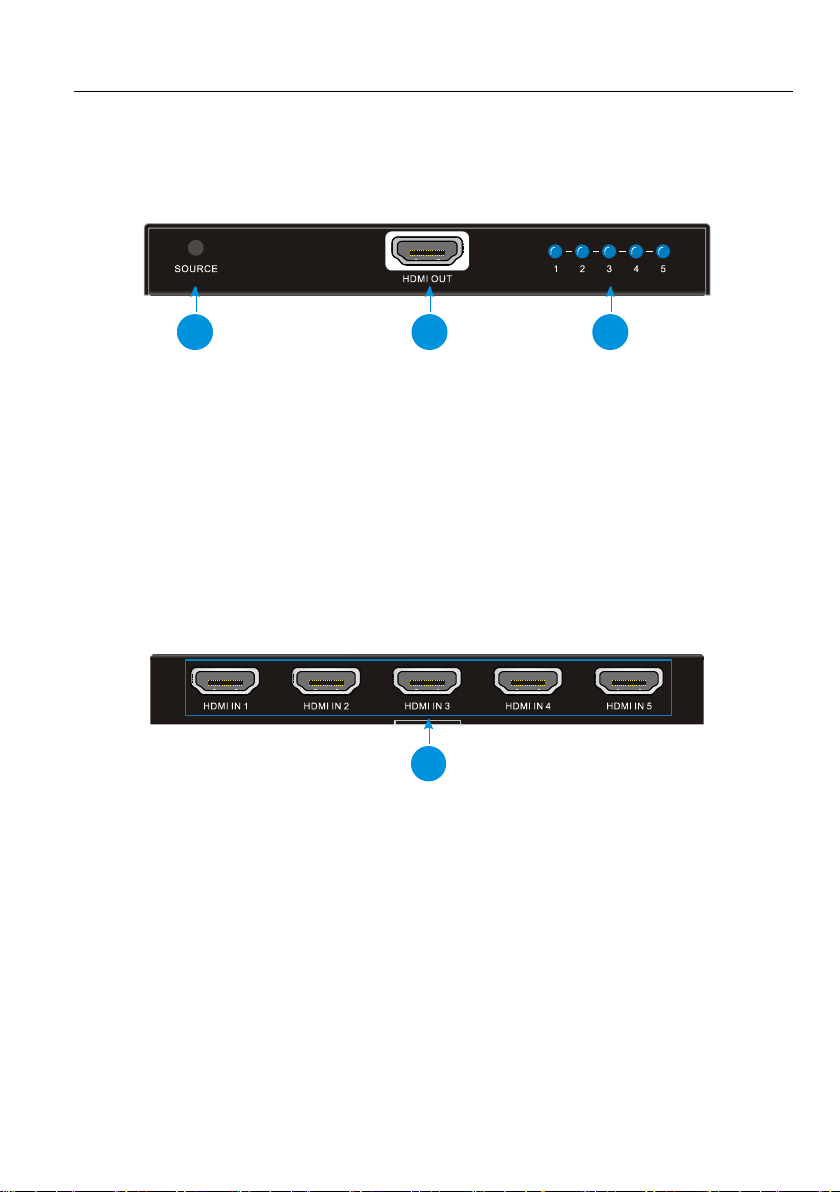

3. Panel Description
3.1 Front Panel
①SOURCE: Press the button to switch to the next input.
②HDMI OUT: Type-A female HDMI output port to connect HDMI display.
③INPUT LED: The LED illuminates blue when there is HDMI input on the
corresponding channel.
3.2 Rear Panel
①HDMI IN 1~5: Five type-A female HDMI input ports to connect HDMI sources.
123
1
HDMI 2.0 5x1 Switcher with HDR & CEC
4
4. System Connection
4.1 Usage Precautions
Make sure all components and accessories included before installation.
System should be installed in a clean environment with proper temperature and
humidity.
All of the power switches, plugs, sockets, and power cords should be insulated and
safe.
All devices should be connected before power on.
4.2 System Diagram
The following diagram illustrates typical input and output connection that can be
utilized with the switcher:
CameraGame Console STB
Laptop HDTV
Blu-Ray
HDMI 2.0 5x1 Switcher with HDR & CEC
5
5. Panel Drawing
126 mm
16 mm
55 mm
HDMI 2.0 5x1 Switcher with HDR & CEC
6
6. Troubleshooting & Maintenance
Problems
Potential Causes
Solutions
Colour losing or no video
signal output in HDMI
display.
The connecting cables may
not be connected correctly
or it may be broken.
Check whether the cables
are connected correctly and
in working condition.
The display is not
compatible with the present
output resolution.
Make sure the resolution of
the display(s) is compatible
with the present resolution.
No HDMI signal output in
the splitter while local
HDMI input is in normal
working state.
The connecting cables may
not be connected correctly
or it may be broken.
Check whether the cables
are connected correctly and
in working condition.
Splash screen in output
devices.
Poor quality of the
connecting cable.
Change for another cable of
good quality.
Note: If your problem still remaining after following the above troubleshooting steps,
please contact your local dealer or distributor for further assistance.
