AutomationDirect CLICK PLUS PLC Manual de usuario
1
1
1
Chapter
Chapter
Chapter
GettinG Started
In This Chapter...
Introduction...................................................................................................................................1-2
Conventions Used........................................................................................................................ 1-3
Before you begin... ....................................................................................................................... 1-4
Step 1: Install Software.............................................................................................................. 1-5
Step 2: Launch Programming Software ................................................................................ 1-7
Step 3: Set Up User Account.................................................................................................... 1-9
Step 4: Create a Project ...........................................................................................................1-10
Step 5: Compile and Save Project.........................................................................................1-16
Step 6: Apply Power ..................................................................................................................1-17
Step 7: Establish PC to PLC Communications...................................................................1-18
Step 8: Write Project into PLC................................................................................................1-30
Step 9: Place PLC in RUN Mode .............................................................................................1-31
Step 10: Test Project using Data View Monitor ................................................................1-32
Step 11: Y001 Output On?.......................................................................................................1-33
Additional Training Resources ...............................................................................................1-34
Introduction
Purpose of this Manual
ank you for purchasing the AutomationDirect CLICK PLUS PLC family of products.
is hardware user manual provides information that will help you install, set up, program,
troubleshoot, and maintain your CLICK PLUS PLC system. e manual includes information
that is critical to the safety of the personnel who will install and use the PLC, as well as the
integrity of the machinery, processes, and equipment controlled by the PLC.
e manual also includes important information about power and signal wiring, mounting of
the PLC, and conguring the PLC system.
About Getting Started
If you are familiar with PLCs in general, then following the simple steps in this rst chapter
may be all you require to start being productive using a CLICK PLUS PLC system. After you
have completed these simple steps, your CLICK PLUS PLC will be running a ladder logic
project that you programmed. If you are new to the world of PLCs, be sure to read through all
of the chapters in this hardware user manual.
Supplemental Manuals and Other Help
e CLICK Programming Software, C0-PGMSW, can be downloaded free from the
AutomationDirect web site (link shown below under Technical Support). Both this Hardware
User Manual, C2-USER-M, and the Software Installation Guide are free as a download. e
CLICK Programming Software includes searchable online help topics covering all aspects of
the software and instruction set.
Technical Support
We strive to make our manuals the best in the industry. We rely on your feedback to let us
know if we are reaching our goal. If you cannot nd the solution to your particular application,
or, if for any reason you need technical assistance, please call us at:
770–844–4200
Our technical support group will work with you to answer your questions. ey are available
Monday through Friday from 9:00 A.M. to 6:00 P.M. Eastern Time. We also encourage you
to visit our web site where you can nd technical and non-technical information about our
products and our company.
http://www.automationdirect.com
CLICK PLUS PLC Hardware User Manual, 1st Edition, Rev. K – C2-USER-M
1-2
Chapter 1: Getting Started
Conventions Used
WARNING: When you see the exclamation point icon in the left-hand margin, the paragraph to its immediate
right will be a warning. This information could prevent injury, loss of property, or even death in extreme cases.
Any warning in this manual should be regarded as critical information that should be read in its entirety. The
word WARNING: in boldface will mark the beginning of the text.
NOTE: When you see the notepad icon in the left-hand margin, the paragraph to its immediate right will be a
special note. Notes represent information that may make your work quicker or more ecient. The word NOTE: in
boldface will mark the beginning of the text.
TIP: Whenever the “light bulb” is shown in the left-hand margin, the paragraph to its immediate right will provide a
special tip. The word TIP: in boldface will mark the beginning of the text.
Key Topics for Each Chapter
e beginning of each chapter will list the key topics
that can be found in that chapter.
Getting Started!
CHAPTER
1
In This Chapter...
.............................................................................1-2
.................................................................1-3Conventions Used
Introduction
...............................................................1-2Purpose of this Manual
..................................................................1-2
About Getting Started!
.............................1-2
Supplemental Manuals and Other Help
...........................................................................1-2
Te chnical Support
CLICK PLUS PLC Hardware User Manual, 1st Edition, Rev. K – C2-USER-M 1-3
Chapter 1: Getting Started
Before you begin...
It is recommended that the following items be available to make this short step-by-step
introduction to the CLICK PLUS PLC go smoothly.
CLICK PLUS PLC unit
CLICK
Programming Software
C0-PGMSW
Screwdriver
TW-SD-MSL-2
PC Programming Cable
D2-DSCBL
USB A to USB micro B
Programming
Cable Assembly
USB-CBL-AMICB6
PC Running
Windows
Hookup Wire
or
USB or Free download @
http://support.automationdirect.com/
products/clickplcs.html
AC Power Cord
Other 24VDC Power Supply
Example: PSP24-60S
CLICK 24VDC Power Supply
C0-00AC or C0-01AC
PC requires RS-232 port.
Wire Strippers
DN-WS
Not available from ADC.
Not available from ADC.
Based on your CLICK PLUS PLC,
One of the cables shown below:
Ethernet Cat5 Cable
CLICK PLUS PLC Hardware User Manual, 1st Edition, Rev. K – C2-USER-M
1-4
Chapter 1: Getting Started
Step 1: Install Software
The CLICK PLC family offers two methods of connecting and configuring the PLCs
1. CLICK PLC mobile app for iOS and Android devices
2. CLICK programming software for Windows-based PCs
Installing the CLICK PLUS Provisioning Mobile App

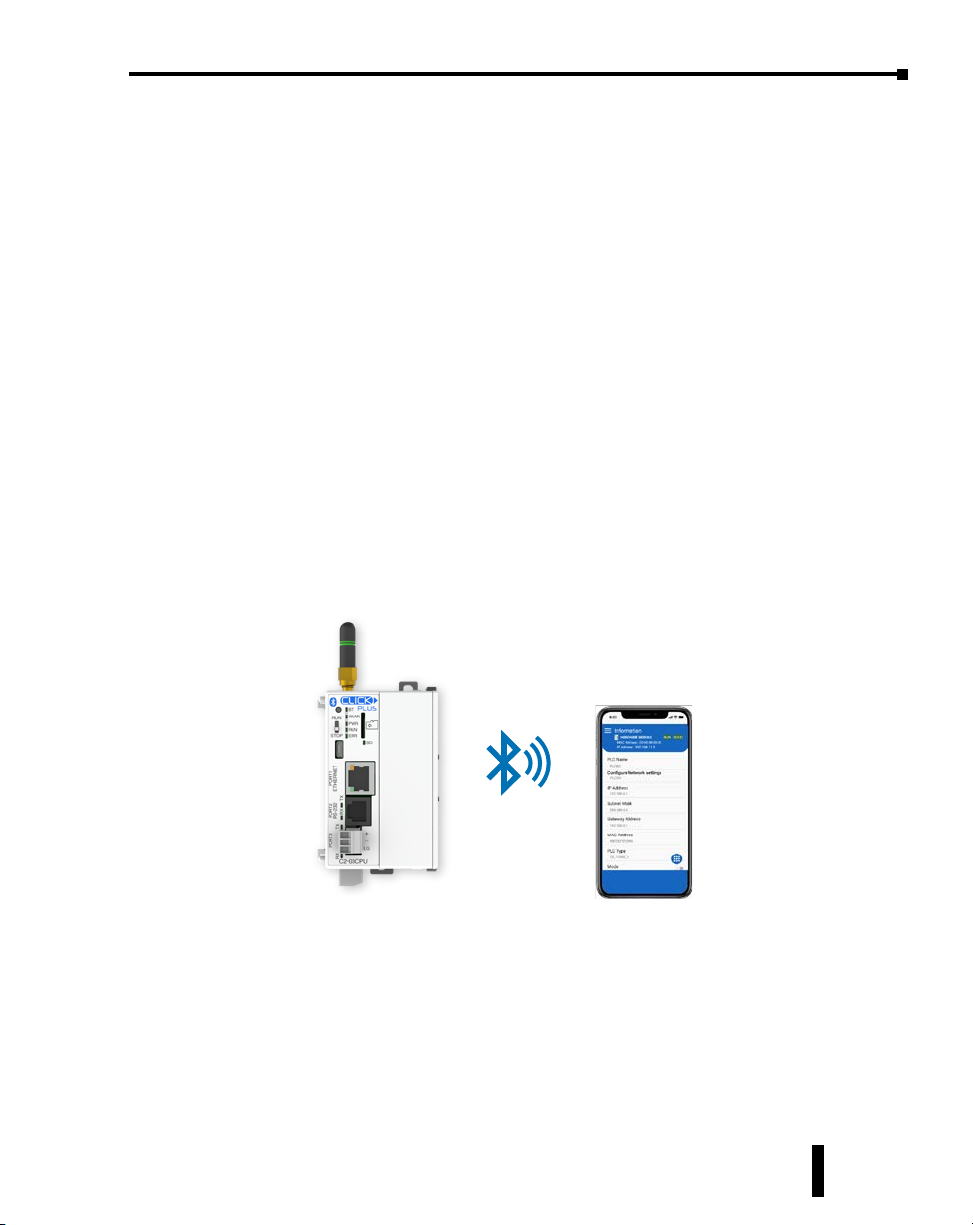

The CLICK PLUS Provisioning App connects your mobile device to a CLICK PLUS PLC via
Bluetooth and offers a quick plug and play way to provision the CLICK PLUS PLC to connect
to a wireless LAN.
Install the CLICK PLUS Provisioning mobile app from the Apple App Store or Google Play
Store (CLICK PLUS Provisioning, published by Automationdirect.com).
CLICK PLUS PLC Hardware User Manual, 1st Edition, Rev. K – C2-USER-M 1-5
Chapter 1: Getting Started
Install the CLICK Programming Software
1. If you have the programming software on USB, insert the USB drive in a USB slot and
follow the instructions. Otherwise, download the free CLICK Programming Software,
C0-PGMSW, from the following Automationdirect.com web site:
http://support.automationdirect.com/products/clickplcs.html
2. Unzip the downloaded ZIP le.
3. Double click Install.exe. e CLICK PLC Programming
Software splash screen should appear after a short time.
4. Click on the splash screen’s Install Software button and follow the dialog boxes.
Silent Install
The silent install feature allows the software to be installed from the Windows command line
or deployment management software without further user interaction.
Command for Silent Install: CLICK_Setup.exe -s
CLICK PLUS PLC Hardware User Manual, 1st Edition, Rev. K – C2-USER-M
1-6
Chapter 1: Getting Started
Step 2: Launch Programming Software
After installing the CLICK Programming Software, C0-PGMSW, choose one of three methods
to launch the software. Double click the desktop CLICK icon, or from the PC’s Start menu,
select Start > AutomationDirect > CLICK Programming Software, or simply click the icon on
the Quick Launch bar. See examples below.
e CLICK Programming Software will start up and display the Main Window as shown on
the next page.
e example in this manual use the ‘Classic’ user interface
of the CLICK programming software. If you are starting
the software for the rst time, you may want to change to
this UI to follow the example more easily. To do so, click
the eme button in the upper right of the display, and
select Change UI (Classic/Ribbon).
NOTE: The recommended minimum screen size for the CLICK Programming Software is 1024 X 786 pixels.
Click here
Or here
CLICK PLUS PLC Hardware User Manual, 1st Edition, Rev. K – C2-USER-M 1-7
Chapter 1: Getting Started
Step 2: Launch Programming Software (cont’d)
e Main Window is divided into Menus, Toolbars, and Windows that work together to make
project development as simple as possible. See the software’s online help for additional details.
Click on the “Start a new project” graphic in the Startup dialog box. e Select a CPU
Module window opens.
Select from the list on the left for the CLICK PLUS PLC unit that you will use for the ladder
logic example that follows.
CLICK PLUS PLC Hardware User Manual, 1st Edition, Rev. K – C2-USER-M
1-8
Chapter 1: Getting Started
Step 3: Set Up User Account
A single ‘admin’ user account exists on the CLICK platform, with the default password set to
‘click’. is must be disabled or changed to a unique password in any project for a CLICK CPU
with network capabilities before it can be downloaded. is helps greatly reduce the chances of
malicious software taking control of the PLC with easy-to-guess or publicly disclosed default
login credentials.
e User Account Setup dialog guides you through setting up a strong password and
monitoring password activity. is dialog opens when creating a new project, if a CPU with
network capabilities is selected, and can also be accessed at any time from the User Account
Setup menu option.
e password must be at least 8 characters long, and the following special characters are not
allowed:
NOTE: Make sure you remember your Password. If you forget your Password you will not be able to access the
CPU. You can use the Reset to Factory Default command to erase the Password. However, the command erases the
Entire Project le. Therefore, you will have to download a project le again.
, “ < > ‘ ( ) + - . / : ; = ? [ \ ] ^ ` { | } ~
CLICK PLUS PLC Hardware User Manual, 1st Edition, Rev. K – C2-USER-M 1-9
Chapter 1: Getting Started
Step 4: Create a Project
In this step, we’ll create a simple project. e project assumes the presence of an I/O module
with discrete outputs. e project shown below is created by entering the ladder logic program
in the order that follows.
Rung #1
Place the Box Cursor on the rst position on Rung #1, as shown
below. From the Instruction List, click & drag a Contact (NO)
into this box. Enter C1 into the Bit Memory Address text box of
the Contact Normally Open dialog box that pops up and click OK.
A normally open contact labeled C1 will be placed in the beginning of Rung
#1.
e Box Cursor will move to the next available location.
Proceed to the next page to continue construction of Rung #1.
CLICK PLUS PLC Hardware User Manual, 1st Edition, Rev. K – C2-USER-M
1-10
Chapter 1: Getting Started
