Automatic Technology GDO-10v1Toro Manual de usuario
GDO-10v1 ToroTM
Roll Up Garage Door Opener
INSTALLATION INSTRUCTIONS | OWNERS COPY
Featuring TrioCode™Technology
Part number # 13244 (Manual)
2GDO-10V1 Toro®Owner Installation Instructions
WARNING: It is vital for the safety of persons to follow all
instructions.Failuretocomplywiththeinstallationinstructions
and the safety warnings may result in serious personal injury
and/or property and remote control opener damage. Please
save these instructions for future reference.
Automatic Technology Australia Pty Ltd to the extent that such may be lawfully excluded hereby expressly disclaims all
conditions or warranties, statutory or otherwise which may be implied by laws as conditions or warranties of purchase of
an Automatic Technology Australia Pty Ltd Garage Door Opener. Automatic Technology Australia Pty Ltd hereby further
expressly excludes all or any liability for any injury, damage, cost, expense or claim whatsoever suffered by any person as a
result whether directly or indirectly from failure to install the Automatic Technology Australia Pty Ltd Garage Door Opener
in accordance with these installation instructions.
Owner Installation Instructions GDO-10V1 Toro®3
Important Safety Instructions 04
Features 06
Controllers Input And Output 08
Operating Controls 09
Package Contents 10
Installation 11
Pre-installation Requirements 11
Installation 12
PE Beams Installation 14
Programming The Opener 15
Menu Structure 15
Viewing And Editing Parameters 16
Setting Limits 17
Setting Limits: Via Transmitter 18
Setting Pedestrian Position 27
Standard Operating Modes 28
Control Board Adjustments 30
Time Clock 33
Diagnostic Tools 35
Memory Tools 36
Safety Obstruction Force 19
Safety Obstruction Force Test 19
Load Graph 19
Door Reverse Time 19
Adjusting Safety Obstruction Forces 20
Coding Transmitters 21
Transmitter Editing 22
Transmitter Management 24
Remotely Coding Transmitters 26
Accessories 37
Lock 37
Light 38
Auto-close 39
Wall Transmitter Installation 40
SmartSolar™ Installation 41
Replacing Back Up Batteries 42
Specifications 43
Troubleshooting 44
Maintenance 45
Spare Parts 46
Warranty 47
GDO-10v1 Toro®
Roll Up Garage Door Opener
4GDO-10V1 Toro®Owner Installation Instructions
CAUTION: If your garage has no pedestrian entrance door, an emergency access device should be installed.
This accessory allows manual operation of the garage door from outside in case of power failure.
Photo Electric Beams must be installed with the automatic opener ensuring additional safety and peace
of mind.
DO NOT operate the opener unless the garage door is in full view and free from objects such as
cars and children/people. Make sure that the door has finished moving before entering or leaving
the garage.
DO NOT operate the opener when children/persons are near the door. Children must be
supervised at all times when the opener is in use. Serious personal injury and/or property
damage can result from failure to follow this warning.
DO NOT allow children to operate the opener. Serious personal injury and/or
property damage can result from failure to follow this warning.
Regularly check to make sure that the safety obstruction force is working
correctly, and is tested and set as per page 19 of this manual. Failure to follow
these instructions could result in serious personal injury and/or property
damage. This test must be repeated at regular intervals and the necessary
adjustments made as required.
Doors requiring over 400N of force to move must have PE Beams
installed.
DO NOT disengage the door opener to manual operation with
children/persons or any other objects including motor vehicles
within the doorway.
The door opener is not intended for use by young children
or infirm persons without adequate supervision. Children
should be supervised to ensure that they do not play with
the remote transmitters or the opener.
Keep hands and loose clothing clear of the door and
door opener at all times.
The unit should be installed so that it is protected
from the elements. It should not be exposed to
water or rain. It is not to be immersed in water
or sprayed directly by a hose or other device.
WARNING: It is vital for the safety of persons to follow
all instructions. Failure to comply with the following
Safety Rules may result in serious personal injury and/or
property damage.
Important Safety Instructions
Owner Installation Instructions GDO-10V1 Toro®5
The garage door must be well balanced. Sticking or binding doors must be repaired by a qualified garage door
installer prior to installation of the opener.
Frequently examine the installation, in particular cables, springs and mountings for signs of wear, damage or
imbalance. DO NOT use if repair or adjustment is needed since a fault in the installation or an incorrectly
balanced door may cause injury. DO NOT attempt to repair the door yourself as hardware is under extreme
tension.
Remove or disengage all garage door locks and mechanisms prior to installation of the opener.
Connect the opener to a properly earthed general purpose 240V mains power outlet installed by
a qualified electrical contractor.
Disconnect the power cord from mains power and Back Up batteries before making any
repairs or removing covers. Only experienced service personnel should remove covers from
the opener.
When using auto-close mode, a photo electric beam must be fitted correctly and
tested for operation at regular intervals. Extreme caution is recommended when
using auto-close mode. All safety rules must be followed.
In order for the opener to sense an object obstructing the door way, some force
must be exerted on the object. As a result the object, door and/or person may
suffer damage or injury.
If the power supply cord is damaged, it must be replaced by an Automatic
Technology service agent or suitably qualified person.
Make sure that the door is fully open before driving in or out of the
garage and fully closed before leaving the driveway.
Make sure that remote controls are kept out of reach of children.
Install the wall control unit or wall mounted transmitter in a
location where it is out of reach of children and the garage
door is visible.
Important Safety Instructions
6GDO-10V1 Toro®Owner Installation Instructions
Operation
To open or close the door simply press open or close button on a wall control
unit, button on a coded TrioCode™ hand held transmitter, optional wall mounted
transmitter, or optional wall switch for two seconds. During open and close cycles
the door can be stopped by pressing the button again or by pressing the stop
button on the wall control unit.
TrioCode™ Code Hopping Technology
Every time a TrioCode™ transmitter is used a new security code is randomly
generated from over 4.29 billion possibilities. This greatly enhances the security of
the system and makes “code grabbing” a thing of the past
These transmitters also overcome interference issues by simultaneously sending a
signal over three slightly different frequencies. Even if two of the three signals are
jammed, the system will still work.
ALPS (Automatic Limits Positioning System)
ALPS does away with manual adjustment of the door’s limits position using mechanical
parts, such as cams and microswitches. During installation the hand held transmitter can be
programmed to set the door limits positions.
ISS (intelligent safety obstruction system)
While the door is performing a close cycle, should it hit an obstacle or be restricted in some manner, it
will automatically reverse. The amount of force the door should encounter before reversing is automatically
adjusted by the doors control system during the initial installation of the automatic door opener. The door will
also stop if restricted whilst opening. The Safety Obstruction Force should be checked monthly.
Auto Courtesy Light
The courtesy light (if connected) comes on automatically for one minute whenever the door is activated. The
light can also be operated independently of the door by coding a dedicated button on a transmitter.
Features
Thank you for purchasing the Automatic Technology
Toro® Automatic Garage Door Opener. Designed
by our renowned engineers to suit roll up doors, the
Toro® will provide years of smart, simple & secure
convenience to your home.
Owner Installation Instructions GDO-10V1 Toro®7
SmartSolar™ Compatibility (optional)
The opener can be fitted with a SmartSolar™ kit (Part Number 00142) for operation,
where mains power access is not available. NOTE: If the door is the only entrance
to the garage, a keyed cable release should be fitted external to the garage.
Vacation Mode
A hand held transmitter can be programmed to lock and unlock all other
transmitters that have been programmed into the openers’ memory. The vacation
mode can be used when the door is left idle for long periods of time.
Pet/Pedestrian Mode
The transmitter can be programmed to open the door to an adjustable partial height
so that the family pet can enter and exit the garage at any time. You may also wish to
open the door to a height suitable only for pedestrian access.
Auto-Close Mode
The opener can be programmed to automatically close after an open cycle. The auto-close
time is adjustable. It is compulsory to install a PE Beams. if this mode is selected, otherwise
the door may cause personal injury or damage to property.
Photo Electric (PE) Beams
The opener has an input to connect a PE Beams for extra safety and use of the auto-close mode.
Manual Operation
The opener is equipped with a unique patented manual disengaging device. If the power to the opener is
disrupted for any reason the door can be put into manual mode by pulling down on the string handle, then
releasing. This will allow you to manually open or close the door. When power is restored, by pulling down
on the string handle and releasing, the opener is put back into automatic mode.
8GDO-10V1 Toro®Owner Installation Instructions

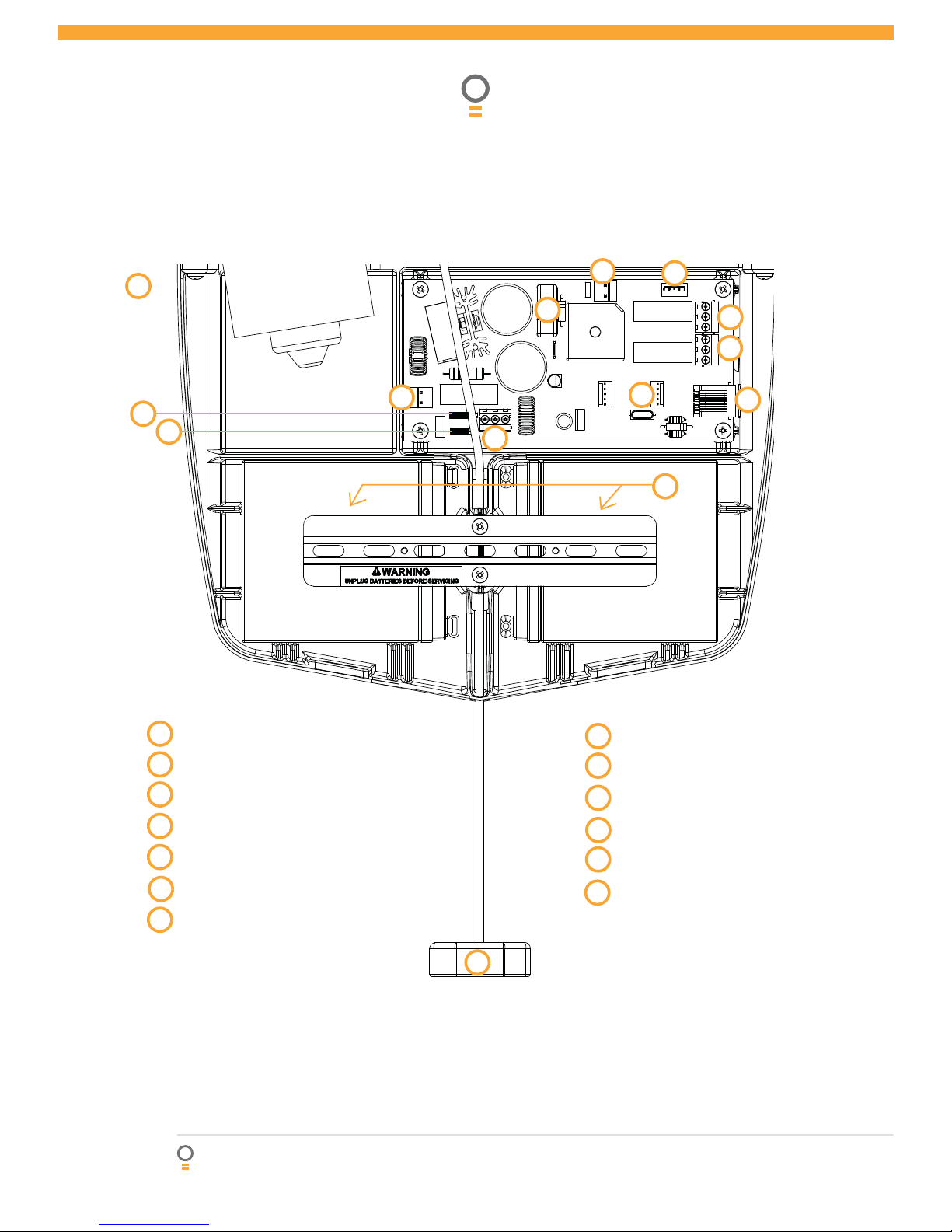

Controller’s input/outputs
Light Relay Output N/O, Com, N/C Contact
Lock Relay Output N/O, Com, N/C Contact
Serial Interface Connector
Programmer Pg3 Connector
12 volts 6 Amp - Hr Batteries
Engage/disengagement Handle
Standby Battery Charger/Solar Connector
12
03
13
07
08
05
02
01
04
06
09
01
02
10
03
04
05
06
07
08
09
10
11
12
13
01
fig
11
Solar Shunt
Standby Battery Shunt
Motor Connector
10 Amps Slow Blow Fuse
24 Volts Ac In Connector
Position Sensor Connector
Owner Installation Instructions GDO-10V1 Toro®9
17
16
21
15
14 22
20
19 18
Terminal Block ( From Left To Right )
V+ ( P.E ) PE Beams “ + “ Supply
IN (P.E ) PE Beams Trigger Input
V- (P.E ) PE Beams - Supply
OUT <— Receiver’s Auxiliary Output
FIRE N/O , N/C Input Terminal
AUX N/O Input Terminal
OPN N/O , N/C Input Terminal
STP N/O , N/C Input Terminal
CLS N/O Input Terminal
SWP N/O Input Terminal
COM Terminal For Inputs
Programmer PG-3 Input
Console Previous Button
Liquid Crystal Display
Console Next Button
Console Open Button
Console Stop Button
Console Set Button
Console Close Button
14 15
16
17
18
19
20
21
22
02
fig

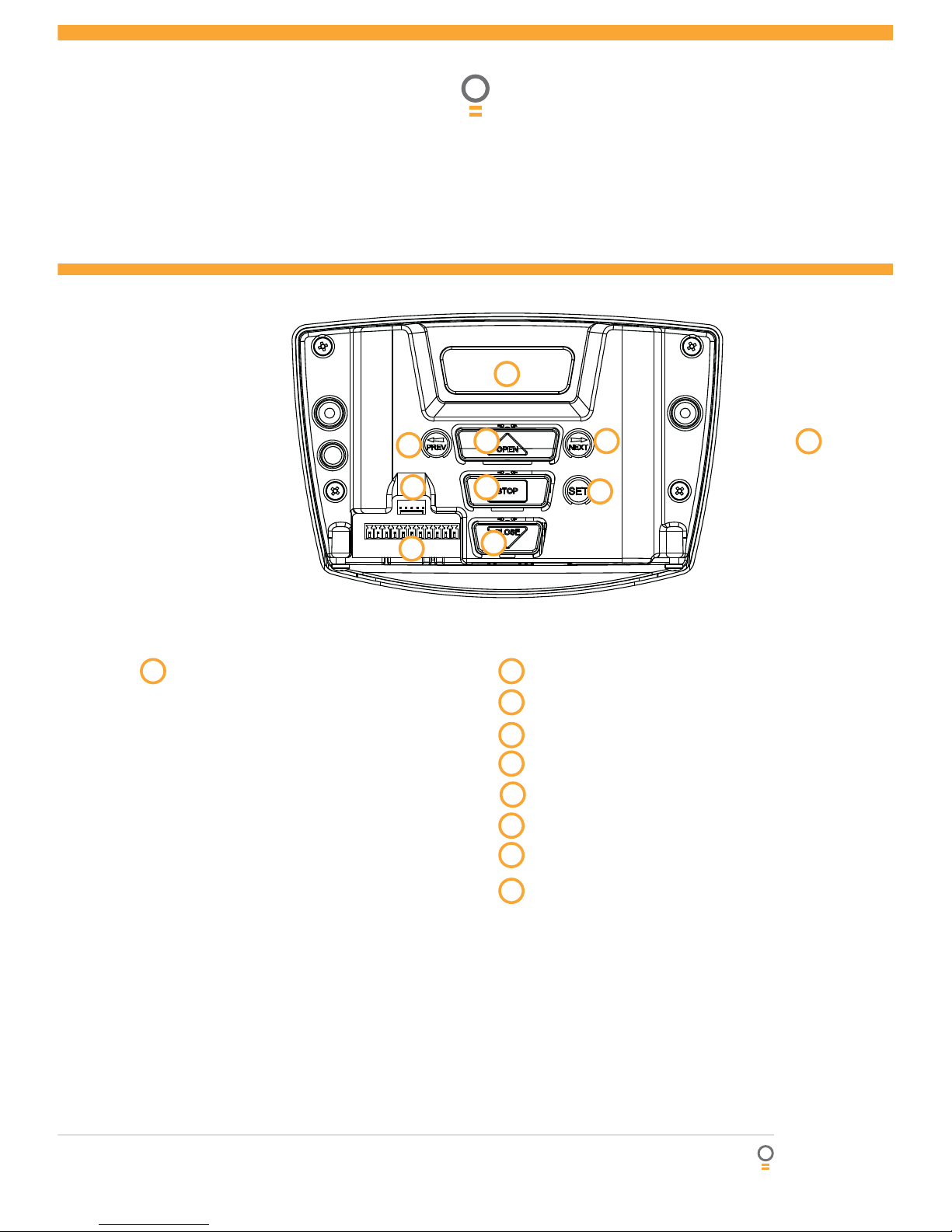

Operating Controls
10 GDO-10V1 Toro®Owner Installation Instructions

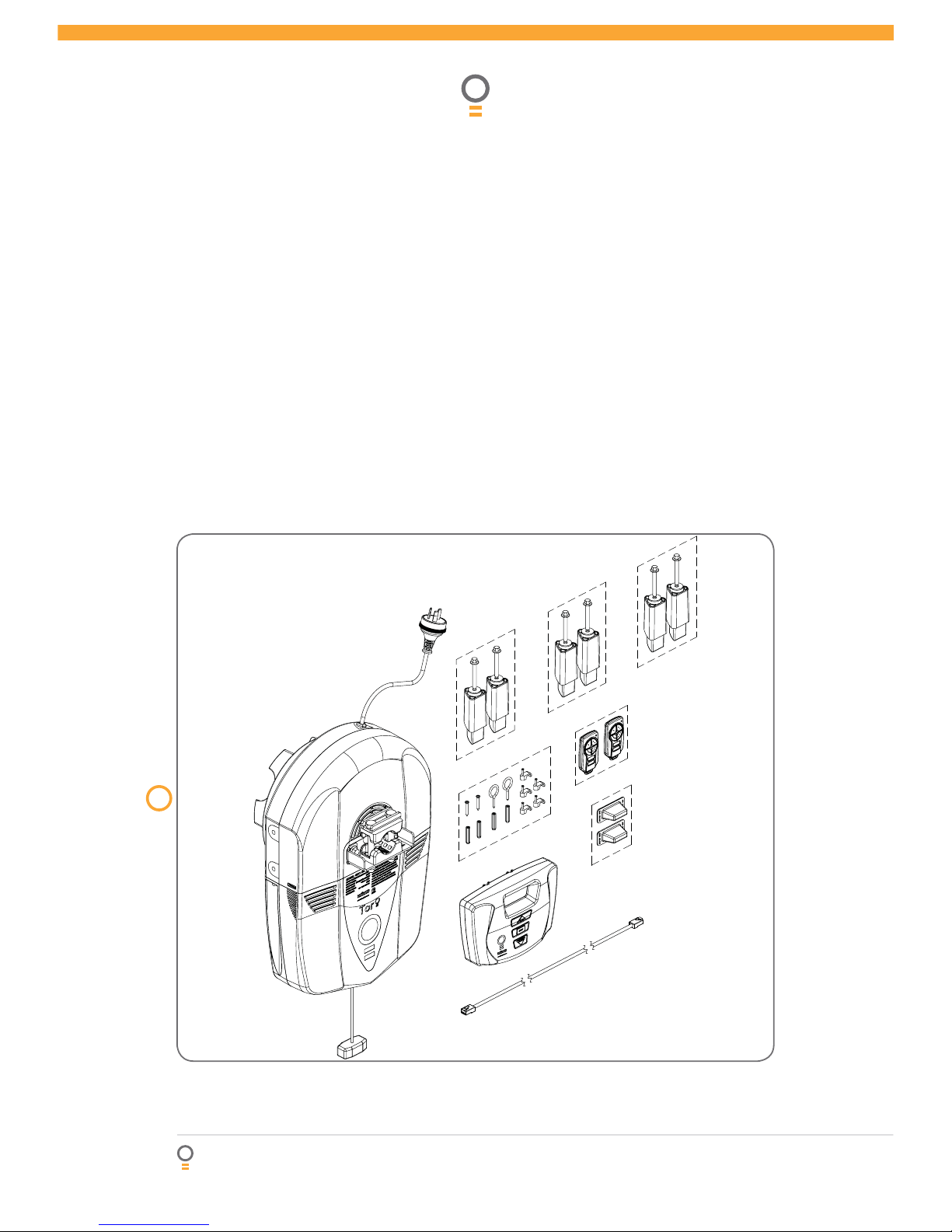

Package Contents
GDO-10v1 Toro™ Drive Unit 1
Wall Control Unit 1
Network Cable 1
Accessory Guide Pack 1
Fork Extension Pack 3
Triocode™ Keyring Transmitters 2
Installation Manual 1
Locking Bar Covers 2
03
fig
Tabla de contenidos
Otros manuales de Abridor de puerta de garaje de Automatic Technology
Automatic Technology
Automatic Technology GDO-7v2 SecuraLift Manual de usuario
Automatic Technology
Automatic Technology Ero GDO-11v2 Manual de usuario
Automatic Technology
Automatic Technology SecuraLift GDO-9v3 Manual de usuario
Automatic Technology
Automatic Technology SecuraLift Rhino Manual de usuario
Automatic Technology
Automatic Technology Dominator AM800 Manual de usuario
Automatic Technology
Automatic Technology GDO-8 Shed Master Manual de usuario
Automatic Technology
Automatic Technology AM-808 Manual de usuario
Automatic Technology
Automatic Technology GDO-9 Dynamo Gen 2 Manual de usuario
Automatic Technology
Automatic Technology GDO-9 ENDURO GEN2 Guía de planificación
Automatic Technology
Automatic Technology GDO-9v2 Enduro Gen 2 Manual de usuario
Automatic Technology
Automatic Technology GDO-9 Dynamo Gen 2 Manual de usuario
Automatic Technology
Automatic Technology GDO-6v4 EasyRoller Manual de usuario
Automatic Technology
Automatic Technology Toro GDO-10v2 Manual de usuario
Automatic Technology
Automatic Technology Axess Pro Series 1101 Guía de inicio rápido
Automatic Technology
Automatic Technology GDO-9v2 SecuraLift Manual de usuario
Automatic Technology
Automatic Technology GDO-6v3 EasyRoller Manual de usuario
Automatic Technology
Automatic Technology GDO-6 v2 Manual de usuario
Automatic Technology
Automatic Technology Syncro ATS-3 Manual de usuario
Automatic Technology
Automatic Technology GDO-10V3L2 Toro Manual de usuario
Automatic Technology
Automatic Technology SecuraLift GDO-7V1 Guía de inicio rápido
Automatic Technology
Automatic Technology 62717 Manual de usuario
Automatic Technology
Automatic Technology NeoSlider TrioCode 128 NES-500 Manual de usuario
Automatic Technology
Automatic Technology GDO-8 Shed Master Manual de usuario
Automatic Technology
Automatic Technology Axess Pro Series 1101 Manual de usuario
