AutoExtra ARA-HD2 Manual de usuario

ARA-HD2

Car-use HD DVB-T

Diversity Receiver

User Manual

Please read all informationin this manual thoroughly. Familiarize yourself with the capabilities and the usage of

your appliance before attempting to operate or maintain this unit. Taking a minute to do this now will help to

prevent any damages or loss in the future.

Keep this manual handy as a reference for operating procedures and safety information.

Do not insert any kind of irrelevant objects into this device through the openings as they may touch

dangerous voltage points that could result in the fire or electric shock.

Avoid placing this unit near the liquids since it could result in the electric shock. Furthermore, the liquid

splashes could damages the device and might cause smoke and overheat.

Always submit yourself into the safe driving rules and follow all traffic regulation. If you experience any

difficulties while operating the system or reading the monitor display, please stop your car and make any

necessary adjustment.

The Safety

Do not attempt to install or service your device on your own. Installation or serving by the people without

proper training and experience in the electronic equipment and the automotive accessories may be

dangerous and could lead into the risk of the electric shock or the other hazards.

If the receiver does not work properly, please disconnect the power plug for your safety and contact your

local dealer immediately for further technical support.

If any solid objects or liquids fall into the cabinet, please disconnect the unit and make it checked by the

qualified person before operating it any further.

Do not install the in-car DVB-T/T2 receiver where it may

obstruct the driver’s vision,

impair with the performance of any vehicle’s operating system or the head unit, and

impair with the driver’s ability to safely operate the vehicle.

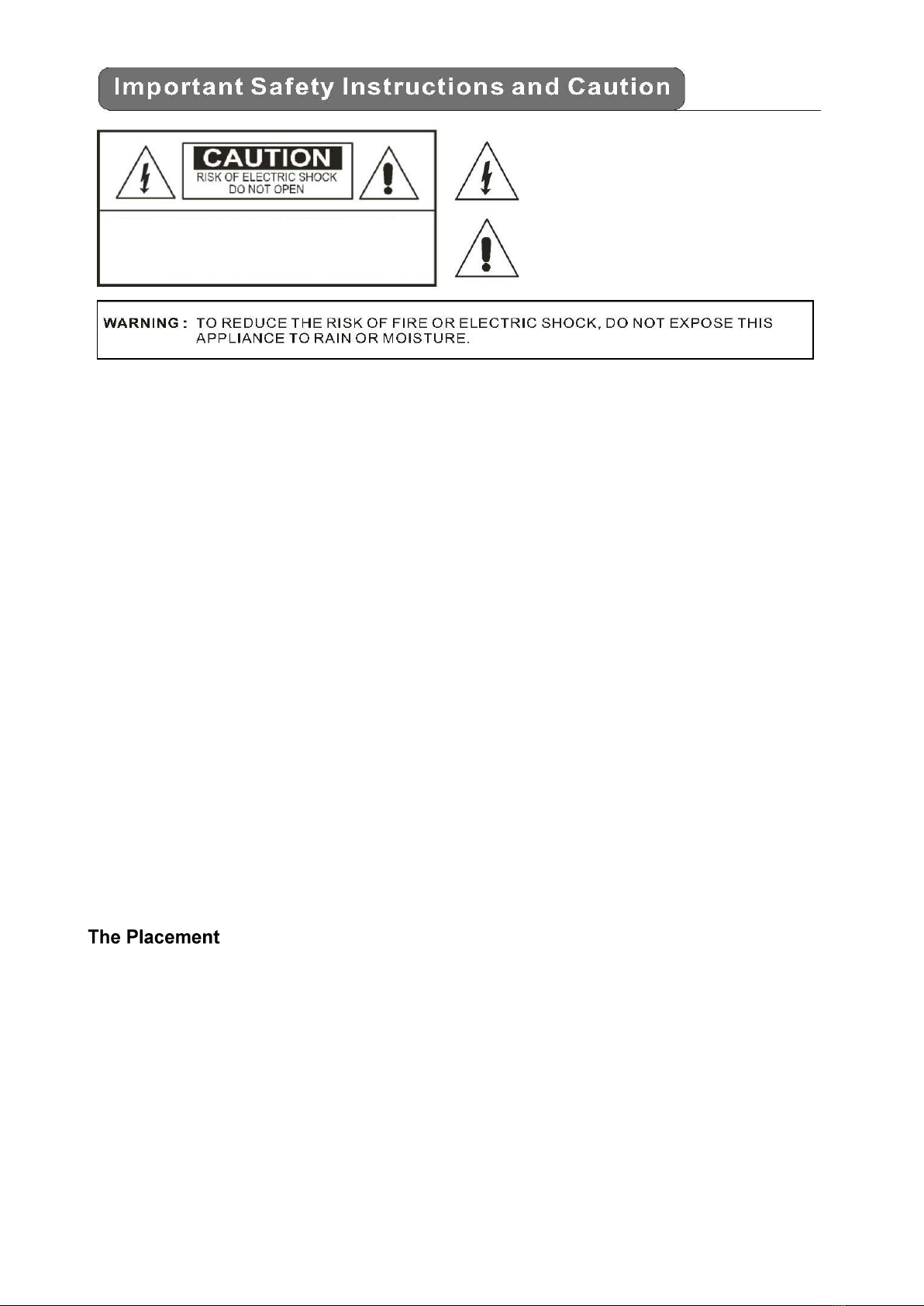

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK –

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING

TO QUALIFIED SERVICE PERSONNE;

The lighting flash with arrowhead symbol within an

equilateral triangle is intended to alert the user to the

presence of uninsulated dangerous voltage within the

product’s enclosure that may be of sufficient magnitude to

constitute a risk at electric shock to persons.

The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in the

literature accompanying the appliance

Table of Contents

Unit Description & Installation Guide ...........................................................4

AV I/O Ports Definition..............................................................................8

Remote Control Operations .......................................................................9

I. Home Menu ....................................................................................10

II. Quick Guide for First-time User...........................................................11

II.1. DVB-T TV Watching .............................................................................................. 11

II.2. DVB-T Radio Listening .......................................................................................... 13

II.3. Record Function .................................................................................................. 14

II.4. Movie Watching ................................................................................................... 15

II.5. Music Listening ................................................................................................... 16

II.6. Photo Viewing..................................................................................................... 17

III. Using the Menu ...............................................................................19

III.1. DVB-T TV/Radio Menu........................................................................................... 19

III.1.1 Channel List.................................................................................................. 19

III.1.2 Channel Management...................................................................................... 20

III.1.3 Auto Search .................................................................................................. 21

III.1.4 DVB-T Audio Settings...................................................................................... 21

III.1.5 Channel Information........................................................................................ 22

III.1.6 Aspect Ratio.................................................................................................. 22

III.1.7 Subtitle ........................................................................................................ 23

III.1.8 Teletext ........................................................................................................ 23

III.1.9 AFS Setting*.................................................................................................. 23

III.1.10 CONAX CA................................................................................................. 24

III.2.System Settings ..............................................................................25

III.2.1 Country/Language .......................................................................................... 25

III.2.2 Display Setting .............................................................................................. 25

III.2.3 Monitor Port Setting........................................................................................ 26

III.2.4 HDMI Setting ................................................................................................. 26

III.2.5 Antenna Power Output (+5V)............................................................................. 26

III.2.6 Version Upgrade ............................................................................................ 27

III.2.7 Reset Default................................................................................................. 27

III.3. Photo Menu ........................................................................................................ 28

III.4. Music Menu ........................................................................................................ 28

III.5. Movie Menus....................................................................................................... 29

III.5.1 Menu ........................................................................................................... 29

IV. Trouble Shooting Q&A ......................................................................30

V. Specification...................................................................................31

Front Side

(1) AV I/O port: Combination of power input, ACC input, IR , URAT, CVBS,

Video/Audio GND and RGB output.

(2) Operating: the “Operating” LED indicates if the system is working.

(3) Power: the “Power” LED indicates if the 12V or 24V power supply has been

successfully applied to the device.

(4) Conax Slot extension port: Extension port for external Conax smart card slot

to enable pay-TV service

(5) USB port: Plug the USB memory stick and HDD to USB port for multimedia

playback and TV recording.

Unit Description & Installation Guide

(3) Power

(2) Operating

(5) USB

(4) Conax Slot extension port

(1) AV I/O port

Back Side

(6) Ant. In: antenna connection port (NOTE: this unit provides +5V antenna power

through this connection port.)

(7) HDMI Port : HDMI output port.

(6) Ant-in

(7) HDMI port

Antenna connection

In-car digital TV reception situation will vary from vehicle to vehicle and the installer may need

to try anetnna mounting positions to determine the best position for most stable signal reception in

vehicles.

Important Notes on Antenna Installation:

For a better reception, please place the rod antenna horizontally, and keep the rod antenna away

from metals.

Antenna Position

To optimize the TV reception performance, we recommend that one antenna is mounted at the

front and one at the rear of the vehicle. Please refer to the diagram below for some recommended

locations.

(1) Behind the Front Bumper. Note: Please make sure the bumper is not made of metal

(2) Top of the Front Windscreen, but at least 5cm away from the metal body of the car

(3) Top of the Rear Windscreen, but at least 5cm away from the metal body of the car

(4) Bottom of the Rear Windscreen, at least 5cm away from the metal body of the car

(5) Behind the Rear Bumper (note: make sure rear bumper is not made of metal)

*Noted: For position (2) ~ (4), because the windshields of many cars are usually equipped with film

coating (that contains metal), the actual signal reception may be degraded, depending on the amount of

the metal embedded within the film.

Antenna Cable Routing

Once a suitable position of antenna placement is found, carefully route the antenna cables to the

receiver unit and then connect to the Antenna Inputs on DTV receiver.

Description

B output

R output

G output

VIDEO_GND

AUDIO_GND

CVBS Videoutput

AUDIO L output

Audio R output

UART Rx input

UART Tx input

IR data intput

LED_EN

IR power output

PWR_GND

+12V input

ACC input

AV I/O Ports Definition

B out

G out

GND

Audio L out

Rx in

IR data input

IR power out

+12V in

R out

CVBS out

Tx in

GND

Audio R out

IR LED EN

ACC

Button name

Function

POWER

Select the power-on or stand-by

SRC

Select a video source from

DTV/AV1/CCD/DVR

HOME

Go to the home screen

Enter the setup menu

CH▲

Select the channel up or move the cursor

VOL

Select the volume up or move the cursor

right

CH▼

Select the volume up or move the cursor

right

Fast Forward

TV LIST

TV Program List

ENTER

To enter the selected item

EXIT

Exit the current setup

VOL

Select the volume down or move the cursor

left

Select the highlighted item or select

play/pause

Fast Rewind

REC●

-Start to record the TV/Radio program or

exit the recording

- Subtitle key in the normal operation mode

If the battery power in the remote controller becomes low, please follow the steps below to replace

a new battery:

1. Slightly push the battery case from the down to the up and pull out the battery case from the

remote control.

2. Replace the original battery with the new one.

3. Insert back the battery and the case into the remote control.

Remote Control Operations

-Remote Control Battery Installation

[1]

[2]

[3]

[4]

[5]

[6]

[7]

[8]

[9]

[10]

[11]

[12]

[14]

[13]

[15]

I. Home Menu

This is the home menu screen. You can highlight

the DVB-T TV mode, the DVB-T Radio mode, the

video playback mode, the music playback mode,

the picture viewing mode, and the system settings.

Use [CH] and [CH] buttons to highlight the

desired item and press [OK] button to select it.

DVB-T TV Mode

To enter DVB-T TV mode.

DVB-T Radio Mode

To listen to DVB-T radio broadcasting.

Movie Playback Mode

To enter movie playback mode and watch movie files.

Music Playback Mode

To enter audio playback mode and listen to music.

Photo Viewing Mode

To enter photo viewing mode and watch pictures.

System Settings

To configure the device settings.

Note: Press the [HOME] key to go back to the home screen anytime.

Press the [SOURCE] key to switch AV source anytime.
