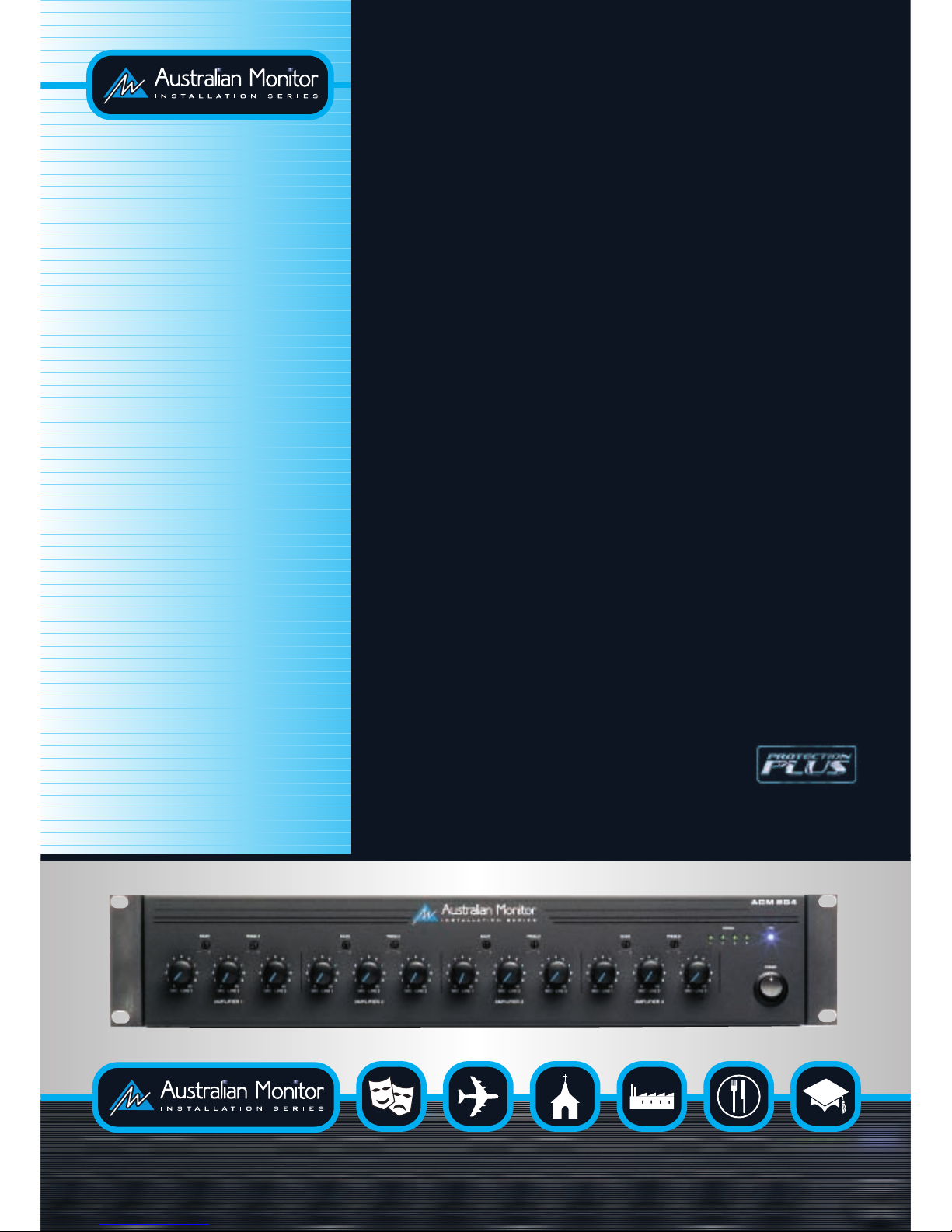

Power Output 4 x 60 Watts RMS
Maximum Load Per Amplifier 160 Ohms @ 100 Volts
Power Bandwidth 60Hz - 15kHz < 0.5% THD
Frequency Response 60Hz - 15kHz (± 3dB)
Total Harmonic Distortion 0.5% @ 1kHz rated power
Signal To Noise Ratio -74dB with all controls at their centre position
Tone Controls Bass @ 100Hz: Boost +12dB Cut -12dB; Treble @ 10kHz: Boost +9dB Cut -9dB
Inputs Three mic/aux universal inputs per mixer amplifier module.
Mic/Line selection can be made via an internal dip switch
Input Sensitivity Mics: 1mV @ 200 Ohms; Aux 75mV @ 47K Ohms
Outputs Speaker: 100, 70 Volts, 8 Ohms
VCA Master Level Control Via a 1K pot added to the rear barrier strip of each amplfier module
Phantom Power Selectable per input of each amplifier module via an internal dip switch. 18 V
Controls 3 Input channel gain controls, 1 Bass control, 1 Treble control,
1 Master VCA gain control per amplifier
Indicators Power “on” LED
Power Source AC 240V - 60Hz, 110V - 50Hz (special) 3 pin IEC connector
Power Consumption 400 Watts
Protection Overload and overdrive protection, plus AC and DC fuses
Dimensions/Weight 88mm H x 480mm W x 350mm D (Chassis Dimensions only). 17kg
Rack Mounting Standard
Tone Generators Optional four tone generator module. Includes Bell, Pre-Announce,
Alert and Evac Tones, plus a vox triggered relay output.
Muting Built-in VOX muting. Channel 1 will mute channels 2 and 3 per amplifier
Engineered and Distributed By AUDIO TELEX COMMUNICATIONS PTY LTD (ABN 78 001 345 482), 149 Beaconsfield Street, Silverwater, Sydney, NSW, 2128 Australia
NSW Tel: (02) 9647 1411 Fax: (02) 9648 3698 VIC Tel: (03) 9890 7477 Fax: (03) 9890 7977 QLD Tel: (07) 3852 1312 Fax: (07) 3252 1237 WA Tel: (08) 9228 4222 Fax: (08) 9228 4233
T
AS
T
el:
(03)
6228
6373
Fax:
(03)
6278
1063
SA
T
el:
(08)
8352
4444
Fax:
(08)
8352
4488
Export
Enquiries:
[email protected] Website: www.australianmonitor.com.auARCHITECTURAL AND ENGINEERING SPECIFICATIONS

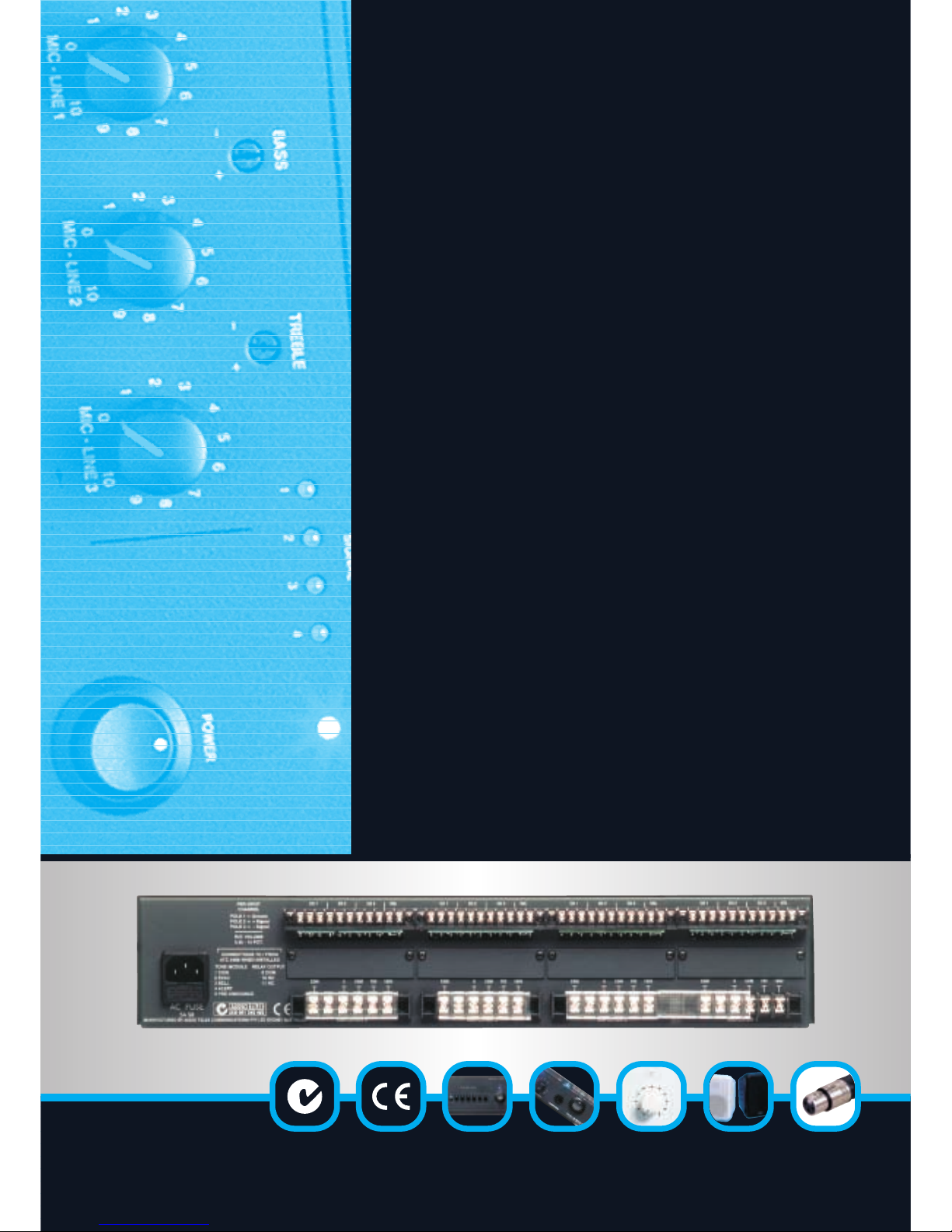

The four channel mixer amplifier shall have three universal input channels, accessible via a rear panel
barrier strip on each of the four amplifier modules. Each amplifier module shall allow remote VCA con-
trol of the master output. Phantom power selection on a per channel, per amplifier basis shall also be
included. A Vox triggered output shall also be available on an optional four tone generator card.
Each amplifier master section shall include one master VCA accessible gain control, two EQ controls,
one with 12dB of cut and boost at 100Hz and the other with 9dB of cut and boost at 10kHz. Speaker
outputs shall be transformer isolated at 100 volt, 70 volt & 8 ohms. The amplifiers must be capable of
delivering 60 watts RMS into a 160 ohm inductive load, with less than 0.5% distortion measured at
1 kHz and with system hum and noise of -74dB or better.
The amplifier shall be an Australian Monitor Installation Series model ACM604.
