Aurora Audio 2 Channel, 4 Band, Equalizer
Congratulations on purchasing the new, all discrete transistor Class A circuitry, four
band equalizer.
This unit, unlike its eight channel sibling, is a stand-alone, ac powered device with
transformer balanced inputs and outputs.

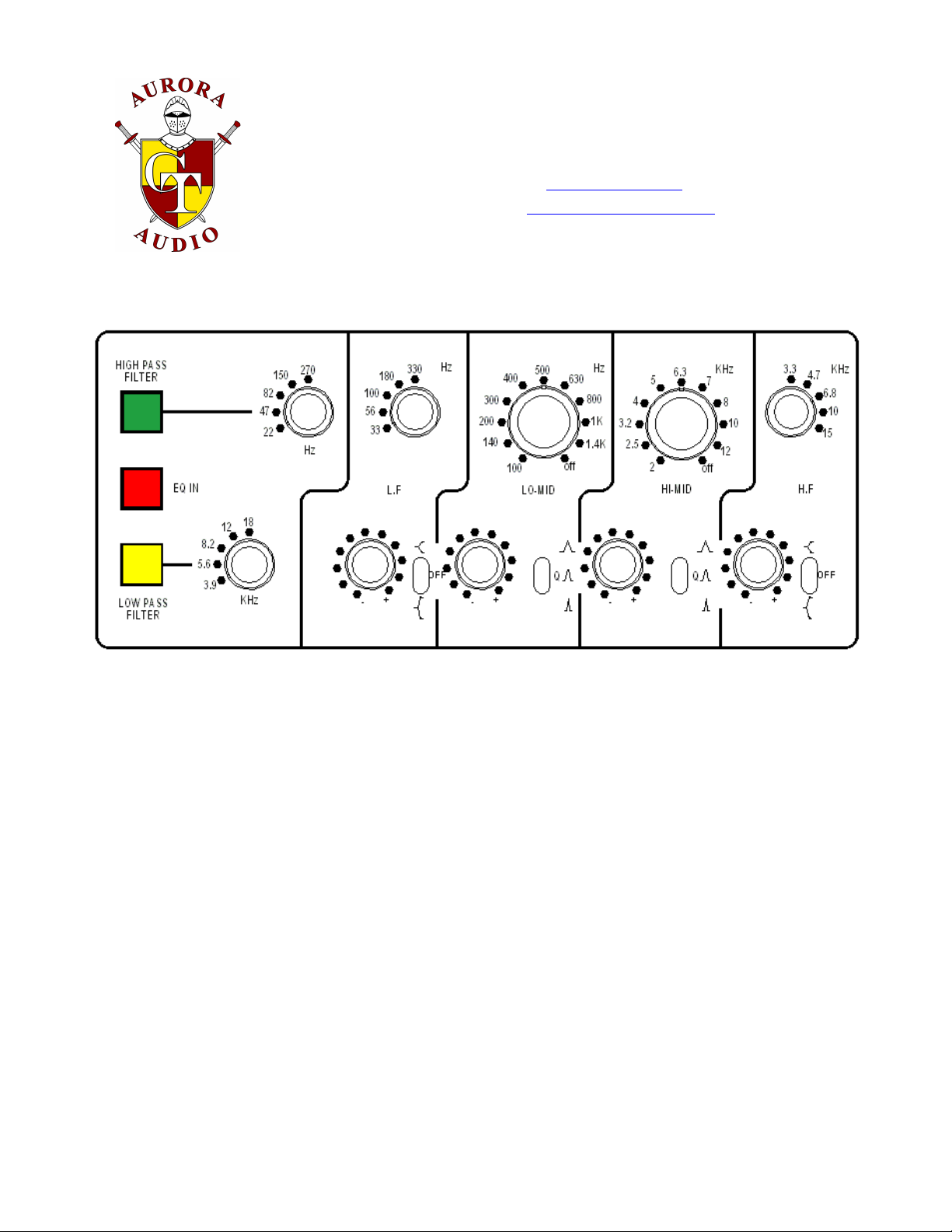

The equalizers are nominally unity gain and the equalizer section is engaged by
pressing the red switch. The high pass and low pass filters will only work with the EQ
button selected.
The low and high frequency controls can be switched out by putting their toggle switch
in the center position. The two mid frequency controls are switched out by rotating
the knobs fully clockwise.
The toggle switch on the high and low frequency sections of the equalizer provide two
degrees of boost and cut, a narrow range on the left provides around 8dB cut and boost
while a coarse range provides around 18dB cut and boost. This enables delicate
adjustments of the controls.
The toggle switches on the two mid frequency sections of the equalizer provide three
degrees of Q adjustment… from a very broad bell in the left position to a narrow one
with the switch to the right.
The mid frequency controls have a great deal of cut and boost, especially in the broad Q
setting. With the controls fully rotated you can get well over +20dB range… which can
be handy if you want to substantially cut a signal, but in boost mode, you would need to
watch the headroom and stability especially if other EQ controls are boosting.
I recommend using the mid controls very gently until their range and power is fully
assimilated!
There is a substantial overlap of frequency choices between the low frequency and low-
mid (330Hz max L , 100Hz min Lo-Mid), and the same between the high frequency
and high-mid (H starts at 3.3KHz, Hi-Mid starts at 2KHz). This offers a lot of
combinations of frequency compensation in the same frequency bands.
With the high-pass and low-pass filters set to 270Hz and 3.9KHz, a reasonable
representation of a telephone conversation can be set up, especially if the high
frequency control attenuates at 3.3KHz and the low frequency attenuates at 330Hz to
further attenuate the extremes.
********************************************************************
Warranty ONE YEAR PARTS AND LABOR LIMITED WARRANTY
Aurora Audio International warrants this unit against defects in workmanship for a
period of one year and parts for a period of one year from receipt by the original end
user. This warranty shall not apply to damage resulting from misuse including water
damage, in-transit damage, fire damage, improper maintenance, dropping the unit and
operation or storage outside the environmental specification for the product.
Do not try to repair this unit. Only qualified Aurora Audio International technicians are
authorized to repair this unit. WARRANTY VOID I CASE IS OPENED
