Behringer Ultragraph Pro FBQ6200 Manual de usuario

Technical Specications

ULTRAGRAPH PRO FBQ6200

Audiophile 31-Band Stereo Graphic Equalizer with

FBQ Feedback Detection System

2ULTRAGRAPH PRO FBQ6200 Technical Specifications

ULTRAGRAPH PRO FBQ6200

Audiophile 31-Band Stereo Graphic Equalizer with

FBQ Feedback Detection System

Audiophile 31-band stereo graphic equalizer for live and studio applications

Revolutionary FBQ Feedback Detection system instantly reveals critical frequencies and can also be used as audio analyzer

Dedicated Limiters with gain reduction meters for each channel protect your sound system from overload and distortion

Pink noise generator provides test signals to adapt your sound system to any room acoustics

Mono subwoofer output with dedicated level control and adjustable crossover frequency

Additional sweepable high and low-cut lters for each channel remove unwanted frequencies e.g. oor rumble, hiss etc.

Highly accurate 8-segment LED input/output metering and input gain controls for easy level setting

Ultra-low noise audio operational ampliers for highest signal integrity

Relay-controlled hard bypass with an auto-bypass function during power failure (failsafe relay)

Servo-balanced inputs and outputs with 1/4" TRS and gold-plated XLR connectors

Shielded toroidal power transformer for ultra-low noise performance

High-quality components and exceptionally rugged construction ensure long life

Conceived and designed by BEHRINGER Germany

Specications

Audio Inputs

INPUTS RF-ltered, servo-balanced XLR and

¼" TRS connectors

Impedance 40 kW balanced and unbalanced

Maximum input level +21 dBu balanced and unbalanced

CMRR typ. 40 dB, >55 dB @ 1 kHz

Audio Outputs

OUTPUTS servo-balanced XLR and

¼" TRS connectors

SUBWOOFER OUT balanced XLR connector,

level variable o to 0 dB

Crossover frequency variable, 30 - 200 Hz

System Specications

Frequency response 10 Hz to 30 kHz, ±3 dB

S/N ratio 22 Hz to 22 kHz >94 dB @ +4 dBu

Distortion (THD) typ. 0.006% @ +4 dBu, 1 kHz, Gain 1

Crosstalk typ. -65 dB @ 1kHz

Roll-O Filter Section

Type 12 dB/oct., Butterworth

Input variable (-15 dB to +15 dB)

Low Cut variable (10 Hz to 400 Hz)

High Cut variable (2.5 kHz to 30 kHz)

Graphic Equalizer

Type analog 31-band equalizer

Frequency range 20 Hz to 20 kHz in 31 1/3-octave bands

(ISO frequencies)

Bandwidth 1/3 octave

Control range ±6 dB or ±12 dB (switchable)

Limiter Section

Attack/Release 20 msec / 90 msec

Threshold variable, -6 dB to +22 dB (o)

LED meter Gain reduction 20/10/3/1 dB

Noise Generator

Type Pink noise, level variable, o to 0 dBu,

LED level meter -24/-12/-6/0 dB

3ULTRAGRAPH PRO FBQ6200 Technical Specifications

BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and appearance may differ from those

listed or illustrated.

TECHNICAL SPECIFICATIONS AND APPEARANCES ARE SUBJECT TO CHANGE WITHOUT NOTICE AND ACCURACY IS NOT GUARANTEED. BEHRINGER IS PART OF THE MUSIC GROUP (MUSIC-GROUP.COM). ALL TRADEMARKS ARE THE PROPERTY OF THEIR

RESPECTIVE OWNERS. MUSIC GROUP ACCEPTS NO LIABILITY FOR ANY LOSS WHICH MAY BE SUFFERED BY ANY PERSON WHO RELIES EITHER WHOLLY OR IN PART UPON ANY DESCRIPTION, PHOTOGRAPH OR STATEMENT CONTAINED HEREIN. COLORS AND

SPECIFICATIONS MAY VARY FROM ACTUAL PRODUCT. MUSIC GROUP PRODUCTS ARE SOLD THROUGH AUTHORIZED FULLFILLERS AND RESELLERS ONLY. FULLFILLERS AND RESELLERS ARE NOT AGENTS OF MUSIC GROUP AND HAVE ABSOLUTELY NO

AUTHORITY TO BIND MUSIC GROUP BY ANY EXPRESS OR IMPLIED UNDERTAKING OR REPRESENTATION. THIS MANUAL IS COPYRIGHTED. NO PART OF THIS MANUAL MAY BE REPRODUCED OR TRANSMITTED IN ANY FORM OR BY ANY MEANS, ELECTRONIC OR

MECHANICAL, INCLUDING PHOTOCOPYING AND RECORDING OF ANY KIND, FOR ANY PURPOSE, WITHOUT THE EXPRESS WRITTEN PERMISSION OF MUSIC GROUP IP LTD. ALL RIGHTS RESERVED. © 2012 MUSIC GROUP IP LTD. TRIDENT CHAMBERS,

WICKHAMS CAY, P.O. BOX 146, ROAD TOWN, TORTOLA, BRITISH VIRGIN ISLANDS

Function Switches

FBQ activates the FBQ Feedback Detection

System

Audio In/Out switch to bypass the equalizer

functions

I/O Meter In/Out switches the meter display from input

to output

Range shift of the maximum cut/boost range

for all 31/15 bands

Low Cut —

Limiter activates the limiter

Pink Noise activates the noise generator

Subwoofer activates the subwoofer output

Indicators

Input/output level 8-segment LED display:

-24/-18/-12/-6/0/+6/+12 dB/CLIP

Subwoofer 4-segment LED display:

-18/-12/0/+12 dB

Power Supply

Mains Voltage

USA / Canada 120 V~, 60 Hz

Europe / U.K. / Australia 230 V~, 50 Hz

Japan 100 V~, 50 - 60 Hz

General export model 120/230 V~, 50 - 60 Hz

Power consumption 35 W

Fuse 100 - 120 V~: T 630 mA H

200 - 240 V~: T 315 mA H

Mains connection standard IEC receptacle

Dimensions / Weight

Dimensions (H x W x D) approx. 5 ¼ x 19 x 5 7/8"

approx. 133.5 x 482.6 x 150 mm

Weight approx. 5.95 lbs

approx. 2.70 kg

Tabla de contenidos

Otros manuales de Ecualizador estéreo de Behringer

Behringer

Behringer GRAPHIC EQUALIZER EQ700 Manual de usuario

Behringer

Behringer FEEDBACK DESTROYER PRO DSP1100P Manual de usuario

Behringer

Behringer FEEDBACK DESTROYER FBQ1000 Manual de usuario

Behringer

Behringer ULTRAGRAPH PRO FBQ1502 Manual de usuario

Behringer

Behringer FEEDBACK DESTROYER FBQ1000 Manual de usuario

Behringer

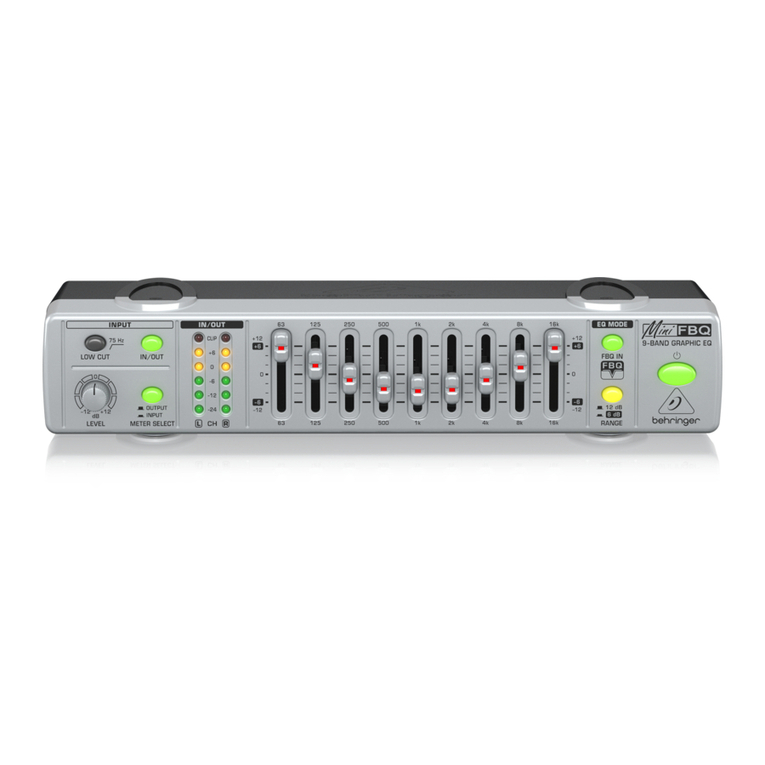

Behringer MiniFBQ FBQ800 Manual de usuario
