AUNE S16 Manual de usuario

S16 数字音频解码耳放一体机

An integral digital audio DAC headphone ampliﬁer

Preface

Thank very much for buying S16 audio DAC of aune company. It really makes us

feel proud of your choice. Hopes that S16 audio DAC will bring experience of hi-ﬁ

music and happiness to you. You are suggested to read this user’s manual before

you could use all functions of S16 digital audio DAC properly.

Dear customers:

This manual book is made by chlorine-free bleaching paper. Such production method reduces

poisonous substance to be drained to water channel and protect our environment thereof.

1.1 1.3 1.4 1.5 1.6 1.7

View of front panel and name of each part

1.2

1.1

1.2

1.3

1.4

TFT display screen

Power supply indicator

Digital volume knob

Selection of signal input

1.5

1.6

1.7

Mute press button

Power supply press button

Output connection of headphone

1Turn the knob clockwise or counterclockwise to control volume; press the knob for one second to select 8 modes of wave ﬁltering.

2Press power supply button for two seconds to turn on power and use the same way to shut off power.

Note

View of rear panel and name of each part

2.72.62.52.42.32.12.22.1

2.1

2.2

2.3

2.4

Balance output

Analog L/R output

Coaxial input

Optical input

2.5

2.6

2.7

AES digital input

USB output

110V/220V input

Introduction Speciﬁcations

Input connection：AES/Coaxial/Optical/USB

Output connection：Analog L/R，analog balance

Headphone output connection：6.5mm headphone hole

Output impedance of headphone ampliﬁer：32-600 Ω

Power of headphone ampliﬁer：120 Ω 1500MW

Frequency response (from 20 Hz to 20 kHz)：±0.5 dB

Dynamic range：118 dB

THD+N @ 1KHz ：-100 dB

IMD+N @ 19KHz & 20KHz：-111 dB

Stereo crosstalk：-115 dB

Size of product：255 X 211.5 X 58 (unit ：mm)

Weight：3.6KG

Components：DACx1/Power cablex1/User’s manual x1

S16 is developed, tested and modiﬁed in

aune audio laboratory. USB2.0 input of

S16 supports 24BIT/192K and DSD128

decoding and its coaxial input supports

DOP mode of DSD64 through USB2.0,

and it provides balance, analog L/R and

headphone output. S16 is of a high

quality audio-typed DAC with super-low

inﬁdelity and signal jitter. Also it is a top-

grade integral device, which is created

for reproduction of music spot.

USB MUTE HP 50

PCM 44

3.1 3.2 3.3 3.4 3.5

3.1

3.2

3.3

3.4

3.5

3.6

Current input mode

Input channel

Mute indication

Headphone volume

Current sampling rate

Property of audio wave ﬁlter

SLOW SD

3.6

a USB input

b AES digital input

c Coaxial input

d Optical input

USB

OPT

COX

AES

Refer to illustration 1.4 of panel on page 15

Switch between 4 modes by

pressing input button on the

panel

Refer to illustration 1.3 of panel on page 15

Press digital volume knob

for one second and switch

between 8 modes of audio

wave ﬁlter

IN P UT

DO WN U P

Operation introduction

of display interface

SLOW SD1

SLOW SD2

SLOW LD1

SLOW LD2

SHARP SD1

SHARP SD2

SHARP LD1

SHARP LD2

AES HP 50

PCM 192

USB HP 50

PCM

Playing DSD128 could be

only supported through USB

transmission

Display of playing PCM192K When hyphens are

displayed, it means there is

no input signal or signal

error and DAC is mute at this

moment

USB HP 50

DSD128

SLOW LD

SLOW LD SLOW LD

USB HP 50

DSD 64

SLOW LD

AES/COS optical only

supports DSD64

USB HP 050

PCM 44

SLOW SD

USB MUTE HP 067

DSD 128

SHARP LD

Refer to illustration 2.7 of back panel on page 16

Power switch on back panel

Non-memory function

Resuming previous state

after turning off DAC and

turning on it again

PO W ER

Standard display after turning on DAC

Previous state before turning off DAC

Refer to illustration 1.6 of front panel on page 15

Power switch of panel

Memory function

Resuming previous state

after turning off DAC and

turning on it again

PO W ER

Operation introduction

of display interface

Operation introduction

Headphone application for PC

US B

Please download the latest version of

drive software for S16 DAC from

service and support page on website

www.auneaudio.com. First, USB2.0

must be used to connect PC to S16

DAC. Then install drive program and

use PC to play music. After that,

connect headphone to headphone

output, and use volume knob to

control headphone volume, you could

enjoy wonderful music ﬁnally.

---If necessary, please refer to

service and support page of website

of aune company.

Operation introduction

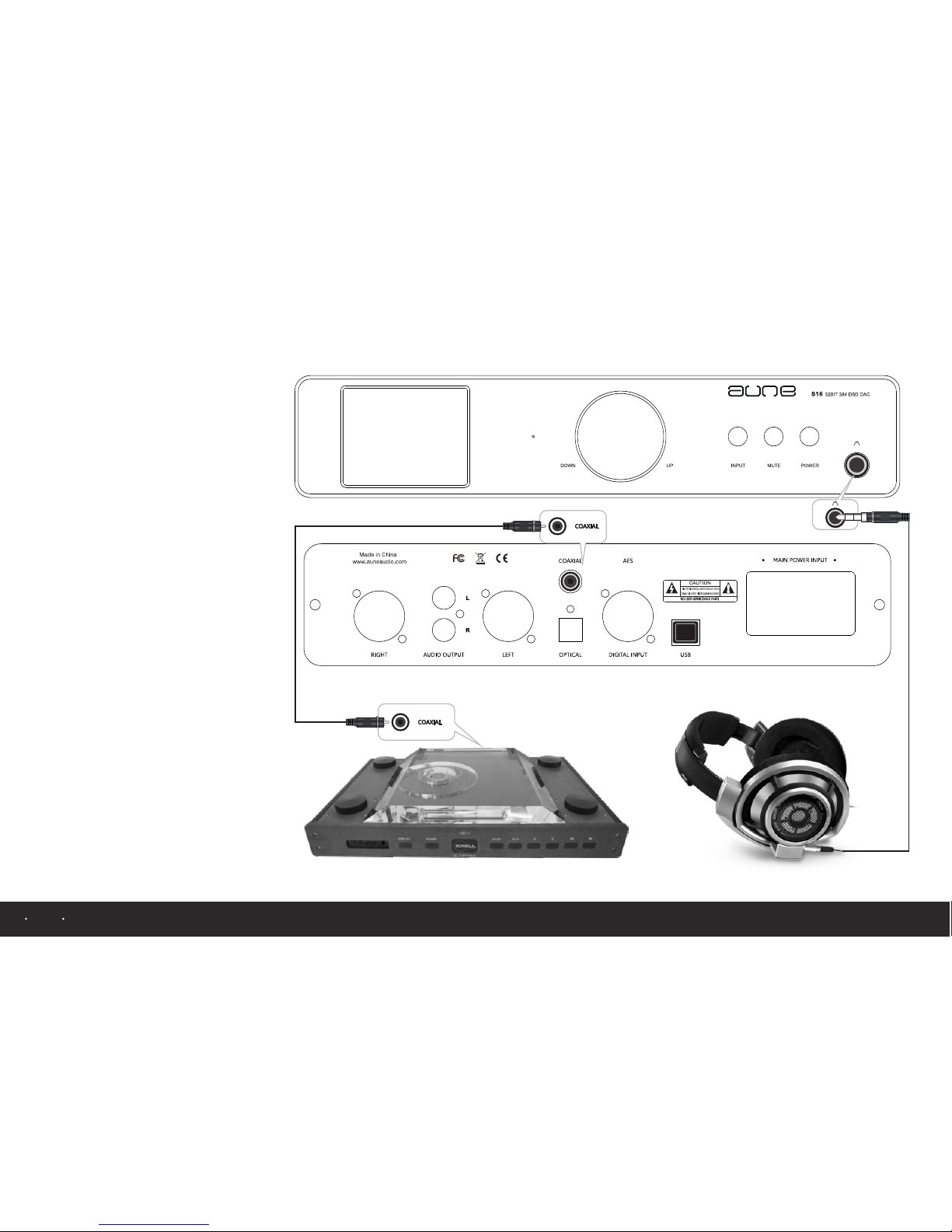

Please use coaxial or optical cable to

connect digital turntable to S16 DAC

and play music with it. Then, connect

S16 headphone output to headphone,

and control volume with volume knob

on front panel, you could enjoy

wonderful music ﬁnally.

Headphone application

for turntable

US B

AUDIO INPUT

SP E A KER

Please download the latest version of

drive software for S16 DAC from

service and support page on website

www.auneaudio.com. First, USB2.0

must be used to connect PC to S16

DAC. Then install drive program and

use PC to play music. After that,

connect analog output of S16 to

analog output of ampliﬁer, and control

volume of ampliﬁer, you could enjoy

wonderful music ﬁnally.

---If necessary, please refer to

service and support page of website

of aune company.

Operation introduction

Application for PC system
