Audiovox D1708PK Manual de usuario
D1708PKD1708PK
D1708PKD1708PK
D1708PK
PORTABLE 7" LCD MONITOR AND DVD PLAYER
IN A BAG
2
Notice:
ThisProductincorporatescopyrightprotectiontechnologythatispro-
tectedbymethodclaimsofcertainU.S.Patentsandotherintellectual
propertyrightsownedbyMacrovisionCorporationandotherrights
owners.Use of thiscopyrightprotectiontechnology must be autho-
rizedbyMacrovisionCorporation,andisintendedforhomeandother
limitedviewingusesonlyunlessotherwiseauthorizedbyMacrovision
Corporation.Reverseengineeringordisassemblyisprohibited.
Notice:
AnLCD panel and/or video monitormaybeinstalledin a motor ve-
hicleandvisibletothedriveriftheLCDpanelorvideomonitorisused
forvehicleinformation, system control, rear or side observationor
navigation.If the LCD panel orvideomonitor is used for television
reception,video or DVD play,the LCD panelorvideomonitormust
beinstalledsothatthesefeatureswillonlyfunctionwhenthevehicle
isin“park” orwhenthevehicle’sparkingbrakeisapplied.
AnLCDpanelorvideomonitorusedfortelevisionreception,videoor
DVDplaythatoperateswhenthevehicleisingearorwhenthepark-
ing brake is not applied must be installed to the rear of the driver’s
seatwhereitwillnotbevisible,directlyorindirectly,totheoperatorof
themotorvehicle.
3
A. Introduction
Thankyouforselecting theD1708PKportableDVDplayerina bag.
The main features include a 7" Screen (16:9Aspect Ratio) Liquid
Crystal Display (LCD) monitor and a DVD player. The unit applies
thelatest state of theartelectronics and is designedforuse in ho-
tels,officeshomeorvehicle.Theunit isconstructedtoprovideyears
ofreliable,trouble-freeservice,and iscompact sothatyoucantake
it with you anywhere and is designed for quick and easy
installation.Pleasereadtheentireinstructionmanualsuppliedwith
thisproduct prior to operation. The documentationwillassistyouin
installing the system properly to obtain the best equipment perfor-
mance. Allmanuals shouldbestored forlateruse.
B. Cautions and Warnings
1. Placement
Topreventfireorelectric shock, do not expose this appliance to
rain or moisture. Do not place the set on an unstable cart,
stand,tripod, bracket or table to prevent it from falling. Keep the
unitawayfromstrongmagnets,heat sources,directsunlight,ex-
cessivedust. If the unit isbrought directlyfroma cold to a warm
location,moisturemaycondenseinsidetheunit. Whenyoumove
it from a cold to a warm location, wait for about one hour before
operatingtheunit,orremovethediscandleavetheunitturnedon
untilthemoistureevaporates.
2. Installation
Ensure that the D1708PK is installed in accordance with the in-
structionsandillustrationsprovidedin thismanual.
3. Object and Liquid
Donotpushobjectsofanykindintotheunitthroughopenings;do
not spill or spray liquid of any kind on or in the system (this may
resultin afireorelectric shock). Do notplaceanythingheavy on
theunit.Toensureproperventilationandproperoperation,never
coverorblocktheslotsandopeningswith a cloth or other mate-
rial.
4. Disassembly
Do not attempt to disassemble the cabinet. There is a risk of elec-
tric shock and/or exposure to Laser Radiation. Contact qualified
service personnel if your system is in need of repair.
4
5. Cleaning Unit
Whencleaning,make surethe system isunplugged fromthe power
source. Do not use liquid cleaners or aerosol cleaners. Use a
cloth lightly dampened with water for cleaning the exterior of the
system only.
6. Disc
Do not use irregularly shaped discs such as heart or star-shaped
discs as they may cause the unit to malfunction. Do not stick pa-
per, tape or glue on the disc. Do not expose the disc to direct sun-
light or heat sources such as hot air ducts. Do not touch the sur-
face of disc. Handle the disc by its edge. Clean the disc by wiping
the disc from the center out with a cleaning cloth. Remove the disc
from the unit and store it in its case after playing. Some playback
operations of discs may be intentionally fixed by software produc-
ers. Since this unit plays discs according to the disc contents the
software producers designed, some playback features may not be
available.Also refer to the instructions supplied with the discs.
C. Contents
1. 1 x 7’’ LCD Monitor & DVD Player Combo
2. 1 x AC to DCAdapter
3. 1 x Remote Control w/Battery (CR2025)
4. 1 x Instruction Manual
5. 1 x Audio/Video Cable
6. 2 x Wired Headphones
7. 1 x DCAdapter
8. 1 x Mounting Bag w/Straps
9. 1 x Carrying Bag
10. 1 x Rechargeable Battery Pack
D. Powering and installation
1. Powering the system indoors (Refer to Figure 1)
Plug one end of the AC to DC adapter into the DC 9V jack on the
rightside ofthe mainunit, then plug the otherend intothe 120VAC
power receptacle.
5
2. Powering the system in a car
Plug one end of the cigarette lighter adapter into the DC 9V jack on
the unit, then plug the other end into the lighter socket.
Figure 1
3. Powering the system with rechargeable Battery
Please refer to L. * Rechargeable Battery Installation and Use
(Page 32 and 34).
E. Installation in Mounting Bag
Make sure that the unit is placed into the bag with the clear plastic
coveringaround DVD door, Load disc into theDVD compartmentand
then fasten the Velcro strap across the top portion of the unit. If
youare installingthe bag onto the seatbackyou willneed toattach the
supplied Seat Standoff to the back of the mounting bag with the
Velcro bands to obtain the proper viewingangle as shown in Figure.2
6
1.Installing the System onto the seat back in a car
(Refer to Figure 2)
Figure 2
1). Take one of the supplied straps from the carrier bag. Connect
the latch to one of the upper metal rings on the mounting bag.
Connect the “S” hook to the other upper metal ring and place the
loop over the headrest. Adjust the strap until the bag is firmly
secured.
2). Take another strap from the carrier bag, and connect the latch to
the lower metal ring on the left side of the bag. Attach the “S”
hookto the samering after loopingthe strap aroundthe seat rail.
Repeat this process for the right side. In some vehicles, it may
be necessary to attach the “S” connector to the rail directly, as it
may not be long enough to reach back to the ring.
3). Adjust the straps tightly so that the bag is secured.
Seat Standoff
7
2. Installing the system between the driver/passenger seat
(Refer to Figure 3)
Figure 3
1). Take one strap and connect the latch to the upper metal ring on
the left side of the bag. Attach the “S” hook to the same ring
after looping the strap around the headrest of the driver’s seat.
Repeat this process for the right side (Passenger Seat).
2). Take another strap and connect the latch to lower metal ring on
the left side of the bag. Attach the “S” hook to the same ring
after looping the strap around the driver’s seat rail. Repeat this
process for the right side. In some vehicles, it may be neces-
sary to attach the “S” connector directly to the rail, as it may not
be long enough to reach back to the ring.
3). Adjust the straps tightly so that the bag is secured.
8
E. Controls, Indicators, and Connectors
1. Unit View (Refer to Figure 4)
Figure 4
1)Menu
2) UP Button
3) Left Button
4) Down Button
5) OK Button
6) Right Button
7) Open Button
8) Previous Button
9) Stop Button
10) Next Button
11) Play button
12) Pause
13) Screen Mode (WIDE) Button
14) Monitor Off Button
15) Remote Control Sensor
16) Power LED
17) DVD Video Output Jack
18) DVDAudio L+R Output Jack
19)Video Input Jack
20)Audio L+R Input Jack
21) Power On/Off Switch
22) Volume Up/Down control
23) Headphone Jack 1
24) Headphone Jack 2
25) DC 9V Input Jack
26) Brightness Up/Down control
9
2. Remote Control View (Refer to Figure 5)
1) DisplayButton
2) AngleButton
3) SubtitleButton
4) AudioButton
5) ZoomButton
6) UP/DOWN/LEFT/RIGHT/
ENTER Buttons
7) ReturnButton
8) A-BButton
9) ForwardButton
10) ReverseButton
11) Slow Button
12) StopButton
13) NumericKeypad
14) SetupButton
15) MenuButton
16) RepeatButton
17) SKIP-
18) SKIP+
19) Play Button Figure 5
20) PauseButton
F. Loading and Playing a Disc
a. Afterconnectingpowertotheunit,poweronthe“DVDplayer”with
thepowerswitch. Thepowerindicatorwilllight.
b. Openthedisctray by pressing OPEN , and place a disc into the
traywiththelabelsidefacing up.
c. Close thetraybypressingthe “PRESS” button.The unitwillload
thediscandstartplaying.
d. Rotate the BRIGHTNESS and VOLUME controls to adjust the
LCD’sbrightnessand theDVDplayer’svolume.
e. Tostopplayingadisc,press STOP.
f. To turn off the DVD player, slide the POWER ON/OFF to OFF.
The DVD player’s POWER indicator turns off.
10
G. SETUP
Press ‘SETUP’ to display the Main screen of the SETUP Menu on the
screen. Press ‘SETUP’ again to exit the SETUP Menu and the unit
will resume it’s last playback mode.

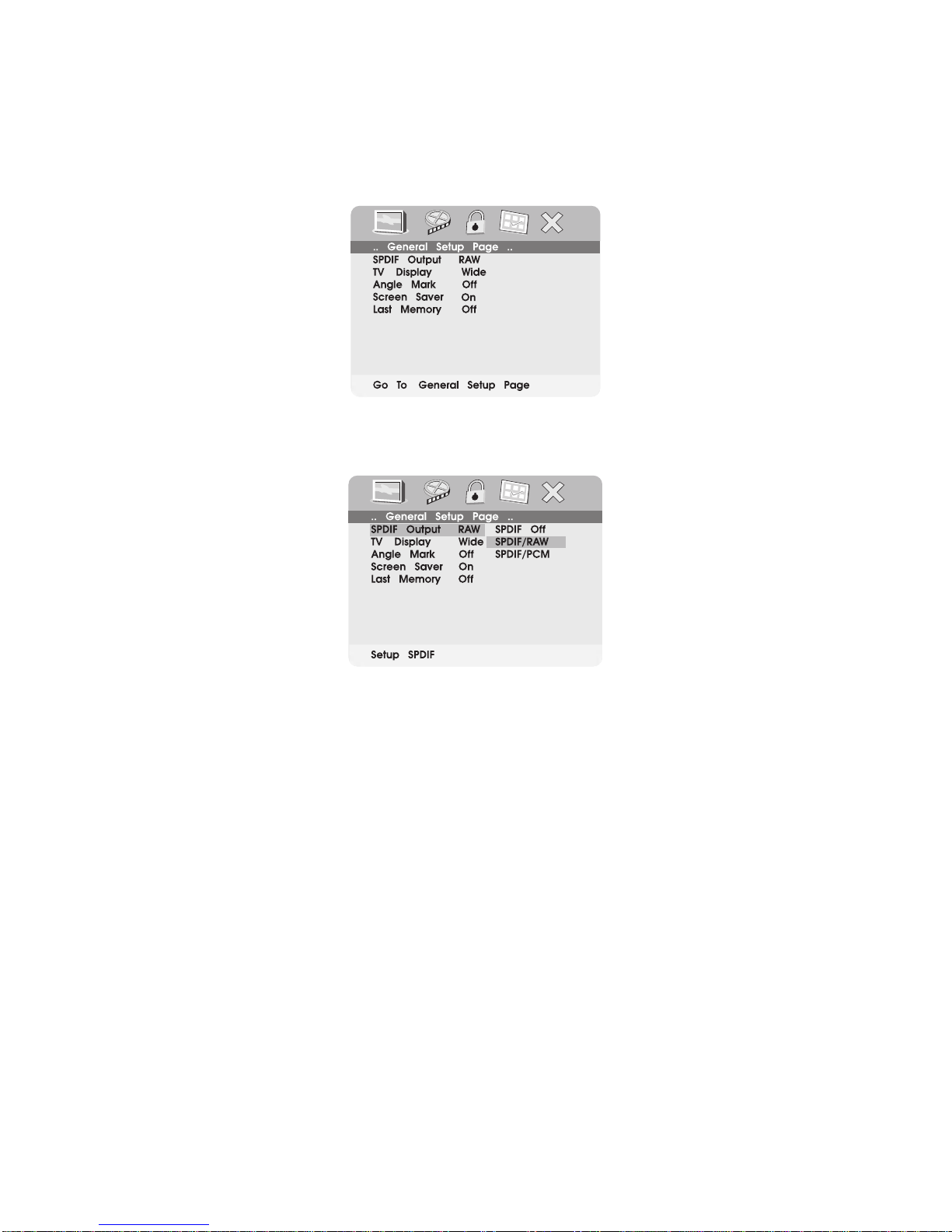

Figure 6. Main SETUP Menu Screen
1) Press“Setup”,the‘GENERALSETUPPAGE’willdisplayonscreen.
Figure 7. General SETUP Menu Screen
a).Select TV DISPLAY using the DOWN button, and then press
RIGHT toenterthe submenu.Selectthe TVdisplaymode onthe
screen using UP/DOWN, and press ENTER to confirm the
setting. Press LEFT to return.
