Audiovox Mobile Video 128-8607 Manual de usuario
OPERATION
MANUAL
VOD129
12.1" OVERHEAD LCD
MONITOR WITH
DVD PLAYER
128-8607
Important Notice
Installation of overhead products requires careful planning and preparation. Be extremely careful when working on a vehicle with side
curtain air bags. Do not route wires near any portion of the side curtain air bag assemblies. This includes any anchor points in A, B, C or
D pillars of the vehicle. Routing wires in these areas or running wires by the side curtain air bags can prevent the side curtain air bag from
fully deploying which can result in personal injury to vehicle occupants. If you have any questions regarding wire routing in a vehicle,
please contact Audiovox Technical Support at 1-800-225-6074.
When connecting power and ground in a mobile video installation ensure that the ACC wire is fused at the point where it is connected to
the vehicle ACC wiring. Failure to do so can result in damage to the vehicle if a short circuit develops between the vehicle connection
point and the mobile video product.
An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used
for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television
reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicle is
in “park” or when the vehicle's parking brake is applied.
An LCD panel or video monitor used for television reception, video or DVD play that operates when the vehicle is in gear or when the
parking brake is not applied must be installed to the rear of the driver's seat where it will not be visible, directly or indirectly, to the operator
of the motor vehicle.
Warnings
•Do not use any solvents or cleaning materials when cleaning the video monitor.
•Do not use any abrasive cleaners, they may scratch the screen.
•Use only a lightly dampened lint free cloth to wipe the screen if it is dirty.
•Lock the LCD screen in the fully closed position when not in use.
•Before putting on headphones always adjust the volume setting to the lowest position.
•Remember to leave the dome light switch in the off or auto positions when the vehicle is unattended, as the dome lights, if left on, can drain
the vehicle's battery.
•Do not put pressure on the screen.
•Caution children to avoid touching or scratching the screen, as it may become dirty or damaged.
Licensed under one or more of the following patents,
Patent NOS. 5,775,762 , 5,927,784 and 6,678,892
3
FEATURES
Congratulations
Congratulations on your purchase of the AUDIOVOX
VOD129 DVD Player with Drop-Down Video / Monitor. The
VOD129 has been designed to give you and your family
many years of video entertainment in the mobile
environment. Please read the directions that follow to
familiarize yourself with the product to ensure that you obtain
the best results from your equipment.
Please note: Installation options vary, see the individual
owner's manuals for each component in your system to
obtain a full understanding of each component's operation.
Safety Precaution
For safety reasons, when changing video media it is
recommended that the vehicle is not in motion, and that you
do not allow children to unfasten seat-belts to change video
media or make any adjustments to the system. System
adjustments can be accomplished using the remote control,
while seat-belts remain fastened. Enjoy your AUDIOVOX
entertainment system but remember the safety of all
passengers remains the number one priority.
• 12.1” TFT (Thin Film Transistor) Active Matrix LCD
(Liquid Crystal Display) Monitor
•Built-in DVD Player
• OSD (On Screen Display) for Control of Picture Quality
and Functions
• Single Channel Infrared Transmitter for IR Wireless
Headphones
•Four Audio/Video Source Inputs (DVD/USB, AV1, AUX
and GAME).
• Dome Lights with 3-Position Switch.
•Built-in 16 Channel Frequency Wireless FM Modulator.
•Last Position Memory for DVD.
• Screen Mode Selection (4:3, 16:9)
• Wireless Game Controller
• Full Function Remote Control
• Backlit Controls
• AV Output Via RCA Pigtail
•Playing DVD, CD and MP3 Disc.
7
8
9
10
11
65432 1
12
13
4
CONTROLS AND INDICATORS DIAGRAM (FRONT VIEW)
1. EJECT () Control
This control is used for ejecting discs from the disc
compartment. (Note: Disc can be ejected with the unit turned
Off. Vehicle ignition must be in Run or ACC position). After
the Disc is removed the unit will turn Off after 15-20 seconds.
2. STOP (n) Control
- Touch STOP once : Stops playback,
touching the PLAY button again will resume normal playback
from where movie was stopped.
- Touch STOP twice : To stop playback press PLAY to start
play back from the beginning of the DVD.
3. PLAY (u) Control
This control is used to start playback of a disc.
4. Source Select
Use to select one of the four sources: DVD/USB, AV1, AUX and
GAME
5. FMM Source Select Control
Used to select the frequency in sequence rotation:
FMM OFF, CH1 88.1MHZ, CH2 88.3MHZ, CH3 88.5MHZ,
CH4 88.7MHZ, CH5 88.9MHZ, CH6 89.1MHZ, CH7
89.3MHZ, CH8 89.5MHZ, CH9 89.7MHZ, CH10 89.9MHZ,
CH11 90.1MHZ, CH12 90.3MHZ, CH13 90.5MHZ, CH14
90.7MHZ,
CH15 90.9MHZ, CH16 91.1MHZ.
6. POWER ( ) Control
Used to turn the system on/off.
7. Dome Lights
Provide additional interior illumination.
5

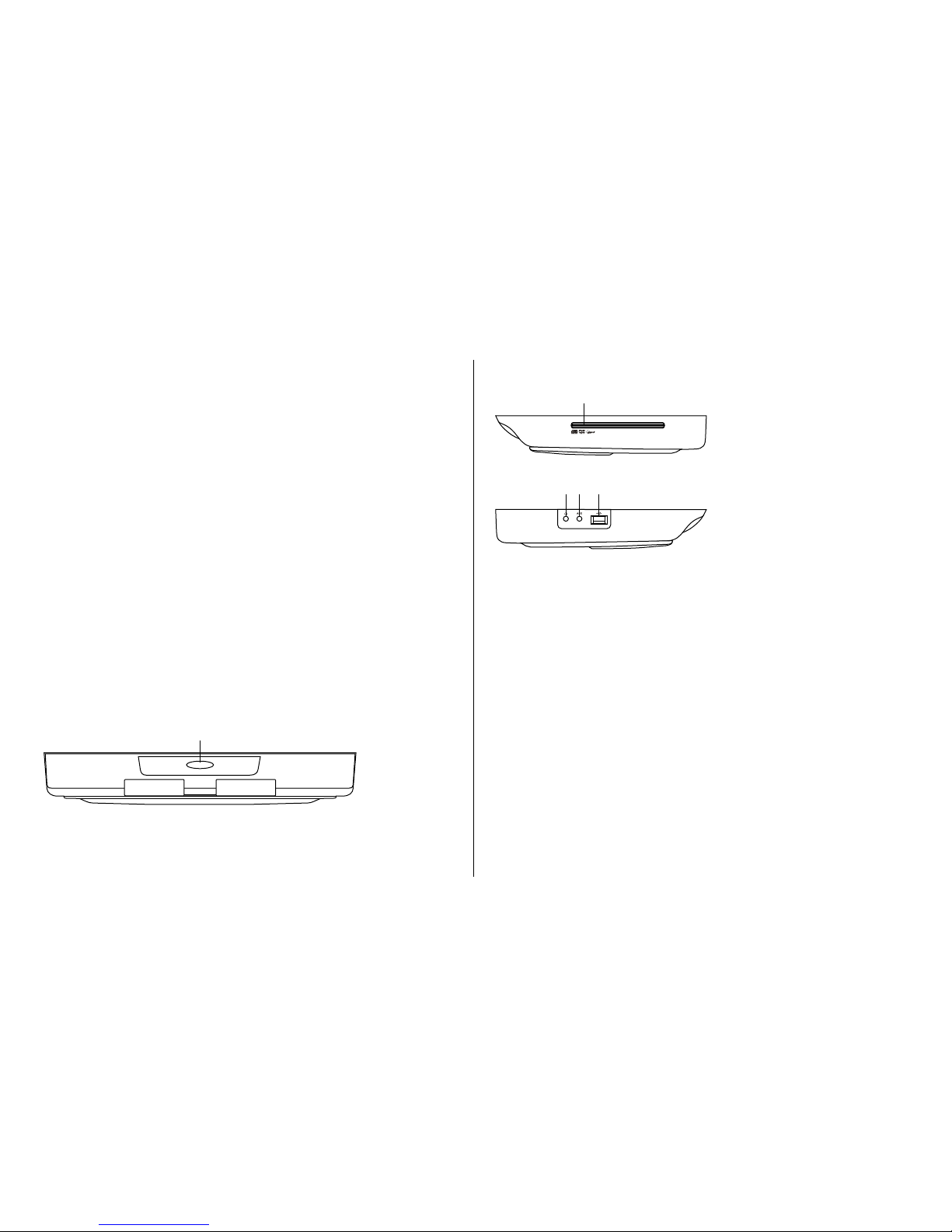

CONTROL FUNCTION DESCRIPTION
(SIDE VIEW)
1
2 3 4
CONTROL FUNCTION DESCRIPTION
(FRONT VIEW)
8. Infrared Transmitter and Sensor
Transmits audio to wireless headphones, allows the remote
control to operate the VOD129 and to control other accessories
in the system.
9. Three Position Dome Light Switch
ON - Turns on the dome lights.
OFF - The dome lights will not turn on in this position.
AUTO - Automatically switches on the dome lights in
Conjunction with the vehicle's interior illumination.
10. Ventilation Openings
11. LCD Cut Off Switch
Used to turn off the LCD monitor when in the closed position.
12. LCD Panel
13. Screen Release
Press to release the screen.
CONTROL FUNCTION DESCRIPTION
BACK
( VIEW) 1
1. REAR IR SENSOR
Transmits audio to wireless headphones, allows the remote
control to operate the VOD129 and to control other accessories in
the system.
1. DVD Disc insertion Slot
For loading and removing discs. Unit will turn On and load
disc when disc is inserted. Insert disc with label side facing
up.
Note: Disc slot will be lit when unit is turned Off for easy
loading at night.
2. HEADPHONE JACK
Allows the use of wired headphone with a 1/8” (3.5mm) plug
for listening to the audio output.
3. AUX IN
The Jack is used for audio and video input.
4. USB INPUT FOR USB THUMB DRIVE
Allows for the connection of an USB thumb drive or memory
device.
6
MAIN FUNCTION OPERATION
M1 M2
POWER EJECT
TV DVD
SOURCE
MUTE
DVD SOURCE VOLUME
PIX
SYSTEM MENU DISC MENU ZOOM
REPEAT
ENTER
SUBTITLE SETUPDISPLAY
AUDIO
1 2 3 4
5 6 7 8
9 0
IRT
ON/OFF
FMM
ON/OFF
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16 17
18
19
20
21
22
23
24
25
26
27
28
29
30
CR2025
REMOTE CONTROL OPERATION
Initial Use
When purchased the remote control has a battery installed with a
Pull Tab to prevent battery discharge. Remove the Pull Tab before
attempting to use the remote.
Battery Replacement
1. Remove the battery holder.
2. Insert the battery into the battery holder and insert the battery
holder into the remote. Be sure to observe the correct polarity.
3. Align the battery holder with the remote control and push it in
until the holder clicks.
7
* Function control is available on the unit and the Remote Control.
** Function not available in this model.
1. POWER*
Press this button to turn the unit ON and OFF.
2. MONITOR SELECT
M1 Button – Sets the remote control code to allow control of the unit set to M1 mode.
M2 Button** – Sets the remote control code to allow control of the unit set to M2 mode.
3. SOURCE*
Each time the button is pressed, the unit will select various sources in the following sequence: (DVD/USB, AV1, AUX and GAME).
4. TV Mode Select
Switches certain function keys on the remote control for monitor functions.
5. DVD Source
This button is only active when remote control is in DVD mode. Each time the button is pressed one of the source (DVD or USB) will
be selected. If the USB is not plugged in, it will remain on DVD source. Press to change source in sequence of DVD > USB.
6. PIX ( Picture Select )
Each time this button is pressed, the OSD picture adjustment displays the “Adjustment Bar” for BRIGHTNESS, CONTRAST, COLOR,
TINT or RESET. Once the desired adjustment bar is displayed, use the VOLUME (+)/VOLUME (–) button to adjust the setting. The
display will automatically turn off if no adjustments are made within 6 seconds, or if any other button is pressed.
7. SYSTEM MENU
Allow the user to access the system menu. Press cursor (pq) buttons to select desired screen mode, FMM frequency, OSD language and
source default during power up.
8. CURSOR (pqtu)
Use these buttons to access menu selections on the screen.
8
9. ENTER
Used to implement a selected setting or menu option.
10. DISPLAY
Press to display the current disc information while the disc is playing. Press the cursor (pq) buttons to select the Title or Chapter. For
Title/Chapter selection use the numeric buttons to enter the desired Title Chapter selection.
11. SCAN BACKWARD (7)
Press to search in a backward direction. Press repeatedly to change the search speed from 2, 4, 8, 16 times the normal speed.
12. PLAY*
Press to activate the play mode while a disc is loaded in the disc compartment.
13. PREVIOUS (9)
Press to return to the previous chapter or track.
14. PAUSE (II)
Press to pause playback. Pressing the PAUSE button again or pressing the PLAY Button will resume normal playback.
15. NUMBERS
Allow the user to enter the numbers 0-9 for selection of the tracks, titles chapters or password setting.
16. FMM ON/OFF
Turns the FM Modulator on/off.
17. IRT ON/OFF (Optional)
Turns the Infrared Transmitter ON or OFF for IR Wireless Headphones.
18. NEXT (:)
Press to skip to the next chapter or track.
9
19. STOP (<)*
Press the STOP button once to stop playback. (Playback will resume from the point it is stopped).
Press the STOP button twice to stop playback. (Playback will resume from the beginning of the disc).
20. SCAN FORWARD (8)
Press to search in a forward direction. Press repeatedly to change the search Speed from 2, 4, 8, 16 times the normal speed.
21. AUDIO
Press to display and select Audio language in DVD mode. Each time you press the button, the language changes.
Note: The available languages vary from disc to disc.
22. SETUP
Press to display the Setup Menu which allows the user to change the DVD player options such as Language, Video, Rating and Misc.
Refer to the settings and adjustments section for more information.
23. SUBTITLE
Press to display and select the subtitle language in DVD mode. Each time you press the button, the subtitle language changes.
Note: The type and number of languages for subtitle vary from disc to disc.
24. REPEAT
Allows the user to repeat a selected title, chapter, or track.
25. DISC MENU
Allow the user to access the DISC’s menu mode.
26. ZOOM
Press this button to enlarge the picture when playing a DVD disc.
Press ZOOM button DVD player perform
Once Q1- Enlarge the picture 2 times of the original size
Twice Q2- Enlarge the picture 3 times of the original size
3 times Q3- Enlarge the picture 4 times of the original size
4 times Q off- Picture is returned to original size
27. VOLUME DOWN (-) or UP (+)
Press to decrease or increase the volume of the wired headphones. Press to decrease or increase the level of the picture settings.
The settings are available after the picture select button is pressed.
28. DVD Mode Select Button
Switches certain function keys on the remote control for DVD function.
29. MUTE
Press this button to mute the audio for wireless FMM, IR headphones and wired headphones.
Pressing the button again restores the sound to the previously set level.
30. EJECT ()*
This button is used to eject the disc.
10
Este manual sirve para los siguientes modelos
1
Otros manuales de Sistema de vídeo para coche de Audiovox
Audiovox
Audiovox Mobile Video HR7010PKG Manual de usuario
Audiovox
Audiovox Mobile Video 128-8770 Manual de usuario
Audiovox
Audiovox PROV710 S Manual de usuario
Audiovox
Audiovox AVXMTG10UA Manual de usuario
Audiovox
Audiovox MMD85 - 8.5 Inch Dropdown Video Monitor Manual de usuario
Audiovox
Audiovox VOD80 Guía de inicio rápido
Audiovox
Audiovox MOVIES 2 GO MMD850 Manual de usuario
Audiovox
Audiovox VOH-642 Manual de usuario
Audiovox
Audiovox VOD10PS2 - Car - 16:9 Flipdown Monitor Manual de usuario
Audiovox
Audiovox VOD710 - DVD Player With LCD Monitor Manual de usuario
Audiovox
Audiovox VOD10 - Car - Overhead LCD Monitor Manual de usuario
Audiovox
Audiovox VOD 808 Manual de usuario
Audiovox
Audiovox HR7008APKG Manual de usuario
Audiovox
Audiovox VOH802 - VOH 802 - LCD Monitor Manual de usuario
Audiovox
Audiovox VM9423 Manual de usuario
Audiovox
Audiovox VODDLX10 Manual de usuario
Audiovox
Audiovox Mobile Video VOD128A Manual de usuario
Audiovox
Audiovox VBP4000 - VBP 4000 DVD Player Manual de usuario
Audiovox
Audiovox VOD102 - DVD Player With LCD Monitor Manual de usuario
Audiovox
Audiovox Mobile Video HR7010PKG Manual de usuario
