Model APS-2K4MS

Programming Guide

The APS-800/875 Models have a configurable receiver that

allows the transmitter to be programmed to operate the Lock

Unlock functions with one transmitter button or with two transmitter

buttons (separate Lock/Unlock). In addition, the receiver also allows

driver priority function. This driver priority function takes place

when ever a particular transmitter is used to unlock the vehicle

regardless of the selection of one button or two button operation.

The following indicates the receiver programmable slots.

1 Lock/Unlock or Lock

2 Unlock if Programmed

3 Trunk Release & or Remote Start (Optional)

4 Auxiliary Output

5 Auxiliary Output

6 Driver 1 Priority or Separate Output

7 Driver 2 Priority or Separate Output

Receiver channels 6 or 7 will accept the programming of transmitter

channel 1 if used as the Lock/Unlock button, or Channel 2 when

separate Lock Unlock buttons are programmed. In this way, whenever

the transmitter is used to unlock the vehicle, channel 6 or 7, when

programmed, will provide a pulsed ground output. This output can be

connecter to the driver priority function of the vehicle to reset preset

user features. Please consult with your installation centers technician

to see if this feature is available in your vehicle.

Note: A total of 4 transmitters may be programmed into any receiver

channel.

Force programming a transmitter, removing a transmitter or reprioritizing

a transmitter is covered later in this manual.

Also, if you do not program a transmitter button into channel 2 which is

the separate unlock/disarm channel, then whatever button is

programmed into channel 1 will serve as both lock/arm & unlock/disarm.

TO ENTER THE PROGRAM MODE:

1. Turn the ignition switch to the “ON” position.

2. Within 10 seconds, Press and release the valet/program switch

three times.

(Siren emits 1 short chirp indicating channel 1 has been entered)

3. Within 10 Seconds, Press and hold the button of the first transmitter

you wish to control the Lock&Arm feature of your security system

until a long chirp is heard from the siren.

(Repeat this for each transmitter you wish to operate the Lock/Arm

feature).

4. Within 10 seconds, press and release the valet program switch one

time.

(Siren emits 2 short chirps indicating channel 2 has been entered)

5. Within 10 Seconds, Press and hold any unused button(s) of the

first transmitter you wish to control the Unlock/Disarm feature of

your security system until a long chirp is heard from the siren.

Note: This channel is used only if you desire separate control of the

Lock/Unlock feature. If you wish to operate the Lock/Unlock

features from a single button, move onto step 6 as whatever

button is programmed into channel 1 will control both Lock &

Arm/Unlock & Disarm.

(Repeat this for each transmitter you wish to operate the Unlock/Dis-

arm feature).

6. Within 10 seconds, press and release the valet program switch one

time.

(Siren emits 3 short chirps indicating channel 3 has been entered)

7. Within 10 Seconds, Press and hold any unused button(s) of the

first transmitter you wish to control Channel 3 output, (Trunk Re-

lease) until a long chirp is heard from the siren.

(Repeat this for each transmitter you wish to operate the Channel 3

output (Trunk Release)

8. Within 10 seconds, press and release the valet program switch one

time.

(Siren emits 4 short chirps indicating channel 4 has been entered)

9. Within 10 Seconds, Press and hold any unused button(s) of the

first transmitter you wish to control Channel 4 output, (Auxiliary

Output 1) until a long chirp is heard from the siren.

(Repeat this for each transmitter you wish to operate the Channel 4

output)

10. Within 10 seconds, press and release the valet program switch

one time.

(Siren emits 5 short chirps indicating channel 5 has been entered)

11. Within 10 Seconds, Press and hold any unused button(s) of the

first transmitter you wish to control Channel 5 output, (Auxiliary

Output 2) until a long chirp is heard from the siren.

(Repeat this for each transmitter you wish to operate the Channel 5

output)

12. Within 10 seconds, press and release the valet program switch

one time.

(Siren emits 6 short chirps indicating channel 6 has been entered)

13. Within 10 Seconds, Press and hold the unlock button, (or any un-

used button(s)), of the first transmitter you wish to control Channel

6 output, (Driver Priority 1) until a long chirp is heard from the siren.

(Repeat this for each transmitter you wish to operate the Channel 6

output, Driver Priority 1)

14. Within 10 seconds, press and release the valet program switch

one time.

(Siren emits 7 short chirps indicating channel 7 has been entered)

15. Within 10 Seconds, Press and hold the unlock button (or any

unused button(s)) of the first transmitter you wish to control

Channel 7 output, (Driver Priority 2) until a long chirp is heard from

the siren.

(Repeat this for each transmitter you wish to operate the Channel 7

output, Driver Priority 2)

NOTE: Channels 6 and 7 can be used as a separate output to control a

function other than driver priority. Simply programming any un-

used transmitter button other than the unlock button will allow

complete independent control of these outputs.

ERASING TRANSMITTERS IF THEY HAVE BEEN LOST OR STOLEN:

NOTE: Before you begin to erase the lost or stolen transmitter(s), have

all transmitters available that you wish to remain programmed.

These will be used during the program process to identify

transmitters that will continue to be used.

Enter the transmitter program mode:

1. Turn the ignition switch to the “ON” position.

2. Within 10 seconds, press and release the valet/program switch

three times.

(Siren emits 1 short chirp indicating channel 1 has been entered)

3. Within 10 Seconds, Press and hold the ARM or ARM/DISARM

button of the first transmitter you wish to remain stored into the

control unit until a single chirp is heard from the siren.

(Repeat this for each transmitter you wish to remain stored in the

control unit).

The receiver stores up to four transmitters. To be certain all transmitter

slots in the receiver are occupied with transmitters you wish to con-

tinue to use and all others are erased, you will have to fill all four re-

ceiver slots. If in step 3 you identified one transmitter, you will have to

fill the additional 3 slots. If in step 3 you identified two transmitters, you

will have to fill the additional two slots, etc...

4. Press and hold any unused button or combination of buttons until a

long chirp is heard from the siren. Release and press the button or

button combination again and again until all remaining slots are

full.

Repeat this procedure with the appropriate transmitter buttons for all

other receiver channels.

REPRIORITIZING A TRANSMITTER’S

PROGRAMMING:

To reprogram a receiver channel with a differ-

ent transmitter button once a code has been

stored, there will be two options:

1. Enter the transmitter program mode of the

receiver channel to be reprogrammed. Us-

inganyunusedbuttonorcombinationofbut-

tons, push out the stored code by pressing

theunusedbutton until a long chirp is heard,

then repeat 3 additional times. After this,

you can add any desired unused transmit-

ter button. This action erases only that par-

ticular receiver channel, all other codes will

remain stored.

800-225-6074

FCC ID ELVA------

APS2K4MS

PhilipsScrew

2. Enter the transmitter program mode. Using any transmitter button

press and hold until a long chirp is heard. If a single chirp or mul-

tiple chirps, (up to 7 chirps), are heard, the unit is indicating that the

transmitterhas already been programmed elsewherein the receiver.

Release the transmitter button and within 5 seconds press and hold

until a long chirp is heard. This action forces the unit to erase all

stored codes of that transmitter.

The unit then exits the program mode the siren emits the program mode

exit chirp pattern. All transmitter buttons for that transmitter must now

be reprogrammed. Any other transmitter stored in the unit’s memory

still remain operational. If the button is released and not pressed again

within the 5 second period, no change in programming has been made

to the receiver channel. The programmer can move onto a different

channel or erase the transmitter codes as described in 1 above.

REPLACING THE BATTERY:

You will notice a decrease in transmitter range as the battery condition

deteriorates. Transmitter battery replacement is recommended at least

every 10 to 12 months, depending upon how frequently the transmitter

is used.

Thetransmitter has a small LEDbuilt into the unit. ThisLED can be used

to indicate battery condition. If the LED does not illuminate, then the

battery is discharged, and must be replaced.

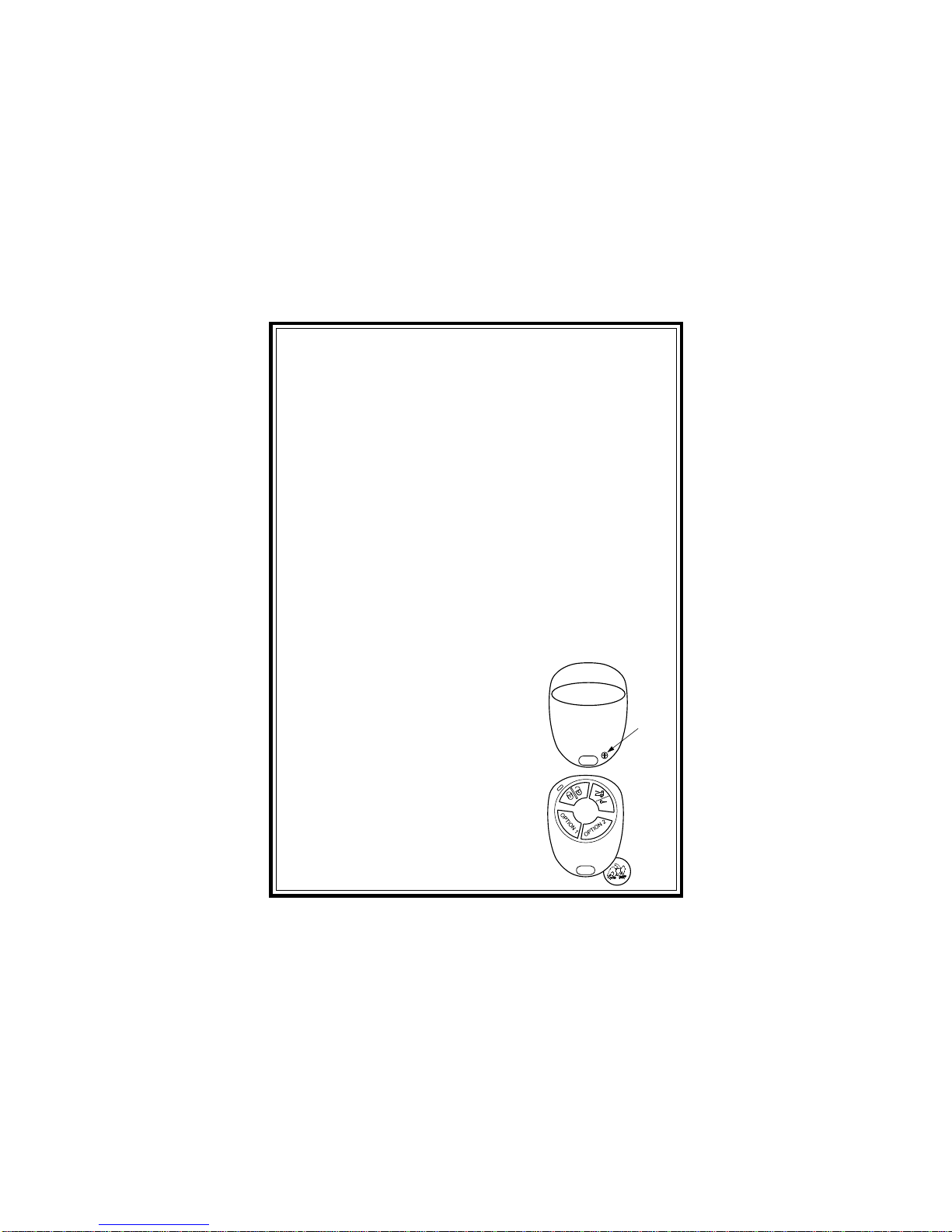

To replace the transmitter battery:

1. Remove the small Phillips head screw from the bottom cover of the

transmitter.

2. Using a coin or flat screwdriver blade, carefully

unsnap the top cover of the transmitter from the

bottom cover.

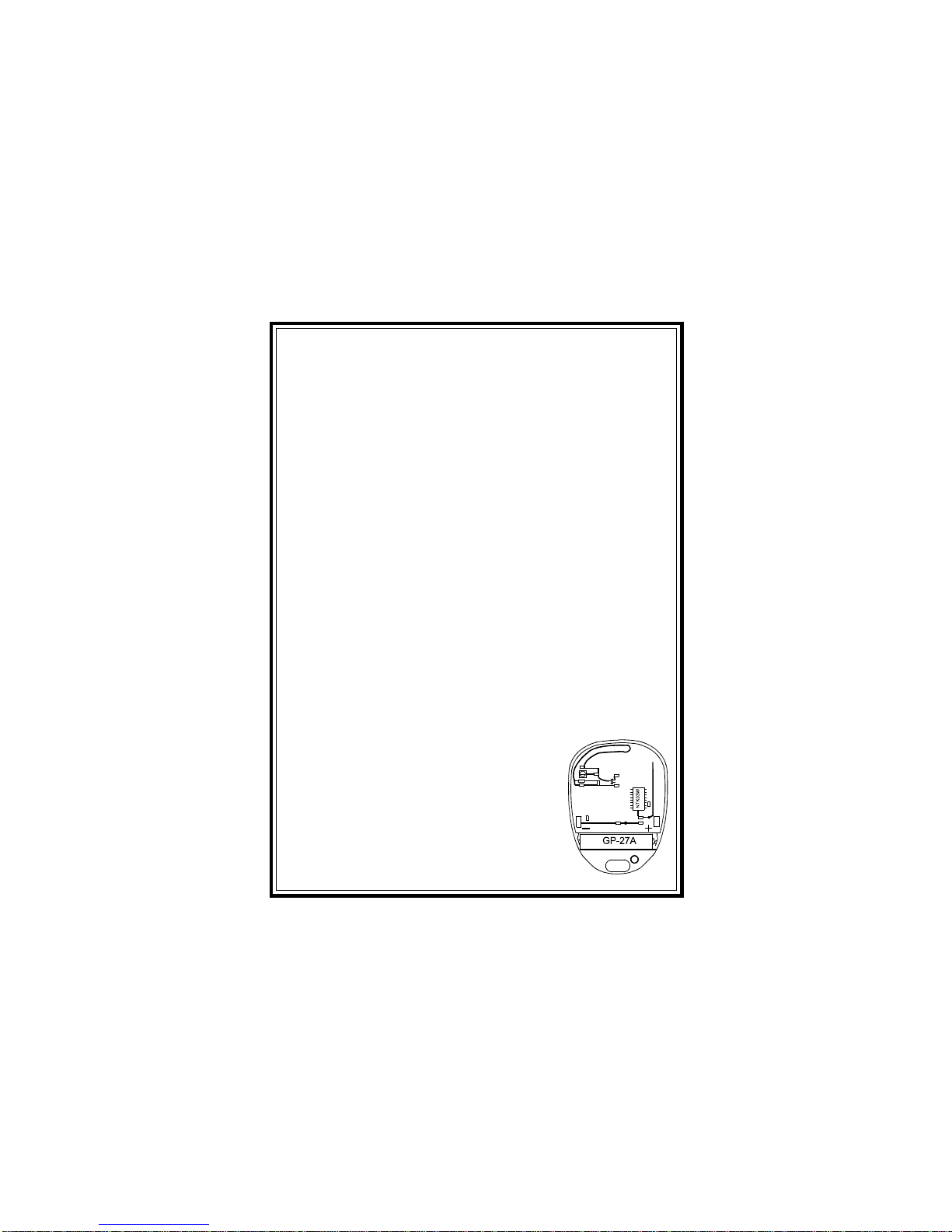

3. Remove the discharged battery, making note of

the location of the + and - contacts, and replace

with a new type GP 27A 12 volt battery.

4. Replace the transmitter cover, taking care not to

damage the circuit board or rubber button pad in

the housing. Secure the cover with the small

Phillips head screw removed in step 1.

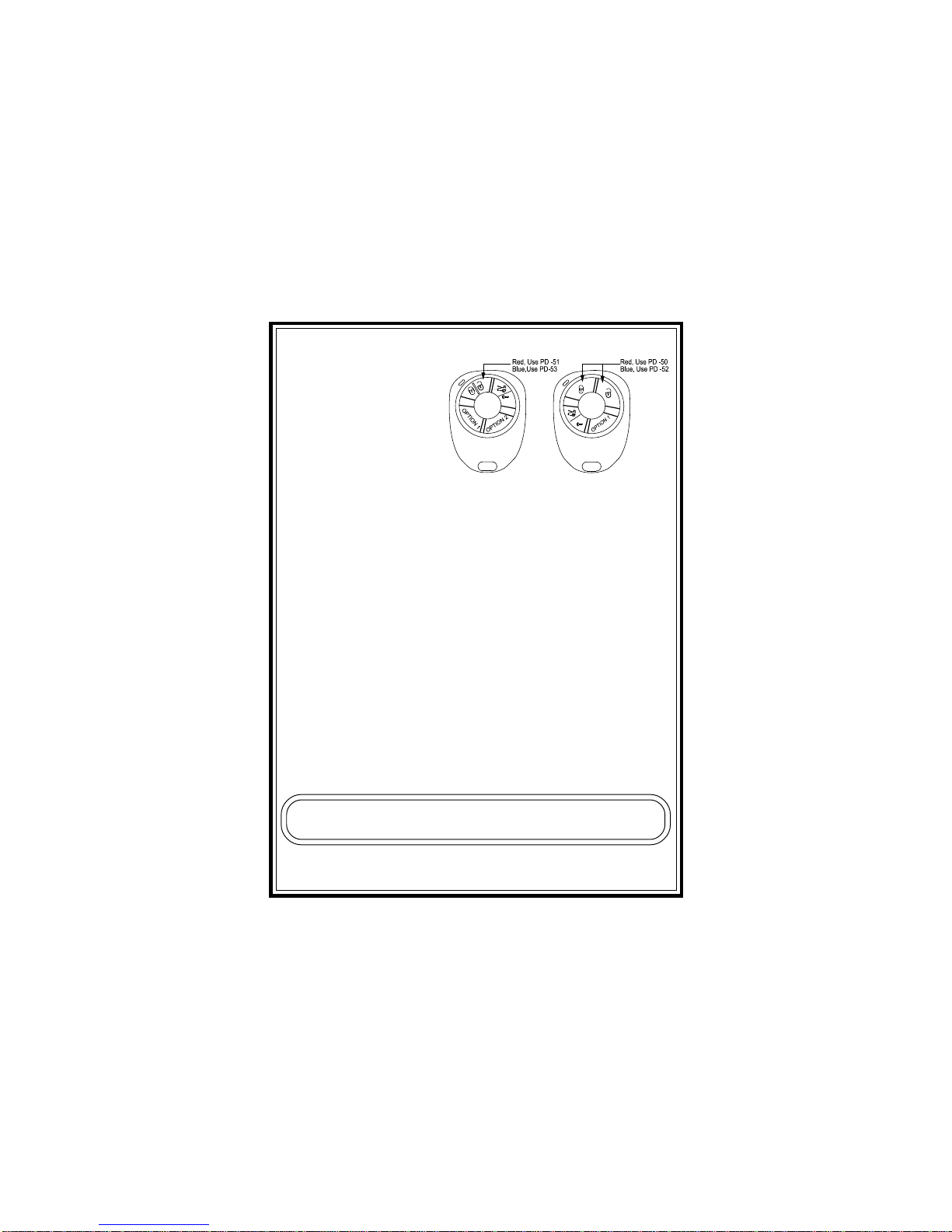

1) Pad Number: _____________________________________

2) Name: __________________________________________

3) Address: ________________________________________

4) City: ________________ State: _____ Zip Code: ________

5) Telephone Number: (_____) _______________

6) Total Number Of Transmitters Required:

Cost Per Transmitter is: $65.00

Multiply By Number Of Transmitters X ______

7) Enter Total Amount Enclosed _________________

(New York State Residents must include the appropriate sales tax)

8) Method of Payment:

qMastercard qVisa qCheck or Money Order (do not send cash)

Make Checks Payable To Audiovox Corporation

Credit Card Number: _________________________________

Credit Card Expiration Date: ____ / _____ / _____

9) Mail this form along with your payment to:

ORDER FORM FOR TRANSMITTER APS-2K4MS

Audiovox Electronics Corp., 150 Marcus Blvd., Hauppauge, N.Y., 11788

Attn.: TRANSMITTER DEPARTMENT

Attention:

Transmitter Ordering

Department

Important: To help us

expedite yourorder,please

print all of the information

legibly and mail this form

andyourpaymentaccording

to the instructions below.

Indicate the pad number of your transmitter selected from the

pads shown above.

(Credit card purchasers can order additional or replacement

transmitters by phone. Simply dial 1 - 800 - 645 - 4994, and

follow the instructions from the operator interface.

Tabla de contenidos

Otros manuales de Alarma de coche de Audiovox

Audiovox

Audiovox Pursuit 07S3BPr Instrucciones de funcionamiento

Audiovox

Audiovox Pursuit PRO 9842 Manual de usuario

Audiovox

Audiovox Prestige Platinum APS 600 Manual de usuario

Audiovox

Audiovox UTX-ETX Instrucciones de funcionamiento

Audiovox

Audiovox Prestige Platinum APS-786T Manual de usuario

Audiovox

Audiovox Platinum APS 996 Manual de usuario

Audiovox

Audiovox Prestige Platinum APS-255 Manual de usuario

Audiovox

Audiovox Prestige APS-35-CL Manual de usuario

Audiovox

Audiovox Pursuit PRO9776C Manual de usuario

Audiovox

Audiovox Pursuit PRO-9344FT Manual de usuario

Audiovox

Audiovox Prestige 128-8601 Manual de usuario

Audiovox

Audiovox Keyless Entry Alarm Upgrade Module APS-30 Manual de usuario

Audiovox

Audiovox Prestige Platinum APS-350-A Manual de usuario

Audiovox

Audiovox Prestige Platinum 128-8549 Manual de usuario

Audiovox

Audiovox Pursuit PRO-9800 Manual de usuario

Audiovox

Audiovox Pursuit PRO-9349FT Manual de usuario

Audiovox

Audiovox APS255A - Car 2 Prestige Platinum Code Learning 3 Button Security... Manual de usuario

Audiovox

Audiovox Pursuit PRO 9232a Manual de usuario

Audiovox

Audiovox Professional PS-330i Manual de usuario

Audiovox

Audiovox Prestige 5BLCR Instrucciones de funcionamiento

Audiovox

Audiovox PS-130I Manual de usuario

Audiovox

Audiovox AVX1B4S Instrucciones de funcionamiento

Audiovox

Audiovox Prestige APS-15CH Manual de usuario

Audiovox

Audiovox 5BCR03 Instrucciones de funcionamiento

Manuales populares de Alarma de coche de otras marcas

Clifford

Clifford 3606X Manual de usuario

Ultra Start

Ultra Start 2500M SERIES Manual de usuario

Ultra Start

Ultra Start 650 Series Manual de usuario

Sparkrite

Sparkrite SRA8 Manual de usuario

Viper

Viper 4708V Manual de usuario

Federal Signal Corporation

Federal Signal Corporation Pathfinder Siren Series Manual

Falcon

Falcon Predator XL3 Guía del usuario

Clifford

Clifford Sabre II Manual de usuario

CrimeStopper

CrimeStopper CS-8717 Guía de inicio rápido

Ultra Start

Ultra Start 450 SERIES Manual de usuario

Scytek electronic

Scytek electronic Vectra X3 Manual de usuario

Excalibur

Excalibur AL-1860-EDPB Manual de usuario

Clifford

Clifford CYBER 2 Manual de usuario

Gemini

Gemini 7057 Manual de usuario

FlashLogic

FlashLogic FLRSBA PRESTIGE Manual de usuario

Magicar

Magicar FAI-440 Manual de usuario

Clifford

Clifford Nova 3 Manual de usuario

Viper

Viper 560XV Manual de usuario
