Audiovox Prestige APS-2K4 Instrucciones de funcionamiento

BUTTON RECEIVER

CHANNEL SYSTEM FUNCTION

Lock And Arm Alarm, also initiate and

terminates *Panic

Unlock And Disarm, also initiates and

terminates *Panic. Programmable to

unlock drivers door and or all doors.

Lock and arm/unlock and disarm. May be

programmed to unlock driver's door or all

doors. Also will initiate and terminate

*Panic.

Pulsed or switched output to control

Remote Trunk Release or optional device

connected to channel 3.

When pressed and release two times, will

provide pulsed output or activate the

Remote Start option when installed.

Whensoequipped,thisbuttoncanbeused

to operate an optional device connected

to channel 4.

Whensoequipped,thisbuttoncanbeused

to operate an optional device connected

to channel 5.

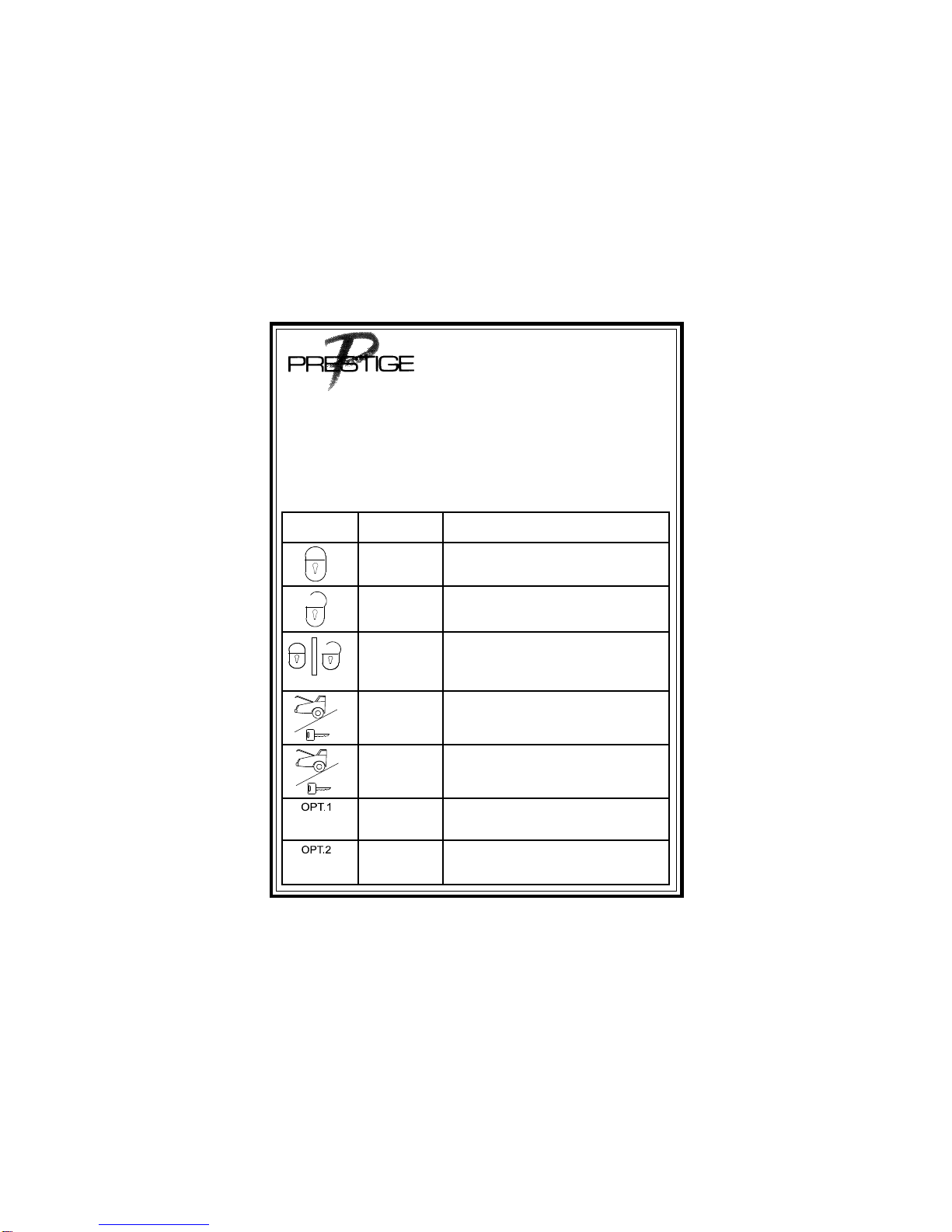

This transmitter makes use of icons (symbols) to identify the reaction

your security system/keyless entry/and or remote start system, where

applicable, will have when any icon (button) is pressed. These icons

are programmed at time of installation to meet the needs of the individual

and to complement the vehicle that the system is installed in. To replace

a transmitter or add transmitters, please follow the programming

instructions listed on the pages of this manual.

Transmitter Programming Guide

Model APS-2K4

* Where So Equipped

Some of the more popular options available for the unused Option

Buttons of your transmitter are:

AS 9554 Remote Garage Door Interface

AS 9075 Remote car starter

AS 9153 Remote window roll up

AS 9256 Remote trunk release relay

Although the most common use of the transmitter buttons are shown on

the front page of this guide, any button or button combination can be

programmed into any receiver channel. Additionally, if all 4 buttons are

used and you require access to a 5th channel, you would program a

combination of buttons to control the 5th function. i.e... you have

programmed lock for arm, unlock for disarm, trunk for trunk release,

and OPT1 for garage door operation, and you've added a window up

module that you want independent control of, you would program unlock

andtrunk buttonspressed simultaneouslyinto thereceiver tocontrol this

function independently. Also, if you do not program a transmitter button

into channel 2 which is the separate unlock/disarm channel, then

whatever button is programmed into channel 1 will serve as both

lock/arm & unlock/disarm.

PROGRAMMING TRANSMITTERS:

NOTE: It is important to remember that during the programming mode,

each individual step must be completed within 15 seconds of the

previous step. If the 15 second time limit expires between steps,

the unit will automatically exit the program mode. This is

indicated by a long chirp from the siren.

Non alarm models will flash the parking lights only to confirm the

transmitter code has been learned and stored.

NOTE: Because the system may be capable of sounding a siren, the

vehicle horn, or both, where the siren chirp is referenced below,

the siren may chirp, the horn may beep, or both devices may

sound.

TO PROGRAM ADDITIONAL TRANSMITTERS:

1) Enter the vehicle, and turn the ignition switch to the on position.

2) Press and release the valet push button switch three times.

3) The dash mounted LED will flash 1x, and the siren will chirp 1x,

indicating that the system is ready to accept programming of channel

#1 which is arm/lock, disarm/unlock/unlock 2, and panic functions.

4) Press andholdthe lockor lock/unlocksymbol buttonof thetransmitter

you wish to program for 4 seconds or until a long chirp is heard from

the siren.

"Repeat step 4 for each transmitter you wish to program".

NOTE: If your transmitter button has the Lock/Unlock icon on one

button, press and release the valet push button switch 2 times

then move on to step #8.

5) Press and release the valet push button switch onetime to advanceto

channel2. Thesiren willchirp 2times andthe dashmounted LEDwill

Flash 2 times, indicating that the unit is ready to accept programming

for channel # 2 which is only used for separate lock and unlock

button transmitters, and is the disarm/unlock/unlock 2 and panic.

6) Press and hold the unlock symbol button of the transmitter you wish

to program for 4 seconds or until a long chirp is heard from the

siren.

"Repeat step 6 for each transmitter you wish to program".

7) Press and release the valet push button switch one time to ad-

vance to channel 3. The siren will chirp 3 times and the dash

mounted LED will flash 3 times, indicating that the unit is ready

to accept programming for channel # 3 which is the trunk re-

lease/alternate output channel of the system.

8) Press and hold the trunk/key symbol button of the transmitteryouwish

to program for 4 seconds oruntil a long chirp is heard from the siren.

"Repeat step 8 for each transmitter you wish to program".

9) Press and release the valet push button switch one time to advance

tochannel 4ifso equipped.The sirenwill chirp4 timesand thedash

mounted LED will Flash 4 times, indicating that the unit is ready to

acceptprogrammingforchannel# 4,optionaldevice(whereequipped)

10) Press and hold the Option button of the transmitter you wish to

program for 4 seconds or until a long chirp is heard from the siren.

"Repeat step 10 for each transmitter you wish to program".

11) Press and release the valet push button switch one time to advance

tochannel 5 ifso equipped. Thesiren willchirp 5times andthe dash

mounted LED will Flash 5 times, indicating that the unit is ready to

acceptprogrammingforchannel#5 optionaldevice(where equipped)

12) Press and hold the second Option button of the transmitter you wish

to program for 4 seconds or until a long chirp is heard from the siren.

"Repeat step 12 for each transmitter you wish to program".

ERASINGTRANSMITTERS IFTHEYHAVE BEENLOSTOR STOLEN:

NOTE: Before you begin to erase the lost or stolen transmitter(s), have

all transmitters available that you wish to remain programmed.

These will be used during the program process to identify

transmitters that will continue to be used.

Enter the transmitter program mode:

1. Turn the ignition switch to the “ON” position.

2. Within10 seconds,press andrelease thevalet/program switchthree

times. (Siren emits 1 short chirp indicating channel 1 has been

entered)

3. Within 10 Seconds, Press and hold the ARM or ARM/DISARM

button of the first transmitter you wish to remain stored into the

control unit until a single chirp is heard from the siren.

(Repeat this for each transmitter you wish to remain stored in the control

unit).

The receiver stores up to four transmitters. To be certain all transmitter

slots in the receiver are occupied with transmitters you wish to continue

to use and all others are erased, you will have to fill all four receiver

slots. If in step 3 you identified one transmitter, you will have to fill the

additional 3 slots. If in step 3 you identified two transmitters, you will

have to fill the additional two slots, etc...

4. Press and hold any unused button or combination of buttons until a

long chirp is heard from the siren. Release and press the button or

button combination again and again until all remaining slots are full.

NOTE: The button or combination of buttons entered will also control the

armor arm/disarmfunctionuntil additionaltransmittersare added.

All unwanted transmitters are now deleted.

REPRIORITIZING A TRANSMITTER’S PROGRAMMING:

To reprogram a receiver channel with a different transmitter button once

a code has been stored:

1. Enter the transmitter program mode of the receiver channel to be

reprogrammed. Using any unused button or combination of buttons,

push out the stored code by pressing the unused button until a long

chirp is heard, then repeat 3 additional times. After this, you can add

any desired unused transmitter button. This action erases only the

buttonstored ofthe transmitter youare programming. Allothercodes

will remain stored.

2. Enter the transmitter program mode. Using any transmitter button

press and hold until a long chirp is heard. If a single chirp or multiple

chirps, (up to 7 chirps), are heard, the unit is indicating that the

transmitter has already beenprogrammed elsewherein the receiver.

Release the transmitter button and within 5 seconds press and hold

until a long chirp is heard. This action forces the unit to erase all

stored codes of that transmitter.

The unit then exits the program mode the siren emits the program mode

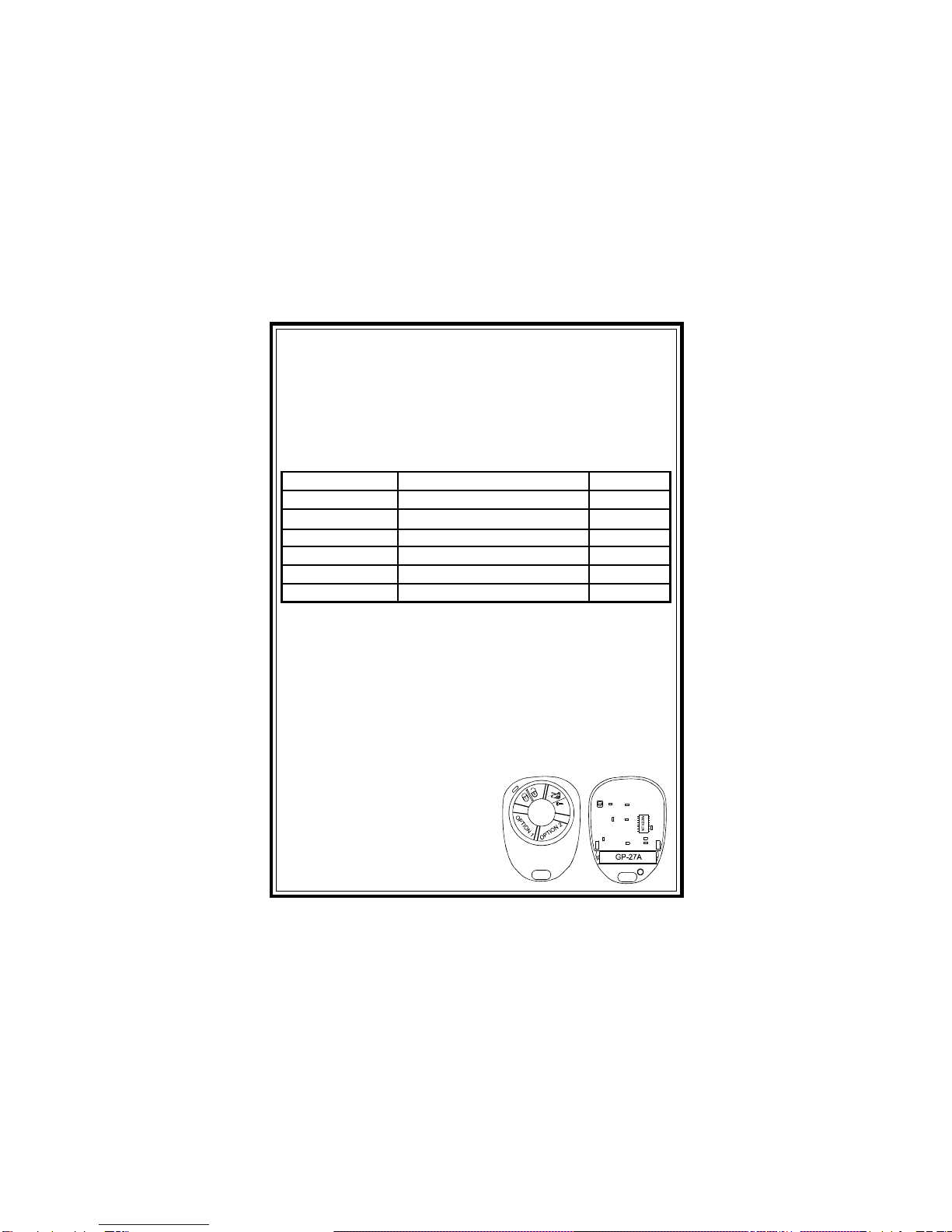

BATTERY REPLACEMENT:

Thetransmitter incorporatesa smallLED visiblethrough thecase which

is used to indicate battery condition. You will notice a decrease in

transmitter range as the battery condition deteriorates.

To replace the battery:

1) Remove the small # 0 phillips head screw from the rear of the case.

2) Remove the rear cover to access the discharged battery paying

attention to the proper polarity orientation.

3) Carefully remove and properly dispose of the discharged battery.

4) Insert the new battery, close the case, then reinstall the small case

screw removed in step 1.

5) If you accidently dislodge the circuit board from the transmitter

housing, be certain that the rubber

membrane is seated properly, and

the buttons are properly exposed

fromthe front view of the case, then

insert the circuit board and return

to step #4.

QUICK REFERENCE CHART:

You can program any individual channel without reprogramming all

channels. To go directly to a particular receiver channel follow the

chart below:

CHANNEL

1 Ign. On Then

2 Ign. On Then

3 Ign. On Then

4 Ign. On Then

5 Ign. On Then

6 Ign. On Then

VALET SWITCH

Press and Release 3 Times

Press and Release 4 Times

Press and Release 5 Times

Press and Release 6 Times

Press and Release 7 Times

Press and Release 8 Times

LED

1 Flashes

2 Flashes

3 Flashes

4 Flashes

5 Flashes

6 Flashes

exit chirp pattern. All transmitter buttons for that transmitter must now

be reprogrammed. Any other transmitter stored in the unit’s memory still

remain operational. If the button is released and not pressed again

within the 5 second period, no change in programming has been made

to the receiver channel. The programmer can move onto a different

channel or erase the transmitter codes as described in 1 above.

1) Pad Number: _____________________________________

2) Name: __________________________________________

3) Address: ________________________________________

4) City: ________________ State: _____ Zip Code: ________

5) Telephone Number: (_____) _______________

6) Total Number Of Transmitters Required:

Cost Per Transmitter is: $65.00

Multiply By Number Of Transmitters X ______

7) Enter Total Amount Enclosed _________________

(New York State Residents must include the appropriate sales tax)

8) Method of Payment:

qMastercard qVisa qCheck or Money Order (do not send cash)

Make Checks Payable To Audiovox Corporation

Credit Card Number: _________________________________

Credit Card Expiration Date: ____ / _____ / _____

9) Mail this form along with your payment to:

ORDERFORMFORTRANSMITTER APS-2K4

Audiovox Electronics Corp., 150 Marcus Blvd., Hauppauge, N.Y., 11788

Attn.:TRANSMITTERDEPARTMENT

Attention:TransmitterOrdering

Department

Important: To help us expedite

your order, please print all of

the information legibly and mail

this form and your payment

according to the instructions

below.

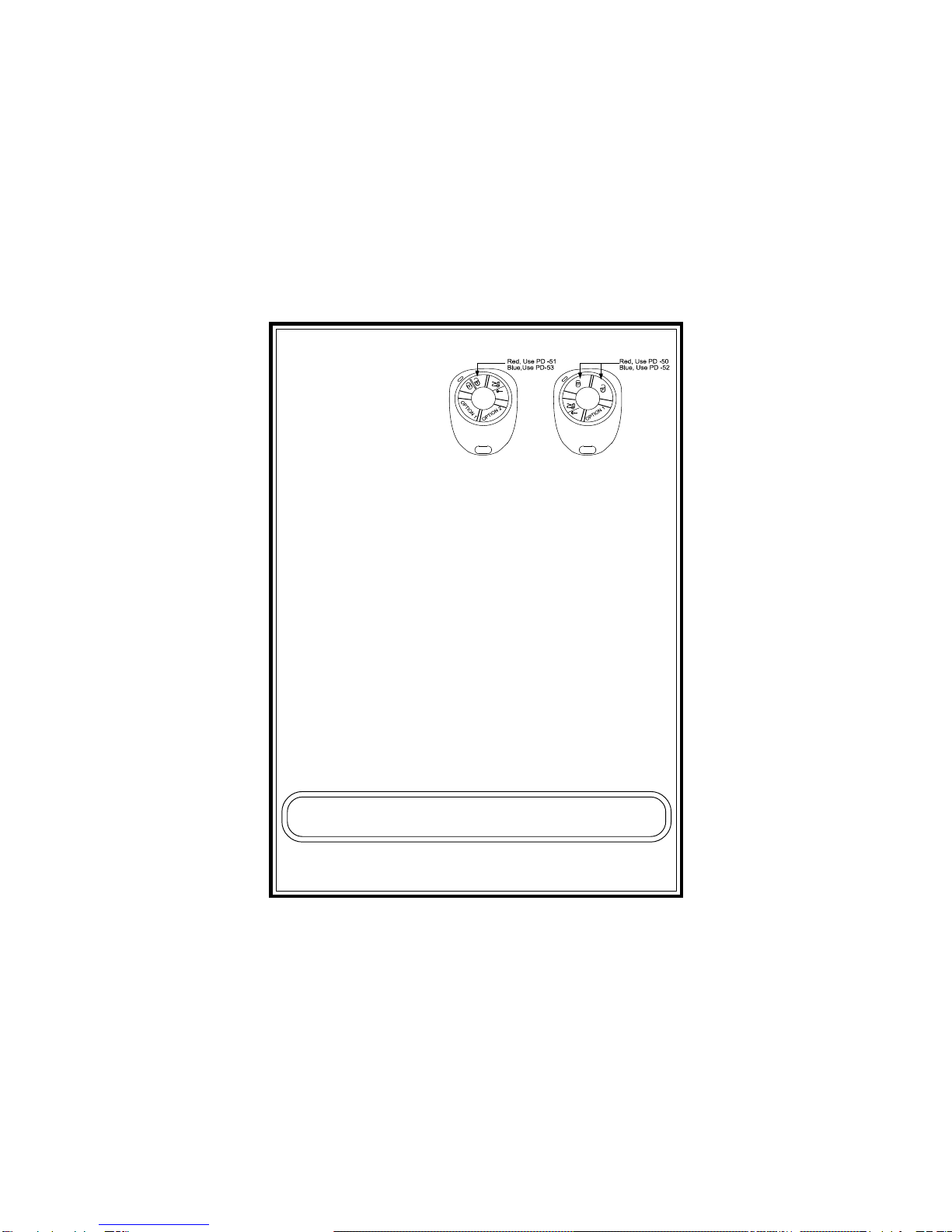

Indicate the pad number of your transmitter selected from the pads shown above.

Note: Transmitter model number found on back of case. ___________

(Credit card purchasers can order additional or replacement

transmitters by phone. Simply dial 1 - 800 - 645 - 4994, and

follow the instructions from the operator interface.

128-5754A

Tabla de contenidos

Otros manuales de Alarma de coche de Audiovox

Audiovox

Audiovox Pursuit PRO-9800 Manual de usuario

Audiovox

Audiovox Pursuit Pro 9544FT3 Manual de usuario

Audiovox

Audiovox Pursuit PRO 9842B Manual de usuario

Audiovox

Audiovox AS-9234 Manual de usuario

Audiovox

Audiovox Prestige Platinum APS-250-A Manual de usuario

Audiovox

Audiovox Prestige APS-25HJ Manual de usuario

Audiovox

Audiovox Pursuit IMO-720 Manual de usuario

Audiovox

Audiovox Prestige APS-15CL Manual de usuario

Audiovox

Audiovox APS-800 Manual de usuario

Audiovox

Audiovox Prestige Platinum APS-155 Manual de usuario

Audiovox

Audiovox Pursuit PRO-9642CH Manual de usuario

Audiovox

Audiovox Pursuit PRO 9649 Manual de usuario

Audiovox

Audiovox Prestige Platinum APS-596 Manual de usuario

Audiovox

Audiovox PRO-9276C Manual de usuario

Audiovox

Audiovox UltraGuard PRO 9549UG Manual de usuario

Audiovox

Audiovox Pursuit PRO-9776 Manual de usuario

Audiovox

Audiovox Prestige Platinum SS9000 Manual de usuario

Audiovox

Audiovox Pursuit PRO 9845B Manual de usuario

Audiovox

Audiovox Pursuit PRO 2000S Cómo utilizar

Audiovox

Audiovox 5BCR03 Instrucciones de funcionamiento

Audiovox

Audiovox Pursuit PRO-9056 Manual de usuario

Audiovox

Audiovox Prestige APS-25CH Manual de usuario

Audiovox

Audiovox Prestige Platinum APS 600 Manual de usuario

Audiovox

Audiovox Keyless Entry Alarm Upgrade Module APS-30 Manual de usuario

Manuales populares de Alarma de coche de otras marcas

Clifford

Clifford 3606X Manual de usuario

Ultra Start

Ultra Start 2500M SERIES Manual de usuario

Ultra Start

Ultra Start 650 Series Manual de usuario

Sparkrite

Sparkrite SRA8 Manual de usuario

Viper

Viper 4708V Manual de usuario

Federal Signal Corporation

Federal Signal Corporation Pathfinder Siren Series Manual

Falcon

Falcon Predator XL3 Guía del usuario

Clifford

Clifford Sabre II Manual de usuario

CrimeStopper

CrimeStopper CS-8717 Guía de inicio rápido

Ultra Start

Ultra Start 450 SERIES Manual de usuario

Scytek electronic

Scytek electronic Vectra X3 Manual de usuario

Excalibur

Excalibur AL-1860-EDPB Manual de usuario

Clifford

Clifford CYBER 2 Manual de usuario

Gemini

Gemini 7057 Manual de usuario

FlashLogic

FlashLogic FLRSBA PRESTIGE Manual de usuario

Magicar

Magicar FAI-440 Manual de usuario

Clifford

Clifford Nova 3 Manual de usuario

Viper

Viper 560XV Manual de usuario
