Rear Observation System Package

Model RVMPKG2

Owner’s Manual

Features:

•Rearview Mirror with 4” LCD

•2 Built in Speakers

•Rearview Camera Input

•Auxiliary Video Input

•Video System Auto Detection for PAL/NTSC

•Audiovox Navigation Input

•Cellular Phone Hands Free Input

•Hands Free Microphone Built-In

NOTE: Hands free feature may not operate with all cellular phones

and/or an adapter may be required. Rearview camera optional.

TABLE OF CONTENTS

Preface ................................................................................................... 3

Warning: Backing up vehicle ............................................................ 3

Cautions ................................................................................................. 3

I. Controls and Indicators ............................................................. 4

Mirror controls SW1, SW2 and SW 3:.......................................... 4

II. OPERATION……………………………………..…………..5

III. How to play an external audio or video signal........................ 6

IV. Cellular Phone Hands-Free Operation................................... 6

V. Volume Control……………………………………………...7

VI. LCD Monitor Brightness Control……………………………7

Maintenance………………………………………………………….. 7

Preface

There is a blind spot that exists at the back of a vehicle while the vehicle is in

reverse. Equipped with a camera, this rearview mirror/monitor ensures safety by

providing the driver with a clear and wide image of the area behind the vehicle

while it is in reverse.

Warning: Backing up vehicle

Do not back up vehicle while watching the mirror/monitor screen. Always look

in the direction of vehicle motion. Use the mirror/monitor as an aid in safety

confirmation. The distance looks different in the monitor. The actual distance is

shorter than it looks in the monitor. The range of image is limited.

Cautions

1. The product is intended to assist in safe driving and to allow the driver to

have a broader rearview during reversing. You, as the driver, are solely

responsible for the safe operation of your vehicle and the safety of your

passengers according to the country and their local traffic regulations. Do

not use any features of this system to the extent it distracts you from safe

driving. Your first priority while driving should always be the safe

operation of your vehicle. Audiovox Electronics Corp. cannot accept any

responsibility whatsoever for accidents resulting from failure to observe

these precautions or safety instructions

2. You are advised not to display the external video input while driving.

3. When using the hands free feature, you should observe the road situation

carefully to avoid traffic accidents.

4. Do not watch movies while driving.

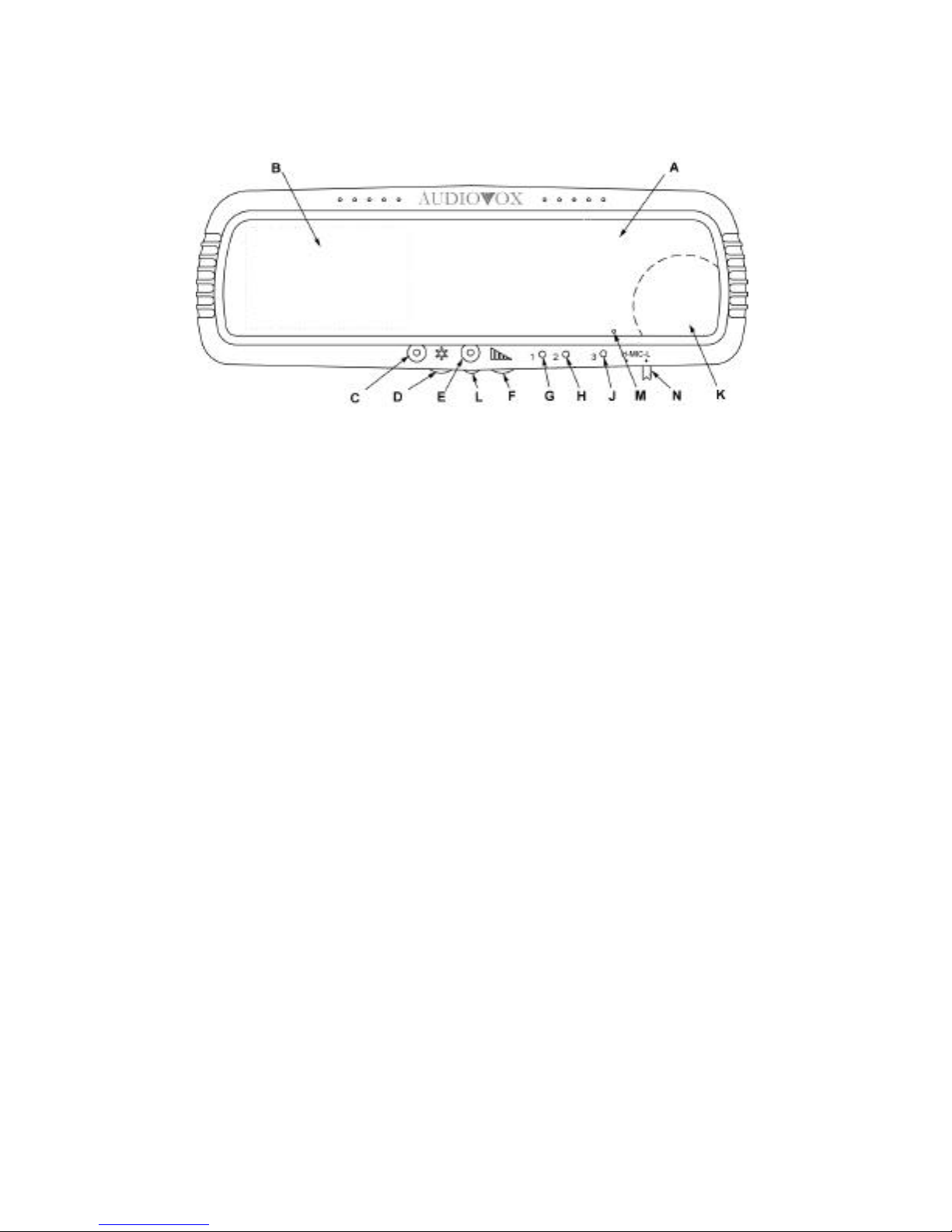

Figure 1

I. Controls and Indicators

Figure 1 illustrates the controls and indicators of the RVMPKG2 rear view

mirror:

A: Rearview mirror B: 4” LCD panel

C: Hands free Microphone D: Brightness Control

E: Power indicator (Red when ignition is on) F: Volume Control

G: Switch 1 (see below) H: Switch 2 (see below)

J: Switch 3 (see below) K: Speakers

L: Infra-RED receiver for M: 3-position switch for Navigation

Navigation remote control voice command display timer on rear of

Mirror (30 sec., 150 sec., 300 sec.)

N: 2-position Switch for handfree microphone Sensitivity High/Low Select

Mirror controls SW1, SW2 and SW 3:

1. Vehicle Reversing:

SW 1: No function LCD automatically turns on

SW 2: No function Rearview camera image appears on the mirror

SW 3: No function

2. Vehicle driving:

SW1: Turn on the Navigation display timer mode. When SW1 is pressed, the LED

will turn yellow. The navigation image will appear for the preset time 30sec, 2.5

minutes or 5 minutes. Once the preset time has expired, the LCD will return to its

previous state. The navigation image will reappear with the next voice command

prompt from the navigation computer.

SW2: Turns the navigation screen image on and off. Press once to turn on the

continuous Navigation display.

Press again to turn off the Navigation display. Then press SW 1 if you want to

engage the Voice command navigation display timer.

SW3: When pressed and held, the rear camera image appears on the mirror. When

released, the LCD will return to its previous appearance.

3. Vehicle Parked:

SW1: Used to turn the LCD on/off when using the AUX video and audio input. The

parking brake must be engaged.

SW2: Used to turn off and on the Navigation image.

SW: 3 When pressed and held, the rear camera image appears on the mirror. When

released the LCD will return back to its previous appearance.

Navigation Voice command display timer: There is a three-position switch located on the

bottom right rear of the mirror/monitor. The three settings are 30 seconds, 150 seconds and

300 seconds. The vehicle operator can select to engage the navigation display timer by

pressing SW 1 while the vehicle is going forward. The LED will turn yellow. The Navigation

Display will appear for the preset time whenever the navigation system issues an audible voice

command.

II. OPERATION

1. The Mirror/monitor is ready for operation every time the Ignition key is turned on.

The mirror/monitor turns off every time the Ignition is turned to the off position.

2. How to view the rear observation camera image:

A. The monitor will display the rear observation camera image whenever

the vehicle is shifted into the reverse gear. The rear observation camera

image turns off automatically any time the gear selector is moved out of

the reverse position.

B. If you want to view the rear observation camera image at any other time,

press and hold SW #3 on the rearview mirror. The image will remain on

as long as SW #3 is held on. Releasing the SW #3 will turn off the

image.

C. The mirror/monitor can be used as regular glass rearview mirror.

3. How to view the Navigation image:

Press SW # 2 to see the navigation display continuously. Press SW #2 again to

turn off the navigation display. If you want to engage the navigation voice

command timed display, make sure SW#2 is pressed until the image is gone. Then

press SW# 1, the LED will turn yellow and the navigation image will appear for

the preset time when-ever the navigation voice command is heard (30sec,2.5

minutes or 5 minutes).

III. How to play an external audio or video signal

1. You must always engage the vehicle’s parking brake to display any external

input signal.

2. Press SW #1 once to turn on the external signal input. The image will be

displayed as long as the ignition is turned on and the parking brake is on.

3. To turn off the external signal input, press SW #1on the mirror. The external

signal input will also be turned off if the parking brake is released or the

ignition key is turned off.

IV. Cellular Phone Hands -Free Operation

1. Attach the round metal adhesive disc to the back of your mobile phone while not in

use, and then attach the mobile phone adhesive magnetic seat to your selected spot

of the dash area. By placing your cell phone with the metal disc over the center of

the magnetic seat, your cell phone will be attached tightly to the dash.

2. Plug in the 2.5mm 3 bars hands-free cable into your cell phone headset jack. The

other end of this cable should be connected to the control box mounted under the

dash area. Note. If your cell phone does not have a 2.5mm with 3 bars headphone

jack then an adapter must be used for your particular cell phone. Also not all cell

phones are compatible with this mirrors hands free circuit.

3. To answer a call, press the receiving button on your cell phone as usual, the hands

free system will engage automatically.

4. The volume of the other party’s voice can be adjusted by turning the volume control

under the bottom of the mirror on the right side.

5. To end the call, press the hang-up button. The hands free function will turn off

automatically and several seconds later the system will go back to its original audio

input.

6. There is a switch labeled H MIC L on the right side of the mirror. Move the switch

to LOW if you hear feedback noise.

V. Volume Control

The volume adjustment control is on the right side of the bottom of the rearview mirror.

Rotating the wheel to the right will decrease the sound level. Rotating the wheel to

the left will increase the volume.

VI. LCD Monitor Brightness Control

The brightness adjustment control is on the left side of the bottom of the rearview mirror.

Rotating the wheel to the right will decrease the brightness. Rotating the wheel to the

left will increase the brightness.

Maintenance

Though your Rearview mirror requires little care, you can still maintain its excellent

condition and performance following the procedures below.

•Keep your system away from excessive moisture, extreme heat or cold and magnetic

fields.

•Keep liquids away from the display mirror.

•To avoid damage, do not place external devices or other objects on the top of the mirror.

•Occasionally wipe the rearview mirror set with soft, damp cloth.

•Occasionally clean the surface of the mirror with soft cloth moistened with water or

window cleaner.

128-6656
