AUDIOLINE 505 Manual de usuario

505

Two-way Speaker Telephone

Téléphone mains-libres

avec présentation du numéro

Telefon mit Freisprecheinrichtung

Telefono con vivavoce a due vie

Telefon z funkcją głośnomówiącą

English

French

German

Italian

Polish

User guide

Manuel d'utilisation

Bedienungsanleitung

Istruzioni per l’uso

Instrukcja obsługi

Downloaded from: http://www.guardianalarms.net

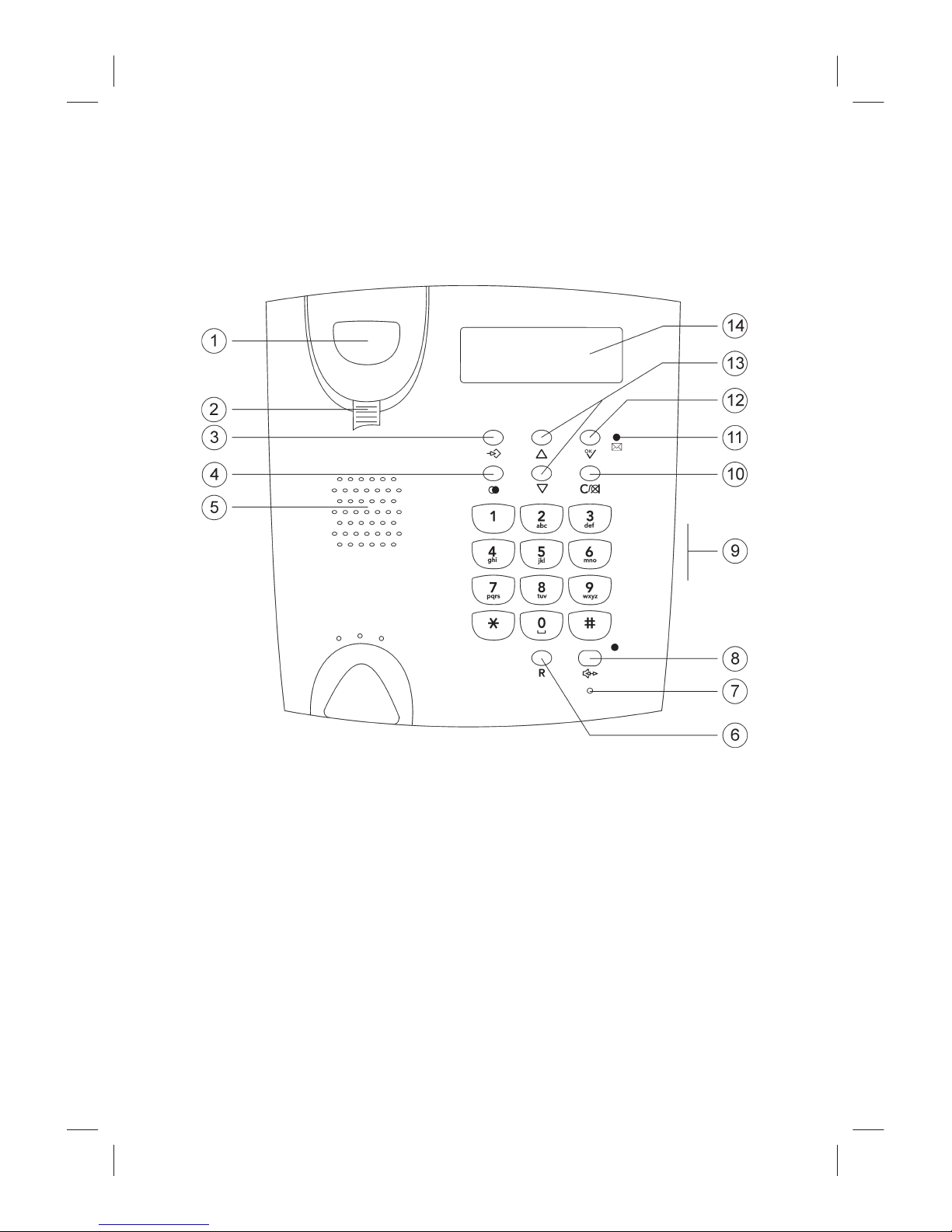

1 Hook switch

2 Hanger Hook for wall mounting

3 Programme Button

4 Redial Button

5 Speaker

6 Recall Button

7 Microphone

8 Speaker Button and LED

9 Speaker Volume Control

10 Erase/Mute Button

11 Message Indicator LED

12 OK Button

13 Scrolling Buttons (UP/DOWN)

14 Display

English (see page 4-15)

Français (voir pages 16-26)

1 Pédale de raccroché

2 Languette de support du combiné

(montage murale)

3 Touche Programmation

4 Touche Bis

5 Haut-parleur

6 Touche R

7 Micro

8 Touche Prise de Ligne Sans

Décrocher (PLSD ) et témoin

lumineux mains-libres

9 Réglage du volume du haut-

parleur

10 Effacer/touche Secret

11 Témoin lumineux de nouvel appel

reçu/ message sur messagerie

vocale sur le réseau*

12 Touche conrmation

13 Touches de délement

14 Afcheur

* sous réserve d’abonnement auprès

de votre opérateur

Deutsch (siehe Seite 27-33)

1 Gabel

2 Höreraufhängung

3 Programmierung

4 Wahlwiederholung

5 Lautsprecher

6 R-Taste

7 Mikrofon

8 Lautsprechertaste und Indikator

9 Lautstärkeregler für Lautsprecher

10 Löschen/Stummschalten

11 Nachrichtenanzeige

12 Bestätigen

13 Scroll-Tasten

14 Display

Italiano (vedere pagine 34-40)

1 Commutatore a gancio

2 Supporto di aggancio per il

microtelefono

3 Programmazione

4 Pulsante Ripetizione numero

5 Auricolare

6 Pulsante Recall (R)

7 Microfono

8 Pulsante LED e altoparlante

9 Controllo volume altoparlante

10 Pulsante Cancella/ Silenziamento

11 Indicatore di messaggi

12 Confermare

13 Pulsanti di scorrimento

14 Display

Polski (patrz strony 41-48)

1 Miejsce na słuchawkę

2 Wieszak na słuchawkę

3 Programowanie

4 Przycisk ponownego wybierania

5 Głośnik

6 Przycisk Recall (R)

7 Mikrofon

8 Przycisk głośnika/sygnalizatora

LED

9 Sterowanie natężeniem dźwięku

głośnika

10 Przycisk Kasowanie/Wyłączanie

mikrofonu

11 Wskaźnik wiadomości

12 Potwierdzenie

13 Przyciski przewijania

14 Wyświetlacz

English

4 www.doro.com

Installation

Batteries

In order for the Caller ID, memory and other functions to operate, the

telephone requires three good quality AAA 1.5V alkaline batteries to be

installed. If batteries are either not installed or running low, the symbol

will be visible in the display, you will need to change the batteries as soon

as possible.

The battery compartment is located on the underside of the telephone.

1. Ensure the telephone line cord is disconnected from the telephone network

wall socket.

2. Unscrew the retaining screw that holds the battery cover in place and

remove the cover.

3. Install the batteries ensuring the correct battery polarity is observed.

4. Replace the battery cover and ret the retaining screw.

Connection

Once the batteries have been installed:

1. Connect the curly cord to the handset and to the socket marked q on the

underside of the telephone.

2. Connect the telephone line cord to the socket marked T on the underside

of the telephone and then to a telephone network wall socket.

3. A click will be heard when the modular plug is correctly in place.

4. Position the cables in the grooves underneath the telephone.

5. Lift the handset and listen for the dial tone. Your telephone is now

operational.

Wall Mounting

1. Secure two screws, vertically positioned 100 mm apart.

2. The screws should locate into the two ‘keyholes’ on the back of the

telephone.

3. Remove the hanging peg (located by the hook switch) by pushing it upwards.

4. Rotate the hanging peg 180 degrees, and then replace it.

Alternatively this telephone can be mounted onto an existing telephone wall plate (Australia

only).

English

www.doro.com 5

Installation

Setting the Time and Date

1. Press and hold P until Setup is shown.

2. Press P again. Hour will ash.

3. Scroll to the desired setting using v/V.

4. Press 0. Minutes will ash.

5. Scroll to the desired setting using v/V.

6. Press 0. Date will ash.

7. Scroll to the desired setting using v/V.

8. Press 0. Month will ash.

9. Scroll to the desired setting using v/V.

10. Press P twice to save your settings.

English

6 www.doro.com

Operation

Speaker Function

1. Press s. The speaker will be activated and the LED indicator will

illuminate.

2. Dial the required telephone number. Adjust the volume control on the side

of the telephone.

3. Speak towards the microphone on the front edge of the telephone.

4. Press s to terminate the call.

Please note!

During the course of a telephone conversation, you can switch from hands free speaker to

handset mode at any time by picking up the handset. Replace the handset to terminate the call.

Please remember that in hands free speaker mode, only one person at a time can talk. The

switch over between speaker and microphone is automatic and dependant on the sound level on

the incoming line and the microphone respectively. It is therefore essential that no loud noise in

the immediate surroundings of the telephone, as this will disrupt the speaker function.

Hold Button

Press z to place an incoming call on hold.

The call can be resumed by pressing z again.

The display will ash and the handset microphone will be inoperative for as long

as the function is active.

Redial Button

The ve most recently dialled numbers can easily be redialled using r.

1. Press r repeatedly, to scroll through the numbers.

2. Press 0, the selected number will now be dialled.

During the course of a telephone conversation, you can switch from hands free

speaker to handset mode at any time by picking up the handset.

English

www.doro.com 7

Operation

Memory

This telephone has 10 indirect memories.

When a number is stored in a memory location, you need to press only two

buttons to make the call. The memories are stored on the keypad digits 0-9.

Storing Memories

1. Press and hold P until Setup is shown.

2. Enter a memory location 0-9 on the telephone keypad.

3. Enter the desired telephone number (up to 22 digits). Use C to erase or

change an entry.

4. Press 0. The number is now stored.

5. Enter another memory location to continue or press C to return to standby

mode.

Memory Dialling

1. Lift the handset (or press the s button) and wait for a dialling tone.

2. Press P.

3. Select a memory location by pressing the relevant keypad number, 0-9.

Press r. If you want a pause in the telephone number.

In case of a number change, store the new number in the location of the old one following

the procedure above.

Volume Control

The handset volume may be adjusted during a call using the switch located on

the handset.

The hands free speaker volume may be adjusted during a call using the switch

located on the right hand side of the base unit.

Ringer

The Ringer volume can be set to three modes – high, low or off – using the

switch located on the underside of the telephone.

English

8 www.doro.com

Operation

Timer

Approximately 5 seconds after dialling a timer will be shown on the display. The

timer helps you keep track of how long the call lasts.

Optional Network Services

Access to additional network services can be gained by using the recall button

R, * and # keys. Contact your network operator for more information.

Press the recall button R followed by the extension number to transfer calls

when connected to a PBX (TBR only).

English

www.doro.com 9

Caller Identication

Explanation of Caller ID (CID).

Caller ID allows you to see who is calling before you answer a call, and to see

who has called in your absence. If the number received is stored in the phone

book, that corresponding entry is shown as well.

Numbers received are logged and can easily be retrieved for review or dialling.

The call log will store up to 40 telephone numbers.

New calls are indicated by a ashing message indicator light. The display will

also indicate the number of calls both new and total received. The indicator will

stop ashing as soon as the new number(s) are reviewed.

When the log is full, the oldest number will be deleted automatically, as a new

call is logged.

Please note!

In order for numbers to be shown, the Caller ID service must be provided by your network

operator and a current subscription in place. Contact your operator for more information.

Dialling a number from CID.

1. Scroll to the desired telephone number using v/V.

2. Pick up the handset and press 0, the displayed telephone number will now

be dialled.

During the course of a conversation, you can switch from the hands free speaker to handset mode

at any time by picking up the handset.

Messages

Apart from telephone numbers, the display can show:

Unavailable It is an International call or a call from a PBX (no information

received)

Private The call is comes from a blocked number or a PBX.

Repeat Several calls have been received from this particular phone

number.

5 Message indication (sent from your network operator). In

addition, the 5 indicator ashes two times in sequence.

Please note!

The exact text message may differ from those shown above dependent on the text message

supplied by your telephone exchange.

English

10 www.doro.com

Caller Identication

Erasing Individual Numbers from CID

1. Scroll to the telephone number you wish to erase v/V.

2. Press C. The displayed number will begin ashing.

3. Press C again to conrm.

Erasing ALL numbers from CID

1. Scroll to the any telephone number in the CID list v/V.

2. Press and hold C until the display shows -00- CALLS .
