AudioCodes 320HD

and Elastix Server

Setup Guide

http://www.elastix.org

AudioCodes 320HD

and Elastix Server

Setup Guide

http://www.elastix.org

AudioCodes 320HD

and Elastix Server

Setup Guide

PaloSanto Solutions

AudioCodes 320HD Server Setup Guide

1.0 Setup Diagram

Figure 1-1 is a setup diagram for a single IP Phone AudioCodes 320HD configuration. The

phone is setup as a SIP telephony device.

Figure 1-1. Setup Diagram

2.0 Host PC Environment

Table 2-1. Host Server Environment Details

Description

Hardware Type

Elastix Appliance ELX-Series

Hardware Version

ELX-3000

Software Type

Elastix

Software Version

2.3

3.0 Test Setup Equipment

Table 3-1. Test Setup Equipment

Equipment

Model

Version

IP (SIP) Phone

N/A

AudioCodes

320HD

1.4.0_build_28

Switch

N/A

PaloSanto Solutions

AudioCodes 320HD Server Setup Guide

1.0 Setup Diagram

Figure 1-1 is a setup diagram for a single IP Phone AudioCodes 320HD configuration. The

phone is setup as a SIP telephony device.

Figure 1-1. Setup Diagram

2.0 Host PC Environment

Table 2-1. Host Server Environment Details

Description

Hardware Type

Elastix Appliance ELX-Series

Hardware Version

ELX-3000

Software Type

Elastix

Software Version

2.3

3.0 Test Setup Equipment

Table 3-1. Test Setup Equipment

Equipment

Model

Version

IP (SIP) Phone

N/A

AudioCodes

320HD

1.4.0_build_28

Switch

N/A

PaloSanto Solutions

AudioCodes 320HD Server Setup Guide

1.0 Setup Diagram

Figure 1-1 is a setup diagram for a single IP Phone AudioCodes 320HD configuration. The

phone is setup as a SIP telephony device.

Figure 1-1. Setup Diagram

2.0 Host PC Environment

Table 2-1. Host Server Environment Details

Description

Hardware Type

Elastix Appliance ELX-Series

Hardware Version

ELX-3000

Software Type

Elastix

Software Version

2.3

3.0 Test Setup Equipment

Table 3-1. Test Setup Equipment

Equipment

Model

Version

IP (SIP) Phone

N/A

AudioCodes

320HD

1.4.0_build_28

Switch

N/A

PaloSanto Solutions

AudioCodes 320HD Server Setup Guide

4.0 Setup Procedure

To set up the Elastix Server for the AudioCodes 320HD,

1. Go to the web address of the Elastix Server Login page. The web address is

determined by the customer, for this guide we have used the IP address 192.168.1.65

2. On the Login page, type the username and password for an administrative user into

the Username and Password fields, see Figure 4-1. The username and password are

determined by the customer.

Figure 4-1. Login

3. Press Enter or click on the Submit button to go to Elastix’s Dashboard

4. Once inside, click on the PBX tab on the menu at the top of the screen

Figure 4-2. Dashboard

5. Click on the Submit button to add an extension, see Figure 4-3. This will take you to

the Add SIP Extension page.

PaloSanto Solutions

AudioCodes 320HD Server Setup Guide

Figure 4-3. Add an Extension

6. On the Add SIP Extension page (Figure 4-4), fill in the following information:

•User Extension (301 in this example)

•Display Name (‘AudioCodes320HD’in this example)

•secret (‘h7Dka3Rf9si0t’in this example)

Figure 4-4. Add SIP Extension

7. Click on the ‘Submit’ button at the end of the page. The extension will be created and

you will see the page on Figure 4-5 displaying the “Apply Configuration Changes Here”

pink ribbon on top of the screen.

8. Click in the “Apply Configuration Changes Here” link

PaloSanto Solutions

AudioCodes 320HD Server Setup Guide

Figure 4-3. Add an Extension

6. On the Add SIP Extension page (Figure 4-4), fill in the following information:

•User Extension (301 in this example)

•Display Name (‘AudioCodes320HD’in this example)

•secret (‘h7Dka3Rf9si0t’in this example)

Figure 4-4. Add SIP Extension

7. Click on the ‘Submit’ button at the end of the page. The extension will be created and

you will see the page on Figure 4-5 displaying the “Apply Configuration Changes Here”

pink ribbon on top of the screen.

8. Click in the “Apply Configuration Changes Here” link

PaloSanto Solutions

AudioCodes 320HD Server Setup Guide

Figure 4-3. Add an Extension

6. On the Add SIP Extension page (Figure 4-4), fill in the following information:

•User Extension (301 in this example)

•Display Name (‘AudioCodes320HD’in this example)

•secret (‘h7Dka3Rf9si0t’in this example)

Figure 4-4. Add SIP Extension

7. Click on the ‘Submit’ button at the end of the page. The extension will be created and

you will see the page on Figure 4-5 displaying the “Apply Configuration Changes Here”

pink ribbon on top of the screen.

8. Click in the “Apply Configuration Changes Here” link

PaloSanto Solutions

AudioCodes 320HD Server Setup Guide

Figure 4-5. Apply Configuration Changes Here

9. With this you have just finished creating a SIP extension that will be used by the

AudioCodes 320HD to register with the Elastix Server. Repeat Steps 5 through 8 to

similarly create another extension (different values on Step 6) to be used by the IP (SIP)

Phone to register as well (extension 302 in this example). Once finished you will see

something similar to Figure 4-6

Figure 4-6. AudioCodes and IP Phone extensions successfully created

10. You will need to enter the information from the extension created on the Elastix

Server into the AudioCodes Phone for registration.

For the initial configuration, refer to the AudioCodes 320HD Administration Guide

which can be found at: www.audiocodes.com/filehandler.ashx?fileid=1280794

Factory default settings

IP Addressing

DHCP

Web Access User Name

admin

Web Access Password

1234

11. Log in to the AudioCodes 320HD WebUI by pointing your browser to the

AudioCodes Phone’s IP address.

12. When prompted, enter the Web Access Username and Web Access Password to

access the AudioCodes WebUI (Figure 4-7).

PaloSanto Solutions

AudioCodes 320HD Server Setup Guide

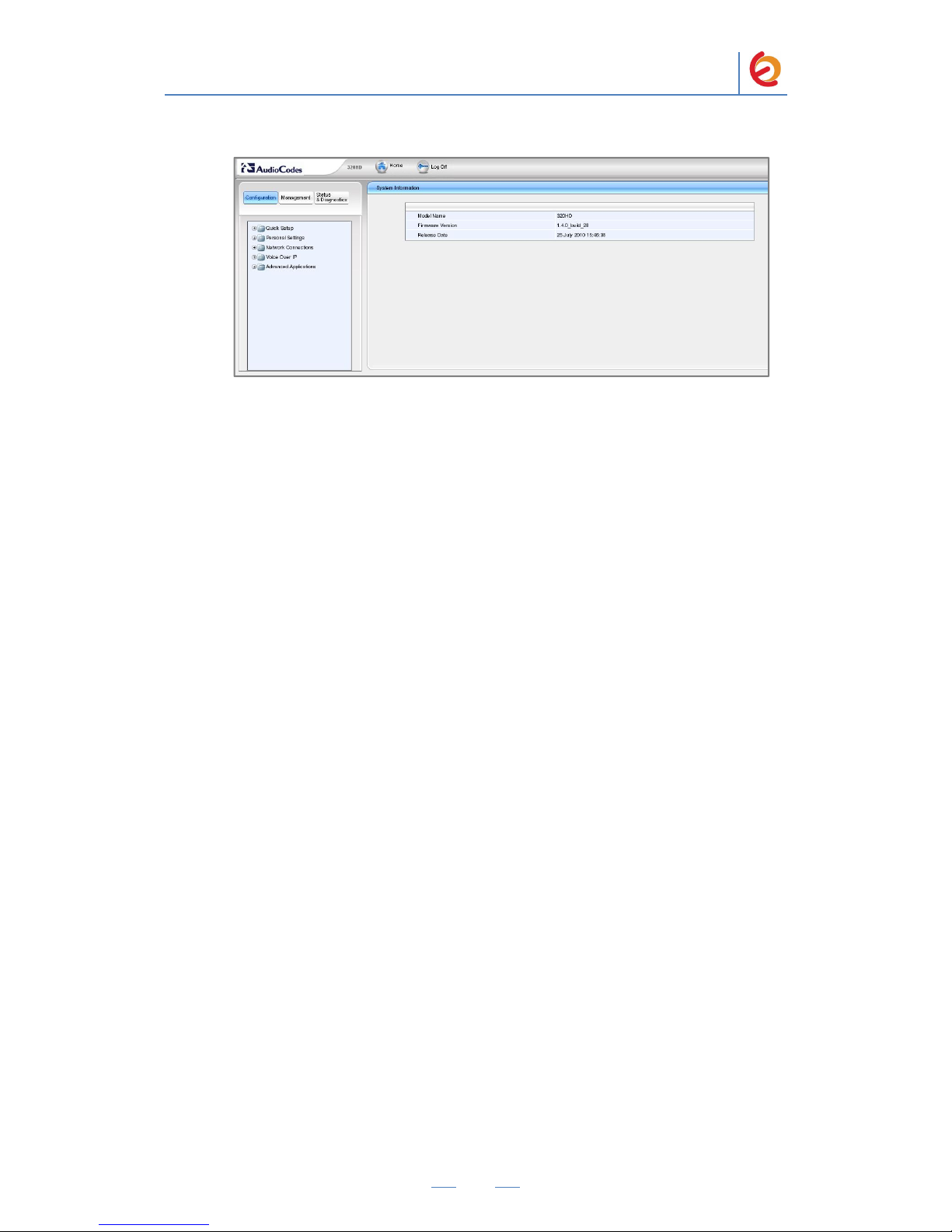

Figure 4-7. AudioCodes 320HD WebUI

To register the AudioCodes Phone we have two methods: Manual Configuration and

AutoProvisioning using Elastix’s Endpoint Configurator.

PaloSanto Solutions

AudioCodes 320HD Server Setup Guide

MANUAL CONFIGURATION

1. Use the information from the Add SIP Extension page (Figure 4-4) to enter the

following necessary information on “Quick Setup“ section of the AudioCodes Phone

WebUI:

SIP Proxy and Registrar

Use SIP Proxy: Enable

Proxy IP Address or Hostname: Elastix Server’s IP Address (192.168.5.186

in this example)

Proxy Port: 5060

Use SIP Proxy IP and Port for Registration: Enable

Line Settings

Line Activate: Enable

User ID: (301 in this example)

Authentication User Name: (301 in this example)

Authentication Password: (‘h7Dka3Rf9si0t’ in this example)

Figure 4-8. Account Configuration

2. Once you have entered the required information, click on ‘Submit’ button located at

the end of the page. If the phone is not able to register, make sure you’ve entered the

correct information.

3. Configure the other IP (SIP) Phone with the correct parameters.

4. To test the AudioCodes 320HD, pick up the previously configured IP (SIP) Phone

and call the AudioCodes 320HD’s extension number (301 in this example). When the

call is established, speak into the phone and verify that the other IP (SIP) Phone can

hear your voice. Check this by calling from both ends. This step completes the

procedure.

PaloSanto Solutions

AudioCodes 320HD Server Setup Guide

AUTOPROVISIONING USING ELASTIX’S ENDPOINT

CONFIGURATOR

1. In the AudioCodes 320HD WebUI, go to “Management => Automatic Update”.

Copy apart the “Configuration URL” (Figure 4.9) and replace the

PovisioningServer by Elastix’s IP Address, and the ‘/’ character from the cfg file

with ‘_’, something like this:

tftp://192.168.1.65/310HD_00908f1ee105.cfg

Figure 4.9 Automatic Update

2. Set the following parameters (Figure 4.10):

Provisioning Method: Static URL

Configuration URL: tftp://192.168.1.65/310HD_00908f1ee105.cfg in this

example

Check Period: On Power-up Only

Figure 4.10 Automatic Update

3. Click on “Submit” button. Now, in the Elastix WebUI go to “PBX => Endpoint

Configurator” (Figure 4-11).

PaloSanto Solutions

AudioCodes 320HD Server Setup Guide

Figure 4.11 Endpoint Configurator

4. Next to the “Discover Endpoints in this Network” button, type the address where

the phone is located and hit Enter (or click the button). This will generate a list with

all the phones available in that network (Figure 4-12).

Figure 4.12 Endpoint Configurator

5. In the row where the phone you want to autoprovision is located (find it according

to either its MAC or IP Address):

Mark the checkbox

From the drop-down list, select the correct “Phone Type” (phone model) of the

phone

From the drop-down list, select the “User Extension” you want to assign to the

phone

Figure 4.13 Endpoint Configurator

PaloSanto Solutions

AudioCodes 320HD Server Setup Guide

6. Click the “Set” button. When the process finish loading, reboot the phone by

unplugging and plugging again the power cord. The phone should be registered and

ready for calls after initialization.

7. Configure the other IP (SIP) Phone with the correct parameters.

8. To test the AudioCodes 320HD, pick up the previously configured IP (SIP) Phone

and call the AudioCodes 320HD’s extension number (301 in this example). When

the call is established, speak into the phone and verify that the other IP (SIP) Phone

can hear your voice. Check this by calling from both ends.
