Operation Instruction Manual

WSD-1510GPH

Programmable PID Temperature Controller with Dual Probe

Version 1.0 (June, 2019)

Auber Instruments

5755 North Point Parkway, Suite 99

Alpharetta, GA 30022

770-569-8420

www.auberins.com

Introduction

Thank you for purchasing the Auber WS series temperature controller. We sincerely

appreciate your decision and trust that our machine will meet your expectations in both

the quality of the result and the value of our product. While we are delighted that you may

be anxious to operate the controller for your project, a few minutes of your time reading

through this manual will only serve to enhance your experience in the months and years

ahead. In particular, we urge you to read through the safety warnings below. Although

this plug-and-play controller is very easy to operate, the process involves high

temperature and high wattage appliances and your safety is paramount.

SAFETY WARNINGS

•This controller is designed only to be used with devices that have limited power

and their own thermal cut off protection, such as a thermostat or thermal fuse in

case of controller failure.

•Do not place any objects on the top of controller surface which is used to vent

excess heat during its operation.

•The maximum electric current this controller can handle is 15 ampere. For 120

volt AC in US and Canada, this limits the heater power to 1800 watts.

•Always place the sensor in the controlled subject when the controller is on. Before

turning on the controller, please make sure the sensor is placed inside the

container to be controlled. Leaving the sensor outside of the solution will form an

open loop operation. If the sensor is left outside, controller will assume the

temperature is low even if the controlled subject is already very hot. The controller

will provide full power to the heater. It will not only overheat the controller, but also

Patent pending

damage your appliance, and even cause a fire.

•This controller is designed to control the devices recommended by Auber

Instruments only. Using it to control a not recommended device can be dangerous

and cause fire. Auber Instruments is not liable for damages caused by misuse of

the controller. If you are not sure the controller can be used, please contact Auber

Instruments before use.

•If an abnormal display or noise is observed, turn the controller off, unplug the

power cord and contact the manufacturer before using it again.

•Clean the controller only when it is cool and unplugged.

•Do not allow children to operate the controller.

Specifications

Number of storable recipes 8

Number of steps in each recipe 6

Input voltage US 120V, European 220V, 50/60 Hz

Output voltage The same as the input.

Maximum Current 15A for 120V AC, 12A for 220V AC, 5A for the smoke

generator output.

Controller Mode PID, PI, PD or P.

Output switching device Built-in optically isolated solid state relay with zero voltage

crossing switching.

Sensor type PT1000 RTD sensor

Control probe dimension 4 mm diameter x 40 mm long.

Food internal temperature probe dimension

4 mm diameter x 150 mm.

Probe cable length 5 ft (1.5 meter) (both probes)

Timer range 6 steps with 0.1 to 99.9 hours for each step.

Temperature resolution 1 °C or 1 °F.

Temperature display unit Celsius or Fahrenheit.

Temperature display range -40-400 °C, or -40-750°F.

Mini. Control Temperature 5 °C (9 °F) above ambient with smoker generator off, 22

°C (40 °F) above ambient with smoker generator on.

Max. Control Temperature 350 °C (660 °F).

Temperature accuracy +/-1°C

Smoker generator control output maximum current

3A at 120V

Dimension 6 x 3 x 8.3 inch (155 x 80 x 210 mm) WxHxD.

Weight 3.2lb (1.4 kg).

Warranty One (1) year for the controller, 90 days for sensors.

Note: This controller has US input plug and output socket that meet the NEMA 5-15

standard. For international order, user can get a converter from local electronics store to

convert the connection. For countries that use 220-240VAC power line, the maximum

control power of this controller is 2800 Watts.

Operating Instructions

1. Description of the controller

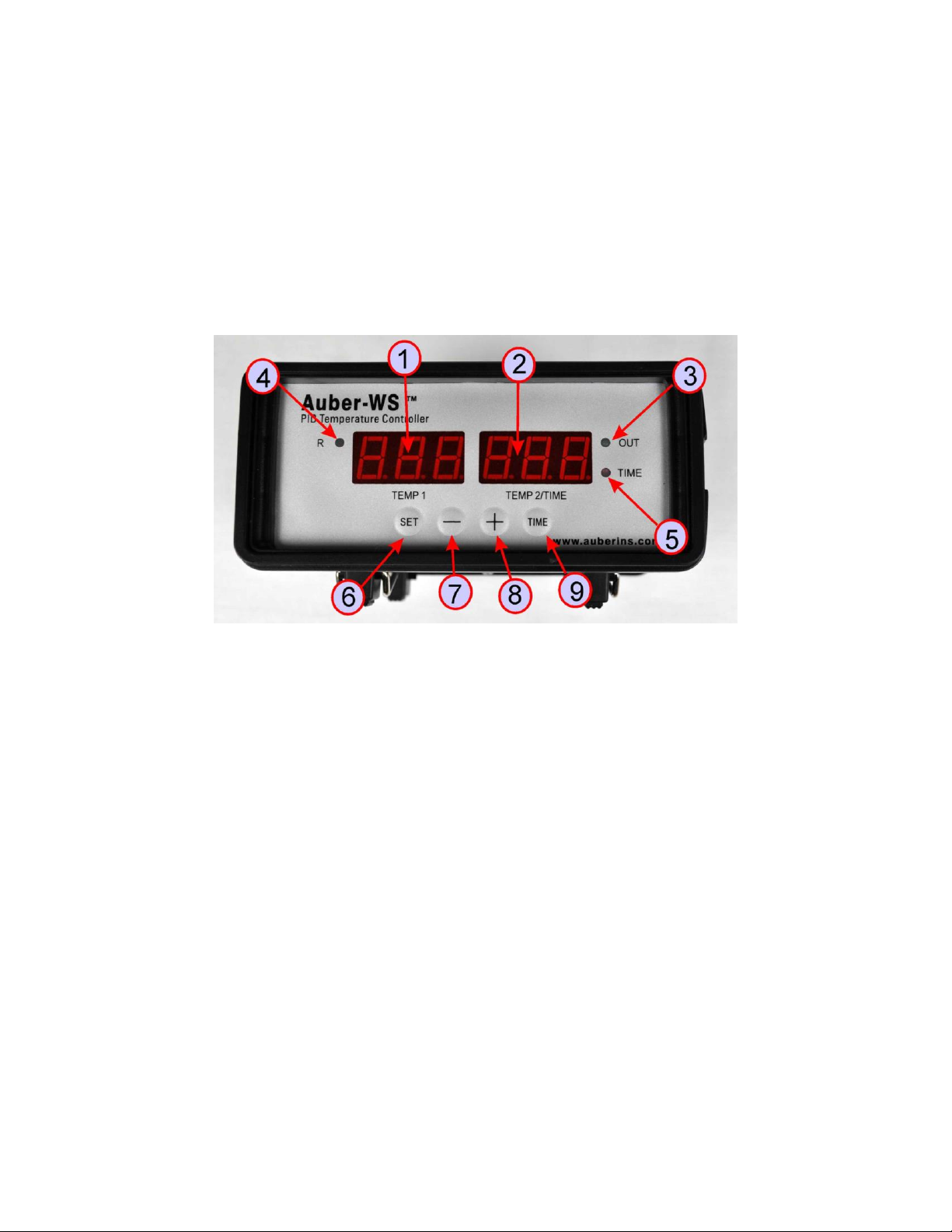

Figure 1. Front Panel.

1) TEMP1, Left window - During normal operation, it displays the temperature values

of probe 1. When high or low limit alarm of probe 1 is on, this window will flashing

between the alarm type (AH1or AL1) and the temperature. In the parameter setting

mode, it displays the controller's system parameters.

2) TEMP2/TIME, Right window - During normal operation, it displays the

temperature value of probe 2 (food internal temperature probe), or the time passed

since the controller was powered up. When high limit alarm of probe 2 is on, this

window will flashing between AH2 and the temperature. In the parameter setting

mode, it displays the value of the parameter.

3) Output status indicator - This LED indicates the output status that should be

synchronized with heater. When it is on (lit), the heater is powered. When it is off,

the heater power is off. When it is flashing, it means the heater is on and off

intermittently to reduce the power output. It should be synchronized with the power

light on the cooking device.

4) Smoker generator control output status indicator - When it lit, the smoker

generator control output is on. When it is off, the output is off.

5) Timer status indicator - When lit, right window shows the time passed since

power up. When it is off, right window shows the current temperature detected by

the probe 2.

6) SET Key - For showing current temperature settings, getting into parameters

setting mode and confirming various actions taken.

7) “-” Key - To decrement displayed value when in controller is in the parameter

setting mode. During normal operation, press it to cancel the alarm.

8) “+” Key - To increment displayed value when in controller is in the parameter

setting mode. During normal operation, press it will change the left window from

temperature to display which step the program is at.

9) Time Key - Change the display in right window between current timer and

temperature values.

Figure 2. Back Panel.

2. Connecting and operating the controller

Install the sensor.

(Note: If you ordered wall mount sensor instead of free hanging sensor, please see the

separate instruction in the CD for its installation)

The controller is supplied with two probes. The one with the short tip is for measuring the

cabinet temperature. We name it probe 1. It needs to be plugged to the top sensor jack

at the back of the controller. The long probe with a bend at the end is for the meat

internal temperature measurement. It needs to be plugged to the bottom sensor jack at

the back of the controller. The tips of the probes are dropped into the damper hole. Place

a piece of tape on the top of the smoker tower to hold them in place. The tip of probe 1

should be placed close to the food but high enough so that it does not touch the food.

(See Figure 3). The tip of probe 2 is to be inserted into the meat.

Figure 3. Sensor position. Left, the sensor should be placed close to the food but high

enough so that it does not touch the food. Right, hold the sensor in place by a piece of

tape.

For the “Original” and Stainless Steel Bradley smoker, the Temperature Heat Control

Switch on the smoker tower should be slid to the Hi position (Most right).

There are several ways to power up the controller and Bradley Smoker.

Smoke

Generator

Smoker

Tower

Cable B

Cable A

Figure 3.1 Power Cable wiring for Original Bradley Smoker

Cable A: Power cable for Smoker Tower, C14 plug

Cable B: Power cable for smoke generator, NEMA5-15P plug

1) Connection for Bradley Original Smoker, with control of the smoker generator.

a) Connecting the controller to the power outlet, you should use the power cord that

came with the Bradley Smoker for connecting the smoker generator to the power outlet.

b) Connecting the controller to the smoker generator. You should use the power cord that

originally was used for connection between the smoker generator and smoker tower.

Figure 4. Connection between the controller and Bradley Original Smoke generator.

c) Connecting the controller output to the Bradley Smoker Tower with the power cord that

came with the Auber Controller

Auber

Controller

Smoke

Generator Smoker Tower

Probe 1:

Cabinet Temp

Probe 2:

Internal Temp

Cable A

Cable B

To Power Outlet

Figure 5. Diagram

Figure 6. Back view

Figure 7. Connection between the controller and smoker

2) Connection for Bradley Digital Smoker.

For the Bradley Digital Smoker, both controller and smoker generator should be

connected directly to the wall outlet. Connect the controller output with the smoker tower.

Auber

Controller

Smoke

Generator Smoker Tower

Probe 1:

Cabinet Temp

Probe 2:

Internal Temp

Cable C

Cable B

To Power Outlet To Power Outlet

Figure 8. Connection for Bradley Digital Smoker

Cable C is extra 18 AWG power cord, same as Cable B

3. Programming the smoking temperature profile

A total of 6 steps can be programmed for this controller. Each step contains the set

temperature (C-X) and an ending criteria setting (E-X), where “X” is the step number (e.g.

Step 4 temperature is represented by C-4 and step 4 ending criterion is represented by

E-4). The ending criterion determines how does controller finish the current step and

start the next step. There are two options for the user, t and F. Set E-X to t if you want

step X to be end by a preset time. Set E-X to “F” if you want step X to end by a preset

temperature of the internal probe.

After you set E-X to “t”, you will be asked to set t-X for the time. Time is defined as the

duration between the last step and the next step. Please make sure the time is long

enough for the heater to heat up the smoker. If the time is set too short, the temperature

may not be able to reach the current step temperature setting, before it jumps to the next

step. The time unit is in hours with 0.1 hour resolution. Each 0.1 hour equals to 6

minutes.

If you set E-X to F, you will be asked to set F-X for the temperature of the internal probe.

When all of the E-X are set to t, the controller can operate with only the probe 1 plugged

in.

To program the temperature profile, press SET key once. The display will show C-1 at

the left window and temperature setting on the right window for step 1. Use “+” and “-”

keys to change the setting. When finished, press the SET again to confirm the change.

The display will show E-1 on the left window and the ending criterion setting on the right

window. Use “+” and “-” keys to change the setting. When finished, press the SET again

to confirm the change. The left window will display t-1 or F-1 depending whether t or F is

selected for the E-1. The right window will display the setting for t-1 or F-1. Use “+” and “-”

keys to change the setting. When finished, press the SET again to confirm the change.

The display will go the step 2 setting. It will repeat in the same way as the step 1. After

you program enough step for the recipe, you can program rest of the steps of E-X to t

and set t-X zero.

The temperature setting will not be changed if SET is not pressed (confirmed). After

programming the necessary steps for cooking, you can finish programming by pressing

the SET continuously until it passed T-6 and display the current temperature. You can

also leave the controller alone. The display will return to the normal display mode if no

key is pressed within 15 seconds.

The initial program setting for the controller is listed in

Table 1. This program will control the temperature of the cabinet at 120 °F for 2 hours.

Then, change the temperature to 190 °F. It will stay at 190 °F until internal temperature of

the meat reaches 160 °F. Then, the controller will drop the temperature to 130 °F for 30

hours, waiting you to pick the food. If you set C-3=0 and t-3=0, when meat internal

temperature reaches 160 °F, the controller will shut off the heater, flashing END on both

windows, and turn on the beeping alarm to notify you that cooking is finished.

Table 1. Initial program setting

Step #

Temp (F)

Step #

F or T

Step #

value

C-1

120

E-1

t-1

2.0

C-2

190

E-2

F-2

160

C-3

130

E-3

t-3

30.0

C-4

E-4

t-4

0.0

C-5

E-5

t-5

0.0

C-6

E-6

t-6

0.0

The smoker generator power is controlled by parameter R1 and R2 that can be

accessed by code 166 (see section 7-1). The generator can be turned on for two steps.

R1 is for the first step. R2 is for the second step. e.g. To turn on the smoker generator at

step 1 and 3, set R1=1 and R2=3. If you only want to use one step, set either R1 or R2 to

0, and set the other one to the step you want to turn on the smoker generator. The initial

setting for the controller is to turn on the generator at step 1 only.

4. Check the current step and display the time

To check which step the program is at during cooking, press the “+” Key (8) once. The

left window will show the current step in the form of P-X. For instance, it will display P-3 if

the controller is at step 3. The display will return to the temperature display automatically

after 8 seconds. To check how long the controller has been running since powered up,

press the Time key (9) once. The Timer status indicator will light. The right window will

show the actual time passed since the controller was last powered up. Please note that

this is the total time, not the time that has passed in the current step. Press Time key

again will switch the display to the internal temperature.

5. Tuning the controller

This controller contains two sets of system parameters that can be changed for different

applications. This controller is shipped with the system parameters set for the Bradley

Smoker. The user should not change these parameters if you want to control a Bradley

Smoker. Otherwise, if you feel that performance is not ideal, you can try to manually tune

the system or run the auto-tune again. For detailed information on how to tune the

controller, please read the section 7 and 8 for tuning the controller.

Otros manuales para WS Series

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Controladores de temperatura de Auber Instruments

Auber Instruments

Auber Instruments SWA-2441B Manual de usuario

Auber Instruments

Auber Instruments WSD-1500H-W Guía del administrador

Auber Instruments

Auber Instruments WSD-1510GPH Manual de usuario

Auber Instruments

Auber Instruments WS-1500C Guía del administrador

Auber Instruments

Auber Instruments WS-1500EB Guía del administrador

Auber Instruments

Auber Instruments SYL-5342P-S Manual de usuario

Auber Instruments

Auber Instruments SWA-2451B Manual de usuario

Auber Instruments

Auber Instruments WS-1211GPH Manual de usuario

Auber Instruments

Auber Instruments SYL-1614 Manual de usuario

Auber Instruments

Auber Instruments WSD-1200GPH Manual de usuario

Auber Instruments

Auber Instruments SYL-2381-mA Manual de usuario

Auber Instruments

Auber Instruments WS Series Guía del administrador

Auber Instruments

Auber Instruments WST-1510H Guía del administrador

Auber Instruments

Auber Instruments SYL-2362A2 Manual de usuario

Auber Instruments

Auber Instruments TH220 Manual de usuario

Auber Instruments

Auber Instruments SYL-1512A Manual de usuario

Auber Instruments

Auber Instruments SYL-2372 Manual de usuario

Auber Instruments

Auber Instruments SWA-2441A Manual de usuario

Auber Instruments

Auber Instruments ECT-100 Manual de usuario

Auber Instruments

Auber Instruments SYL-1615 Manual de usuario

Auber Instruments

Auber Instruments WSD-1500GPH Manual de usuario

Auber Instruments

Auber Instruments WS Series Guía del administrador

Auber Instruments

Auber Instruments TD120-W Manual de usuario

Auber Instruments

Auber Instruments TD120-W Instrucciones y recetas

Manuales populares de Controladores de temperatura de otras marcas

Swegon

Swegon LUNAd MB Manual de usuario

Lucky Reptile

Lucky Reptile Thermo Control II Manual de usuario

SENSORMETRIX

SENSORMETRIX Argon 100 Manual de usuario

Fuji Electric

Fuji Electric PXE4 Manual de usuario

Yuyao gongyi

Yuyao gongyi XMT-808 series Manual de usuario

Selec

Selec TC544C Manual de usuario

P.W. KEY

P.W. KEY rt-208gt Manual de usuario

Future Design

Future Design FDC-9200 Manual de usuario

BH Thermal

BH Thermal BriskONE Manual de usuario

Omron

Omron E5EX-H Manual de usuario

West Control Solutions

West Control Solutions KS 45 Guía de inicio rápido

MCS

MCS RITC-15B Manual de usuario

SMC Networks

SMC Networks Thermo-con INR-244-639 Manual de usuario

eltherm

eltherm Ex-TC It Series Manual de usuario

Omron

Omron C200H-TV Series Manual de usuario

industrie technik

industrie technik CA1 Manual de usuario

KRAL

KRAL EET 32 Manual de usuario

dixell

dixell XR420C Diagrama de cableado
