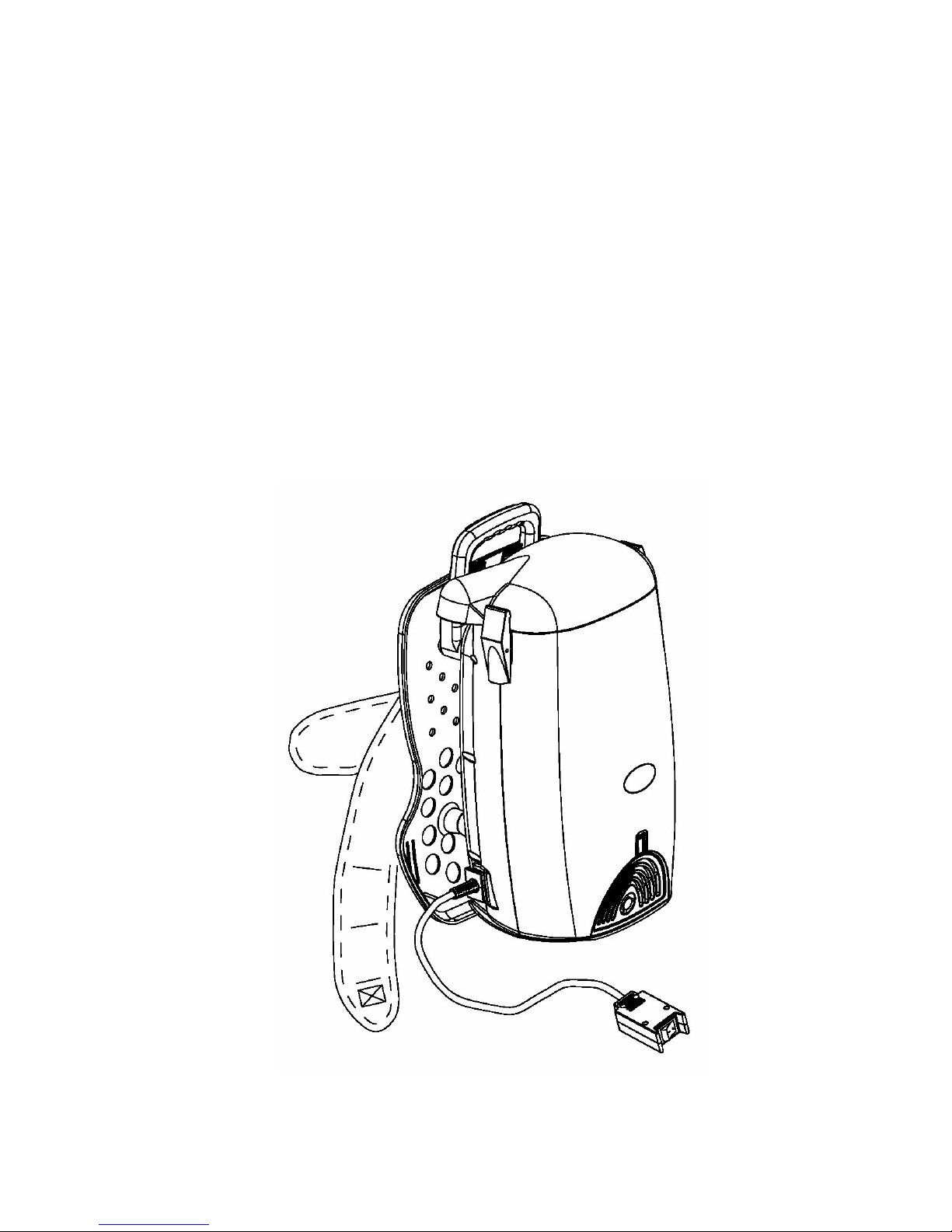

Atrix VACBP36V Manual de usuario

BATTERY POWERED

BACKPACK VACUUM

Operation Instructions

Read all instructions before using this appliance

IMPORTANT SAFETY INSTRUCTIONS

When using your Vacuum, basic safety precautions should always be observed,

Including the following:

Vacuum Safety

Read Owner’s Manual before using this product.

Failure to do so can result in serious injury or death.

1. Use only as described in this manual. Use only the recommended attachments,

battery, charger, and replacement parts.

2. DO NOT use the vacuum outdoors or on wet surfaces. DO NOT expose to rain or water.

3. DO NOT use or store vacuum in wet or moist conditions.

4. DO NOT try to recover any liquid with this vacuum. This vacuum is for DRY RECOVERY

only

5. DO NOT USE A DAMAGED VACUUM. If the unit is not working as it should, or if it has

been damaged, left outdoors, or exposed to water, take it to an Authorized Repair

Center for inspection and repair.

6. DO NOT allow the vacuum to be used as a toy. Pay close attention when using the

vacuum near children.

7. DO NOT handle the switch or battery pack with wet hands.

8. DO NOT put any objects into openings. Do not use with any opening blocked, keep free

of dust, lint, hair, and anything that may reduce air flow.

9. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving

parts.

10. Use with extra care when cleaning on stairs.

11. DO NOT vacuum flammable or combustible materials or anything that is burning or

smoking, such as cigarettes, matches, or hot ashes.

12. Sparks inside the motor can ignite flammable vapors, to reduce the risk of fire or

explosion, do not use near combustible liquids, gases, or dusts, such as gasoline or

other fuels, lighter fluid, cleaners, oil-based paints, or natural gas.

13. To reduce the risk of inhaling toxic vapors or dust, DO NOT vacuum or use near toxic

or hazardous materials.

14. DO NOT use without filter in place.

15. Disconnect battery pack before servicing vacuum.

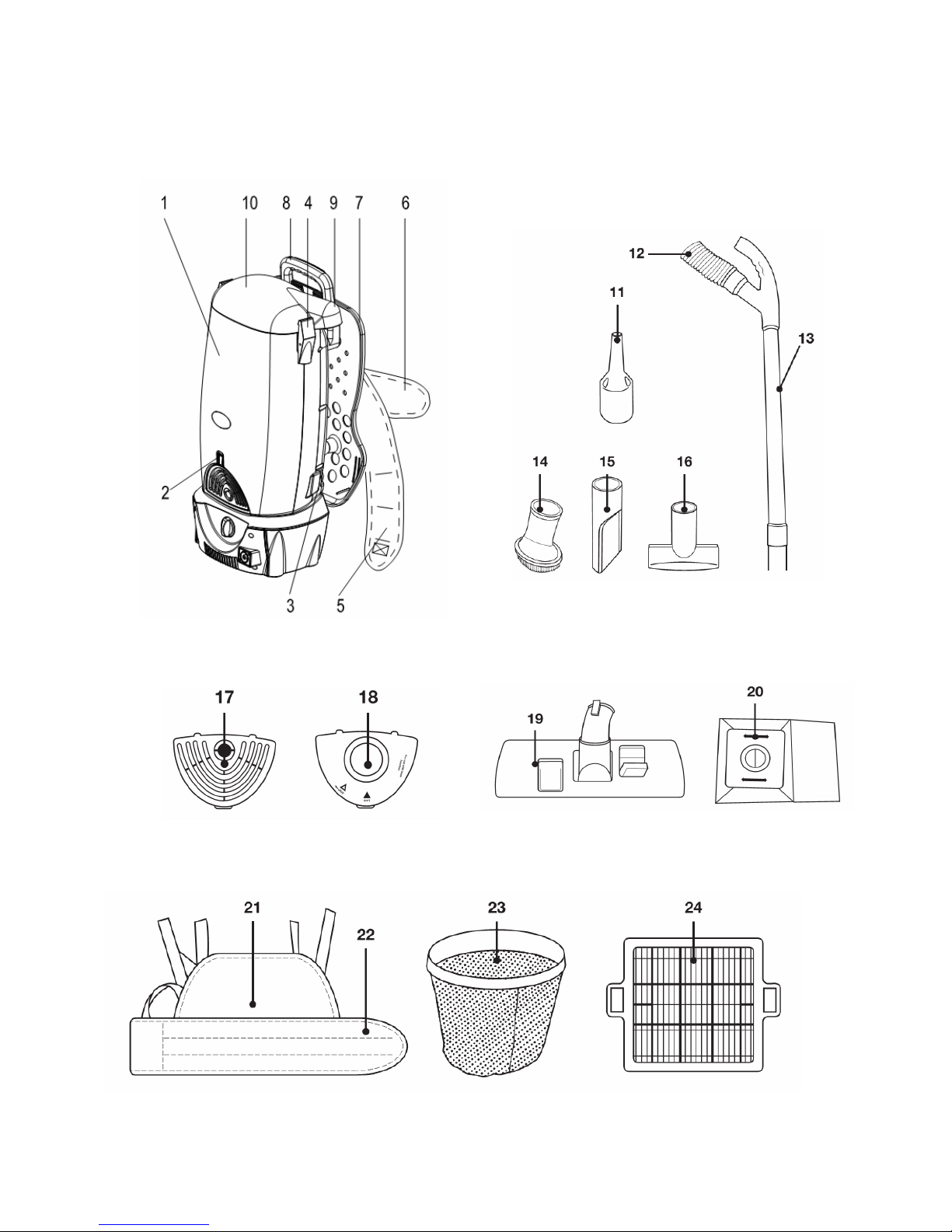

GETTING TO KNOW YOUR BATTERY POWERED BACK PACK VACUUM

1. Main Unit 14. Dusting Brush

2. Exhaust Grill Port 15. Crevice Tool

3. On/Off Power Switch 16. Pet Hair Remover

4. Canister Lid Tabs 17. Exhaust Grill

5. Waist Band 18. Blower Port

6. Shoulder Straps 19. Combination floor tool

7. Back Board Panel 20. HEPA Dust bag

8. Carry Handle 21. Waist Band Back Support Panel

9. Hose Inlet 22. Waist Band Tool Carrier

10. Canister Lid 23. Cloth Shakeout Bag

11. Blower Attachment 24. HEPA Pre-Motor Filter

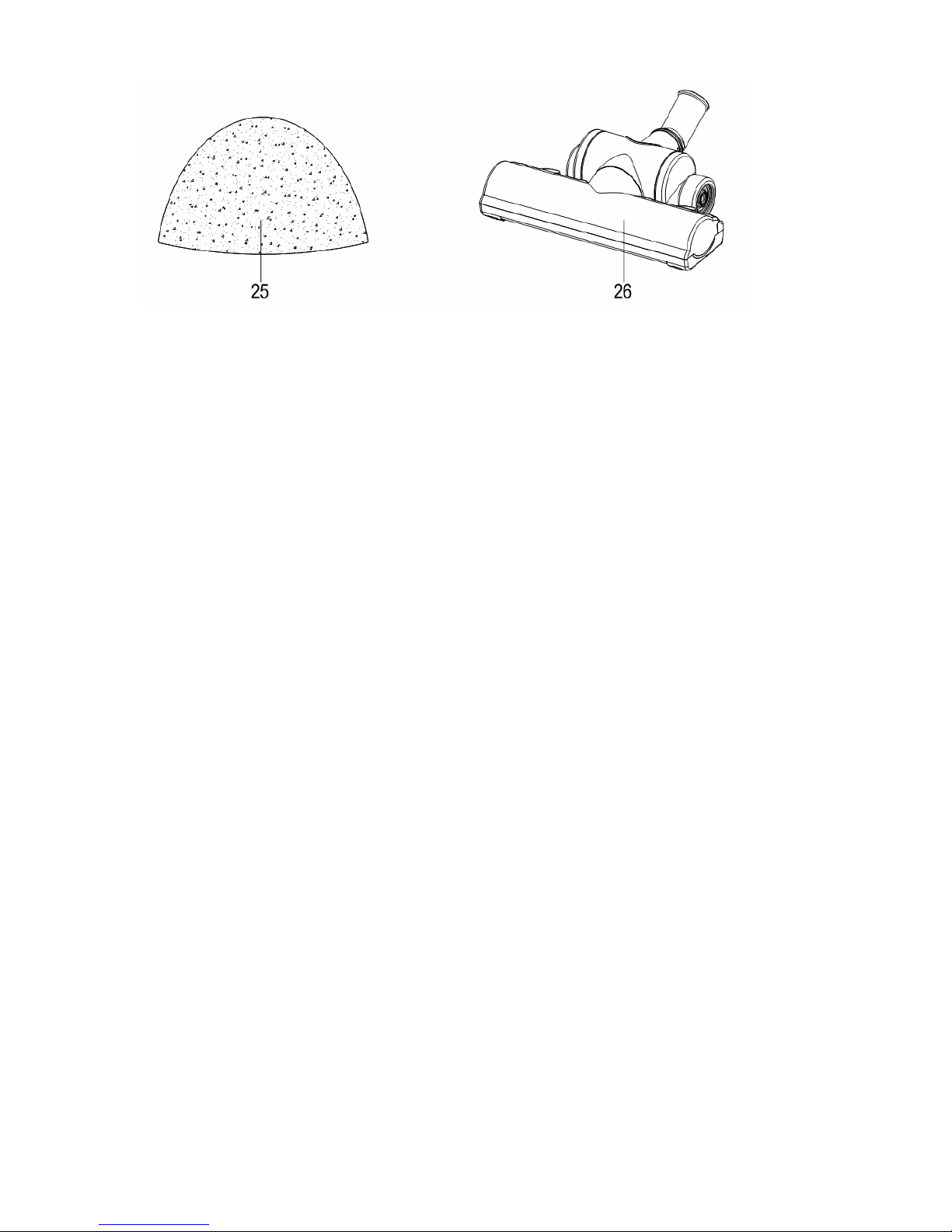

12. Flexible Hose 25. Exhaust Filter

13. Plastic Tube 26. Turbo Floor brush

Important: Do not use the vacuum without all filters, shake-out bag and with

HEPA dust bag in place. To replace HEPA filter bag:

1. Turn off power and remove the flexible hose.

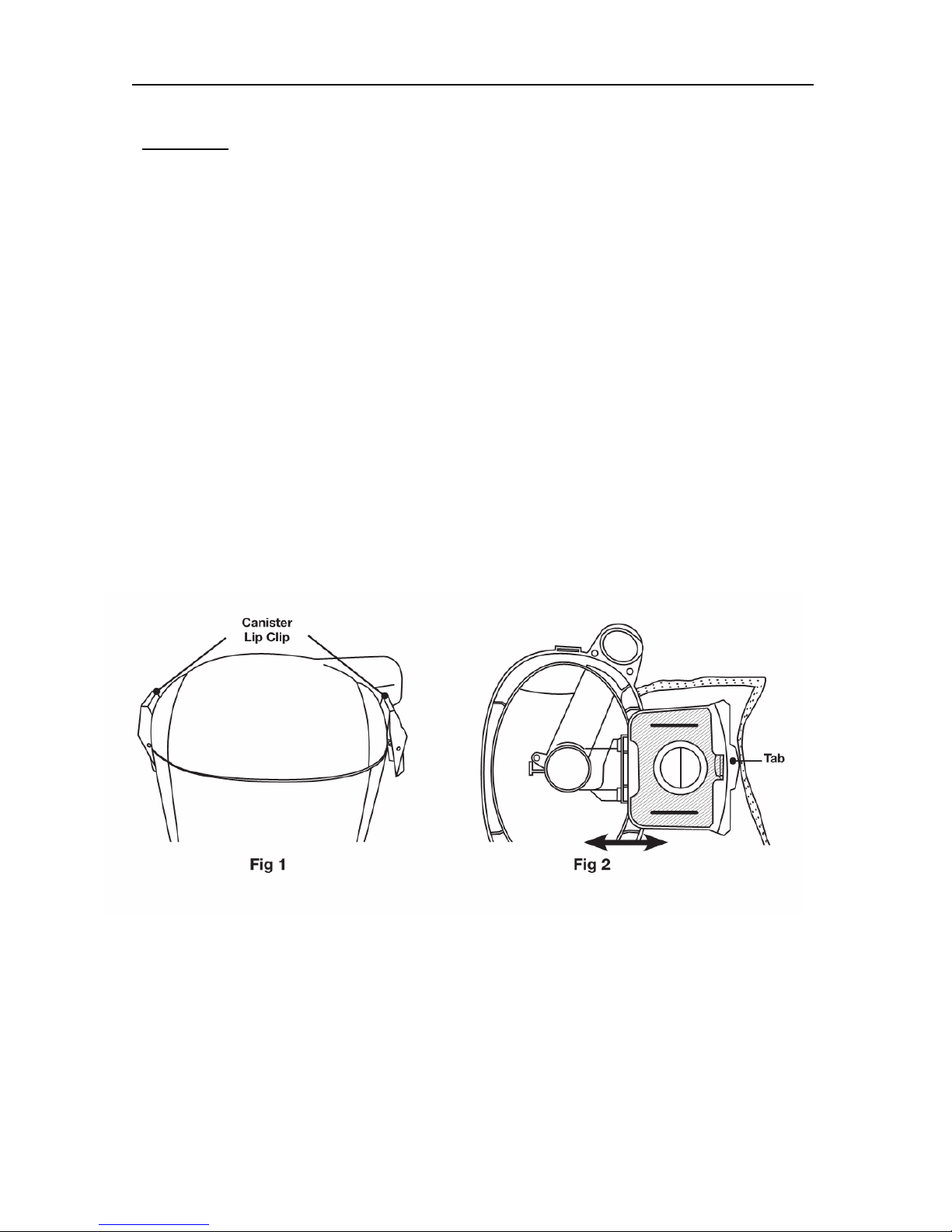

2. Open canister lid by lifting canister lid tabs on each side of the unit (Fig.1).

3. Pull the tab on the HEPA dust bag holder out slightly and flip upwards (Fig. 2).

4. Holding the HEPA dust bag in your hand, slide it firmly between the slots in the bag

holder (Fig. 2).

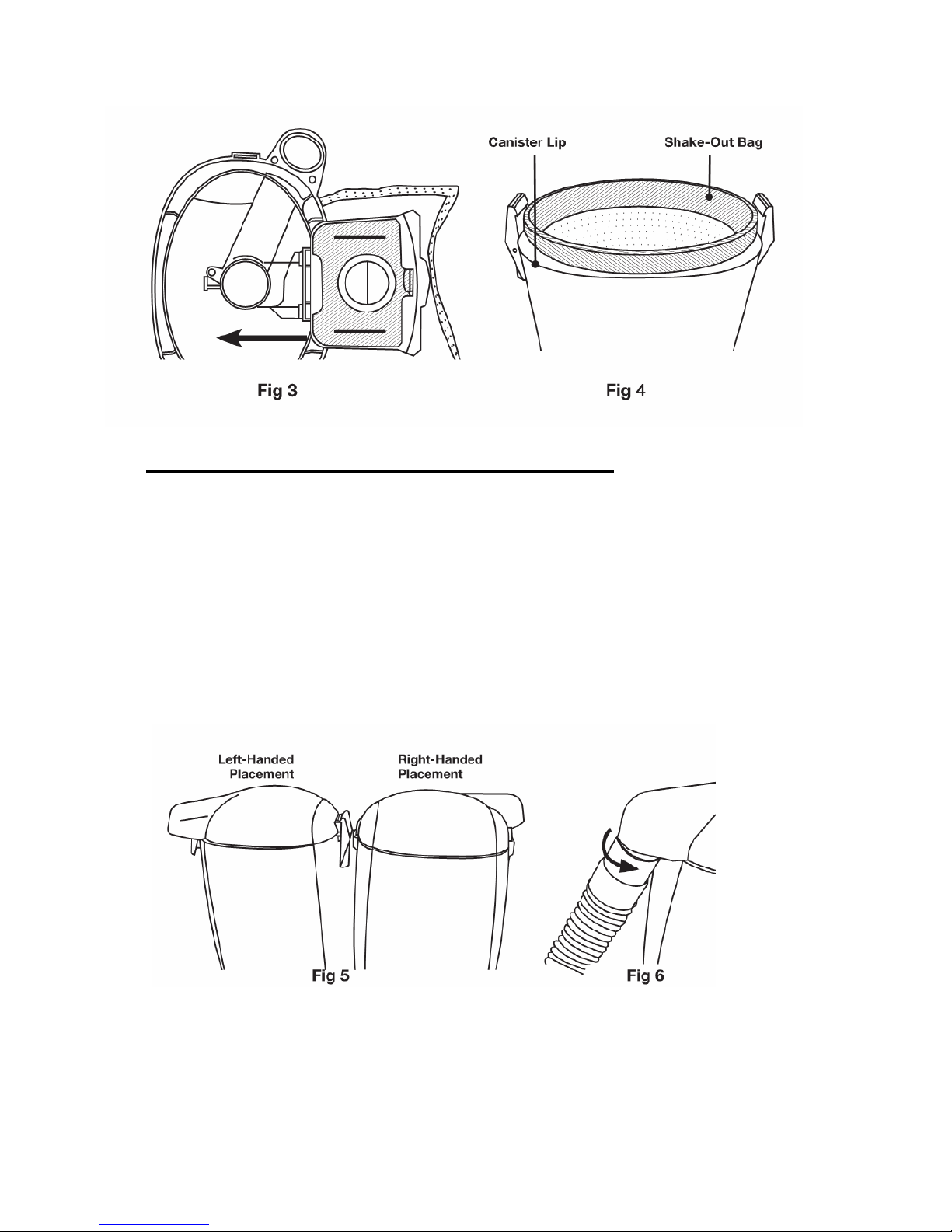

5. The cardboard face of the new bag should rest securely in the dust bag cover guide

(Fig. 3).

6. Ensure that the shake-out bag is in place (Fig. 4).

7. Flip the HEPA bag holder over, pressing the tab on the bag holder until it clicks.

8. The canister lid can be replaced on the unit with the hose opening on the right or left,

as per your preference (Fig. 5).

Operat ng Instruct ons

Attaching the Flexible hose to The vacuum

The flexible hose should be connected to the vacuum before strapping the unit on.

1. To connect the flexible hose into the hose inlet, insert the threaded end of the flexible

hose into the hose inlet and turn clockwise until it locks into place (Fig. 6).

2. Turn on the switch to operate the vacuum.

3. The hose and telescopic extension wand are press fit, along with all the accessories.

4. Step on the floor to carpet selector to adjust the height of the brushes. There are two

different heights- floor or carpet.

USING THE ATTACHMENTS

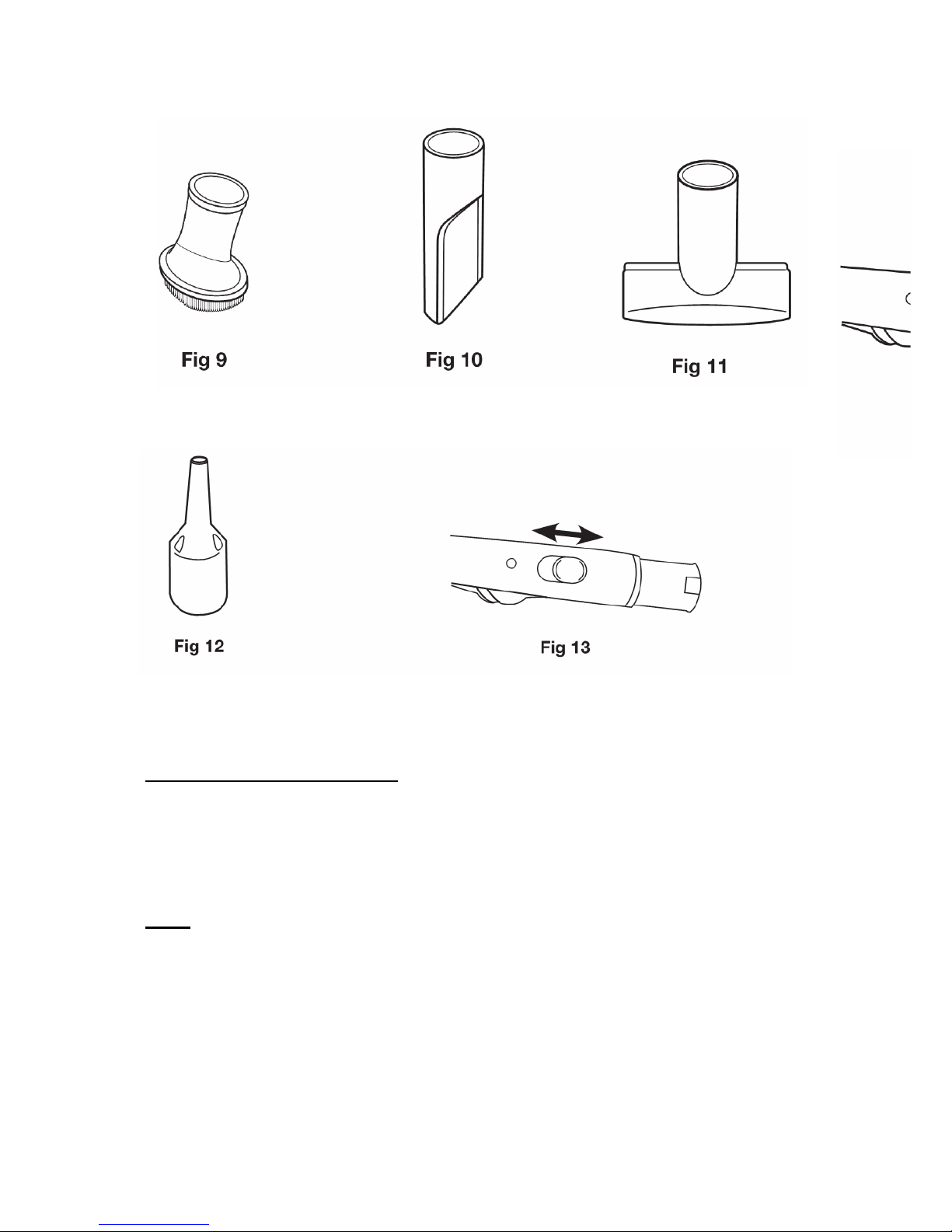

Dusting Brush

The dusting brush is used for furniture (Fig. 9).

Crevice Tool

Use for radiators, crevices, corners, baseboards and between cushions (Fig. 10).

Pet Hair Removal Brush

The pet hair removal brush is used on upholstery. The unique surface makes it an

excellent tool for removing unwanted pet hair (Fig. 11).

Note: This tool is not a grooming tool and should not be used on animals.

Caution: Do not use Pet Hair Removal Brush on delicate or woven fabrics that may

snag. Do not use Pet Hair Removal Brush on wooden floors as this accessory might

cause mild scratching.

Blower Attachments

The blower attachments can be used with the vacuum to pick up very fine dirt particles in

tight crevices or spots, or to Inflate inflatable items or air mattresses (Fig. 12).

Manual Suction Control

Your vacuum cleaner includes a manual variable suction control on the flexible hose

handle. The suction power can be adjusted by moving the suction regulator to the

desired position between open and Closed (Fig. 13).

Air Drive Turbo Brush

The efficiency of your air driven turbo brush depends on the bristle brush rotating at high

speed. Strong air suction is needed to accomplish this. In order to ensure that maximum

air suction is maintained, please read the following instructions:

1. Change the HEPA dust bag or empty the shake-out bag frequently.

2. Replace the pre-motor and exhaust filters as needed.

3. Ensure that the rotating brush is kept free of hair and string which may accumulate

and decrease brush performance.

4. To attach the air driven turbo brush, insert the telescopic tube into the air drive turbo

brush.

Using the Blower Attachments

The blower attachments are extremely useful for vacuuming in hard to reach crevices

and small compartments such as in cars.

Important Note: When blocking the air holes, grasp the blower attachment firmly so that

they do not blow off.

Note: Do not use blower function to clear dust off of fragile or delicate objects unless

they are secured or held firmly in place as the blower action is quite strong and could

cause damage. The blower attachments have air bleed holes. These air bleed holes

help relieve some air pressure so that the attachment does not blow off. However should

an increase in air pressure be desired simply cover one or more of the air bleed holes.

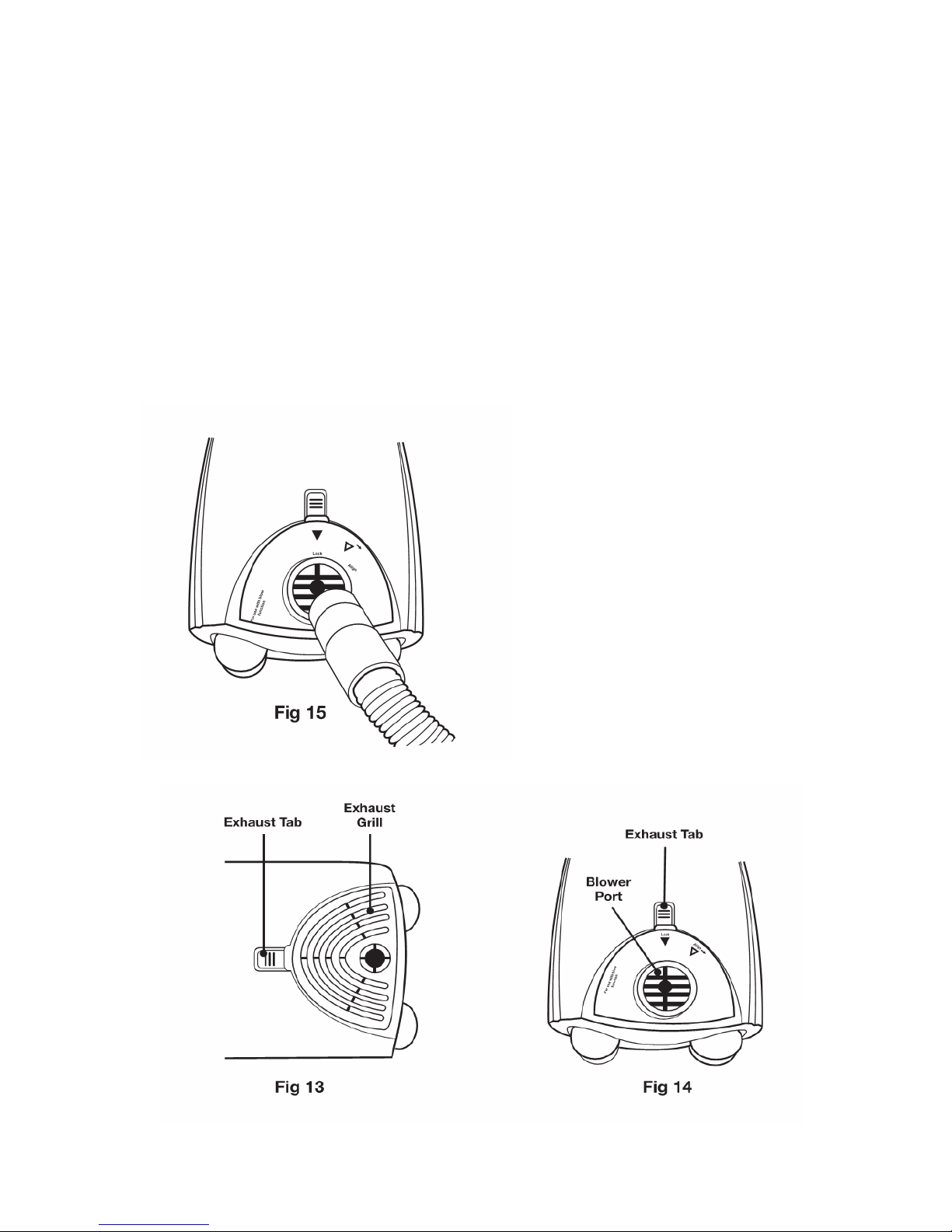

1．Pull up and hold the exhaust tab and with your free hand pull out the exhaust grill

(Fig.13).

2．Remove the exhaust filter.

3．To place the blower port into the exhaust outlet; align the lower tabs on the blower port

with the slots on the exhaust. Pull up on the exhaust tab and push the top of the blower

port until it snaps into place (Fig.14).

4. To attach the hose to the blower port, align the flexible hose and turn clockwise until it

stops. The hose is now securely in place (Fig.15).

5. To blow up inflatable items, select the appropriate size blower attachment that will fit

into the air valve (Fig.16).

6. Turn the unit on and hold the blower attachment and air valve while the vacuum

exhaust is pumping air into the inflatable.

7. To detach the flexible hose turn counter clockwise and pull out from blower port

Using Your Vacuum

1. Ensure the battery pack is assembled and locked in the vacuum

2. Connect hose and telescopic tube.

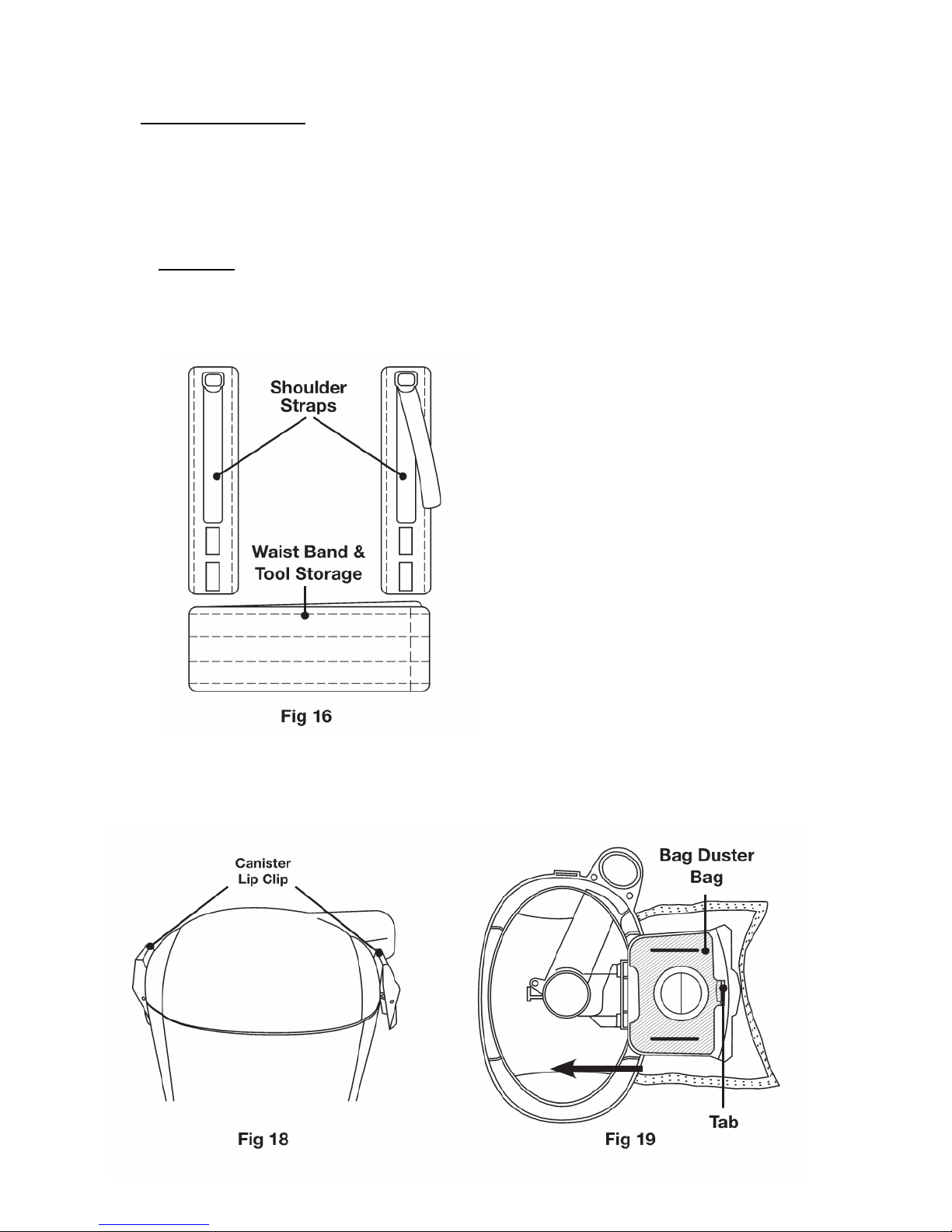

3. Correctly place shoulder straps on each shoulder and secure the waist band with hook

and loop strips (Fig.16).

Caution: If the waist band and both shoulder straps are not properly and securely in

place the unit could fall off your back causing damage or injury.

4. Turn the unit on by pressing the switch.

Warning: Never over-fill the HEPA dust bag – replace when bag is full and clean the

shake-out bag and filter each time the HEPA dust bag is replaced.
