Atlona AT-HDVS-150-TX-WP Manual técnico

Atlona Technical Support: +1 877.536.3976 option 1

Update Instructions

AT-HDVS-150-TX-WP

The following procedure is used for updating the rmware for the AT-HDVS-150-TX-WP. This process applies to both

the AT-HDVS-150-TX-WP-US and AT-HDVS-150-TX-WP-UK models.

Requirements

• AT-HDVS-150-TX-WP-US or AT-HDVS-150-TX-WP-UK

• Firmware le: AT-HDVS-150-TX_[version].bin

• USB Type A to Mini-USB Type B cable

• Computer with USB port

1. Download the latest rmware from the Atlona web site.

2. Remove the AT-HDVS-150-TX-WP from the wall, or other surface, by removing the four screws from the front of

the wall plate.

3. Disconnect the power to the AT-HDVS-150-TX-WP by disconnecting the Ethernet cable from the HDBaseT OUT

port on the AT-HDVS-150-TX-WP.

4. Remove the faceplate from the front of the AT-HDVS-150-TX-WP, by unscrewing the two locking connectors for

the VGA IN port and the locking connector for the HDMI IN port, using a small hex driver or pliers.

LINK

HDMI IN

VGA IN AUDIO IN

DISPLAY

ON/OFF

INPUT

SELECT

Atlona Technical Support: +1 877.536.3976 option 1

Update Instructions

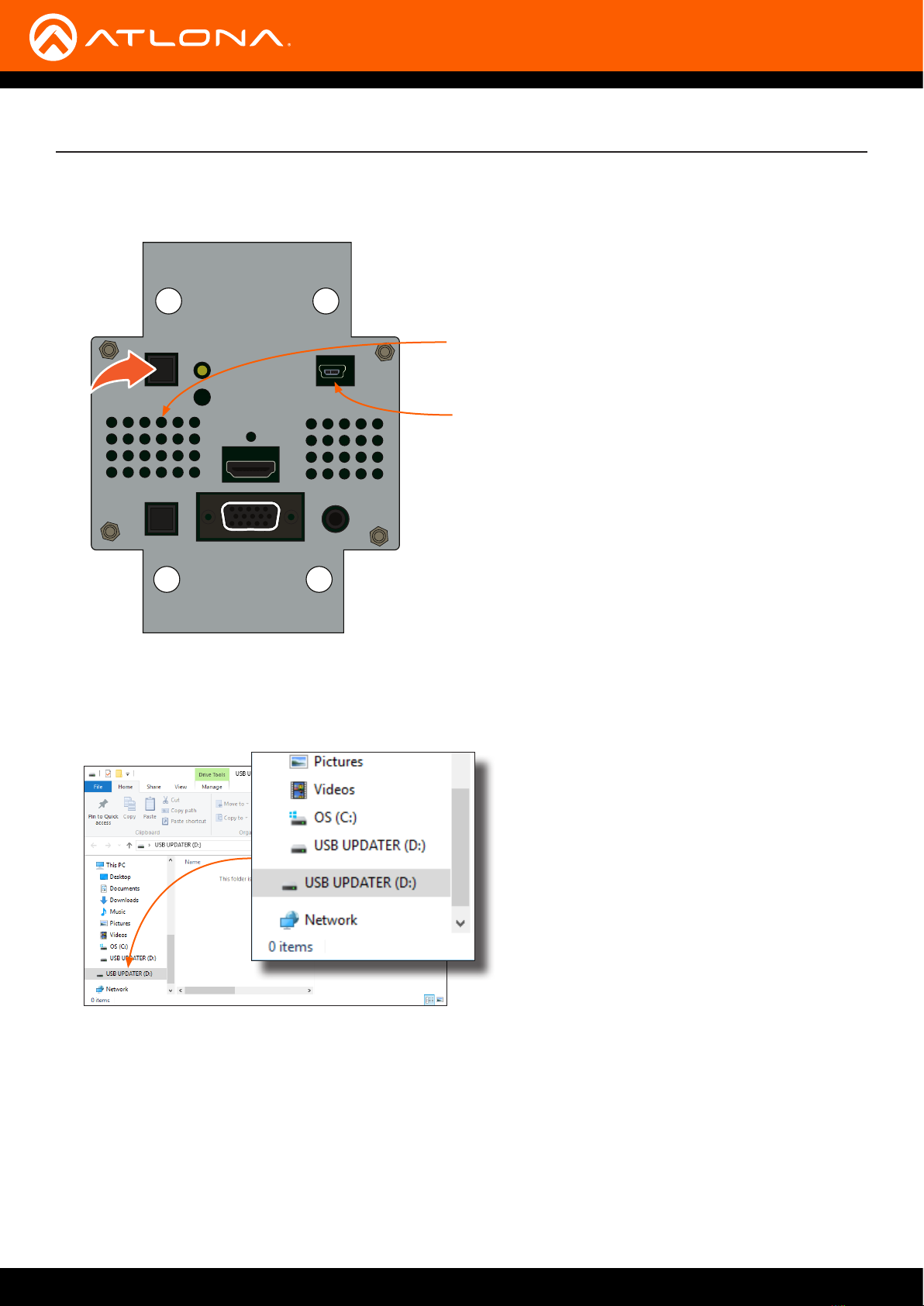

5. Press and hold the DISPLAY ON/OFF button, while connecting the USB cable from the computer to the mini-

USB port on the AT-HDVS-150-TX-WP.

6. After a few seconds, a folder with the name USB UPDATER, will be displayed. Release the DISPLAY ON/OFF

button.

If the folder is not displayed, open Windows Explorer and locate the drive named USB UPDATER.

7. Delete all les from the USB drive, if any are present.

8. Drag-and-drop the AT-HDVS-150-TX_[version].bin rmware le to the drive.

9. After the le has been copied, disconnect the USB cable from both the computer and the AT-HDVS-150-TX-WP.

10. Reconnect the Ethernet cable to the HDBaseT OUT port on the AT-HDVS-150-TX-WP.

11. The rmware update process is complete.

12. Attach the faceplate then reinstall the AT-HDVS-150-TX-WP.

mini-USB port

DISPLAY ON/OFF button
