AtlonA

4 x 4 HDMI V1.3 Matrix Switcher

AT-HD-V44M

User Manual

TABLE OF CONTENTS

1. Introduction .................................................. 1

2. Application .................................................. 1

3. Package Contents .................................................. 1

4. System Requirement .................................................. 1

5. Features .................................................. 2

6. Installation .................................................. 3

7. Front View .................................................. 4

8. Remote Control .................................................. 5

9. RS-232 Protocol .................................................. 5

9.1 Commands .................................................. 6

10. Connection and Installation .................................................. 7

11. Specications .................................................. 8

12. Safety Information .................................................. 9

13. Warranty .................................................. 10

Introduction

Thank you for purchasing Atlona’s 4 x 4 HDMI V1.3 Matrix Switcher. While HDMI products

are getting more and more popular in the market people usually have more than one HDMI de-

vices and sources in one place. The AT-HD-V44M provides the excellent solution for connecting

all the devices and sources together for your convenience use, it also provides you a variety

of choices of where to play your images with remote controller. Further, the AT-HD-V44M can

transfer Deep Color video and bit stream digital audio with maximum performance and it sup-

ports HDMI 1.3, HDCP 1.1 and DVI 1.0.

Please follow this manual to begin enjoying the benet of your Atlona HDMI 1.3 Matrix Switch-

er. We suggest keeping it in a safe place for future reference.

Application

Package Contents

System requirement

• High performance Atlona HDMI 1.3 Matrix Switcher with 4 (four) input and 4 (four) output with

remote control for you to link with your favor HDMI devices to enjoy movies, music, or games at

once.

• Each of the four HDMI sources can be directed to any two of HDMI displays and or to all of the

HDMI display.

• When HDMI signal progresses through the system, it is re-timed, and level-compensated.

• Dene HDCP, HDMI and DVI source. The LED light will light up to dene the input source’s

format.

• Switchable EDID function for choosing the native resolution to display.

• 4 by 4 V1.3 HDMI Matrix Unit. (AT-HD-V44M)

• Remote Control (with Battery)

• IR Receiver

• Power Cord

• 5V DC power supply adaptor.

• Operation Manual.

HDMI input device(s) and HDMI output device(s).

Features

• HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant.

• Supports digital video formats in Deep Color 12bit and new lossless compressed (Dolby True-

HD, Dolby Digital Plus and DTS-HD Master Audio) digital audio.

• The HDMI input is compensated, clock / phase adjusted, and jitter eliminated so the output is

a brand new standard HDMI signal.

• Supports input source LED indicators on each output select.

• Compatible with all HDMI sources and displays.

• Supports a wide range of PC and HDTV resolutions from VGA to UXGA and 480i to 1080p.

• Supports RS-232 control.

• Supports IR remote control and IR extender.

• Dolby Digital, DTS digital audio transmission (32-192 kHz Fs sample rate).

• Supports LPCM7.1 channels output from each independent HDMI ports.

• HDMI cable distance test with 1080p/8bit resolution, the Input/Output source can run up to

15/15 meters. If 1080p/12bit the Input/Output source can run up to 15/6 meters.

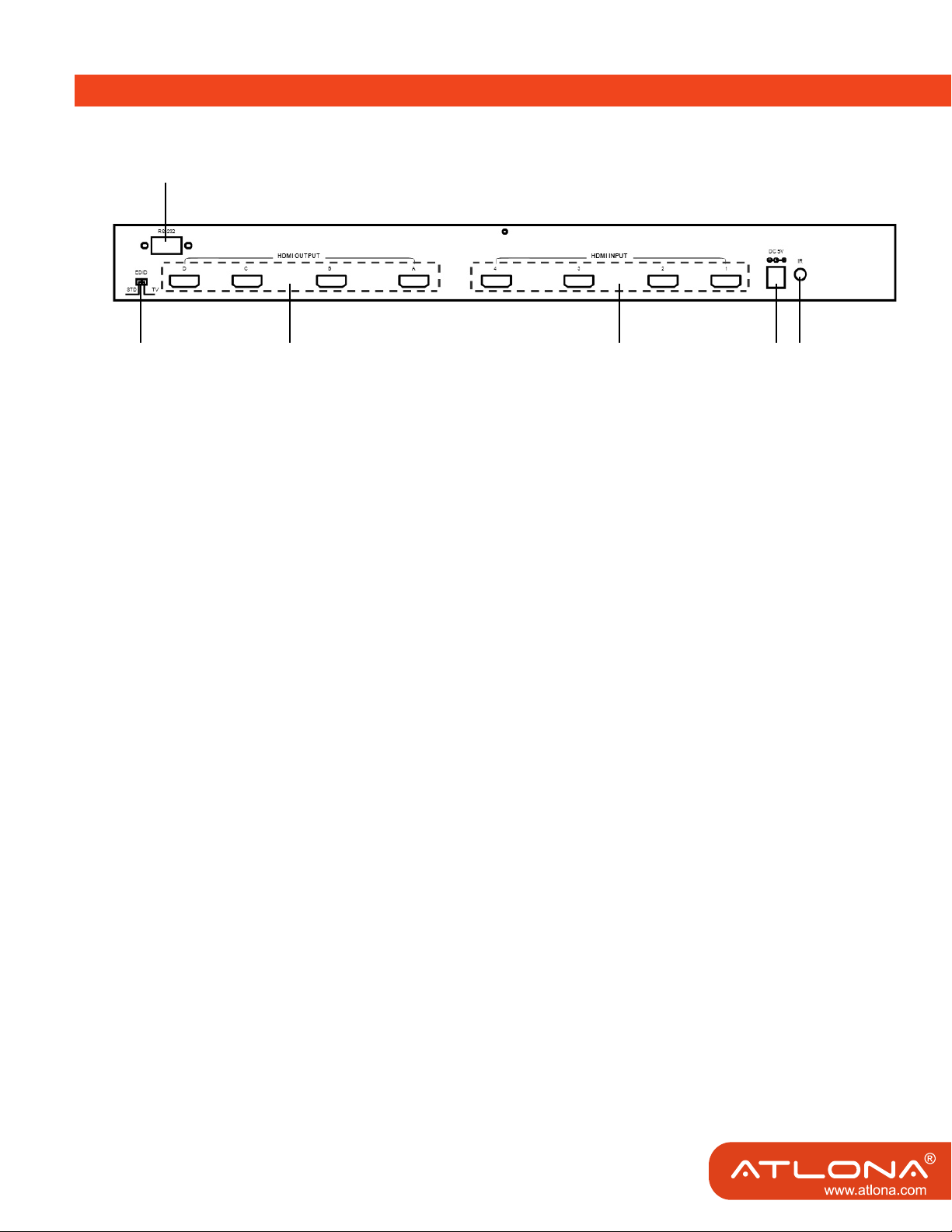

Installation

2 3

1 EDID Control Switcher: Default factory setting is TV, leave as it is when the displays are

working properly. Switch to STD to use build-in EDID Detail capability in Note.

2 RS-232 communication port: Connect the COM port of your PC for the distant control over

RS-232 channel. Detail specication in section 9.

3 HDMI outputs: Connect each of these output ports to the HDMI display(s).

4 HDMI inputs: Connect input ports to the HDMI or DVI output of your source equipment such as

DVD player or set-top-box.

5 Power: Plug the 5VDC power supply into the unit and connect the adaptor to AC wall outlet.

6 IR extender.

Note:

1. EDID Control Switch: STD(INT) and TV(EXT), Default setting is TV

2. When EDID is on TV: Leave as it is if display is properly, unit will detect the rst HDMI output

source’s EDID and record in the unit. If the rst detected output source is DVI it will pass to next

source, until the rst HDMI been detected. The detection priority is HDMI v1.3 > HDMI v1.2 >

DVI.

3. When EDID is on STD: unit use build-in EDID Video Support->1080p 12bit(max) Audio Sup-

port->PCM2

4. Your EDID selection will only activate when the unit is replugged and powered on.

1 3 4 5 6

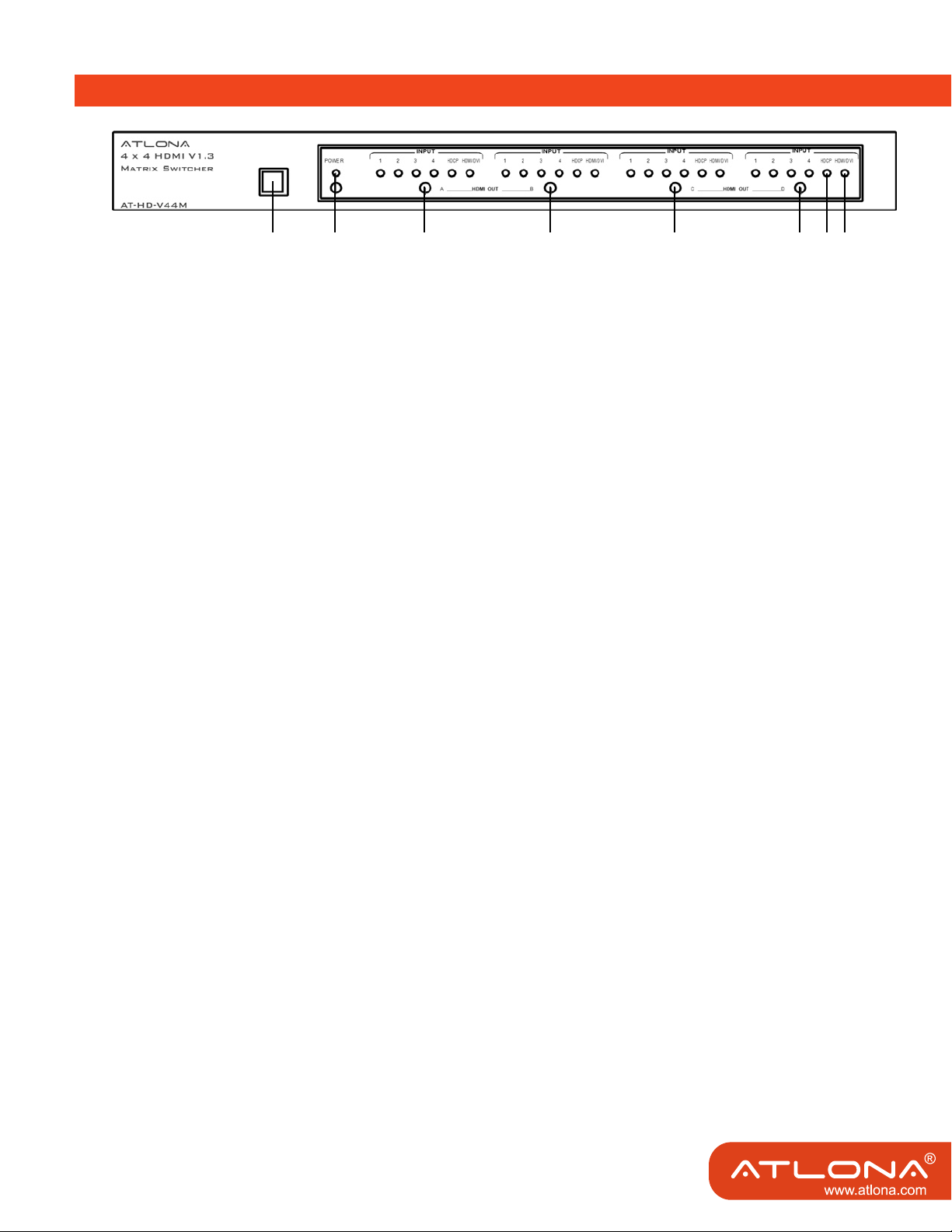

Front View

1 Remote control sensor.

2 Power switch & LED Indicator: The LED will illuminate when the power is turned on.

3 Input Select/Indicators (A): Press the HDMI out “A” button repeatedly to switch to your desired

source and the LED will illuminate to indicate which input source is being selected and routed

to HDMI A output. When an HDMI or DVI source is connected the LED light labeled “HDMI/

DVI” will activate. If the source is HDCP encrypted, the LED light labeled “HDCP” will acti-

vate.

4 Input Select/Indicators (B): Press the HDMI out “B” button repeatedly to switch to your desired

source and the LED will illuminate to indicate which input source is being selected and routed

to HDMI B output. When an HDMI or DVI source is connected the LED light labeled “HDMI/

DVI” will activate. If the source is HDCP encrypted, the LED light labeled “HDCP” will acti-

vate.

5 Input Select/Indicators (C): Press the HDMI out “C” button repeatedly to switch to your desired

source and the LED will illuminate to indicate which input source is being selected and routed

to HDMI C output. When an HDMI or DVI source is connected the LED light labeled “HDMI/

DVI” will activate. If the source is HDCP encrypted, the LED light labeled “HDCP” will acti-

vate.

6 Input Select/Indicators (D): Press the HDMI out “D” button repeatedly to switch to your desired

source and the LED will illuminate to indicate which input source is being selected and routed

to HDMI D output. When an HDMI or DVI source is connected the LED light labeled “HDMI/

DVI” will activate. If the source is HDCP encrypted, the LED light labeled “HDCP” will acti-

vate.

7 HDCP Source light: When the input source(s) have HDCP, unit will detect the code and send

to output source(s).

8 HDMI/DVI Source light: When the input source(s) is HDMI format, the LED light will light up.

21 3 4 5 6 7 8

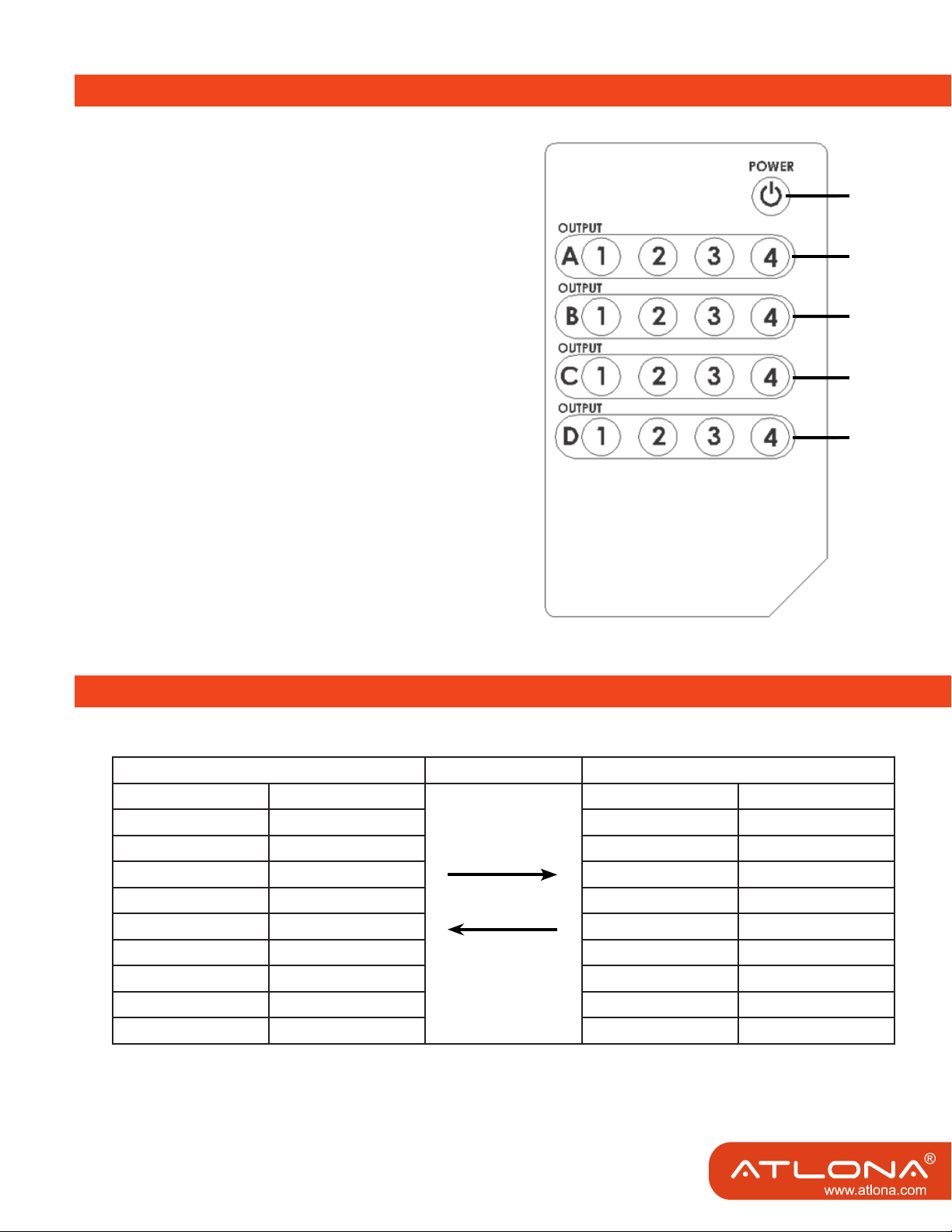

Remote Control

RS-232 Protocol

4 5

1. Power: Press the button to turn on/off the unit.

2. Input Select for HDMI OUT A:

Press 1, 2, 3 or 4 to select the desired input

source for HDMI OUT A.

3. Input Select for HDMI OUT B:

Press 1, 2, 3 or 4 to select the desired input

source for HDMI OUT B.

4. Input Select for HDMI OUT C:

Press 1, 2, 3 or 4 to select the desired input

source for HDMI OUT C.

5. Input Select for HDMI OUT D:

Press 1, 2, 3 or 4 to select the desired input

source for HDMI OUT D.

Pin Denition

AT-HD-V44M Remote Control Console

PIN Denition PIN Denition

1NC 1NC

2 Tx 2 Rx

3 Rx 3 Tx

4NC 4NC

5GND 5GND

6NC 6NC

7NC 7NC

8NC 8NC

9NC 9NC

Commands

COMMAND ACTION

POWER 00 Power Off (standby)

POWER 01 Power On

PORT 11 Output A select Input1

PORT 12 Output A select Input2

PORT 13 Output A select Input3

PORT 14 Output A select Input4

PORT 21 Output B select Input1

PORT 22 Output B select Input2

PORT 23 Output B select Input3

PORT 24 Output B select Input4

PORT 31 Output C select Input1

PORT 32 Output C select Input2

PORT 33 Output C select Input3

PORT 34 Output C select Input4

PORT 41 Output D select Input1

PORT 42 Output D select Input2

PORT 43 Output D select Input3

PORT 44 Output D select Input4

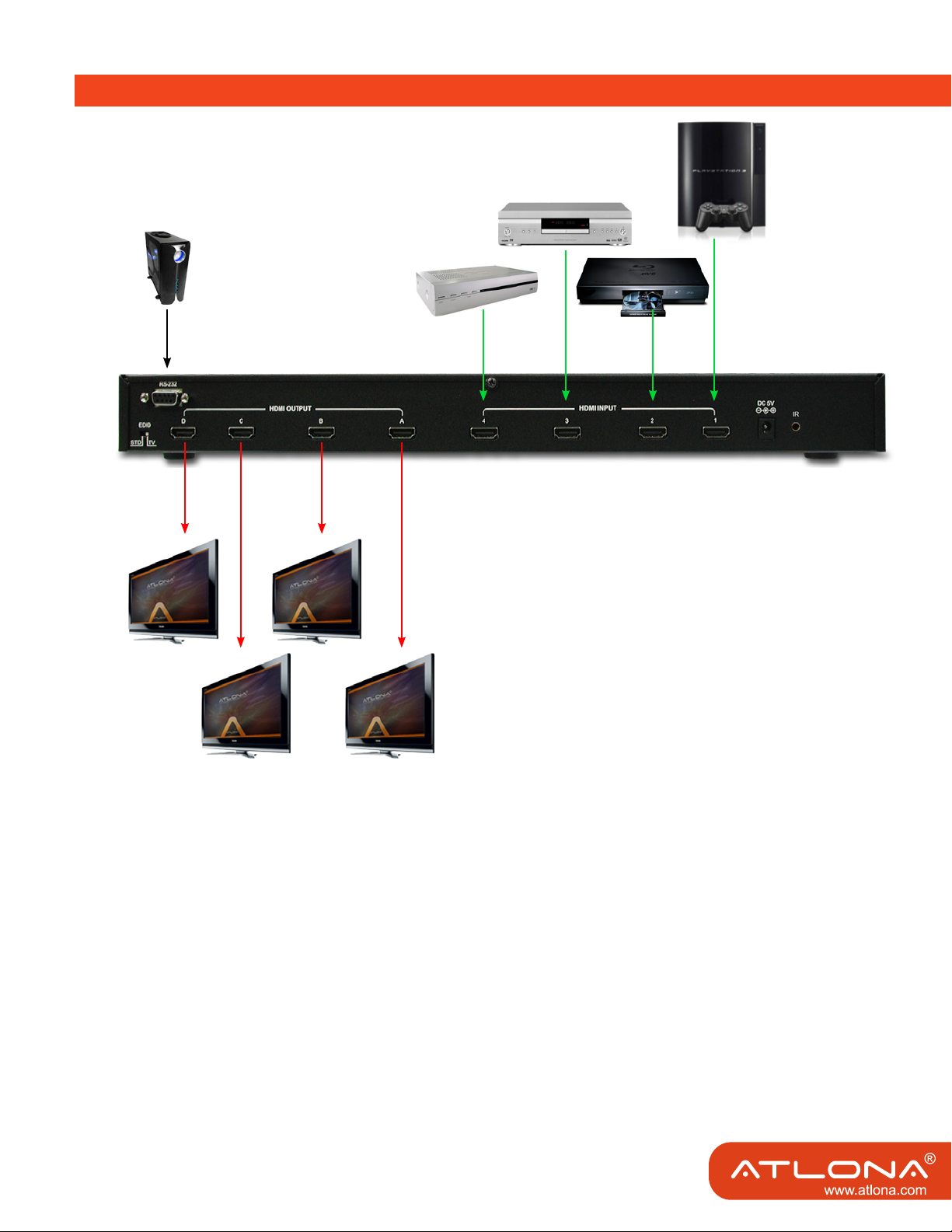

Connection and Installation

6 7

HD TV HD TV

STB DVD

Blu-ray

RS-232

computer control port

PS3

HD TV HD TV

Specifications

Frequency bandwidth 2.25Gbps (single link)

Input ports 4 x HDMI female ports

Output ports 4 x HDMI female ports

EDID Standard, TV/Moving Port 1

HDMI Audio output PCM2, PCM5.1, PCM7.1, Dolby5.1, DTS5.1, DD+, D- TrueHD, DTS-

HDMI Cable in 1080p 8bit (15M), 1080p 12bit (15M)

HDMI Cable out 1080p 8bit (15M), 1080p 12bit (6M)

Color Space RGB_24/36,YCbCr 4:4:4_24/36, YCbCr 4:2:2,xvycc

IR Yes

Deep Color 1080p 12bit

HDMI Resolution 480I~1080p 50/60, 1080p 24, VGA~UXGA

DVI Resolution 480I~1080p 50/60, 1080p 24, VGA~UXGA

Power Supply 5VDC/5A (US/EU standards, CE/FCC/UL certied)

Dimensions (mm) 438(W) x 175(D) x 49(H)

Weight(g) 3100

Chassis Material Metal

Silk Skin Color Black

Operating Temperature Operating from 0°C ~ 40°C

Power Consumption 16.5W(Max)
