AtlonA

Miniature Multimode Fiber Optic DVI

Extension System

AT-DVIF20SR

User Manual

TABLE OF CONTENTS

1. Introduction .................................................. 1

2. Features .................................................. 1

3. Package Contents .................................................. 1

4. Specication .................................................. 2

5. Operation .................................................. 2

6. Connection Diagram .................................................. 3

7. Safety Information .................................................. 4

8. Warranty .................................................. 5

9. Atlona Product Registration .................................................. 6

INTRODUCTION

Atlona Technologies’ new Mini DVI, model AT-DVIF20SR, (Sender and Receiver) is a low cost

Fiber Optic HDMI extender. These extremely small form factor, UL/CE approved units will carry

DVI video signal and HDCP/DDC information through a single multimode ber allowing any

HD source to extend signal up to 400m (1320FT) at WUXGA (1920x120 @ 60Hz) or HDTV

resolutions 1080p/1080i/720p. These balun units are equipped with advanced digital ber optic

technology allowing for self adjustment with no compression, bit reduction, or signal degrada-

tion. Multiple signals can be run in a single conduit without crosstalk. These units support 12-bit

color depth and have an 8dB input equalizer, which compensates losses over 5m (16ft.). ESD

Protection on all I/O interfaces has been added to ensure quality assurance. With no power

cord needed, quick and easy set up is as simple as plug and play.

• DVI 1.0 Compliant

• Supported resolutions at 400M ( 1320FT )

PC : 1920x1200 (60Hz)

HDTV: 1080p/1080i/720p

• Supports HDCP/DDC Content

• No loses, no degradations, no crosstalk

• One Multimode ( SC type ) Fiber

• 12-bit color depth and 8dB equalizer

• MAC/PC compatible

• High secure signal transfer

• AT-DVIF20S x 1

• AT-DVIF20R x 1

• Operation Manual x 1

FEATURES:

PACKAGE CONTENTS:

SPECIFICATIONS:

OPERATION:

Video

Resolution Up to 1080p @ 60Hz or

1920x1200 @ 60Hz

Connector DVI Male Plug

Protocol DDC Capable

Optical

Fiber Type Multimode

Number of Fibers 1

Connector SC

Physical

Dimension (H x W x D) 0.70” x 1.58” x 3.31”

Power Level (max.) +5VDC @ 1.0A

Operating Temperature 0 to +50oC

Humidity 0 to 95% RH,

non-condensing

1. Make sure, if plugged into a source, the power is off before proceeding with the ber optic

installation.

2. Connect (SC type) Multimode ber from Sender unit to Receiver by connecting one unit’s

ber optical port to the others.

3.Connect the AT-DVIF20SR (Transmitter) DVI video input to the DVI video source.

4. Next, connect the AT-DVIF20SR (Receiver) DVI video output directly to the DVI video receiv-

er.

2 3

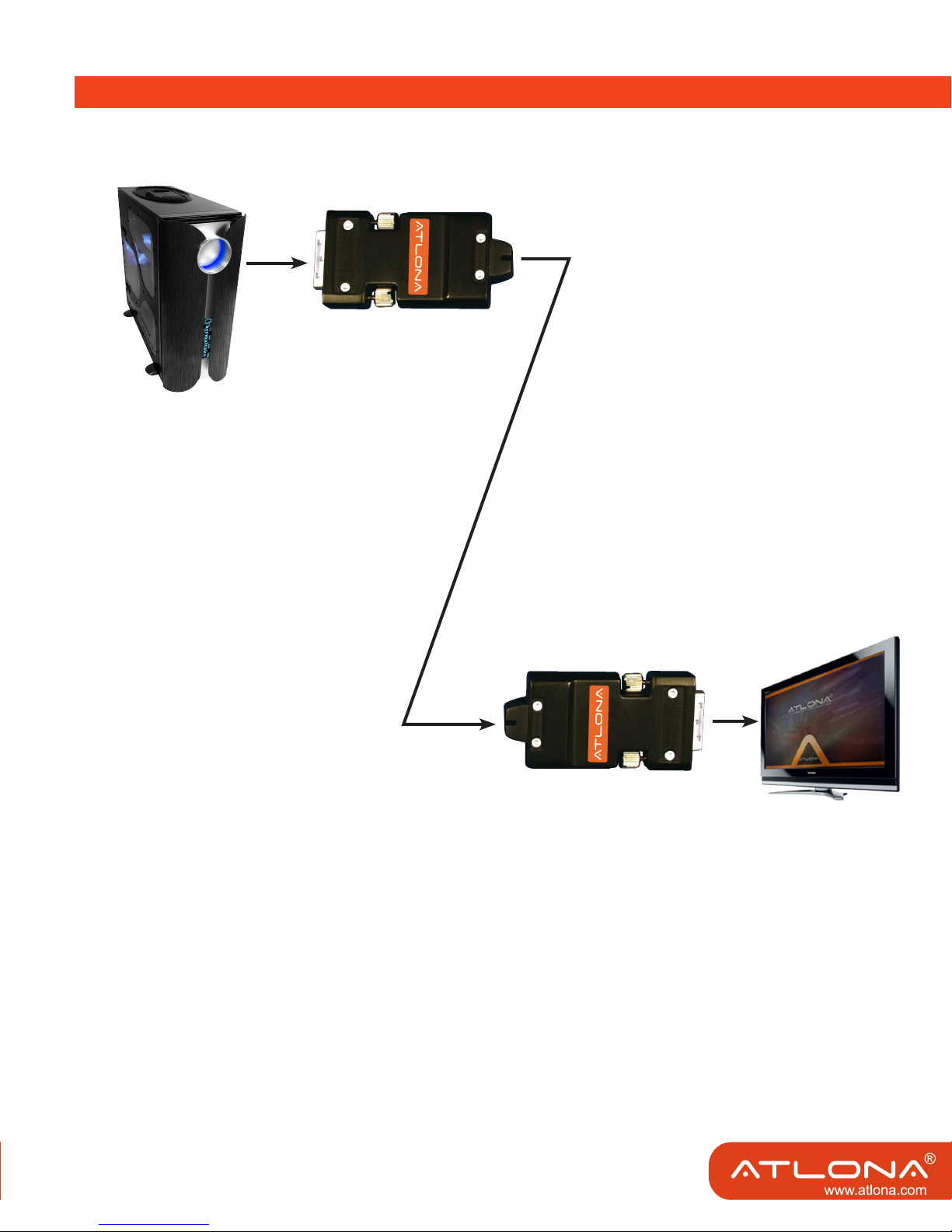

CONNECTION DIAGRAM

ber optics line

( up to 400M )

AT-HDF20R

DVI source

(with DDC)

DVI output

(with DDC)

AT-DVIF20S

SAFETY INFORMATION

Safeguards

To reduce the risk of electric shock, do not

expose this product to rain or moisture.

If the wall plug does not t into your local

power socket, hire an electrician to replace

your obsolete socket.

Do not modify the wall plug.

Doing so will void the warranty and safety

features.

This equipment should be installed near

the socket outlet and the device should

be easily accessible in case it requires

disconnection.

Precautions

FCC Regulations state that any

unauthorized changes or modications to

this equipment not expressly approved by

the manufacturer could void the

user’s authority to operate this

equipment.

Operate this product using only the

included external power supply. Use of

other power supplies could impair

performance, damage the product or cause

res.

In the event of an electrostatic discharge,

this device may automatically turn off. If this

occurs, unplug the device, and plug it back

in.

Protect and route power cords so they will

not be stepped on or pinched by anything

placed on or against them. Be especially

careful of plug-ins, or cord exit points from

this product.

Avoid excessive humidity, sudden

temperature changes or temperature

extremes.

Keep this product away from wet locations

such as bathtubs, sinks, laundries, wet

basements and swimming pools.

Use only accessories recommended by

ATLONA to avoid re, shock or other

hazards.

Unplug the product before cleaning. Use

a damp cloth for cleaning. Do not use

cleaning uid or aerosols, which could

enter the unit and cause damage, re or

electrical shock. Some substances may

also mar the nish of the product.

Never open or remove unit panels or make

any adjustments not described in this

manual. Attempting to do so could expose

you to dangerous electrical shock or other

hazards. It may also cause damage to your

AT-DVIF20SR. Opening the product will

void the warranty.

Do not attempt to service the unit. Instead

disconnect it and contact your Authorized

ATLONA reseller or contact ATLONA

directly.

SAFETY INFORMATION

WARRANTY

1. LIMITED WARRANTY

Atlona Technologies warrants that (a) its products (the “Product”) will perform substantially in accordance with the

accompanying written materials for a period of 3 YEARS from the date of receipt and (b) that the Product will be

free from defects in materials and workmanship under normal use and service for a period of 3 years. In the event

applicable law imposes any implied warranties, the implied warranty period is limited to 3 years from the date of

receipt. Some jurisdictions do not allow such limitations on duration of an implied warranty, so the above limitation

may not apply to Customer.

2. CUSTOMER REMEDIES

Atlona Technologies and its suppliers’ entire liability and Customer’s exclusive remedy shall be, at Atlona Technolo-

gies’ option, either return of the price paid for the Product, or repair or replacement of the Product that does not meet

this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited

Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication. Any replacement Prod-

uct will be warranted for the remainder of the original warranty period or 3 year, whichever is longer.

3. NO OTHER WARRANTIES

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, ATLONA TECHNOLOGIES AND ITS SUPPLI-

ERS DISCLAIM ALL OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED

TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH

REGARD TO THE PRODUCT AND ANY RELATED WRITTEN MATERIALS. THIS LIMITED WARRANTY GIVES

CUSTOMER SPECIFIC LEGAL RIGHTS. CUSTOMER MAY HAVE OTHER RIGHTS DEPENDING ON THE JU-

RISDICTION.

4. NO LIABILITY FOR DAMAGES

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL ATLONA TECHNOLO-

GIES OR ITS SUPPLIERS BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING WITHOUT LIMITA-

TION, SPECIAL, INCIDENTAL, CONSEQUENTIAL, OR INDIRECT DAMAGES FOR PERSONAL INJURY, LOSS

OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER

PECUNIARY LOSS) ARISING OUT OF THE USE OF OR INABILITY TO USE THIS PRODUCT, EVEN IF ATLONA

TECHNOLOGIES HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN ANY CASE, ATLONA

TECHNOLOGIES’ AND ITS SUPPLIERS’ ENTIRE LIABILITY UNDER ANY PROVISION OF THIS AGREEMENT

SHALL BE LIMITED TO THE AMOUNT ACTUALLY PAID BY YOU FOR THE PRODUCT. BECAUSE SOME JU-

RISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR

INCIDENTAL DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

ATLONA

2151 O’toole Ave, Ste D

San Jose CA 95131

Toll Free: 1-877-536-3976

International: 408-954-8782

FAX: 408-954-8792

Website: www.atlona.com

E-MAIL: [email protected]

ATLONA PRODUCT REGISTRATION

Thank you for purchasing this Atlona product — we hope you’ll enjoy it.

We also hope that you’ll take a few moments to register your new purchase. Registration creates an ownership

record if your product is lost or stolen and helps ensure you’ll receive notication of performance issues and rm-

ware updates.

At Atlona, we respect and protect your privacy and assure you that your registration information is completely

secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited

warranty rights.

To register go to www.atlona.com/registration
